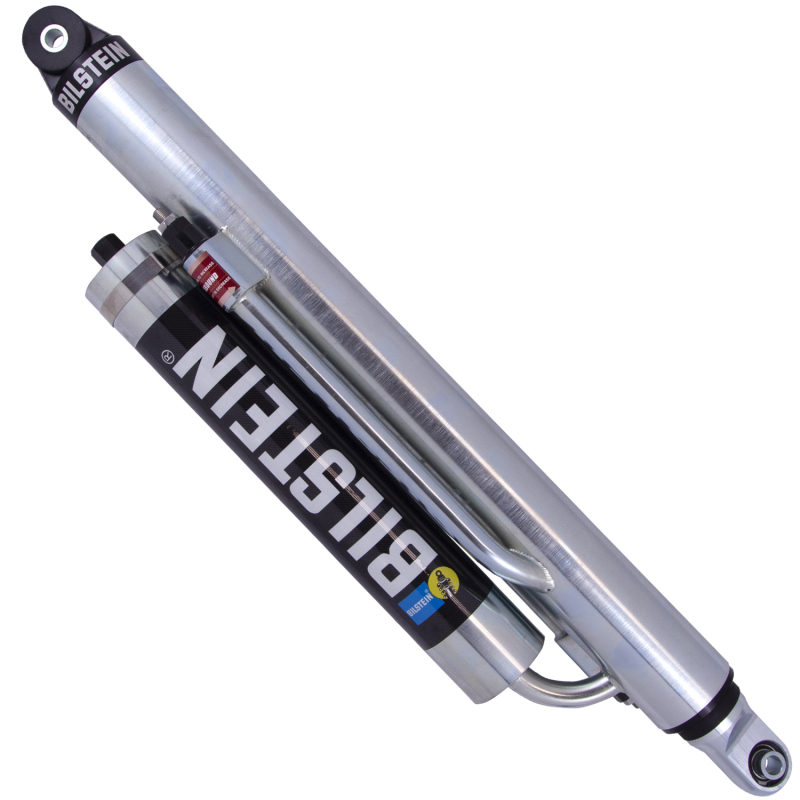

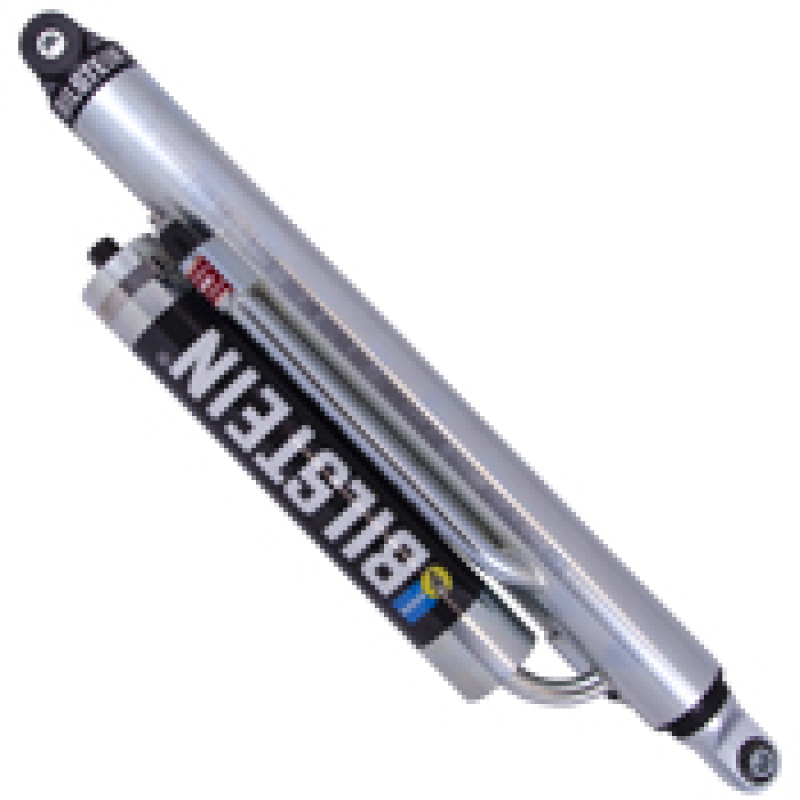

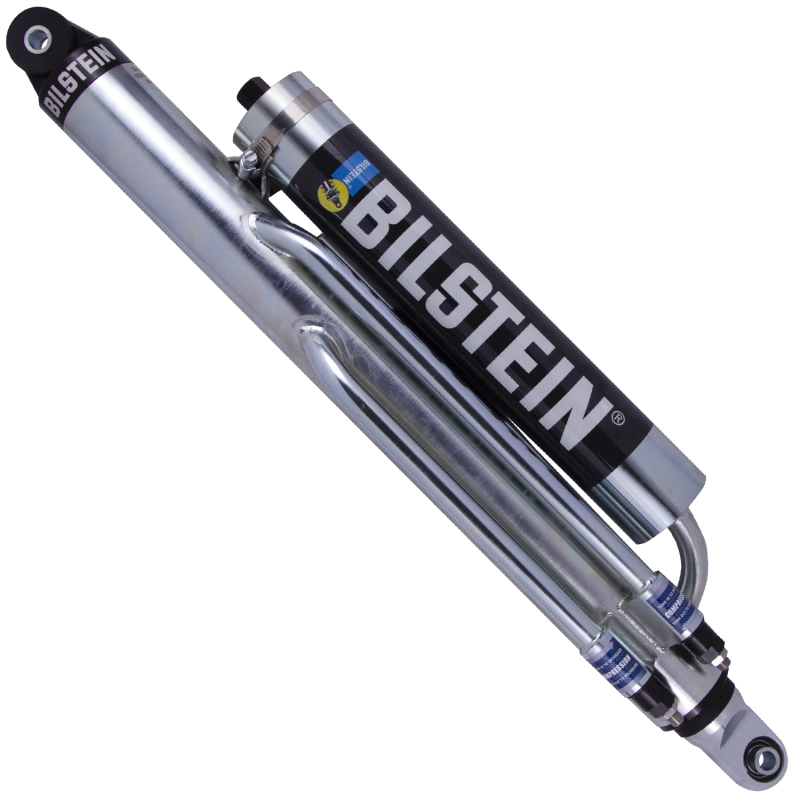

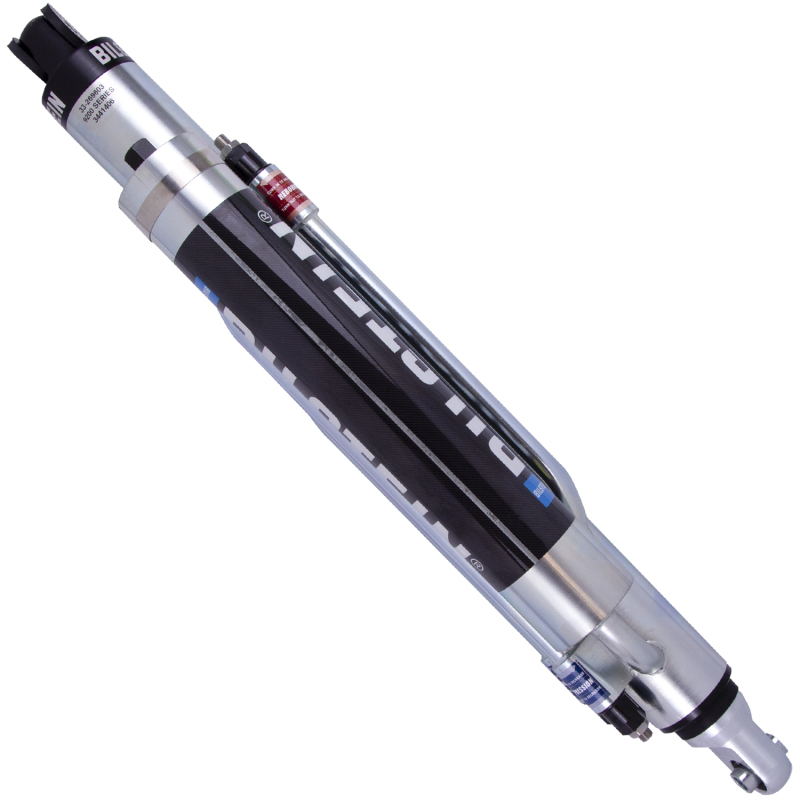

Bilstein M 9200 (Bypass) 3-Tube 14in Stroke Zinc Plated Left Side Monotube Shock Absorber

SKU: BIL33-269580

Shocks and Struts

BIL M 9200 Series Shocks...

Bilstein M 9200 (Bypass) 3-Tube 14in Stroke Zinc Plated Left Side Monotube Shock Absorber
Bilstein

Bilstein

Bilstein M 9200 (Bypass) 3-Tube 14in Stroke Zinc Plated Left Side Monotube Shock Absorber

SKU: BIL33-269580

Shocks and Struts

BIL M 9200 Series Shocks...

A$2,313.89
Available from MFR. This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
View cart 0
We accept
American Express
Mastercard
Visa
PayPal Checkout
Direct Deposit
Afterpay
Apple Pay
Google Pay
Zip Pay

Description

Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.

Product Overview

BILSTEIN 9200 Series Bypass shocks are position sensitive and adjustable, offering 6 zones of damping control and 4 external adjusters: 2 rebound and 2 compression. Utilizing an externally adjustable bypass shock is the easiest and most effective way to tune your off-road suspension for ultimate performance. *9200 Series Bypass Product Highlights* * Available in 60mm, 70mm and 83mm monotubes * 4-tube, position sensitive with adjustable rebound and compression * Multiple stroke lengths available ranging from 8” to 18” * 60mm piggy back or remote reservoir * Case hardened, centerless ground piston rod (22mm or 1 1/8”) depending on body diameter * Machined billet aluminum components * 5/8” uniball mounts with 1/2” step spacers * 3 stage high-temp seal * Red synthetic high-temp racing oil * Zinc plated * Multiple valvings available * Owner rebuildable * Made in the USA *9200 Series Coilover Product Highlights* * Available in 46mm and 60mm monotubes * Threaded body with dual-rate coilover hardware * Multiple stroke lengths available ranging from 8” to 16” * Case hardened, centerless ground 22mm piston rod * Machined billet aluminum components * 5/8” uniball mounts with 1/2” step spacers * 60mm remote reservoir * 3 stage high-temp seal * Red synthetic high-temp racing oil * Zinc plated * Multiple valvings available * Owner rebuildable * Made in the USA *NOTE* BILSTEIN measures shock size by piston diameter. Outer body diameter is the industry standard measurement for off-road shocks.


Features and Benefits

  • Off Road Suspension For Ultimate Performance
  • Multiple stroke lengths available ranging from 8" to 18"
  • 4-tube, position sensitive with adjustable rebound and compression
  • Available in 60mm, 70mm and 83mm monotubes

Product Details

Body Design:3-Tube Bypass Screw Top
Body Diameter (ID):60mm
Body Diameter (OD):2.65 in.
Body Inside Diameter:60mm
Boot Included:N/A
Collapsed Length (IN) Rounded:25
Collapsed Length (IN):24.50
Collapsed Length (MM):622.3
Collapsed Length Rounded:25 in.
Collapsed Length:622.3mm
Compression @0.52m/s:Custom
Description:M 9200 (Bypass)-Shock Absorber
Extended Length (IN) Rounded:39
Extended Length (IN):38.50
Extended Length (MM):977.9
Extended Length Rounded:39 in.
Extended Length:977.9mm
Finish:Zinc Plated
Internal Design:Monotube
Lower Mount Type:Eye 0.500 in. x 1.500 in.
Mount Type:Eye-to-Eye
Optional Reservoir Clamp:N/A
Part Number:bil33-269580
PartType:Shocks / Struts
Piston Diameter:60mm
Position:Left
Prop 65 (Y/N):Y
Prop 65 - Short Label:WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Rebound @0.26m/s:Custom
Rebound @0.52m/s:Custom
Reservoir Included:Yes
Reservoir:Yes
Segment:Motorsports
Series:M 9200 (Bypass)
Shock Stroke:14.000 in.
Spring Seat Included:No
Title:Bilstein Shock Absorbers
Upper Mount Type:Eye 0.500 in. x 1.500 in.
WARNING CA Proposition 65 Message:WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
WARNING CA Proposition 65:Yes

Application Summary

No Applications

Part Type

Suspension Shock Absorber

Data: v4.2 - Upd: 2026-10-13 20:57:02

Features

  • 4-tube, position sensitive with adjustable rebound and compression
  • Available in 60mm, 70mm and 83mm monotubes
  • Multiple stroke lengths available ranging from 8" to 18"
  • Off Road Suspension For Ultimate Performance

Specifications

Product Attributes - UPC
651860803401
Product Attributes - Brand
Bilstein
Product Attributes - Quantity
Sold individually.
Product Attributes - Part Type
Shocks and Struts
Product Attributes - Gas Charged
Yes
Product Attributes - Lower Mount
Eyelet
Product Attributes - Ride Height
Custom
Product Attributes - Upper Mount
Eyelet
Product Attributes - Product Line
Bilstein M 9200 Series Bypass Shocks
Product Attributes - Boot Included
No
Product Attributes - Internal Design
Monotube
Product Attributes - Adjustable Valving
Yes
Product Attributes - Body Diameter (in.)
2.360
Product Attributes - Extended Length (in.)
38.50
Product Attributes - Collapsed Length (in.)
24.50
Product Attributes - Manufacturer's Part Number
33-269580

Reference Information

Brand Name/s Bilstein
StreetFX SKU bil33-269580
SFX Item ID 4440990
Supplier Item Code 4440990
Manufacturer SKU 33-269580
Manufacturer UPC 651860803401
Alternative References bsn-33-269580, 3-Tube, 14in
