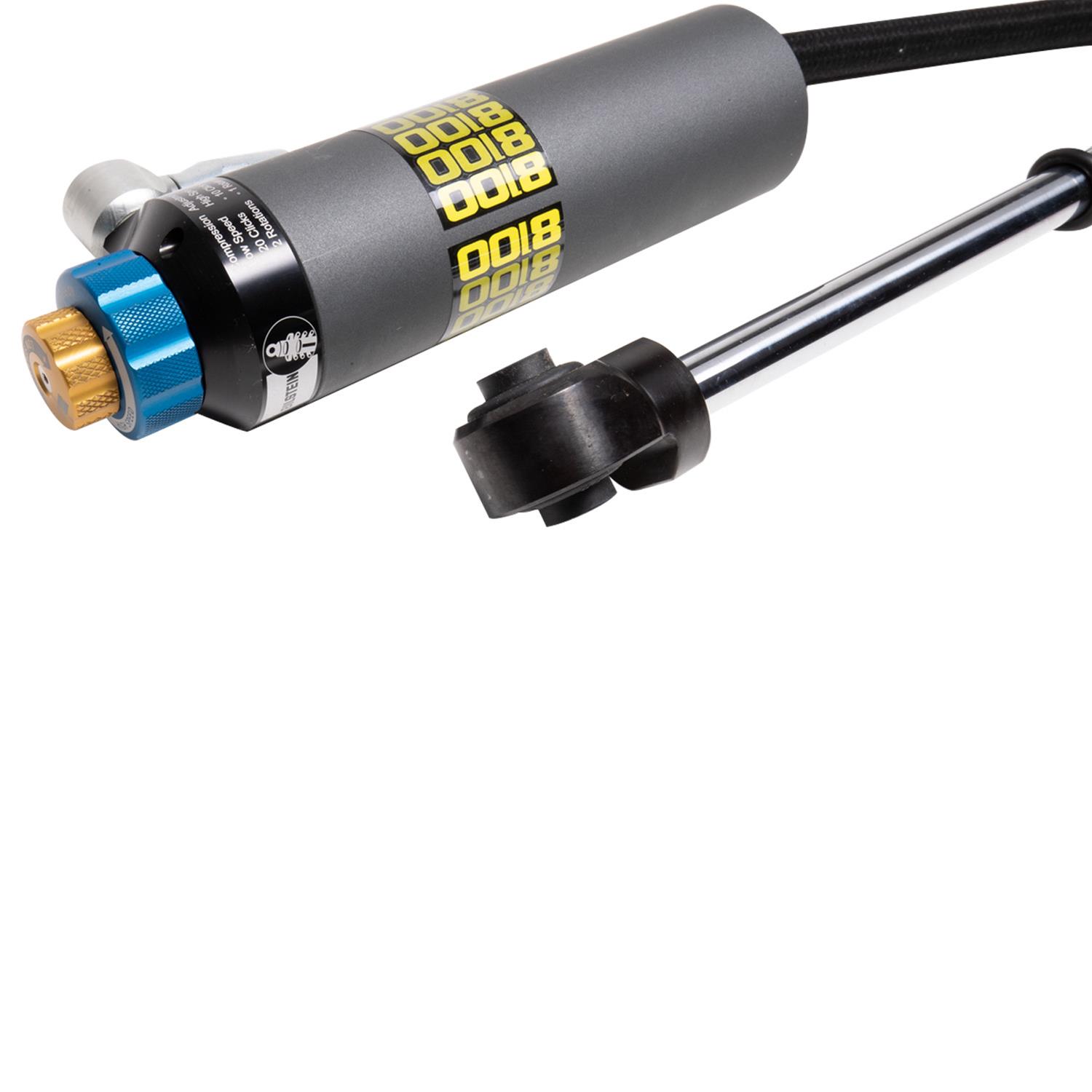

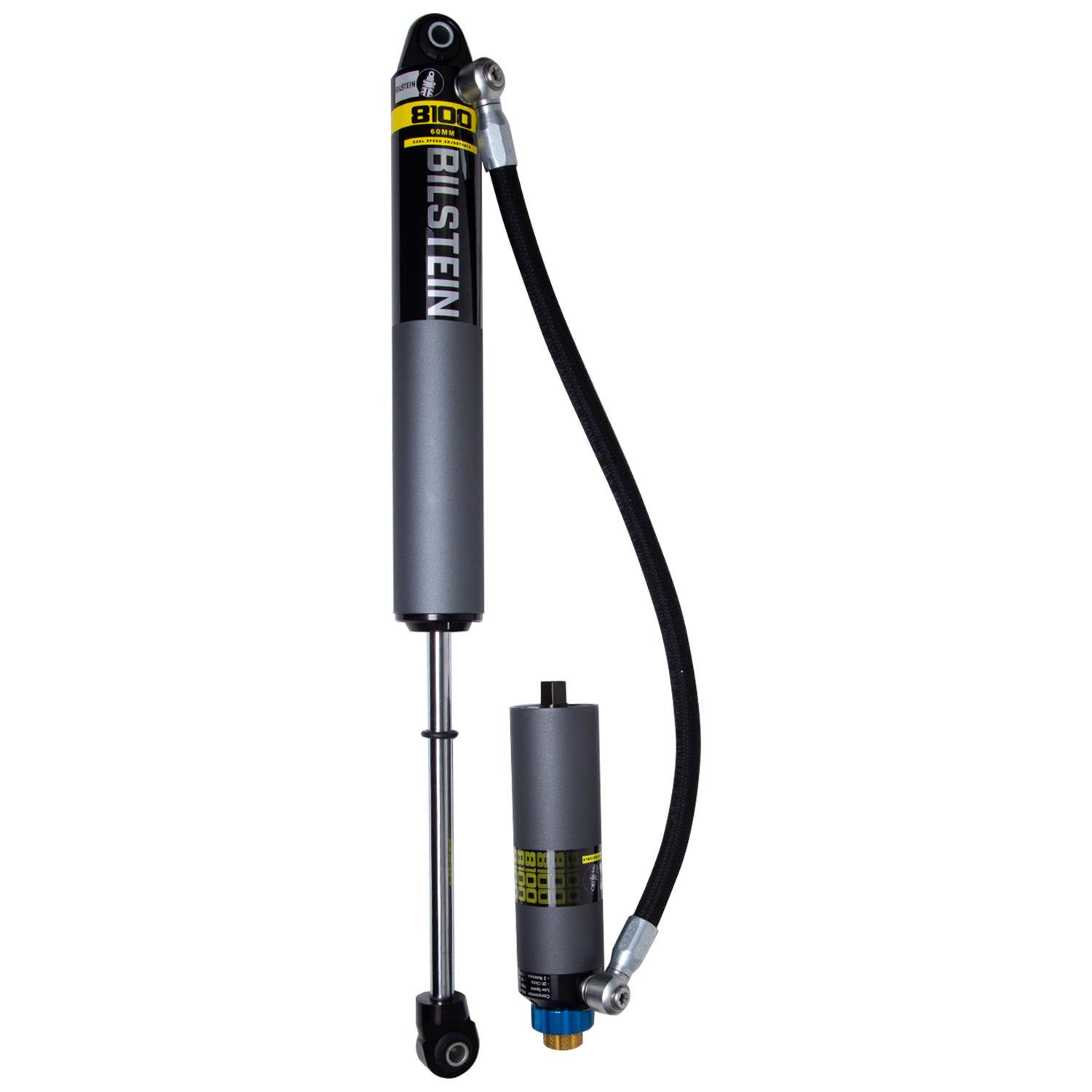

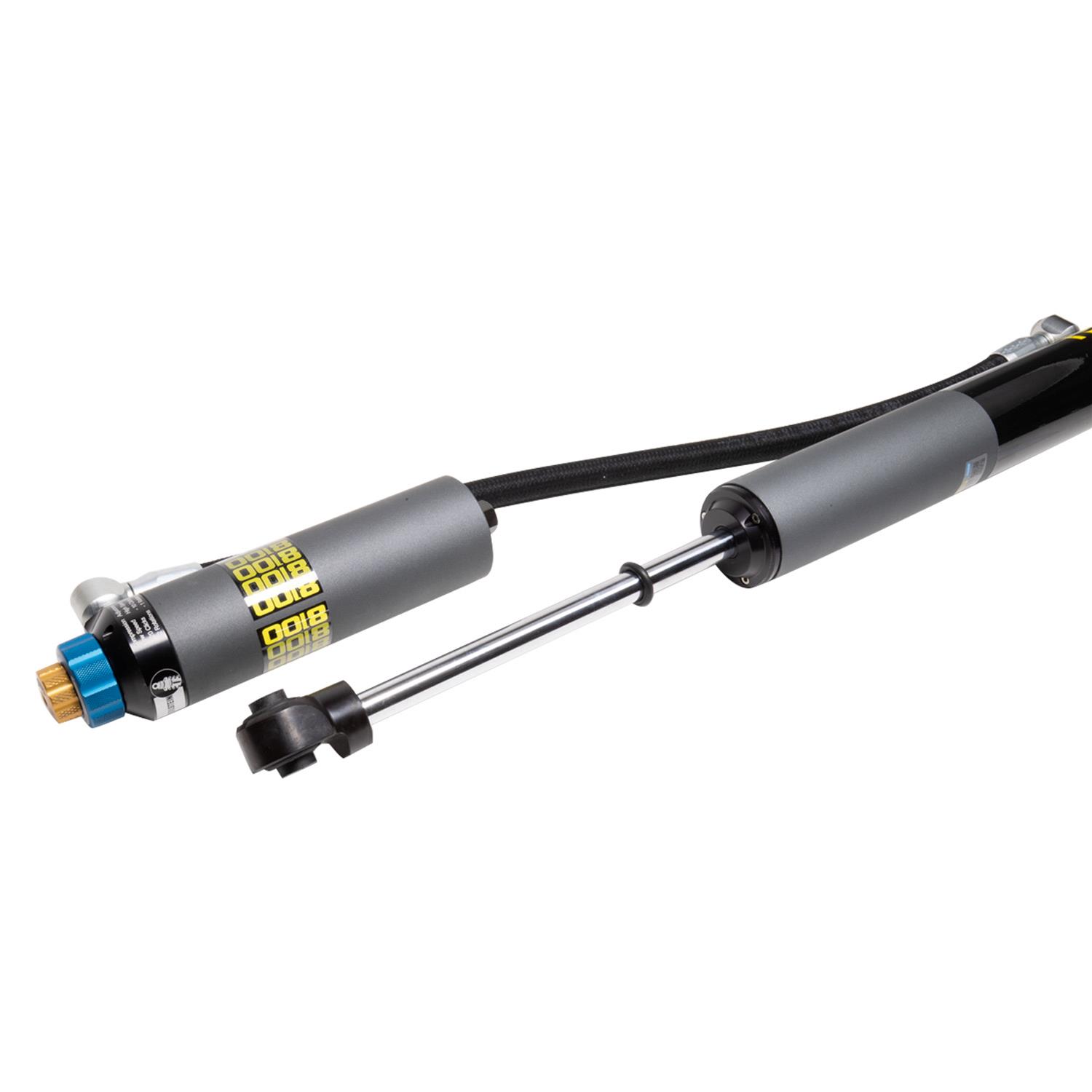

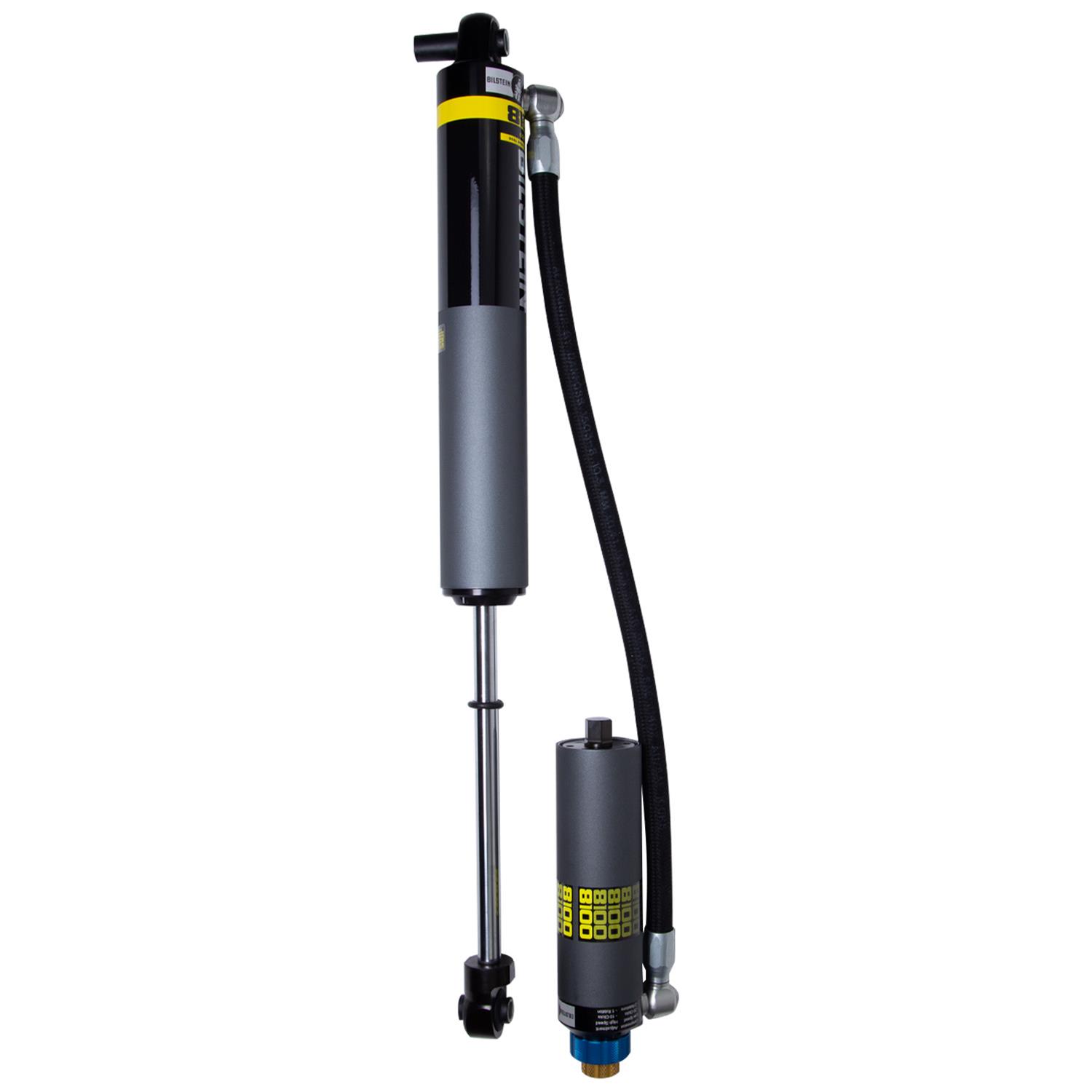

Bilstein 20-24 Jeep Gladiator Front Left B8 8100 (DSA) Shock Absorber - 3-4.5in Lift
Bilstein 20-24 Jeep Gladiator Front Left B8 8100 (DSA) Shock Absorber - 3-4.5in Lift
A$1,521.56
IN STOCK! Est Ship 3-5 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
The Bilstein B8 8100 (DSA) reservoir shock absorber is an adjustable large bore 60mm (2.65" OD) direct fit solution for lifted trucks and SUVs. Constructed from aerospace quality billet components, the large 60mm ID shock body offers a higher oil volume capacity to control heat while tackling rough road surfaces over long distances. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression to tailor your ride to any surface. Each B8 8100 (DSA) offers a unique remote or piggyback reservoir solution for an easy, hassle free installation. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. The large 60mm piston design offers more comfort and control in all driving conditions. The Bilstein B8 8100 (DSA) will allow you to tame the terrain in comfort.
Product Overview
The Bilstein B8 8100 (DSA) reservoir shock absorber is an adjustable large bore 60mm (2.65" OD) direct fit solution for lifted trucks and SUVs. Constructed from aerospace quality billet components, the large 60mm ID shock body offers a higher oil volume capacity to control heat while tackling rough road surfaces over long distances. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression to tailor your ride to any surface. Each B8 8100 (DSA) offers a unique remote or piggyback reservoir solution for an easy, hassle free installation. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. The large 60mm piston design offers more comfort and control in all driving conditions. The Bilstein B8 8100 (DSA) will allow you to tame the terrain in comfort.
Features and Benefits
- 60mm large bore digressive piston offers a greater range of tunability and delivers exceptional comfort without sacrificing control
- Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression to tailor your ride to any surface
- Direct fit for an easy installation
Product Details
| Adjustable Damping: | Click Adjusters for High and Low Speed Compression |
|---|---|
| Body Design: | Bypass Body (Non-Coilover) |
| Body Diameter (OD): | 2.65 in. |
| Boot Included: | No |
| Collapsed Length (IN): | 18.22 |
| Collapsed Length (MM): | 462.8 |
| Description: | Bilstein 20-24 Jeep Gladiator Front Left B8 8100 (DSA) Shock Absorber - 3-4.5in Lift |
| Extended Length (IN): | 28.89 |
| Extended Length (MM): | 733.8 |
| Finish: | EVO Grey |
| Internal Design: | Monotube |
| Lower Mount Type: | Eye 12.8mm |
| Part Number: | bil25-331097 |
| PartType: | Shocks / Struts |
| Piston Diameter: | 60mm |
| Prop 65 (Y/N): | Y |
| Prop 65 - Short Label: | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Reservoir: | Yes |
| Segment: | Light Truck |
| Series: | B8 8100 (DSA) |
| Spring Seat Included: | No |
| Title: | Bilstein Shock Absorbers |
| Upper Mount Type: | Eye 12.8mm |
Application Summary
Jeep Gladiator 2024-2020, Wrangler 2024-2018
Part Type
Suspension Shock Absorber
Features
- 60mm large bore digressive piston offers a greater range of tunability and delivers exceptional comfort without sacrificing control
- Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression to tailor your ride to any surface
- Direct fit for an easy installation
Specifications
- Product Attributes - Brand
- Bilstein
- Product Attributes - Manufacturer's Part Number
- 25-331097
- Product Attributes - Part Type
- Shocks and Struts
- Product Attributes - Product Line
- Bilstein B8 8100 Series Bypass Shocks
- Product Attributes - UPC
- 651860935775
- Product Attributes - Ride Height
- Lifted
- Product Attributes - Lifted Amount Range (in.)
- 3.00-4.50 in.
- Product Attributes - Extended Length (in.)
- 28.89
- Product Attributes - Collapsed Length (in.)
- 18.22
- Product Attributes - Internal Design
- Monotube
- Product Attributes - Adjustable Valving
- Yes
- Product Attributes - Gas Charged
- Yes
- Product Attributes - Upper Mount
- Eyelet
- Product Attributes - Lower Mount
- Eyelet
- Product Attributes - Boot Included
- No
- Product Attributes - Body Diameter (in.)
- 2.362
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Requires appropriate bump stop extensions and aftermarket driveshaft.
Reference Information
| Brand Name/s | Bilstein |
|---|---|
| StreetFX SKU | bil25-331097 |
| SFX Item ID | 4441827 |
| Supplier Item Code | 4441827 |
| Manufacturer SKU | 25-331097 |
| Manufacturer UPC | 651860935775 |
| Alternative References | BSN-25-331097, 3-4.5in |
Compatibility
Jeep Gladiator 2024-2020, Wrangler 2024-2018
