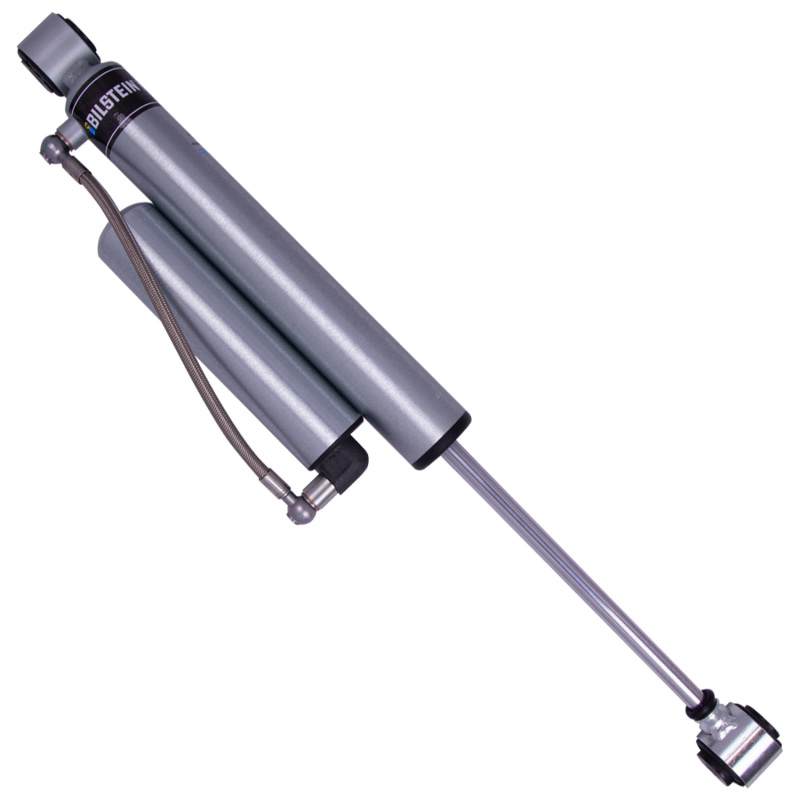

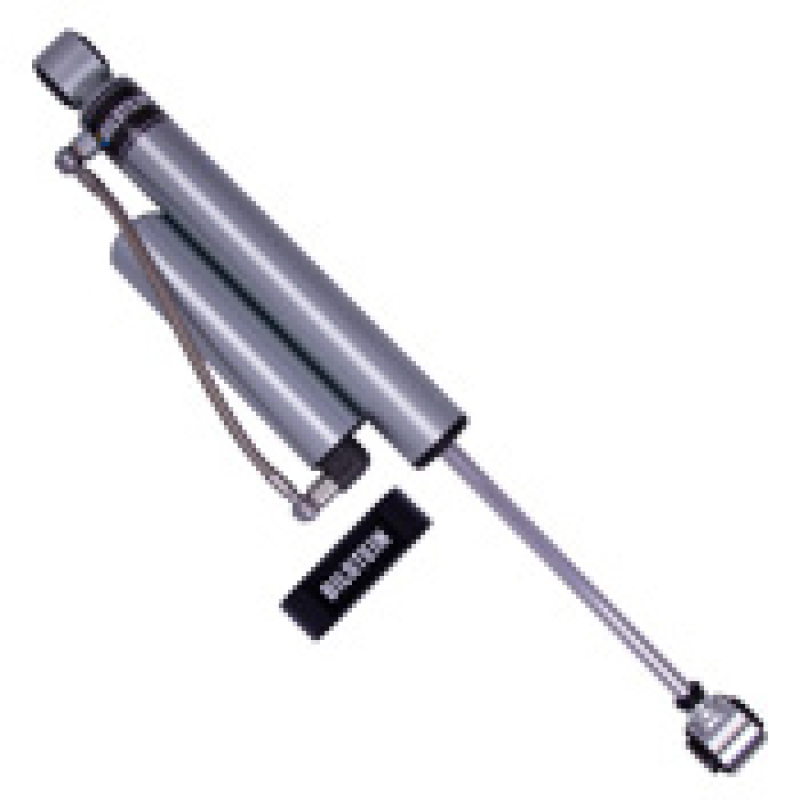

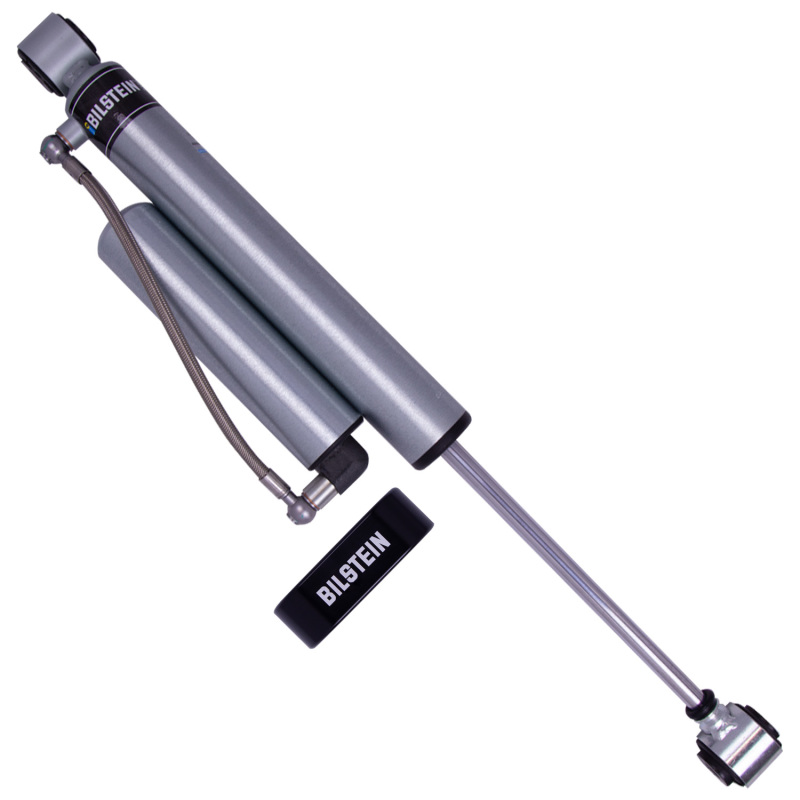

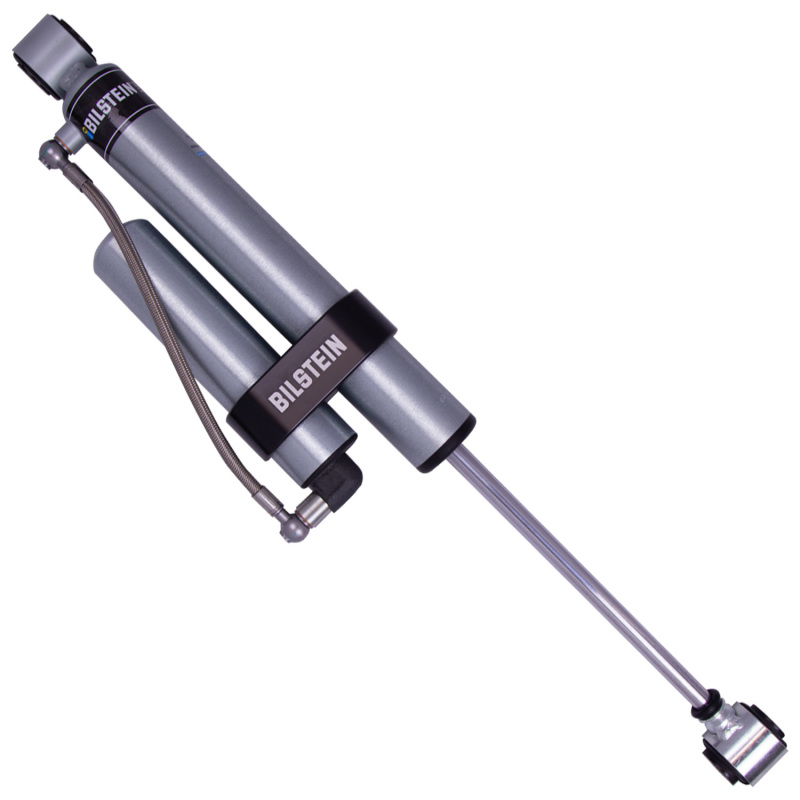

Bilstein 5160 Series 04-15 Nissan Titan 4WD Rear Shock Absorber
Bilstein 5160 Series 04-15 Nissan Titan 4WD Rear Shock Absorber
A$608.51
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.
Product Overview
Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.
Features and Benefits
- Remote reservoir increases shock oil capacity for greater heat dissipation
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
Product Details
| Adjustable Damping: | Non-Adjustable |
|---|---|
| Billet Reservoir Clamp Included: | Yes |
| Body Design: | Smooth Body (Non-Coilover) |
| Body Diameter (OD): | 2.0 in. |
| Boot Included: | No |
| Collapsed Length (IN): | 15.78 |
| Collapsed Length (MM): | 400.8 |
| Description: | Bilstein 5160 Series 04-15 Nissan Titan 4WD Rear Shock Absorber |
| Extended Length (IN): | 25.41 |
| Extended Length (MM): | 645.5 |
| Finish: | Zinc Plated |
| Internal Design: | Monotube |
| Lower Mount Type: | Eye 14mm |
| Part Number: | bil25-311396 |
| PartType: | Shocks / Struts |
| Piston Diameter: | 46mm |
| Prop 65 (Y/N): | Y |
| Prop 65 - Short Label: | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Reservoir: | Yes |
| Segment: | Light Truck |
| Series: | B8 5160 |
| Spring Seat Included: | No |
| Title: | Bilstein Shock Absorbers |
| Upper Mount Type: | Eye 14mm |
Application Summary
Nissan Titan 2015-2004
Part Type
Suspension Shock Absorber
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Remote reservoir increases shock oil capacity for greater heat dissipation
- Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
Specifications
- Product Attributes - Brand
- Bilstein
- Product Attributes - Manufacturer's Part Number
- 25-311396
- Product Attributes - Part Type
- Shocks and Struts
- Product Attributes - Product Line
- Bilstein B8 5160 Series Shocks
- Product Attributes - UPC
- 651860891781
- Product Attributes - Ride Height
- Stock/Lifted
- Product Attributes - Ride Height Note
- Additional ride height information may be available for your vehicle, please refer to the app tab.
- Product Attributes - Lifted Amount Range (in.)
- 0.00-1.50 in.
- Product Attributes - Extended Length (in.)
- 25.41
- Product Attributes - Collapsed Length (in.)
- 15.78
- Product Attributes - Internal Design
- Monotube
- Product Attributes - Adjustable Valving
- No
- Product Attributes - Gas Charged
- Yes
- Product Attributes - Bushing Material
- Rubber
- Product Attributes - Bushing Color
- Black
- Product Attributes - Boot Included
- No
- Product Attributes - Body Diameter (in.)
- 1.811
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Bilstein |
|---|---|
| StreetFX SKU | bil25-311396 |
| SFX Item ID | 4441656 |
| Supplier Item Code | 4441656 |
| Manufacturer SKU | 25-311396 |
| Manufacturer UPC | 651860891781 |
| Alternative References | bsn-25-311396, 4WD |
Compatibility
Nissan Titan 2015-2004
