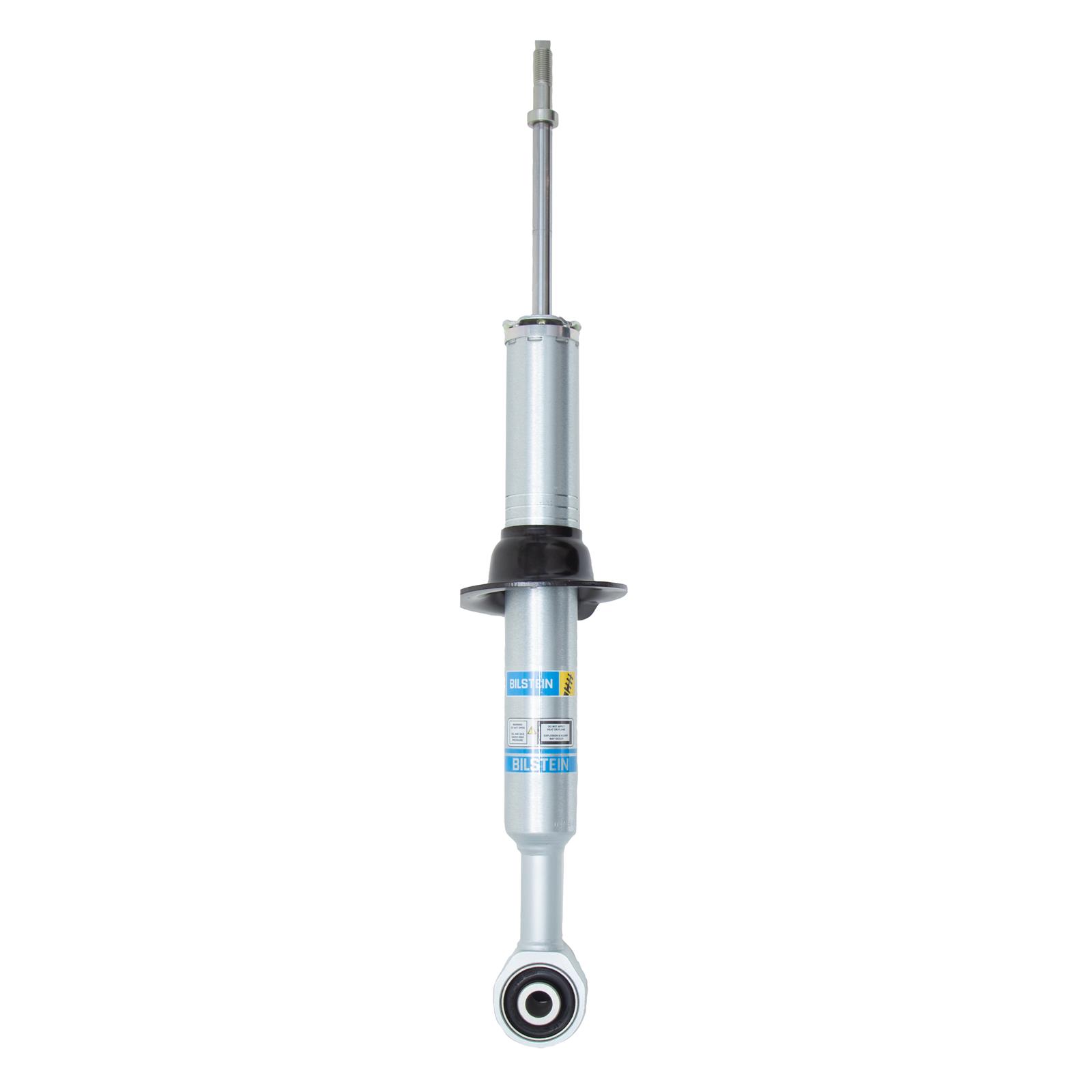

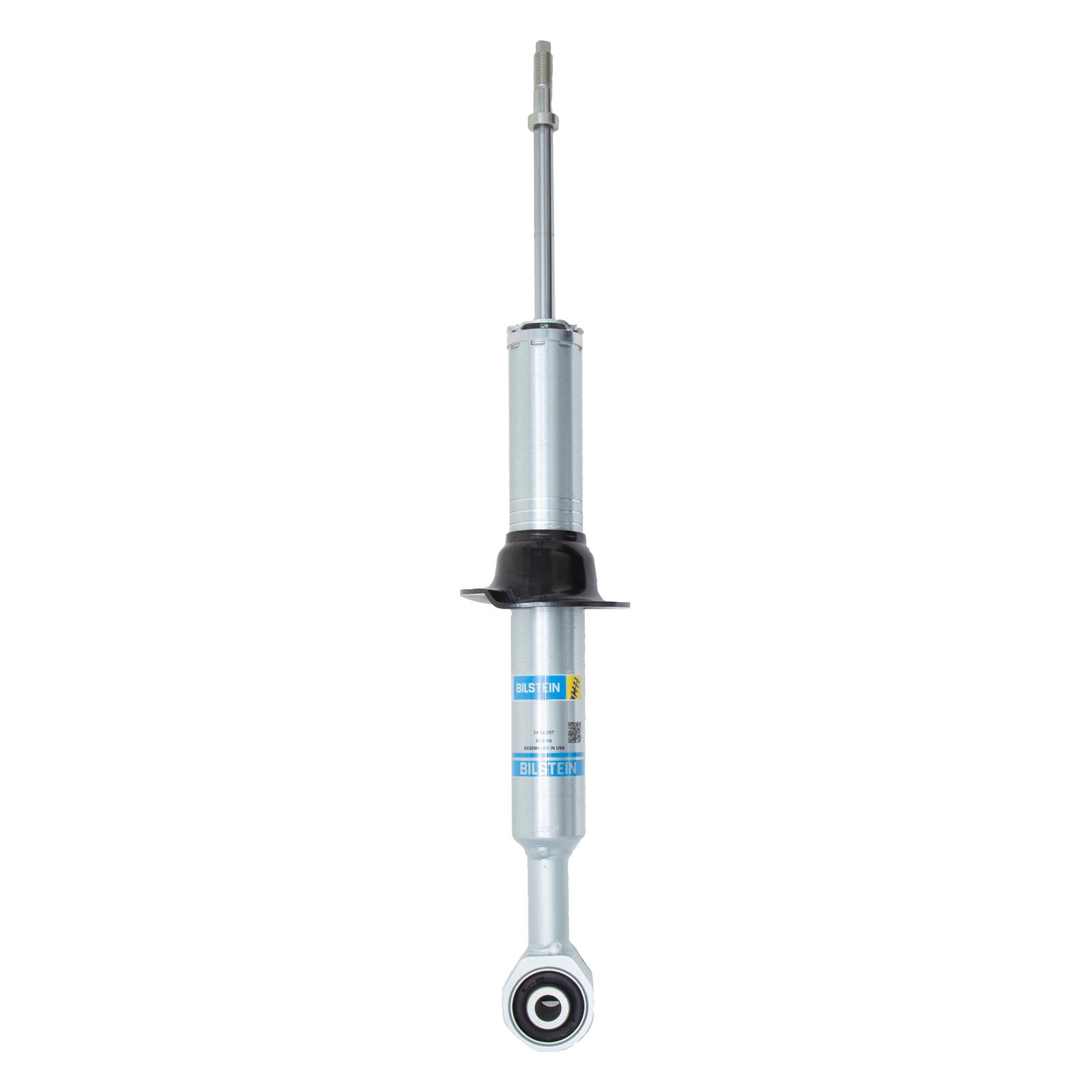

Bilstein 24-25 Toyota Tacoma B8 5100 Series Front 46mm Adjustable Monotube Shock Absorber

SKU: BIL24-333207

Shocks and Struts

BIL B8 5100 Series Shocks...

Bilstein

Bilstein 24-25 Toyota Tacoma B8 5100 Series Front 46mm Adjustable Monotube Shock Absorber

SKU: BIL24-333207

Shocks and Struts

BIL B8 5100 Series Shocks...

Special Order. Contact for ETA. This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.

We accept

Description

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Product Overview

Features and Benefits

Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
Adjustable spring seat offers 0-2.75in of lift, depending on the application
46mm monotube design ensures consistent, fade-free performance in all conditions

Product Details

Adjustable Damping:	Non-Adjustable
Body Design:	Snap Ring Grooved Body (Coilover)
Body Diameter (OD):	2.0 in.
Boot Included:	No
Collapsed Length (IN):	19.24
Collapsed Length (MM):	488.8
Description:	Bilstein 24-25 Toyota Tacoma B8 5100 Series Front 46mm Adjustable Monotube Shock Absorber
Extended Length (IN):	24.13
Extended Length (MM):	612.8
Finish:	Zinc Plated
Internal Design:	Monotube
Lower Mount Type:	Eye 16.3mm
Part Number:	bil24-333207
PartType:	Shocks / Struts
Piston Diameter:	46mm
Prop 65 (Y/N):	Y
Prop 65 - Short Label:	WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Reservoir:	No
Segment:	Light Truck
Series:	B8 5100 (Ride Height Adjustable)
Spring Seat Included:	Yes
Title:	Bilstein Shock Absorbers
Upper Mount Type:	Stem

Application Summary

Toyota Tacoma 2025-2024

Part Type

Suspension Shock Absorber

Data: v4.2 - Upd: 2026-10-13 20:56:03

Features

46mm monotube design ensures consistent, fade-free performance in all conditions
Adjustable spring seat offers 0-2.75in of lift, depending on the application
Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology

Specifications

Product Attributes - Brand: Bilstein
Product Attributes - Manufacturer's Part Number: 24-333207
Product Attributes - Part Type: Shocks and Struts
Product Attributes - UPC: 651860955650

Reference Information

Brand Name/s	Bilstein
StreetFX SKU	bil24-333207
SFX Item ID	4442030
Supplier Item Code	4442030
Manufacturer SKU	24-333207
Manufacturer UPC	651860955650
Alternative References	BSN-24-333207, 46mm
