Product Overview

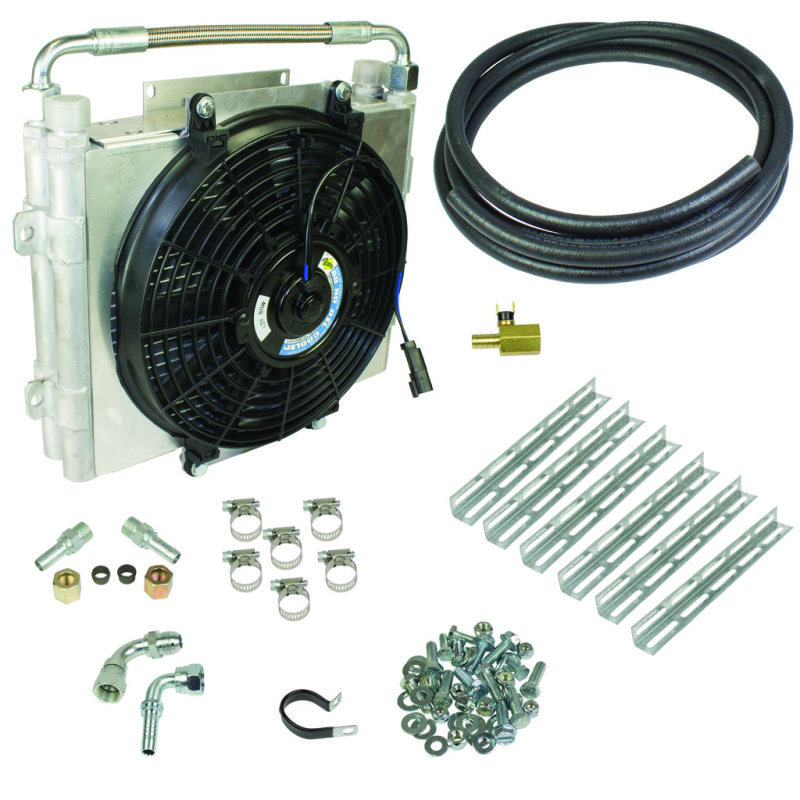

Quick firm shifting Automatic transmissions can’t be beat at the race track. But, the HOT transmission oil has to be COOLED to stay on track. Hot oil temperatures must be kept under control! Heating of transmission oil is caused from: * Torque multiplying stators redirecting and shearing the oil * Heat transfer when cooling down of the clutches as they are on the edge of slipping on the steels * End thrusting loads on the bushings transfer heat into the case BD’s double stacked their proven Xtruded Trans Oil cores to deliver over 40,000 BTU/HR of cooling and over 350% temperature drop versus the factory system — 136% better temperature drop than BD’s standard single core kit. Using the same Micro Extruded bar technology as is in our air-to-air Charge Air Coolers, the 200 Micro Extruded passages in each cooler (400 total) provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling. Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control. Xtruded Double Stacked Transmission Oil Cooler packages are available to accommodate 1/2 and 5/8 transmission cooler lines and come complete with all fittings, clamps, hoses, hardware and a Build-It-Yourself galvanized bracket kit for quicker and cleaner installation &mdash no wasting time fabricating brackets out of scrap metal. The pre-wired loomed harness with fuse and relay comes with OEM style sealed connectors to resist elements.

Features and Benefits

• Large Surface Area To Transfer Heat For External Air Flow Cooling
• Over 350 Percent Temperature Drop Versus The Factory System
• Large 5/8-inch Ports Prevents Inlet/Outlet Restriction
• Furnace Brazed Rails Have Been Tested to 300psi of Pressure
• Thermostatically Controlled 80-watt 10-inch 800 CFM Electric Fan
• Build-It-Yourself Galvanized Bracket Kit For Quick Installation
• Pre-Wired Loomed Harness w/Fuse And Relay w/Plug In Connectors
• 5/8 in. Cooler Lines
• Double Stacked Cores Deliver 40000 BTU/HR of Cooling
• 136 Percent Better Temp. Drop Than XTRUDED Single Core Kit
• 12 Months or 24000 Mile Warranty
• Double stacked cores deliver over 40,000 BTU/HR of cooling
• Over 350% temperature drop versus the factory system
• 136% better temperature drop than XTRUDED single core kit
• Turbulent oil flow design promotes a more complete cooling
• Thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan
• Kits complete with all fittings, clamps, hoses and hardware
• Build-It-Yourself galvanized bracket kit for quick and easy installation - no wasting time fabricating brackets out of scrap metal
• The pre-wired loomed harness with fuse and relay comes with plug-in connectors
• Chevy Allison 1000 - 5/8-inch Cooler Lines
