Baja Designs 2019 Ford Ranger OnX6+ 20in Bar Grille Kit
Baja Designs 2019 Ford Ranger OnX6+ 20in Bar Grille Kit
A$1,912.53
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
When you need an LED light bar that offers high-output LEDs with exceptional intensity, improved visibility, and safety in various conditions, the 20 in. OnX6+ LED light bars from Baja Designs are the perfect choice for those that demand the best in lighting. The OnX6+ has a race proven, Mil-Spec aluminum housing designed to withstand rugged conditions that off-roaders will endure. Vertical adjustments can be made and locked-in, offering the best beam pattern in front of the vehicle—no matter where it is mounted. Baja Designs includes a 30-day satisfaction guarantee and lifetime limited warranty, giving you the ultimate in purchase protection.
Product highlights:

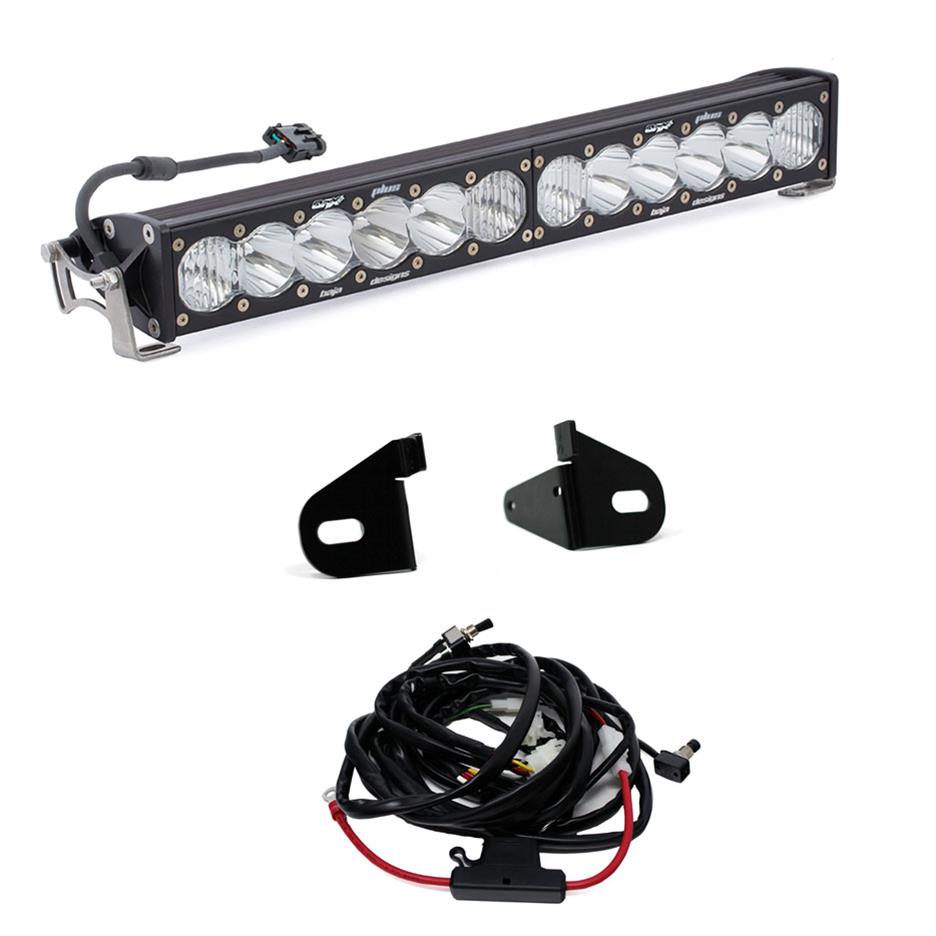

* One 20-inch OnX6+ light bar with mounting brackets and hardware (wiring harness sold separately)
* Aircraft grade aluminum with Mil-Spec hard anodize housing
* Lens material—hardcoated polycarbonate
* LED Lighting Technology
* Lighting Modes: High beam/Low beam
* Bezel material—billet machined aluminum
* Stainless steel hardware
* Customize your beam pattern or change damaged lenses without voiding the warranty on the OnX6+ with Baja Designs 'uService' technology
* Built-in overvoltage protection
* Installation of the OnX6+ is easy and comes with mounting brackets that can be used in any application
* IP69K rated (waterproof up to 9 ft. and pressure washable)
* IK10 compliant (Mechanical Impact Testing)
* Exceeds MIL-STD810G (Mil-Spec Testing)
Light pattern options:
* Driving Combo: Maximum trail coverage in a single light—the driving combo pattern is equipped with both driving and spot optics to provide you with a smooth blend of light for both near field applications in lighting zones 1 and 2 and distance in zone 3
* Spot: A longer and narrower 9-degree focus beam for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Cornering and/or Driving Combo beam lights
* Wide Cornering: The wide cornering pattern offers a 42-degree flattened horizontal beam, reducing blind spots, and enhancing peripheral visibility in lighting zones 1 and 2—this cornering pattern is perfect for inclement weather such as dust, snow, rain, or fog conditions while also perfect for seeing obstacles on the trail, trail conditions, and potential hazards, making it easier to navigate through tight turns, winding trails, or through wooded areas
Note: The wiring harness P/N: 640115 is only applicable for the 10 in. to 20 in. OnX6+ light bars.
Product Overview
Baja Designs 2019 Ford Ranger OnX6+ 20in Bar Grille Kit
Product Details
| Description: | Baja Designs 2019 Ford Ranger OnX6+ 20in Bar Grille Kit |
|---|---|
| Part Number: | baj447612 |
Part Type
Light Bars, Light Pods and Fog Lights
Specifications
- Product Attributes - Brand
- Baja Designs
- Product Attributes - Manufacturer's Part Number
- 447612
- Product Attributes - Part Type
- Light Bars, Light Pods and Fog Lights
- Product Attributes - Product Line
- Baja Designs OnX6+ 20 in. LED Light Bars
- Product Attributes - UPC
- 819314028620
- Product Attributes - Light Type
- Light bar
- Product Attributes - Bulb Type
- LED
- Product Attributes - Light Bar Type
- Straight single row
- Product Attributes - Optics Style
- Driving
- Product Attributes - Light Bar Size (in.)
- 20 in.
- Product Attributes - Watts
- 216.0/160.0 watts
- Product Attributes - Amp Draw
- 16.60/12.00 amps
- Product Attributes - Lumens
- 18,460/24,920
- Product Attributes - Beam Pattern
- Combo
- Product Attributes - Number of LEDs
- 12
- Product Attributes - Bulb Color
- White
- Product Attributes - Lens Color
- Clear
- Product Attributes - Housing Color
- Black
- Product Attributes - Housing Material
- Aluminum
- Product Attributes - Light Cover Included
- No
- Product Attributes - Hardware Included
- Yes
- Product Attributes - Relay Included
- Yes
- Product Attributes - Wiring Harness Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
Reference Information
| Brand Name/s | Baja Designs |
|---|---|
| StreetFX SKU | baj447612 |
| SFX Item ID | 4011341 |
| Supplier Item Code | 4011341 |
| Manufacturer SKU | 447612 |
| Manufacturer UPC | 819314028620 |
| Alternative References | OnX6+, BJD-447612, 20in |
