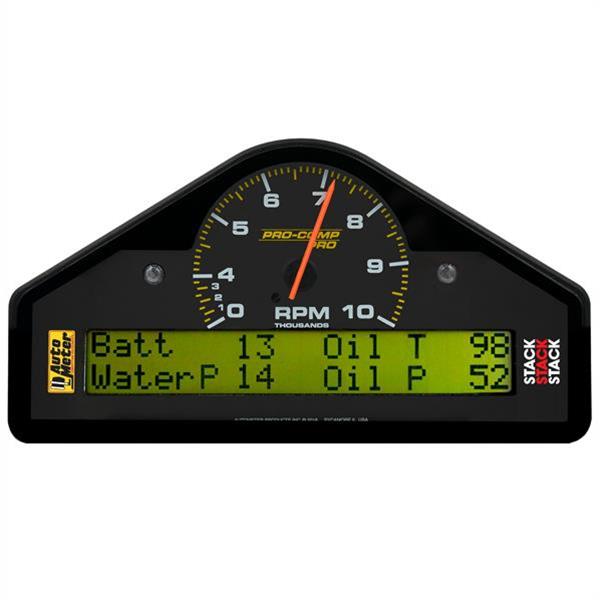

Autometer Pro-Comp Race Dash Display 0-3-10K RPM / WTRP / FUELP / OILP / OILT / WTMP / VOLT
Autometer Pro-Comp Race Dash Display 0-3-10K RPM / WTRP / FUELP / OILP / OILT / WTMP / VOLT
A$3,700.54
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
This AutoMeter Race display system is designed uniquely for the specialized conditions of dirt and asphalt modified and late model oval track racing. Monitor RPM, Oil Pressure, Oil Temperature, Water Temperature, Carbureted Fuel Pressure, Battery Voltage, and an optional Water Pressure channel (with purchase of separate sensor) on a single, compact and waterproof digital display. The signature analog pointer movement provides a quick and clear display for engine RPM while the digital display screen layout is preconfigured with multiple layouts for your axillary engine instrumentation needs. Customize warning points specific to your setup to receive driver alerts that include on screen text and illuminated alarm lights. Record an entire on track session’s worth of data with the ability to play back your run right on the face of the dash display when you’re back in the pits and preparing for your next heat. Includes qty. 2 1/8” NPT temperature sensors, qty. 1 1/8” NPT 15 PSI stainless steel fuel pressure sensor, qty. 1 1/8” NPT 150 PSI stainless steel oil pressure sensor, professional grade pre-terminated wiring loom, external push button controls with weather resistant caps, and operations manual, mounting template and brackets for installation.
Part Type
Electronic Multi-Purpose Gauge
Features
- Built-in warning and shift light LEDs
- Configurable for engines from 1-12 cylinders
- Dimensions - 8.3" Wide x 5.2-1/16" High x 1.4" Deep
- Display features digital values for vehicle parameters and configurable text warning messages
- Includes oil pressure, water temperature, oil temperature , and fuel pressure sensors
- Monitors and displays: RPM, Oil Pressure, Oil Temperature, Water Temperature, Voltage, & Fuel Pressure. Water Pressure expansion available with purchase of additional ST747 pressure sensor sold separately.
- Optional shift light output, single stage or progressive shift light
- Single 19 pin MIL spec connector and motorsports wiring loom utilizing Mini Sure Seal connections for ease of installation and removal
- Water and dust proof to IP67 sealing standard, offering protection from mud and wash downs following an event.
Specifications
- Product Attributes - Brand
- AutoMeter
- Product Attributes - Manufacturer's Part Number
- 6014
- Product Attributes - Part Type
- Gauge Kits and Instrument Clusters
- Product Attributes - Product Line
- AutoMeter Pro-Comp Pro Dash Display Systems
- Product Attributes - UPC
- 046074060144
- Product Attributes - Gauge Style
- Digital
- Product Attributes - Gauge Face Color
- Black/Luminescent green
- Product Attributes - Gauge Number Color
- White
- Product Attributes - Tachometer Included
- Yes
- Product Attributes - Speedometer Included
- No
- Product Attributes - Oil Pressure Gauge Included
- Yes
- Product Attributes - Water Temperature Gauge Included
- Yes
- Product Attributes - Voltage Gauge Included
- Yes
- Product Attributes - Fuel Level Gauge Included
- No
- Product Attributes - Clock Included
- No
- Product Attributes - Boost Gauge Included
- No
- Product Attributes - Pyrometer Included
- No
- Product Attributes - Transmission Temperature Gauge Included
- No
- Product Attributes - Oil Temperature Gauge Included
- Yes
- Product Attributes - Water Pressure Gauge Included
- No
- Product Attributes - Ammeter Gauge Included
- No
- Product Attributes - Fuel Pressure Gauge Included
- Yes
- Product Attributes - Brake Bias Gauge Included
- No
- Product Attributes - Trim Gauge Included
- No
- Product Attributes - Hour Meter Included
- No
- Product Attributes - Bezel Color
- Black
- Product Attributes - Illuminated
- Yes
- Product Attributes - Warning Lights Included
- Yes
- Product Attributes - Gauge Panel Included
- Yes
- Product Attributes - Gauge Panel Material
- Plastic
- Product Attributes - Gauge Pod Included
- No
- Product Attributes - Gauge Panel Color
- Black
- Product Attributes - Gauge Type Note
- See application page for specific gauge and sending unit information.
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Kit includes oil pressure, water temperature, oil temperature and fuel pressure sensors. Measures 7.5 in. wide by 4 in. high by 1.5 in. deep.
Reference Information
| Brand Name/s | Autometer |
|---|---|
| StreetFX SKU | atm6014 |
| SFX Item ID | 4081268 |
| Supplier Item Code | 4081268 |
| Manufacturer SKU | 6014 |
| Manufacturer UPC | 46074060144 |
| Alternative References | AUT6014, 0-3-10K |
