Autometer
AutoMeter Tachometer Gauge 10K RPM 3 3/4in Pedestal w/Ext. Shift-Light - Black Dial/Black Case
atm233908
A$274.99
Autometer Pro-Comp Street Dash RPM/Speed/Oil Press & Temp/WaterTemp/Fuel Level/Battery Voltage Gauge
Autometer Pro-Comp Street Dash RPM/Speed/Oil Press & Temp/WaterTemp/Fuel Level/Battery Voltage Gauge
A$3,393.72
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description

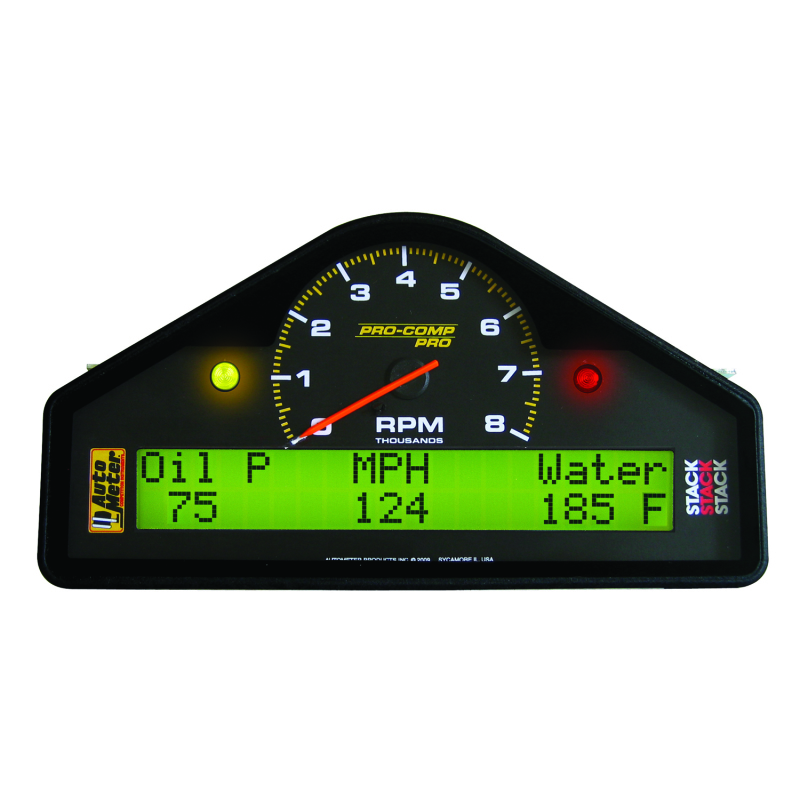

The AutoMeter Street display systems are designed specifically for the harshest environments. The carbon composite housing is IP67 sealed against water and dust intrusion and will easily withstand 20g of continuous vibration and 50g of shock. The analog pointer provides a quick and clear display for engine RPM while the digital display layout is configurable using preconfigured sensor inputs using multiple pages for your axillary instrumentation needs. User definable warnings display across the digital display and illuminate the warning LED placed to the side of the tachometer to alert the driver to critical information.
Part Type
Electronic Multi-Purpose Gauge
Features
- Built-in warning and low fuel LEDs
- Configurable for engines from 1-12 cylinders
- Dimensions - 8.3" Wide x 5.2-1/16" High x 1.4" Deep
- Display features digital values for vehicle parameters and configurable text warning messages
- Includes oil pressure, water temperature, oil temperature sensors
- Monitors and displays: RPM, Speed, Oil Pressure, Oil Temperature, Water Temperature, Voltage, Fuel Level, with an option to add Fuel Pressure separately.
- Optional shift light output, single stage or progressive shift light
- Programmable Speed and Fuel Level inputs
- Single 19 pin MIL spec connector and motorsports wiring loom utilizing Mini Sure Seal connections for ease of installation and removal
Specifications
- Product Attributes - Brand
- AutoMeter
- Product Attributes - Manufacturer's Part Number
- 6001
- Product Attributes - Part Type
- Gauge Kits and Instrument Clusters
- Product Attributes - Product Line
- AutoMeter Pro-Comp Pro Dash Display Systems
- Product Attributes - UPC
- 046074060014
- Product Attributes - Gauge Style
- Digital
- Product Attributes - Gauge Face Color
- Black/Luminescent green
- Product Attributes - Gauge Number Color
- White
- Product Attributes - Tachometer Included
- Yes
- Product Attributes - Speedometer Included
- Yes
- Product Attributes - Oil Pressure Gauge Included
- Yes
- Product Attributes - Water Temperature Gauge Included
- Yes
- Product Attributes - Voltage Gauge Included
- Yes
- Product Attributes - Fuel Level Gauge Included
- Yes
- Product Attributes - Clock Included
- No
- Product Attributes - Boost Gauge Included
- No
- Product Attributes - Pyrometer Included
- No
- Product Attributes - Transmission Temperature Gauge Included
- No
- Product Attributes - Oil Temperature Gauge Included
- Yes
- Product Attributes - Water Pressure Gauge Included
- No
- Product Attributes - Ammeter Gauge Included
- No
- Product Attributes - Fuel Pressure Gauge Included
- No
- Product Attributes - Brake Bias Gauge Included
- No
- Product Attributes - Trim Gauge Included
- No
- Product Attributes - Hour Meter Included
- No
- Product Attributes - Bezel Color
- Black
- Product Attributes - Illuminated
- Yes
- Product Attributes - Warning Lights Included
- Yes
- Product Attributes - Gauge Panel Included
- Yes
- Product Attributes - Gauge Panel Material
- Plastic
- Product Attributes - Gauge Pod Included
- No
- Product Attributes - Gauge Panel Color
- Black
- Product Attributes - Gauge Type Note
- See application page for specific gauge and sending unit information.
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Measures 7 1/2 in. wide by 4 in. high.
Reference Information
| Brand Name/s | Autometer |
|---|---|
| StreetFX SKU | atm6001 |
| SFX Item ID | 4079762 |
| Supplier Item Code | 4079762 |
| Manufacturer SKU | 6001 |
| Manufacturer UPC | 46074060014 |
| Alternative References | AUT6001 |
