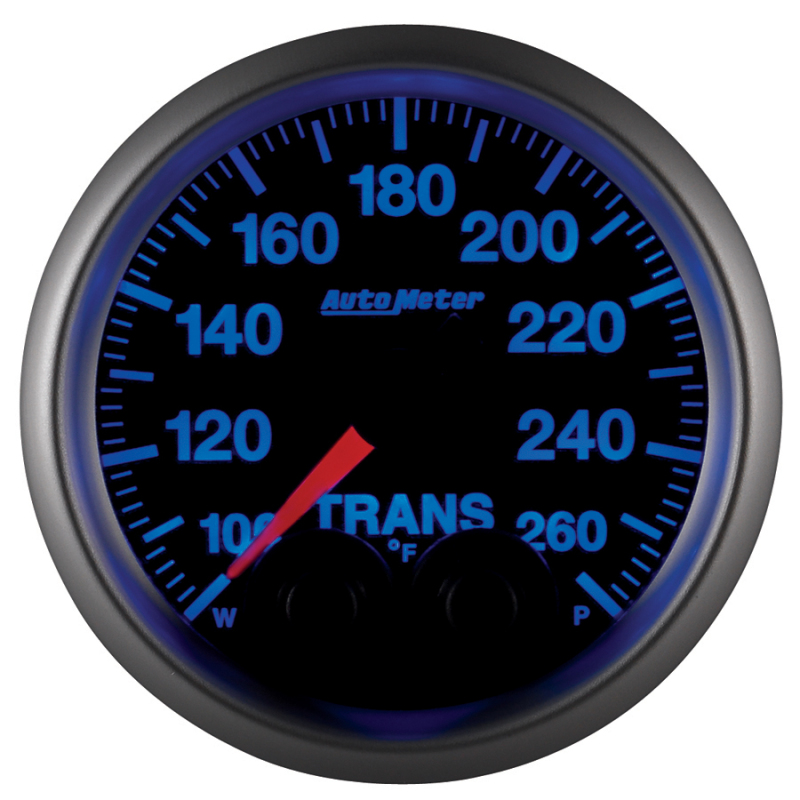

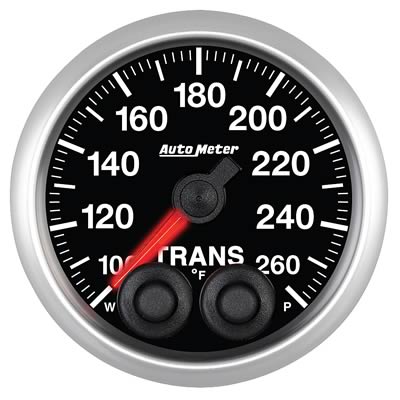

Autometer Elite 52mm 100-260 Degrees F Trans Temperature Peak and Warn Gauge w/ Electronic Control
Autometer Elite 52mm 100-260 Degrees F Trans Temperature Peak and Warn Gauge w/ Electronic Control
A$550.00
LAST ONE! Est Ship 4-7 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you’re towing or simply trying to harness the power of a built or boosted motor, AutoMeter’s Digital Stepper Motor Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. AutoMeter’s most advanced 1/8” NPT temperature transducer is included as well as a direct plug in wiring harness for ease of installation. An optional trans cooler line manifold is available for another easy installation option.
Part Type
Automatic Transmission Oil Temperature Gauge
Features
- 7 user selectable colors (blue, white, red, green, cyan, violet, and yellow) to match visual preferences of driver and visibility conditions
- Acquire data for later review with one-touch Peak Recall functionality
- AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
- Built-in Pro-Control circuits with custom programmable activation & deactivation points for key functions like lights, fans, switches, & pumps allow drivers to focus on the competition while the gauges control key vehicle systems
- Data logger 0-5V output provides ECU and data systems with vital information
- Set custom alert High and Low points specific to your vehicle & receive full dial warning notification to highlight the need for driver attention
- The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
Specifications
- Product Attributes - Brand
- AutoMeter
- Product Attributes - Manufacturer's Part Number
- 5658
- Product Attributes - Part Type
- Gauges
- Product Attributes - Product Line
- AutoMeter Elite Series Analog Gauges
- Product Attributes - UPC
- 046074056581
- Product Attributes - Gauge Type
- Transmission temperature
- Product Attributes - OEM Replacement
- No
- Product Attributes - Gauge Style
- Analog
- Product Attributes - Sending Unit
- Electrical
- Product Attributes - Gauge Diameter (in.)
- 2 1/16 in.
- Product Attributes - Gauge Diameter (mm)
- 52mm
- Product Attributes - Gauge Range
- 100-260 degrees F
- Product Attributes - Gauge Shape
- Round
- Product Attributes - Sweep
- Full sweep
- Product Attributes - Gauge Face Color
- Black
- Product Attributes - Gauge Number Color
- White
- Product Attributes - Pointer Color
- Red
- Product Attributes - Bezel Color
- Silver
- Product Attributes - Illuminated
- Yes
- Product Attributes - Memory Recall
- No
- Product Attributes - Playback
- No
- Product Attributes - Liquid-Filled
- No
- Product Attributes - Shift Light Included
- No
- Product Attributes - Tripometer
- No
- Product Attributes - Sending Unit Included
- Yes
- Product Attributes - Sending Unit Thread Size
- 1/8 in. NPT
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Includes 1/8 in. NPT sender, 3/8 in. and 1/2 in. adapters, and 8 ft. wiring harness. Programmable.
Reference Information
| Brand Name/s | Autometer |
|---|---|
| StreetFX SKU | atm5658 |
| SFX Item ID | 4080033 |
| Supplier Item Code | 4080033 |
| Manufacturer SKU | 5658 |
| Manufacturer UPC | 46074056581 |
| Alternative References | AUT5658, 52mm |
