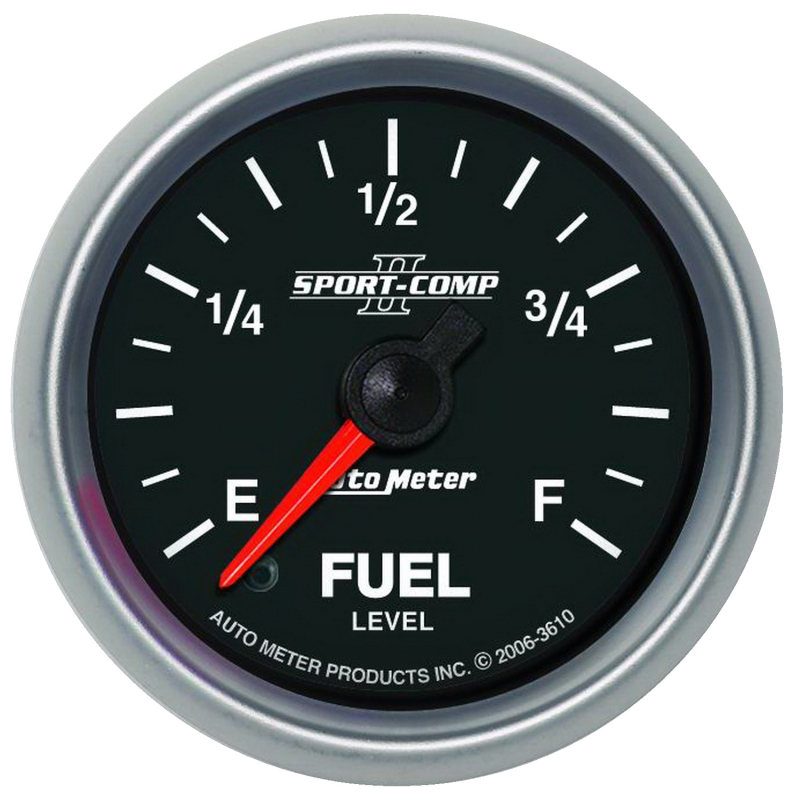

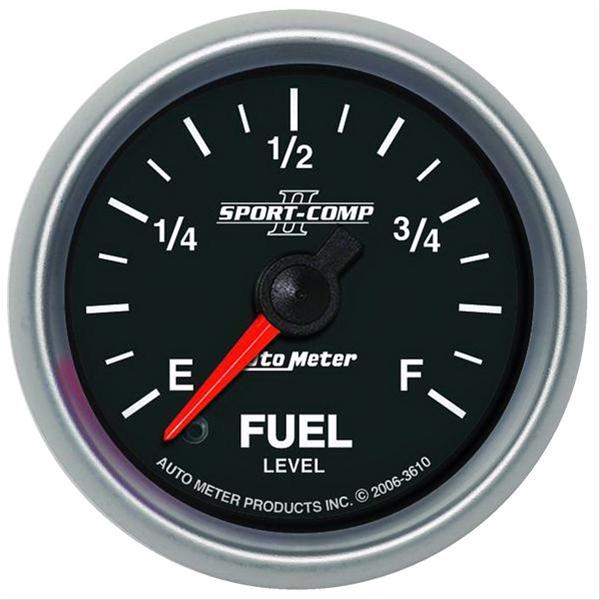

Autometer Sport-Comp II 52mm 0-280 ohms Programmable Electronic Fuel Level Gauge
Autometer Sport-Comp II 52mm 0-280 ohms Programmable Electronic Fuel Level Gauge
A$347.67
IN STOCK! Est Ship 4-7 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Traditionally, paring the proper fuel level level gauge to the application could be a more difficult task than it needed to be. The AutoMeter Digital Stepper Motor Fuel Level Gauge drastically simplifies the process with it’s easily configurable resistance range. With 7 common configurations stored in memory from the factory, the vast majority of all applications are covered. In the instance your fuel level sender is not included in these preconfigured ranges, an innovative custom calibration mode allows any sending unit that operates between 0 and 280 ohms, empty or full, to be easily paired. Our “snapshot” programming method will allow you to capture the empty and full readings and the gauge does the rest. No matter your application, there simply isn’t an easier solution for fuel level monitoring available on the market. A direct plug in wiring harness is included for ease of installation.
Part Type
Fuel Level Gauge
Features
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- Adjustable Scale w/ 7 preset ranges for common vehicle types (73E/10F, 16E/158F, 0E/30F, 0E/90F, 240E/33F, 107.5E/7F, 131E/12F)
- AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy which is further increased by utilizing a self calibration sequence during power up
- Gauge kit includes 20 ft. wiring harness, mounting hardware, and detailed instructions for installation
- Modern white LED through-the-dial lighting provides clear visibility during nighttime use
- User definable resistance setting programmable anywhere between 0-280 ohms
Specifications
- Product Attributes - Brand
- AutoMeter
- Product Attributes - Manufacturer's Part Number
- 3610
- Product Attributes - Part Type
- Gauges
- Product Attributes - Product Line
- AutoMeter Sport-Comp II Analog Gauges
- Product Attributes - UPC
- 046074036101
- Product Attributes - Gauge Type
- Fuel level
- Product Attributes - OEM Replacement
- No
- Product Attributes - Gauge Style
- Analog
- Product Attributes - Sending Unit
- Electrical
- Product Attributes - Gauge Diameter (in.)
- 2 1/16 in.
- Product Attributes - Gauge Diameter (mm)
- 52mm
- Product Attributes - Gauge Range
- Empty-full
- Product Attributes - Gauge Shape
- Round
- Product Attributes - Sweep
- Short sweep
- Product Attributes - Gauge Face Color
- Black
- Product Attributes - Gauge Number Color
- White
- Product Attributes - Pointer Color
- Red
- Product Attributes - Bezel Color
- Silver
- Product Attributes - Illuminated
- Yes
- Product Attributes - Memory Recall
- No
- Product Attributes - Playback
- No
- Product Attributes - Liquid-Filled
- No
- Product Attributes - Shift Light Included
- No
- Product Attributes - Tripometer
- No
- Product Attributes - Sending Unit Included
- No
- Product Attributes - Sender Ohm Range
- Programmable
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Autometer |
|---|---|
| StreetFX SKU | atm3610 |
| SFX Item ID | 4079913 |
| Supplier Item Code | 4079913 |
| Manufacturer SKU | 3610 |
| Manufacturer UPC | 46074036101 |
| Alternative References | AUT3610, 52mm |
