Autometer Braided Stainless Steel Line #3 Dia. 4ft Length -3AN and 1/8in NPTF Fittings
Autometer Braided Stainless Steel Line #3 Dia. 4ft Length -3AN and 1/8in NPTF Fittings
A$201.95
IN STOCK! Est Ship 4-7 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
IMPORTANT NOTICE: Designed to be used on AutoMeter brand pressure gauges which have a 1/8 in. NPT fitting on the gauge. This will not work with most other brands of gauges.

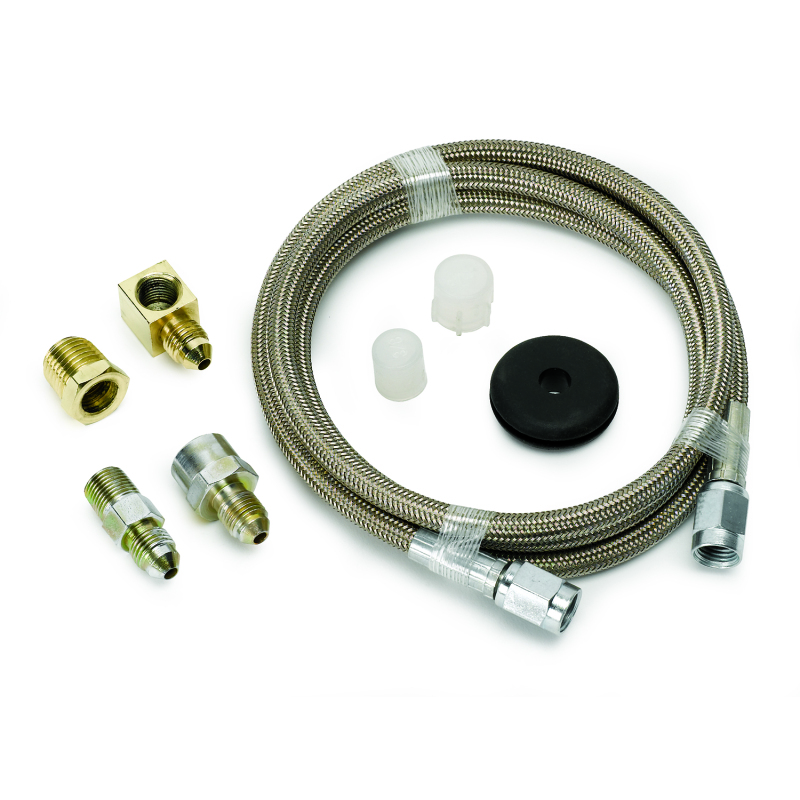

Includes 4ft. of #3 braided stainless steel line, firewall pass through grommet, 1/8" NPT female right angle to -3AN male fitting, -3AN male to 1/8" NPT male fitting, -3AN male to 1/8" NPT female fitting, 1/8" NPT to 1/4" NPT adapter bushing. Recommended for use with fuel pressure gauges. For use with mechanical pressure gauges and for remote mounting of electric gauge pressure senders.
Product Overview
Includes 4ft. of #3 braided stainless steel line, firewall pass through grommet, 1/8" NPT female right angle to -3AN male fitting, -3AN male to 1/8" NPT male fitting, -3AN male to 1/8" NPT female fitting, 1/8" NPT to 1/4" NPT adapter bushing. Recommended for use with fuel pressure gauges. For use with mechanical pressure gauges and for remote mounting of electric gauge pressure senders.
Features and Benefits
- 4ft hose length
- PTFE lined hose, resistant to most fluids
- Type 304 Stainless braid
- Maximum Operating Pressure - 3000 PSI
- Burst Pressure - 12,000 PSI
- -65 Degrees F to 450 Degrees F Operating Temperature Range
- Includes 1/8" NPT male to -3AN female straight, 1/8" FPT Female to -3AN Male straight, 1/8" NPT Female to 1/4" NPT male straight, and -3AN to 1/8" NPT female 90 degree fittings
Product Details
| Add-On: | N/A |
|---|---|
| Description: | Braided Stainless Steel Hose; 4ft Length; #3, 1/16in ID Fittings; Incl 1/8in NPT Female Right Angle to -3AN Male Fitting, -3AN Male to 1/8in NPT Male Fitting, -3AN Male to 1/8in NPT Female Fitting & 1/8in NPT to 1/4in NPT Adapter Bushing |
| Part Number: | atm3235 |
| Title: | LINE, BRAIDED STAINLESS STEEL, #3 DIA., 4FT. LENGTH, -3AN AND 1/8 in. NPTF FITTINGS |
Part Type
Braided Hose
Features
- `-65 F to 450 F Operating Temperature Range
- 4ft hose length
- Burst Pressure - 12,000 PSI
- Includes 1/8"NPT male to -3AN female straight, 1/8" FPT Female to -3AN Male straight, 1/8" NPT Female to 1/4" NPT male straight, and -3AN to 1/8" NPT female 90 degree fittings
- Maximum Operating Pressure - 3000 PSI
- PTFE lined hose, resistant to most fluids
- Type 304 Stainless braid
Specifications
- Product Attributes - Brand
- AutoMeter
- Product Attributes - Manufacturer's Part Number
- 3235
- Product Attributes - Part Type
- Gauge Supply Line Kits
- Product Attributes - Product Line
- AutoMeter Tubing and Line Kits
- Product Attributes - UPC
- 046074032356
- Product Attributes - Supply Line Type
- Hose
- Product Attributes - Hose Size
- -3 AN
- Product Attributes - Hose Length (in.)
- 48.000 in.
- Product Attributes - Hose Length (ft.)
- 4.00
- Product Attributes - Hose End 1
- -3 AN
- Product Attributes - Hose End 1 Attachment
- Female threads
- Product Attributes - Hose End 2
- -3 AN
- Product Attributes - Hose End 2 Attachment
- Female threads
- Product Attributes - Hose End Fitting Material
- Steel
- Product Attributes - Hose End Fitting Color
- Natural
- Product Attributes - Hose Material
- Braided stainless steel
- Product Attributes - Hose Color
- Natural
- Product Attributes - Fittings Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Designed to be used on AutoMeter brand pressure gauges which have a 1/8 in. NPT fitting on the gauge. This will not work with most other brands of gauges.
Reference Information
| Brand Name/s | Autometer |
|---|---|
| StreetFX SKU | atm3235 |
| SFX Item ID | 4079743 |
| Supplier Item Code | 4079743 |
| Manufacturer SKU | 3235 |
| Manufacturer UPC | 46074032356 |
| Alternative References | AUT3235, 4ft, -3AN, 1/8in |
