AutoMeter Gauge Quad 5in. 0 Ohm(e) to 90 Ohm(f) Elec Prestige Blk. Diamond

SKU: ATM2012

Gauge Kits and Instrument Clusters

AM Prestige Gauges...

LOW STOCK! Est Ship 3-5 days. HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.

We accept

Description

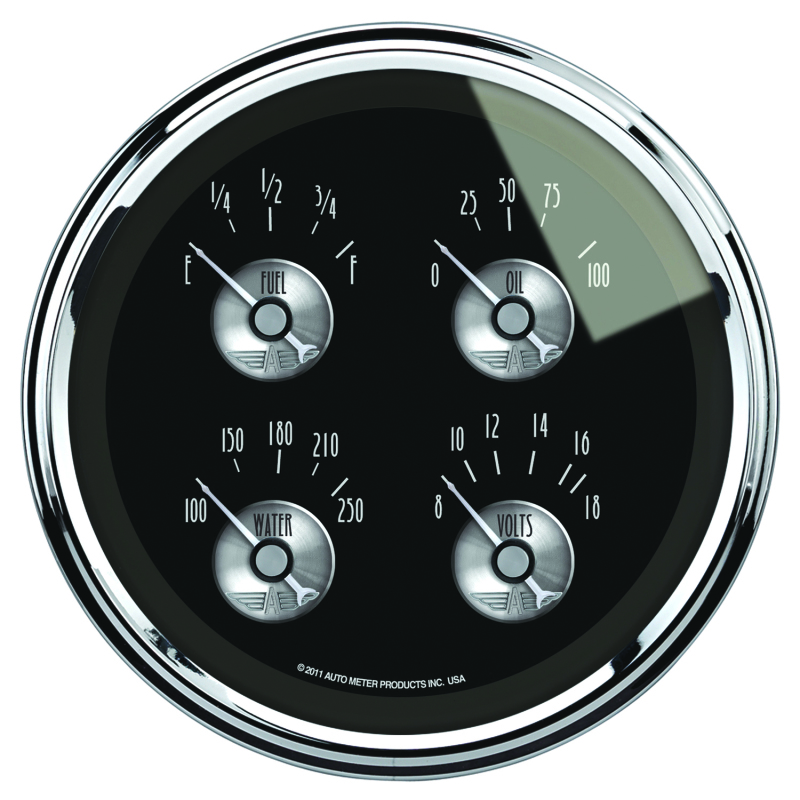

Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8” NPT temperature sender and a 1/8” NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 0 ohms empty to 90 ohms full (compatible with Amid 60’s through mid 90’s GM fuel level senders).

Part Type

Electronic Multi-Purpose Gauge

Data: v4.2 - Upd: 2026-10-13 16:46:30

Features

12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
Gauge kit includes 1/8” NPT pressure sender, 1/4” NPT adapter, 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, mounting hardware, and detailed instructions for installation
Highly polished chrome bezel
Modern white LED through-the-dial lighting provides clear visibility during nighttime use

Specifications

Product Attributes - Brand: AutoMeter
Product Attributes - Manufacturer's Part Number: 2012
Product Attributes - Part Type: Gauge Kits and Instrument Clusters
Product Attributes - Product Line: AutoMeter Prestige Analog Gauge Kits
Product Attributes - UPC: 046074020124
Product Attributes - Gauge Style: Analog
Product Attributes - Gauge Face Color: Black
Product Attributes - Gauge Number Color: White
Product Attributes - Tachometer Included: No
Product Attributes - Speedometer Included: No
Product Attributes - Oil Pressure Gauge Included: Yes
Product Attributes - Water Temperature Gauge Included: No
Product Attributes - Voltage Gauge Included: Yes
Product Attributes - Fuel Level Gauge Included: Yes
Product Attributes - Clock Included: No
Product Attributes - Boost Gauge Included: No
Product Attributes - Pyrometer Included: No
Product Attributes - Transmission Temperature Gauge Included: No
Product Attributes - Oil Temperature Gauge Included: No
Product Attributes - Water Pressure Gauge Included: No
Product Attributes - Ammeter Gauge Included: No
Product Attributes - Fuel Pressure Gauge Included: No
Product Attributes - Brake Bias Gauge Included: No
Product Attributes - Trim Gauge Included: No
Product Attributes - Hour Meter Included: No
Product Attributes - Pointer Color: White
Product Attributes - Bezel Color: Chrome
Product Attributes - Illuminated: Yes
Product Attributes - Warning Lights Included: No
Product Attributes - Gauge Panel Included: No
Product Attributes - Gauge Pod Included: No
Product Attributes - Gauge Type Note: See application page for specific gauge and sending unit information.
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold as a kit.
Product Attributes - Notes: Air-Core meter movement. Vintage-style domed lens. All gauges are short sweep.

Reference Information

Brand Name/s	Autometer
StreetFX SKU	atm2012
SFX Item ID	4080910
Supplier Item Code	4080910
Manufacturer SKU	2012
Manufacturer UPC	46074020124
Alternative References	AUT2012, 5in.

Brochures

Primary brochure

Compatibility

Application Data

Universal	Yes
Gauge Type (application)	Fuel level
Gauge Diameter (application)	5 in.
Gauge Range (application)	Empty-full
Sending Unit (application)	Electronic
Application Notes	For most GM vehicles 1965 to 1997. Will not operate on some 1998 or later vehicles with 40 - 250 Ohm sender.

Universal	Yes
Gauge Type (application)	Oil pressure
Gauge Diameter (application)	5 in.
Gauge Range (application)	0-100 psi
Sending Unit (application)	Electronic
Application Notes	Includes 1/8 in. NPT male thread sender. includes 1/4 in. NPT adapter fitting.

Universal Yes
Gauge Type (application) Voltmeter
Gauge Diameter (application) 5 in.
Gauge Range (application) 8-18 V
Sending Unit (application) Electronic

Universal	Yes
Gauge Type (application)	Water temperature
Gauge Diameter (application)	5 in.
Gauge Range (application)	100-250 degrees F
Sending Unit (application)	Electronic
Application Notes	Includes 1/8 in. NPT sender, 3/8 in. NPT adapter fitting, and a 1/2 in. NPT adapter fitting.
