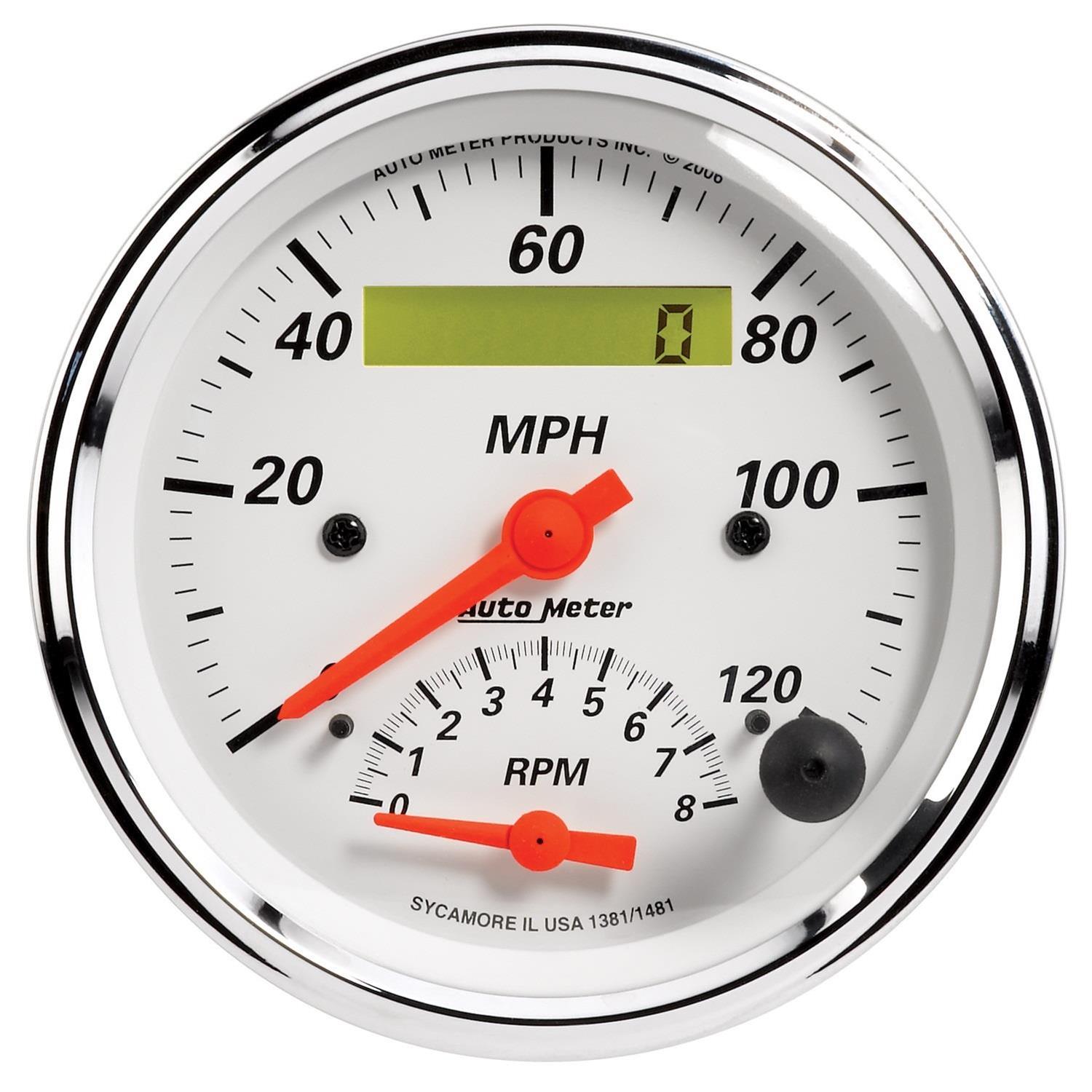

Autometer Arctic White 3-3/8 Quad Gauge and Tach/Speedo Combo
Autometer Arctic White 3-3/8 Quad Gauge and Tach/Speedo Combo
A$1,284.69
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8” NPT temperature sender and a 1/8” NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with AutoMeter’s 3262 fuel level sender).
Part Type
Gauge Set
Features
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
- Highly polished chrome bezel

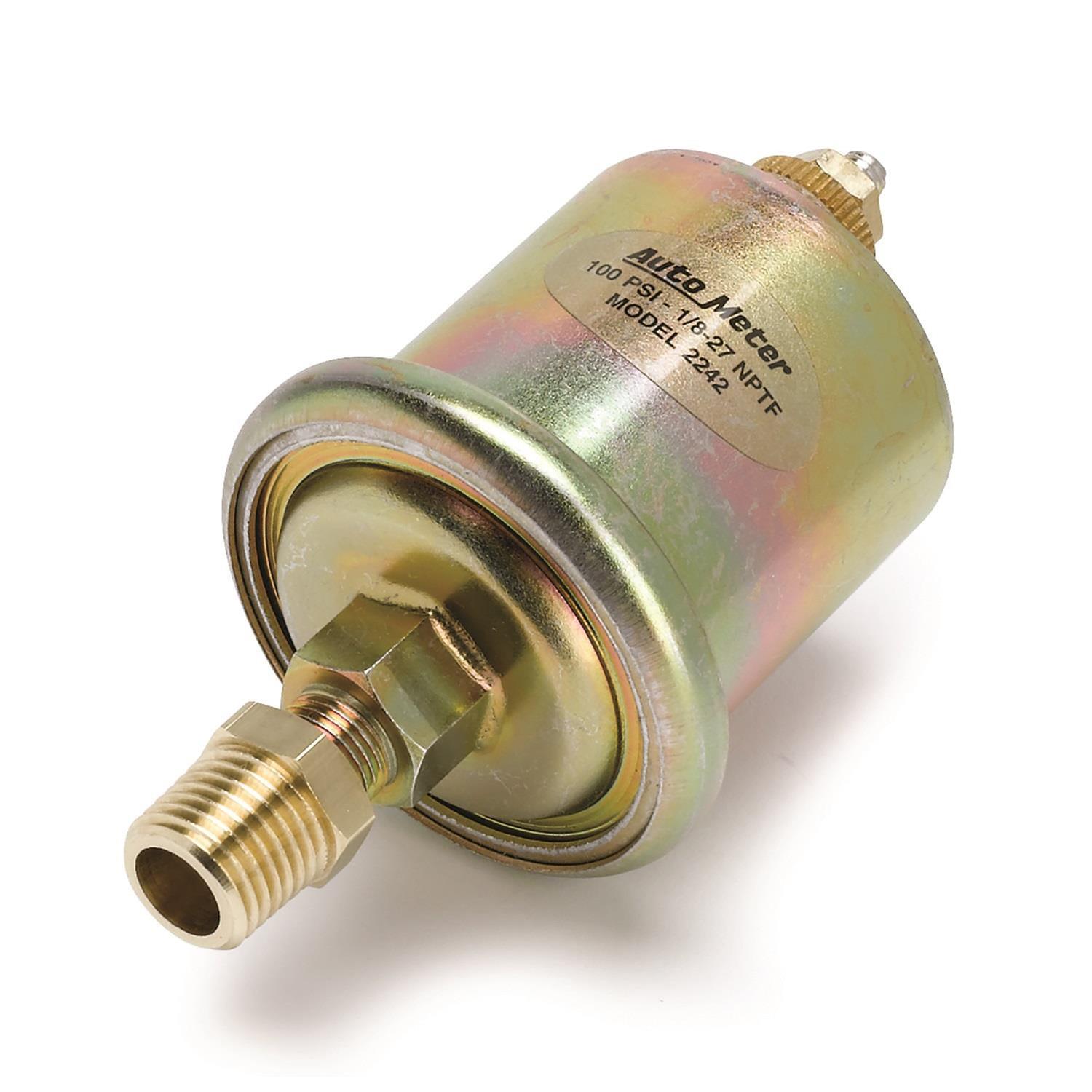

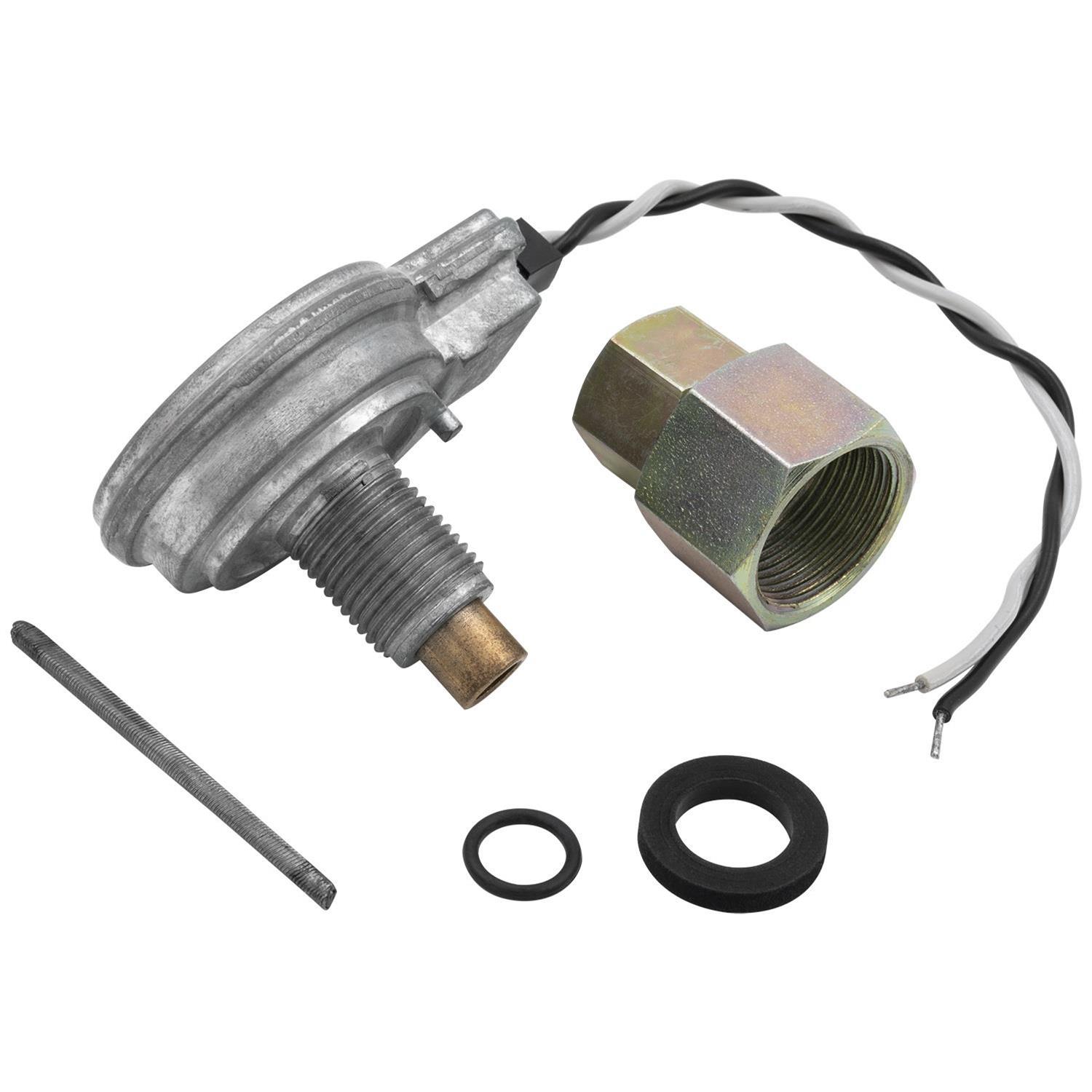

- Kit includes fuel level sender (240E/33F), oil pressure sender, water temperature sender, 2-wire hall-effect speed sender that is compatible with GM/Chrysler applications (7/8" - 18THD)
- Sending unit adapters (1/4", 3/8”, and 1/2" NPT adapters), bulb and socket assemblies, red and green bulb covers, mounting hardware, and detailed instructions for installation.
- Speedometer features lit LCD odometer - capable of registering one-million miles with two resettable trip odometers
- Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
- Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
- Tachometer is compatible with 0.5 - 6 pulse ignition signals (1-12 cylinder engines) with points, electronic, and most 12V high-performance racing ignitions.
- Traditional incandescent lighting illuminates around the perimeter of the dial
Specifications
- Product Attributes - Brand
- AutoMeter
- Product Attributes - Manufacturer's Part Number
- 1309
- Product Attributes - Part Type
- Gauge Kits and Instrument Clusters
- Product Attributes - Product Line
- AutoMeter Arctic White Analog Gauge Kits
- Product Attributes - UPC
- 046074013096
- Product Attributes - Gauge Style
- Analog
- Product Attributes - Gauge Face Color
- White
- Product Attributes - Gauge Number Color
- Black
- Product Attributes - Tachometer Included
- Yes
- Product Attributes - Speedometer Included
- Yes
- Product Attributes - Oil Pressure Gauge Included
- Yes
- Product Attributes - Water Temperature Gauge Included
- Yes
- Product Attributes - Voltage Gauge Included
- Yes
- Product Attributes - Fuel Level Gauge Included
- Yes
- Product Attributes - Clock Included
- No
- Product Attributes - Boost Gauge Included
- No
- Product Attributes - Pyrometer Included
- No
- Product Attributes - Transmission Temperature Gauge Included
- No
- Product Attributes - Oil Temperature Gauge Included
- No
- Product Attributes - Water Pressure Gauge Included
- No
- Product Attributes - Ammeter Gauge Included
- No
- Product Attributes - Fuel Pressure Gauge Included
- No
- Product Attributes - Brake Bias Gauge Included
- No
- Product Attributes - Trim Gauge Included
- No
- Product Attributes - Hour Meter Included
- No
- Product Attributes - Pointer Color
- Red
- Product Attributes - Bezel Color
- Chrome
- Product Attributes - Illuminated
- Yes
- Product Attributes - Warning Lights Included
- No
- Product Attributes - Gauge Panel Included
- No
- Product Attributes - Gauge Pod Included
- No
- Product Attributes - Gauge Type Note
- See application page for specific gauge and sending unit information.
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a kit.
Reference Information
| Brand Name/s | Autometer |
|---|---|
| StreetFX SKU | atm1309 |
| SFX Item ID | 4079857 |
| Supplier Item Code | 4079857 |
| Manufacturer SKU | 1309 |
| Manufacturer UPC | 46074013096 |
| Alternative References | AUT1309 |
