ARB Airlocker Competition Ed 35Spl Ford 9In 2In Brg S/N
ARB Airlocker Competition Ed 35Spl Ford 9In 2In Brg S/N
A$4,851.29
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description

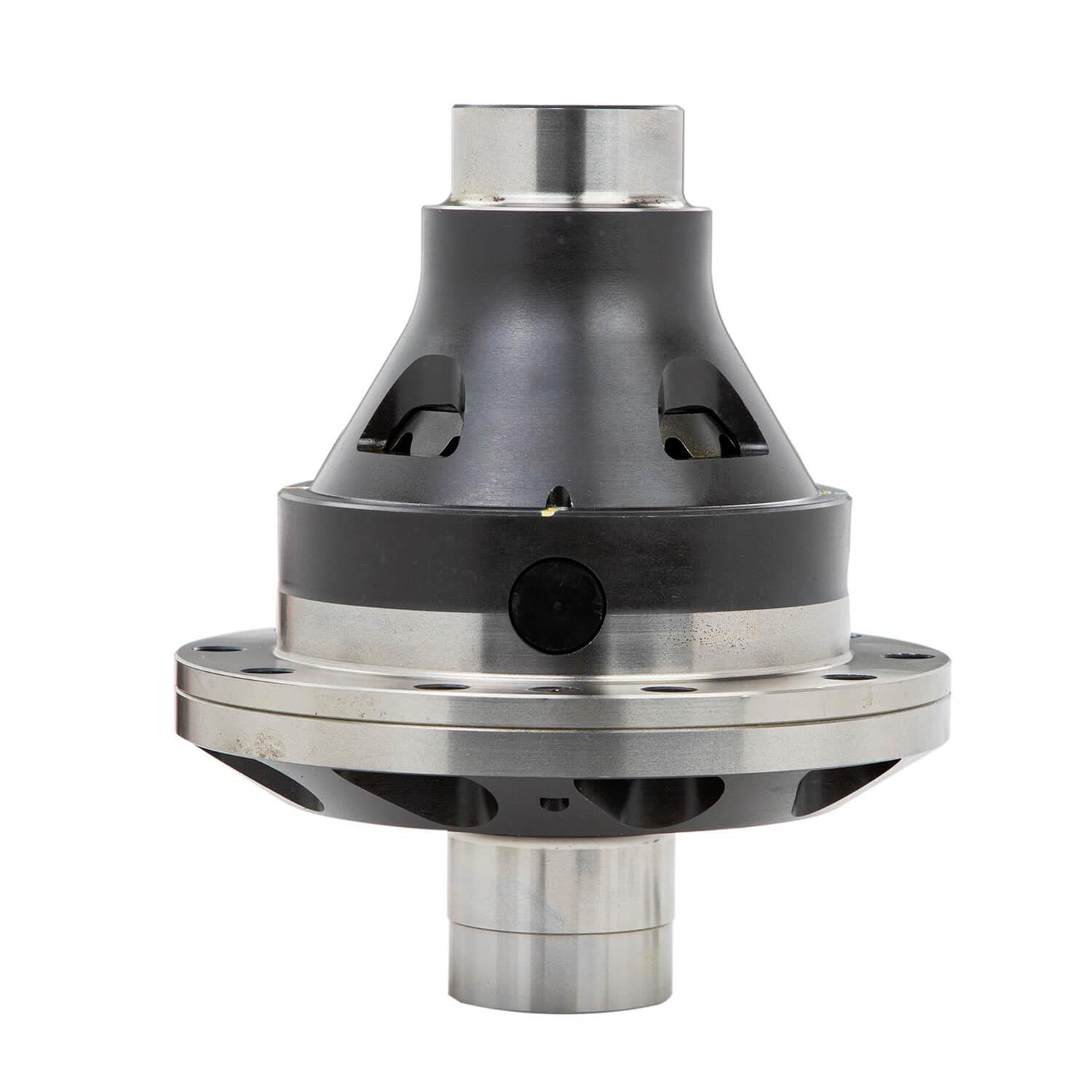

Engineered and manufactured in Australia, the RD99CE competition Air Locker(TM) has been designed around the requirements of top-flight ULTRA4 racing. Each technical advancement addresses a specific concern from teams competing in the worlds toughest 4x4 events and is a direct result of testing within these same races. This Air Locker is for the top-tier racer or the hardcore enthusiast who demands the best equipment for their vehicles. Everyone can benefit from the research and development ARB has committed to the competitive racing circuits. Among the many new design features is an integrated ring gear bolt locking system engineered to prevent the backing out of Ford 9 in. Trac-Loc bolts. Fully reusable and able to resist the high torque loads applied to bolt removal, the locking tabs are designed for disassembly and reassembly for fast pit work on ring gear swaps compared to all other bolt locking systems. Key to the design is the ability to oppose the adverse effects of axle shaft eccentricity caused by typical steering joints,thereby overcoming a common problem with front applications where the differential is offset too far toward one wheel. Achieving new levels of load, wear and impact resistance, the RD99CE case is 290 percent stronger overall compared to standard lockers. Designed with deeper locking engagement, the RD99CE ensures locking functionality is retained even after sustaining significant clutch gear tooth damage from locking under throttle.
Product Overview
Engineered and manufactured in Australia, the RD99CE competition Air Locker(TM) has been designed around the requirements of top-flight ULTRA4 racing. Each technical advancement addresses a specific concern from teams competing in the worlds toughest 4x4 events and is a direct result of testing within these same races. This Air Locker is for the top-tier racer or the hardcore enthusiast who demands the best equipment for their vehicles. Everyone can benefit from the research and development ARB has committed to the competitive racing circuits. Among the many new design features is an integrated ring gear bolt locking system engineered to prevent the backing out of Ford 9 in. Trac-Loc bolts. Fully reusable and able to resist the high torque loads applied to bolt removal, the locking tabs are designed for disassembly and reassembly for fast pit work on ring gear swaps compared to all other bolt locking systems. Key to the design is the ability to oppose the adverse effects of axle shaft eccentricity caused by typical steering joints,thereby overcoming a common problem with front applications where the differential is offset too far toward one wheel. Achieving new levels of load, wear and impact resistance, the RD99CE case is 290 percent stronger overall compared to standard lockers. Designed with deeper locking engagement, the RD99CE ensures locking functionality is retained even after sustaining significant clutch gear tooth damage from locking under throttle.
Features and Benefits
- 5 Year Warranty
- 290 percent Increased Case Strength
- Deeper Clutch Gear Engagement
- Built To Handle Misalignment In Steeply offset Axle Housings
- Improved Internal Oiling

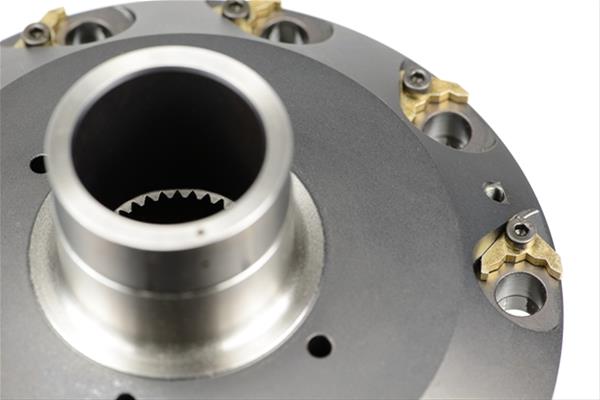

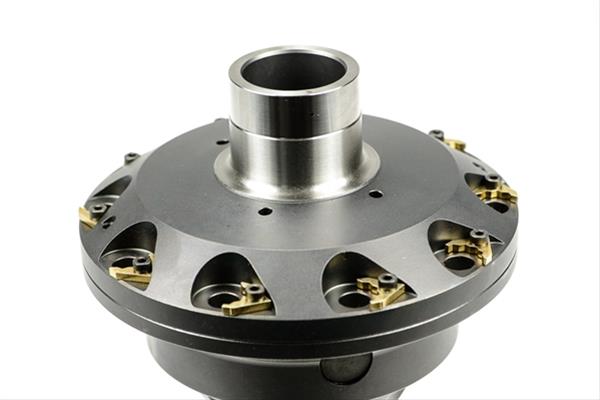

- Ring Gear Bolt Locking Mechanism
- Designed To Integrate With Load-Bolt Equipped Drop-Outs
- Pre-Loaded Internal Gears
- Forged Gear Set
- Install Kit Includes Carrier Bearings
Product Details
| Add-On: | N/A |
|---|---|
| Color: | Silver |
| Description: | Air Locker Differential |
| Material: | Steel |
| Part Number: | arbRD99CE |
| Prop 65 Yes/No: | No |
| Title: | ARB - RD99CE - Air Locker Differential |
| WARNING CA Proposition 65: | No |
Application Summary
FORD 9IN 2IN BRG S/N..
Part Type
Differential
Features
- 290 percent Increased Case Strength
- 5 Year Warranty
- Built To Handle Misalignment In Steeply offset Axle Housings
- Deeper Clutch Gear Engagement
- Designed To Integrate With Load-Bolt Equipped Drop-Outs
- Forged Gear Set
- Improved Internal Oiling
- Install Kit Includes Carrier Bearings
- Pre-Loaded Internal Gears
- Ring Gear Bolt Locking Mechanism
Specifications
- Product Attributes - Brand
- ARB
- Product Attributes - Manufacturer's Part Number
- RD99CE
- Product Attributes - Part Type
- Differential Carriers
- Product Attributes - Product Line
- ARB Air Locker Differentials
- Product Attributes - UPC
- 09332018027979
- Product Attributes - Differential Case Design Type
- Ford 9 in.
- Product Attributes - Remanufactured
- No
- Product Attributes - Aftermarket Carrier Style
- Air locker
- Product Attributes - Axle Shaft Spline Quantity
- 35
- Product Attributes - Carrier Material
- Nodular iron
- Product Attributes - Carrier Bearings Included
- No
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- 2 in. bearing, does not fit OE third member; can be manually modified to accept some other axle splines.
Reference Information
| Brand Name/s | Arb |
|---|---|
| StreetFX SKU | arbRD99CE |
| SFX Item ID | 4383639 |
| Supplier Item Code | 4383639 |
| Manufacturer SKU | RD99CE |
| Manufacturer UPC | 9332018027979 |
| Alternative References | 35Spl, 9In, 2In |
Brochures
Compatibility
FORD 9IN 2IN BRG S/N..
