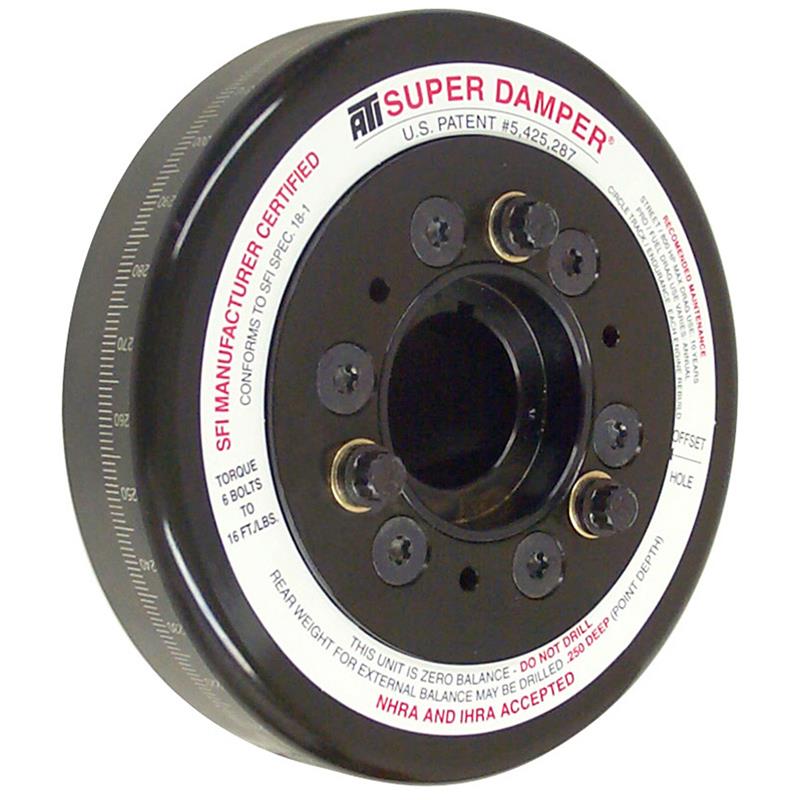

ATI Damper - 7.074in - Alum LW - Chevy SB / 90 Deg V6 C-Bore Front - 3 Ring

Ati

ATI Damper - 7.074in - Alum LW - Chevy SB / 90 Deg V6 C-Bore Front - 3 Ring

SKU: APPATI917204

Harmonic Balancers

APP Dampers...

Special Order. Contact for ETA. This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.

We accept

Description

Patented ATI Super Damper standard harmonic balancers are the only crankshaft dampers designed exclusively for high performance engines. Inner and outer shells are available in aluminum or steel, and contain a steel inertia weight. The inertia weights have six (2-ring design) or eight (3-ring design) computer-machined grooves to retain the proper durometer O-rings (dyno tested for each application). Whether you race or just drive on the street, ATI harmonic balancers are the perfect choice.

Features include:

* Eliminates torsional crankshaft vibrations
* Exceeds SFI 18.1 specs
* Black zinc chromate finished
* OEM equipment on a variety of crate engines
* Tunable, rebuildable, and extremely efficient at all rpm
* Laser-engraved 360 degree timing marks
* Supercharger and power steering drive pulleys available for some applications

Part Type

Harmonic Balancers

Data: v4.2 - Upd: 2026-10-13 20:39:21

Specifications

Product Attributes - Brand: ATI Performance Products
Product Attributes - Manufacturer's Part Number: ATI917204
Product Attributes - Part Type: Harmonic Balancers
Product Attributes - Product Line: ATI Super Damper Standard Harmonic Balancers
Product Attributes - UPC: 800157030482
Product Attributes - Engine Balance: Internal
Product Attributes - SFI Rating: SFI 18.1
Product Attributes - Degree Markings: Yes
Product Attributes - Degree Marking Range: 360
Product Attributes - Outside Diameter (in.): 7.074
Product Attributes - Crankshaft Pulley Bolt Hole Quantity: Three
Product Attributes - Keyway Quantity: One
Product Attributes - Harmonic Balancer Material: Aluminum
Product Attributes - Harmonic Balancer Construction: Elastomer
Product Attributes - Harmonic Balancer Color: Black zinc chromate
Product Attributes - Mounting Hardware Included: No
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: 1.245 in. crankshaft. 2.280 in. counterbore for use with dry sump systems. 3-ring design, weight is 5.45 lbs. Steel hub average weight is 2.4 lbs.

Reference Information

Brand Name/s	Ati
StreetFX SKU	appATI917204
SFX Item ID	4518854
Supplier Item Code	4518854
Manufacturer SKU	ATI917204
Manufacturer UPC	800157030482
Alternative References	7.074in

Compatibility

Application Data

Make	CHEVROLET
Beginning Year	1955
Ending Year	1957
Engine Type	V8
Engine Family	Chevy small block Gen I
Engine Size	4.3L/265
Application Notes	All models with 1.245 in. crankshaft using dry sump system. Counterbore will accept drive mandrel and bolts to the 3 pulley mounting holes. Use standard length crank bolt.

Make	CHEVROLET
Beginning Year	1957
Ending Year	1967
Engine Type	V8
Engine Family	Chevy small block Gen I
Engine Size	4.6L/283
Application Notes	All models with 1.245 in. crankshaft using dry sump system. Counterbore will accept drive mandrel and bolts to the 3 pulley mounting holes. Use standard length crank bolt.

Make	CHEVROLET
Beginning Year	1962
Ending Year	1969
Engine Type	V8
Engine Family	Chevy small block Gen I
Engine Size	5.4L/327
Application Notes	All models with 1.245 in. crankshaft using dry sump system. Counterbore will accept drive mandrel and bolts to the 3 pulley mounting holes. Use standard length crank bolt.

Make	CHEVROLET
Beginning Year	1967
Ending Year	1969
Engine Type	V8
Engine Family	Chevy small block Gen I
Engine Size	4.9L/302
Application Notes	All models with 1.245 in. crankshaft using dry sump system. Counterbore will accept drive mandrel and bolts to the 3 pulley mounting holes. Use standard length crank bolt.

Make	CHEVROLET
Beginning Year	1967
Ending Year	2002
Engine Type	V8
Engine Family	Chevy small block Gen I
Engine Size	5.7L/350
Application Notes	All models with 1.245 in. crankshaft using dry sump system. Counterbore will accept drive mandrel and bolts to the 3 pulley mounting holes. Use standard length crank bolt.

Make	CHEVROLET
Beginning Year	1968
Ending Year	1973
Engine Type	V8
Engine Family	Chevy small block Gen I
Engine Size	5.0L/307
Application Notes	All models with 1.245 in. crankshaft using dry sump system. Counterbore will accept drive mandrel and bolts to the 3 pulley mounting holes. Use standard length crank bolt.

Make	CHEVROLET
Beginning Year	1975
Ending Year	1976
Engine Type	V8
Engine Family	Chevy small block Gen I
Engine Size	4.3L/262
Application Notes	All models with 1.245 in. crankshaft using dry sump system. Counterbore will accept drive mandrel and bolts to the 3 pulley mounting holes. Use standard length crank bolt.

Make	CHEVROLET
Beginning Year	1976
Ending Year	2002
Engine Type	V8
Engine Family	Chevy small block Gen I
Engine Size	5.0L/305
Application Notes	All models with 1.245 in. crankshaft using dry sump system. Counterbore will accept drive mandrel and bolts to the 3 pulley mounting holes. Use standard length crank bolt.

Make	CHEVROLET
Beginning Year	1979
Ending Year	1982
Engine Type	V8
Engine Family	Chevy small block Gen I
Engine Size	4.4L/267
Application Notes	All models with 1.245 in. crankshaft using dry sump system. Counterbore will accept drive mandrel and bolts to the 3 pulley mounting holes. Use standard length crank bolt.
