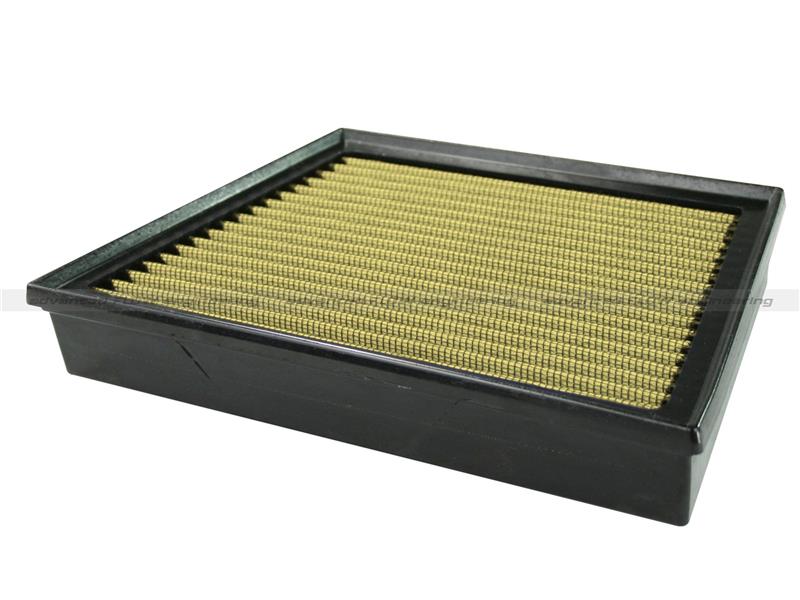

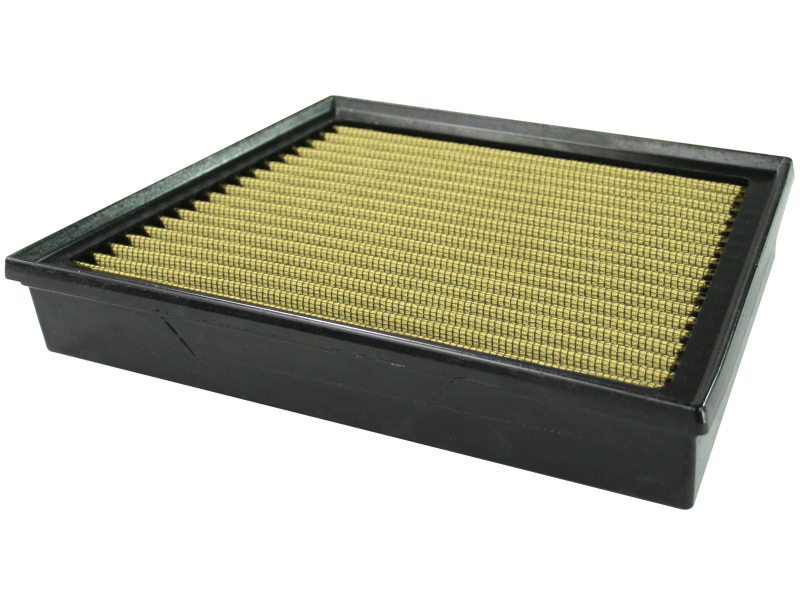

aFe MagnumFLOW Air Filter Pro-GUARD 7 11-13 GM Diesel Trucks V8 6.6L (td) LML

SKU: AFE73-10209

Air Filter Elements

AFE PG7 Drop In Filter...

Afe

Afe

aFe MagnumFLOW Air Filter Pro-GUARD 7 11-13 GM Diesel Trucks V8 6.6L (td) LML

SKU: AFE73-10209

Air Filter Elements

AFE PG7 Drop In Filter...

A$307.39
Limited Availability from MFR Limited stock available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical orders of this part. This item is not held in our own warehouse, and availability and release timing may vary depending on manufacturer stock movements and processing at the time of ordering.
View cart 0
We accept
American Express
Mastercard
Visa
PayPal Checkout
Direct Deposit
Afterpay
Apple Pay
Google Pay
Zip Pay

Description

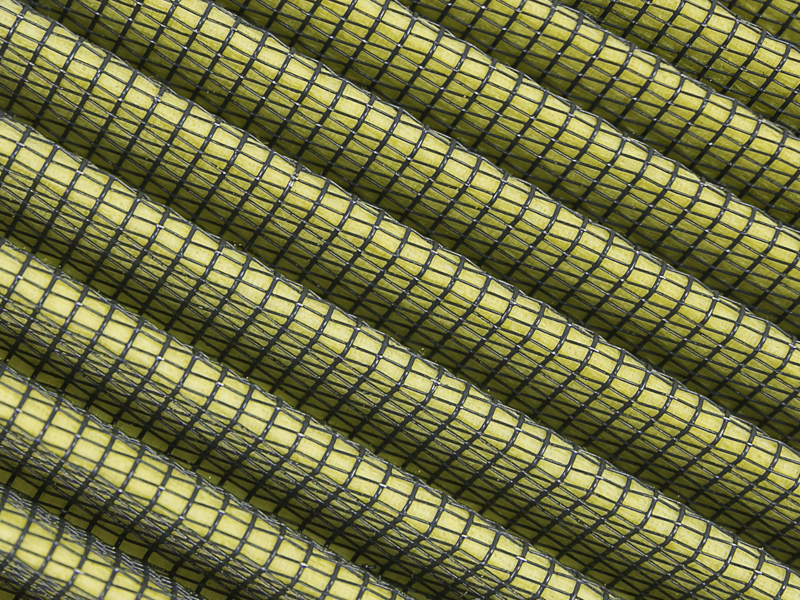

Pro GUARD7 Media: This filter features 5-layers of progressively Finer Oiled Cotton Gauze and 2-layers of Finer Porosity Synthetic non-woven media for highest filtration efficiency for extreme dust environments. (US PAT 06811588) Rounded Open Pleats: aFe performance air filters use a rounded, evenly spaced pleat design which produces more usable filter surface area for increased flow and greater dust holding capacity. Progressive Bump Seal: This pliable sealing surface conforms to even the most uneven filter housing. This design eliminates the use of gaskets or sealants. The soft urethane construction always goes back to its original form so you will never compress the bump seal. This makes for a perfect filter fit and sealing surface every time. Full Urethane Housing: aFe Power performance air filters are constructed using full 360 degree urethane frames. This construction allows for a proper factory style fit with excellent filter strength.

Product Overview

Constructed with 100% polyurethane on all sides, this high flow OE replacement performance filter will outflow the stock paper filter for improved horsepower and torque. Multiple layers of progressively finer mesh gauze media provides maximum convenience and easy maintenance. Washable and reusable for multiple cleaning cycles, the tall open evenly spaced pleats provide excellent dust holding capacity for longer service cycle between cleanings. Integrated urethane bump seal insures a tight, leak free seal over the life of the filter. Choose from three filter medias to best suit your needs: *Pro DRY S* * Primary Concern: Convenience - Pro Dry S oil-free, dry synthetic filtration media is the world's easiest-to-service performance air filter media * Filtration Efficiency: Better - 99.2% - Pro Dry S oil-free, dry synthetic media combines excellent filtration efficiency with easy-to-clean convenience * Typical Vehicle: Gas / Diesel - With excellent filtration efficiency and high airflow values, Pro DRY S is the perfect choice for any vehicle type * Driving Conditions: Street/Dusty - Pro Dry S will provide extended filter life in normal, everyday driving conditions; in dry, dusty conditions Pro Dry S is an excellent choice for ease of maintenance *Pro 5R* * Primary Concern: Performance - Pro 5R provides your engine with the largest amount of high-flowing, cold air, giving you the greatest horsepower and torque gains * Filtration Efficiency: Good - 98.6% - with filtration efficency levels in the high 98% range, Pro 5r outperforms most other cotton gauze medias on the market * Typical Vehicle: Gas / Diesel - Just the right combination of airflow and engine protection for everyday and performance oriented vehicles * Driving Conditions: Street - Pro 5R exceeds the necessary protection for average everyday driving *Pro GUARD 7* * Primary Concern: Protection - Pro Guard 7 offers unparalleled engine protection for the most critical, most expensive engines * Filtration Efficiency: Best - 99.7% - the greatest level of filtration efficiency and engine protection available on the market * Typical Vehicle: Diesel / Off-Road - Pro Guard 7 was developed specifically for today's demanding diesel applications. Pro Guard 7 provides the increased airflow and maximum protection your expensive diesel engine needs * Driving Conditions: Extreme/Very Dusty - Pro Guard 7 is perfect for all driving conditions, but excels in the harshest, most extreme conditions imaginable *Superstock IRF* * Progressive Cotton Gauze and/or Synthetic Media - Washable & reusable, lifetime filters, depth-loading dust holding capacity * Rounded Open Pleats - Better airflow, lower face pressure resistance, greater dust-holding capacity * Progressive Bump Seal - Pliable seal conforms to uneven surfaces, no foam gaskets or sealing grease necessary * Expanded Metal and Epoxy Coated Aluminum Wire Mesh - Provide increased strength and support during times of maximum load to help protect the vehicle's turbo


Features and Benefits

  • OE Direct Replacement
  • 5 Layer Cotton Gauze with 2 Layers of Synthetic Media
  • Washable And Reusable
  • Made From 100% 55-Shore A Polyurethane
  • 35mm Deep Pleats

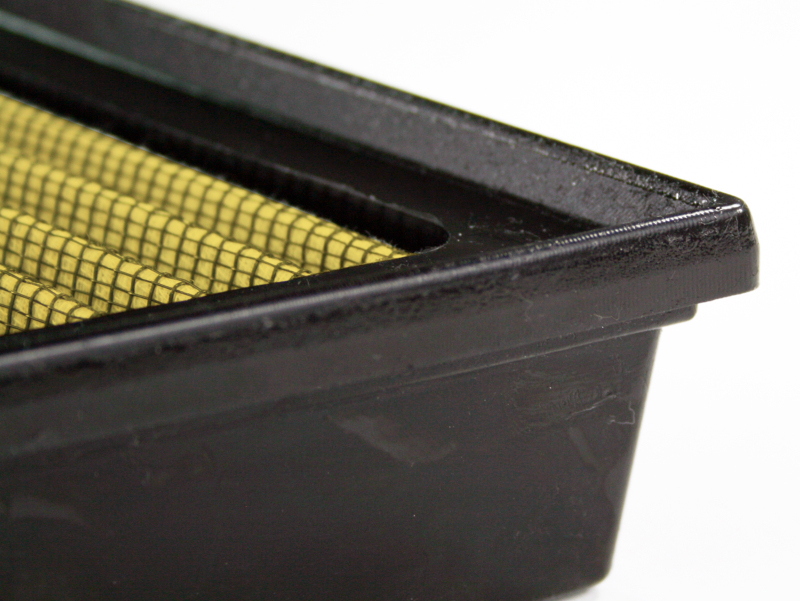

  • Progressive Bump Seal Design For A Perfect Fit
  • Hassle Free Installation
  • Limited Lifetime Warranty

Product Details

11562:Yes
Air Flow Gain:68
Cap Outside Diameter:N/A
Description:Magnum FLOW OE Replacement Air Filter w/ Pro GUARD 7 Media
Diameter Inside (in.):OEM
Diameter Outside (in.):OEM
Filter Color:Gold
Filter Efficiency:99.7
Filter Material:Cotton Gauze & Non-woven Synthetic
Filter Style:Panel
Height (in.):OEM
Height:1.92
Length:13.16
Overall Length (in.):NA
Part Number:afe73-10209
Reusable:Yes
Shape:Panel (Flat)
WARNING CA Proposition 65 Message:WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
WARNING CA Proposition 65:Yes
Washable:Yes
Width (in.):NA
Width:9.47

Application Summary

GM Diesel Trucks 11-16 V8-6.6L (td) LML

Part Type

Air Filter

Data: v4.2 - Upd: 2026-10-13 15:20:17

Features

  • 35mm Deep Pleats
  • 5 Layer Cotton Gauze with 2 Layers of Synthetic Media
  • Hassle Free Installation
  • Limited Lifetime Warranty
  • Made From 100% 55-Shore A Polyurethane
  • OE Direct Replacement
  • Progressive Bump Seal Design For A Perfect Fit
  • Washable And Reusable

Specifications

Product Attributes - UPC
802959730270
Product Attributes - Brand
AFE Power
Product Attributes - Quantity
Sold individually.
Product Attributes - Part Type
Air Filter Elements
Product Attributes - Filter Color
Gold
Product Attributes - Product Line
aFe Pro GUARD 7 Air Filter Elements
Product Attributes - Air Filter Type
Oiled
Product Attributes - Filter Material
Cotton/Synthetic
Product Attributes - Air Filter Style
Panel
Product Attributes - Manufacturer's Part Number
73-10209

Reference Information

Brand Name/s Afe
StreetFX SKU afe73-10209
SFX Item ID 4371952
Supplier Item Code 4371952
Manufacturer SKU 73-10209
Manufacturer UPC 802959730270
Alternative References pg7, 6.6L

Compatibility

GM Diesel Trucks 11-16 V8-6.6L (td) LML
