aFe Automatic Transmission Pans 46-70120-1 Oil Pan, Aluminum, Natural, Deep, +7.5 qts. Capacity, Ford, 5R110, Each

SKU: AFE46-70120-1

Automatic Transmission Pans

Afe

aFe Automatic Transmission Pans 46-70120-1 Oil Pan, Aluminum, Natural, Deep, +7.5 qts. Capacity, Ford, 5R110, Each

SKU: AFE46-70120-1

Automatic Transmission Pans

Available from MFR. This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.

We accept

Description

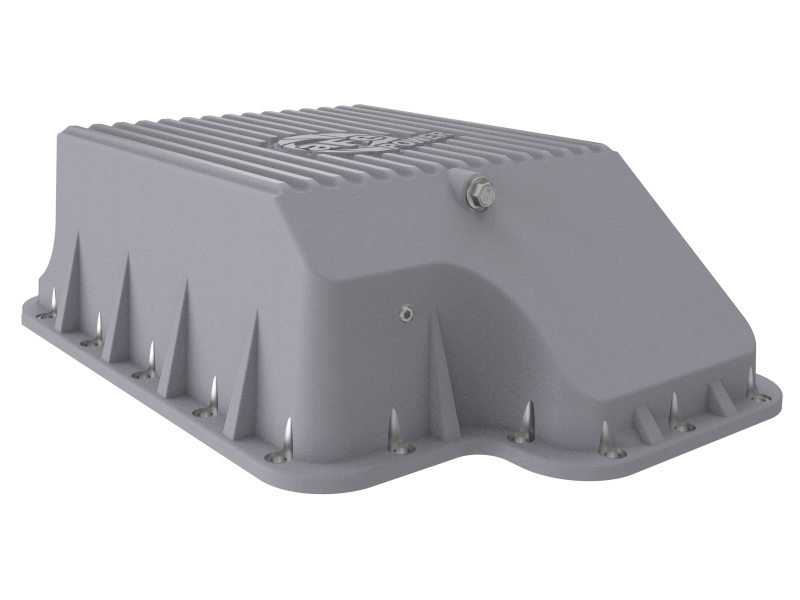

aFe POWER Street Series deep transmission pan brings performance engineering to the protection of your trucks transmission. This transmission pan has additional capacity for 7-1/2 more quarts over stock at the factory line, a magnetic drain plug and a 1/8" NPT port for your temperature sensor. Built-in internal and external fins transfer heat from the fluid to the outside air for maximum cooling. This transmission pan is constructed out of durable die-cast A380 aluminum with reinforced ribs and a raw finsh with machined accents for maximum strength and styling.

Product Overview

aFe Power's new deep transmission pan brings performance engineering to the protection of your transmission. aFe's transmission pan adds additional oil capacity over stock. Internal and external fins transfer heat from the fluid to the ambient air for maximum cooling. Constructed out of durable A380 aluminum with reinforced ribs for maximum strength. This pan also features a black, powder-coated finish with machined fins for protection and styling. Internal and External Fins: Internal and external fins transfer heat from the fluid to the ambient air for maximum cooling. Magnetic Drain Plug: This system incorporates a large neodymium magnetic drain plug that captures loose particles for maximum transmission protection and can be tightened using a 1/2" square socket drive. 1/8" NPT Port: Threaded 1/8" NPT port comes ready to use for your transmission temperature sensor. Hassle-Free Installation: Transmission pan comes complete with all necessary hardware to bolt directly to factory location for a hassle-free installation. Compatible with stock filter and able to reuse stock factory gasket. When it comes to engineering for power, performance, protection and value, aFe Power is the only choice

Features and Benefits

Internal/External Fins Transfer Heat From Fluid To Ambient Air

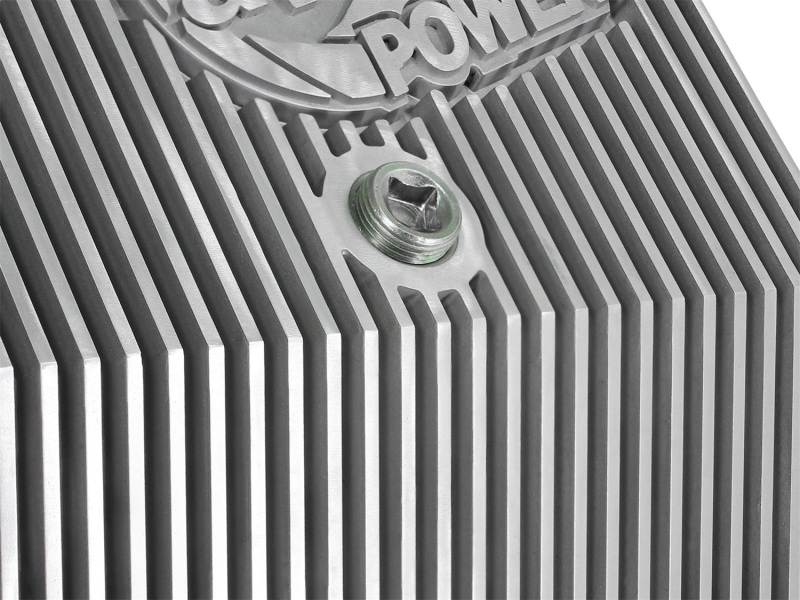

Large Neodymium Magnet Drain Plus Captures Loose Particles

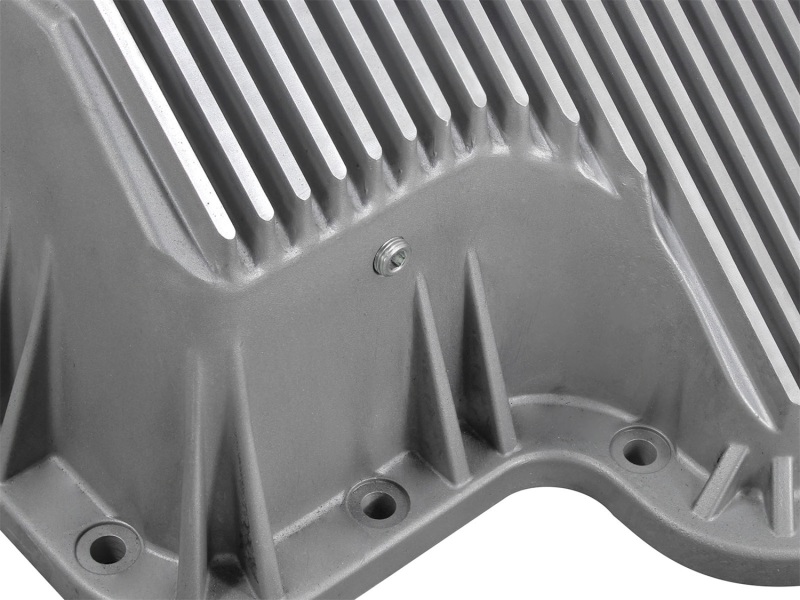

1/8 in. NPT Port Comes Ready To Use For Your Temp Sensor
Comes Complete w/All Necessary Hardware To Bolt Directly On

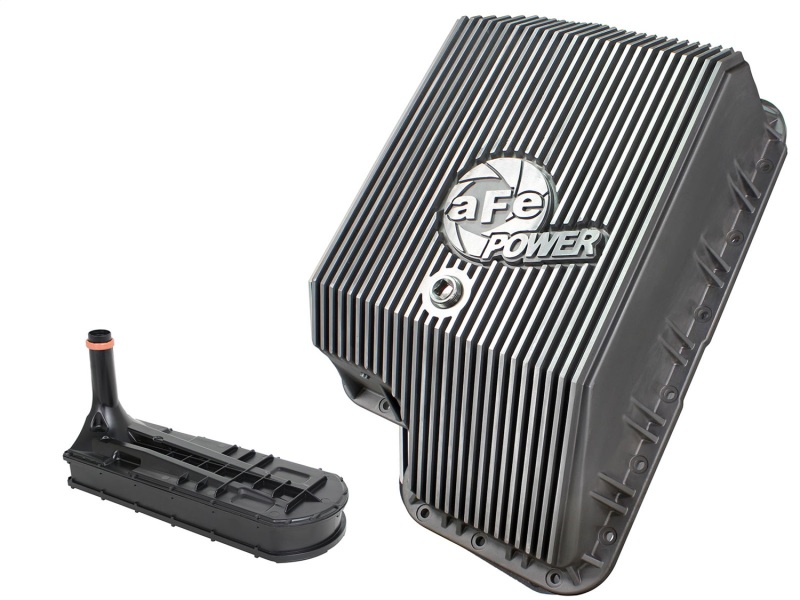

Compatible w/Stock Filter and Able To Reuse Stock Factory Gasket
Adds An Additional 7-1/2 Quarts Over Stock
Requires No Modification To Factory Dipstick

Product Details

Description:	aFe POWER Street Series Transmission Pan Raw w/ Machined Fins
Material:	Cast Aluminum
Part Number:	afe46-70120-1
Trans Model:	Ford- 5R110 (Auto)5 Speed
WARNING CA Proposition 65 Message:	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
WARNING CA Proposition 65:	Yes

Application Summary

Ford Diesel Trucks 94-10 V8-7.3L/6.0L/6.4L (td)

Part Type

Available to Order

Data: v4.2 - Upd: 2026-10-14 11:14:48

Features

1/8 in. NPT Port Comes Ready To Use For Your Temp Sensor
Adds An Additional 7-1/2 Quarts Over Stock
Comes Complete w/All Necessary Hardware To Bolt Directly On
Compatible w/Stock Filter and Able To Reuse Stock Factory Gasket
Internal/External Fins Transfer Heat From Fluid To Ambient Air
Large Neodymium Magnet Drain Plus Captures Loose Particles
Requires No Modification To Factory Dipstick

Specifications

Product Attributes - UPC: 802959464366
Product Attributes - Brand: AFE Power
Product Attributes - Quantity: Sold individually.
Product Attributes - Part Type: Automatic Transmission Pans
Product Attributes - Product Line: aFe Automatic Transmission Pans
Product Attributes - Filter Included: Yes
Product Attributes - Gaskets Included: Yes
Product Attributes - Capacity Increase: 7.5 qt.
Product Attributes - Drain Plug Included: Yes
Product Attributes - Bolts/Studs Included: Yes
Product Attributes - Transmission Pan Style: Deep
Product Attributes - Transmission Pan Finish: Natural
Product Attributes - Filter Extension Included: No
Product Attributes - Transmission Pan Material: Aluminum
Product Attributes - Manufacturer's Part Number: 46-70120-1
Product Attributes - Temperature Sender Bung Included: Yes

Reference Information

Brand Name/s	Afe
StreetFX SKU	afe46-70120-1
SFX Item ID	4782109
Supplier Item Code	4782109
Manufacturer SKU	46-70120-1
Manufacturer UPC	802959464366
Alternative References	5R110
