aFe Transmission Pan (Black); Ford Diesel Trucks 03-10 V8-6.0/6.4L (td)

SKU: AFE46-70122-1

Automatic Transmission Pans

AFE Diff/Trans/Oil Covers...

aFe Transmission Pan (Black); Ford Diesel Trucks 03-10 V8-6.0/6.4L (td)

Afe

aFe Transmission Pan (Black); Ford Diesel Trucks 03-10 V8-6.0/6.4L (td)

SKU: AFE46-70122-1

Automatic Transmission Pans

AFE Diff/Trans/Oil Covers...

LOW STOCK! Est Ship 3-5 days. HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.

We accept

Description

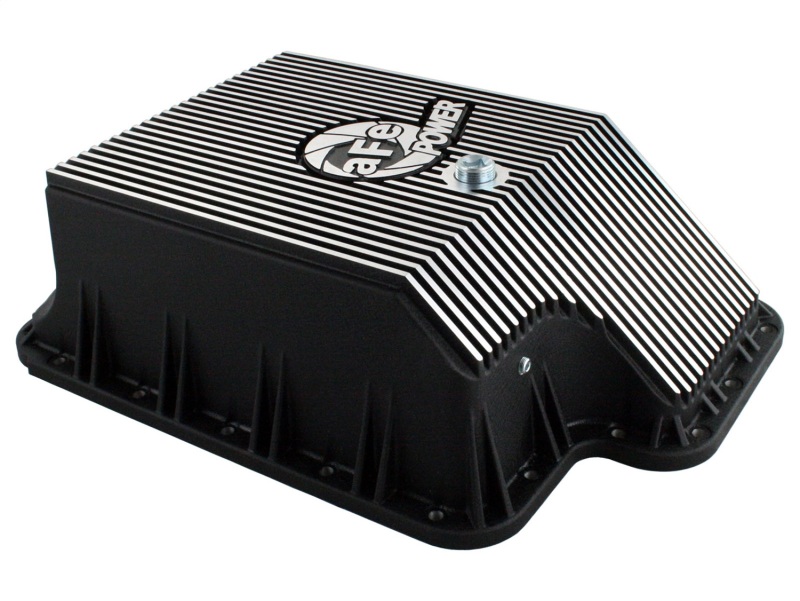

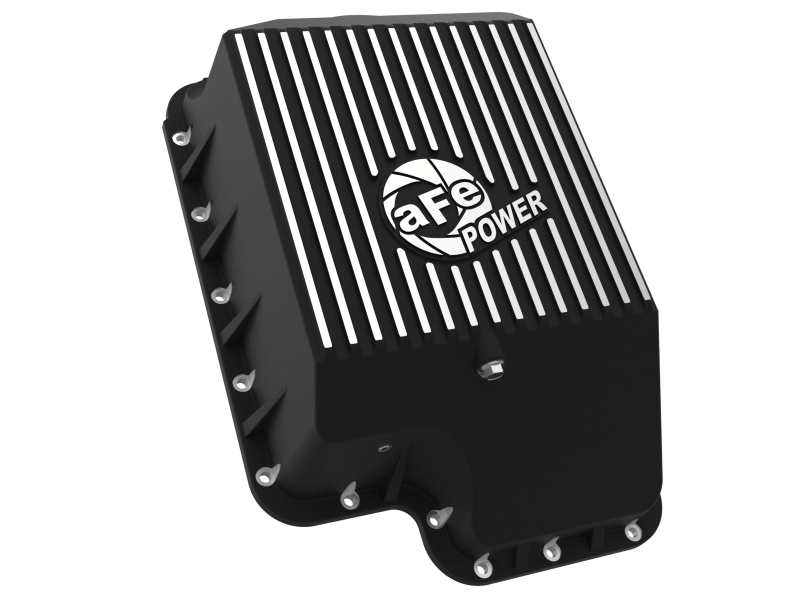

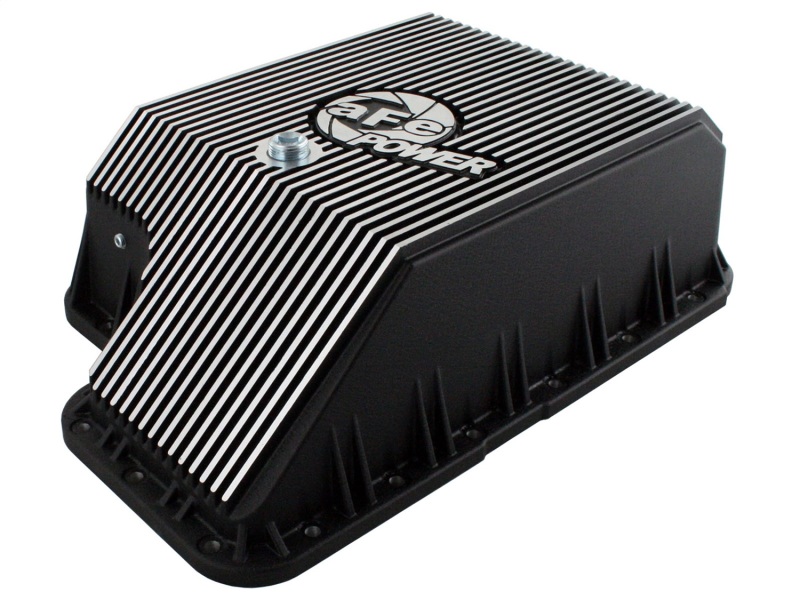

aFe POWER Pro Series deep transmission pan brings performance engineering to the protection of your trucks transmission. This transmission pan has additional capacity for 7-1/2 more quarts over stock at the factory line, a magnetic drain plug and a 1/8" NPT port for your temperature sensor. Built-in internal and external fins transfer heat from the fluid to the outside air for maximum cooling. This transmission pan is constructed out of durable die-cast A380 aluminum with reinforced ribs and a wrinkle black powder-coating for maximum strength and styling.

Product Overview

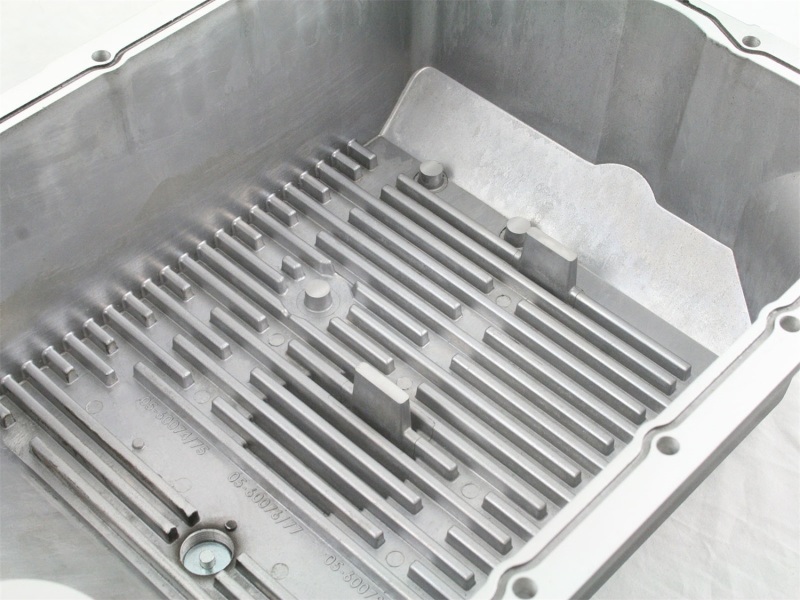

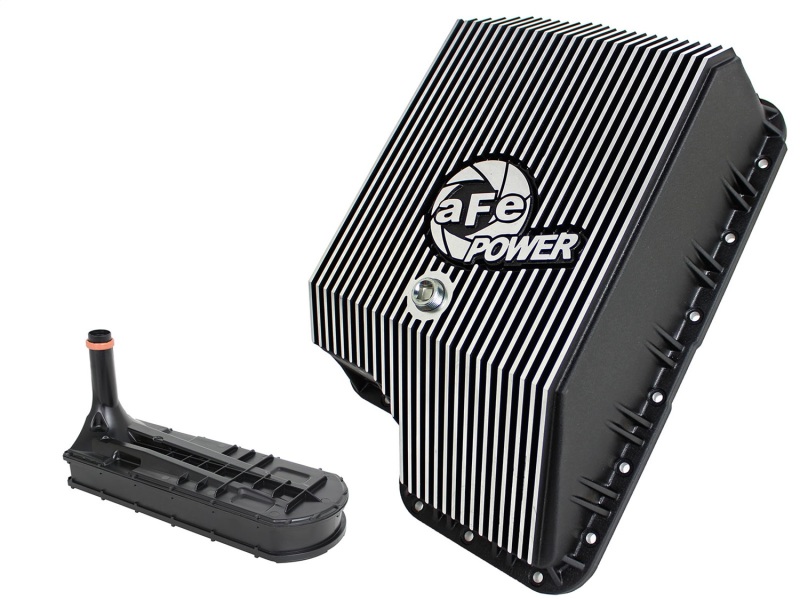

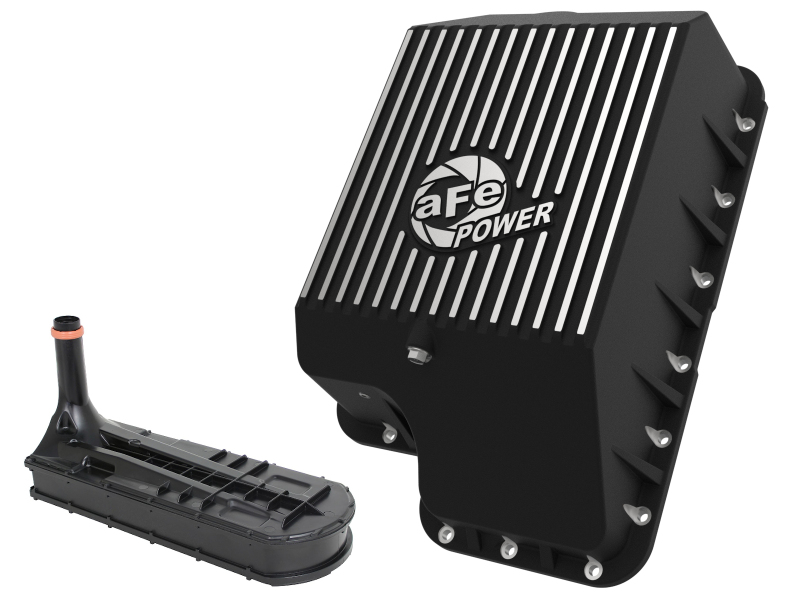

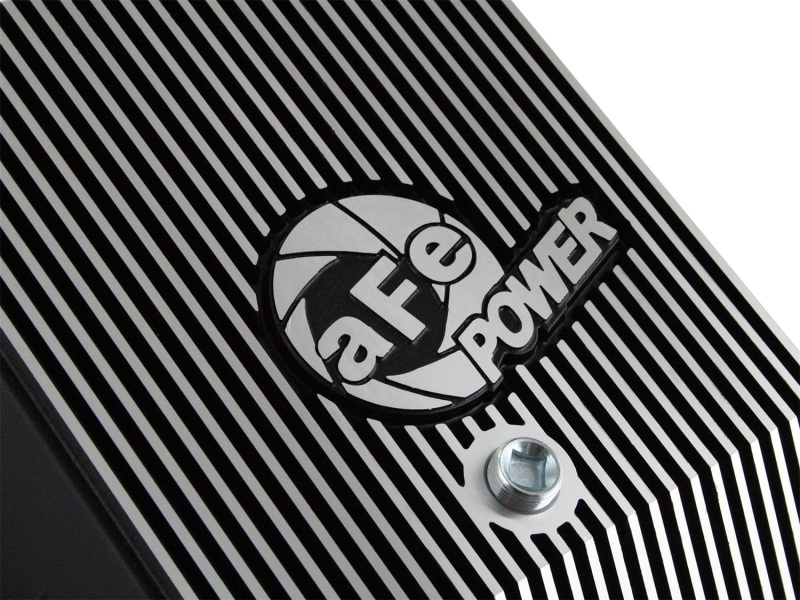

aFe Power's new deep transmission pan brings performance engineering to the protection of your transmission. aFe's transmission pan adds additional oil capacity over stock. Internal and external fins transfer heat from the fluid to the ambient air for maximum cooling. Constructed out of durable A380 aluminum with reinforced ribs for maximum strength. This pan also features a black, powder-coated finish with machined fins for protection and styling. Internal and External Fins: Internal and external fins transfer heat from the fluid to the ambient air for maximum cooling. Magnetic Drain Plug: This system incorporates a large neodymium magnetic drain plug that captures loose particles for maximum transmission protection and can be tightened using a 1/2" square socket drive. 1/8" NPT Port: Threaded 1/8" NPT port comes ready to use for your transmission temperature sensor. Hassle-Free Installation: Transmission pan comes complete with all necessary hardware to bolt directly to factory location for a hassle-free installation. Compatible with stock filter and able to reuse stock factory gasket. When it comes to engineering for power, performance, protection and value, aFe Power is the only choice

Features and Benefits

Magnetic Drain Plug
Internal And External fins
Die Cast A380 Aluminum
Added Fluid Capacity
1/8 in. NPT Temp Sensor Port
Limited Lifetime Warranty

Product Details

Year	Make
Capacity Increase:	6
Capacity:	16
Color:	Black
Description:	aFe POWER Pro Series Transmission Pan Black w/ Machined Fins
Drain Plug Included:	Yes
Finish:	Powdercoated
Gasket Or Seal Included:	Yes
Material:	Cast Aluminum
Mounting Hardware Included:	Yes
Part Number:	afe46-70122-1
Trans Model:	Ford- 5R110 (Auto)5 Speed
Transmission Filter Included:	Yes
WARNING CA Proposition 65 Message:	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
WARNING CA Proposition 65:	Yes

Application Summary

Ford Diesel Trucks 94-10 V8-7.3L/6.0L/6.4L (td)

Part Type

Available to Order

Data: v4.2 - Upd: 2026-10-14 13:45:20

Features

1/8 in. NPT Temp Sensor Port
Added Fluid Capacity
Die Cast A380 Aluminum
Internal And External fins
Limited Lifetime Warranty
Magnetic Drain Plug

Specifications

Product Attributes - UPC: 802959464359
Product Attributes - Brand: AFE Power
Product Attributes - Quantity: Sold individually.
Product Attributes - Part Type: Automatic Transmission Pans
Product Attributes - Product Line: aFe Automatic Transmission Pans
Product Attributes - Filter Included: Yes
Product Attributes - Gaskets Included: No
Product Attributes - Capacity Increase: 7.5 qt.
Product Attributes - Drain Plug Included: Yes
Product Attributes - Bolts/Studs Included: Yes
Product Attributes - Transmission Pan Style: Deep
Product Attributes - Transmission Pan Finish: Black powdercoated
Product Attributes - Filter Extension Included: No
Product Attributes - Transmission Pan Material: Aluminum
Product Attributes - Manufacturer's Part Number: 46-70122-1
Product Attributes - Temperature Sender Bung Included: Yes

Reference Information

Brand Name/s	Afe
StreetFX SKU	afe46-70122-1
SFX Item ID	4370674
Supplier Item Code	4370674
Manufacturer SKU	46-70122-1
Manufacturer UPC	802959464359
Alternative References	V8-6.0/6.4L
