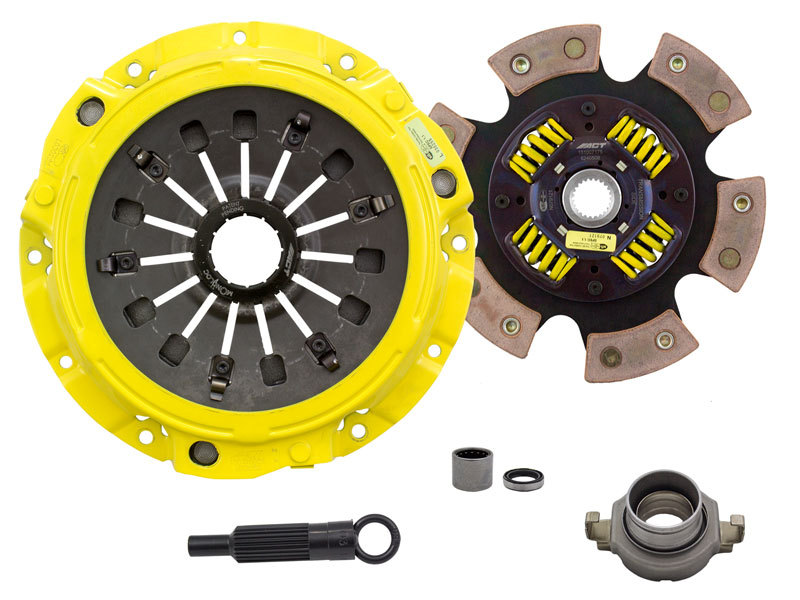

ACT 1993 Mazda RX-7 XT-M/Race Sprung 6 Pad Clutch Kit
ACT 1993 Mazda RX-7 XT-M/Race Sprung 6 Pad Clutch Kit
A$1,968.09
LOW STOCK! Est Ship 3-5 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
ZX6-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened chrome-moly steel construction will provide years of service.
Application Summary
ZX6-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened chrome-moly steel construction will provide years of service.
Part Type
Transmission Clutch Kit
Features
- "Excellence in Performance", backed by the best one-year warranty in the industry!
Specifications
- Product Attributes - Brand
- Advanced Clutch Technology
- Product Attributes - Manufacturer's Part Number
- ZX6-XTG6
- Product Attributes - Part Type
- Clutch Kits
- Product Attributes - Product Line
- ACT Xtreme Clutch Kits
- Product Attributes - UPC
- 00842385021979
- Product Attributes - Clutch Usage
- Performance
- Product Attributes - Clutch Disc Quantity
- 1
- Product Attributes - Flywheel Included
- No
- Product Attributes - Input Spline Quantity
- 23
- Product Attributes - Input Shaft Diameter
- 1.000 in.
- Product Attributes - Disc Diameter (in.)
- 9.400 in.
- Product Attributes - Disc Diameter (mm)
- 240mm
- Product Attributes - Disc Material
- Ceramic
- Product Attributes - Disc Style
- 6-paddle
- Product Attributes - Hub Style
- Sprung
- Product Attributes - Pressure Plate Style
- Diaphragm
- Product Attributes - Throwout Bearing Included
- Yes
- Product Attributes - Alignment Tool Included
- Yes
- Product Attributes - Pilot Bushing Included
- Yes
- Product Attributes - Pilot Bushing Material
- Steel roller bearing
- Product Attributes - Counterweight Assist
- No
- Product Attributes - Mounting Hardware Included
- No
- Product Attributes - Quantity
- Sold as a kit.
Reference Information
| Brand Name/s | Act |
|---|---|
| StreetFX SKU | actZX6-XTG6 |
| SFX Item ID | 4046049 |
| Supplier Item Code | 4046049 |
| Manufacturer SKU | ZX6-XTG6 |
| Manufacturer UPC | 842385021979 |
| Alternative References | ACL-ZX6-XTG6, RX-7 |
