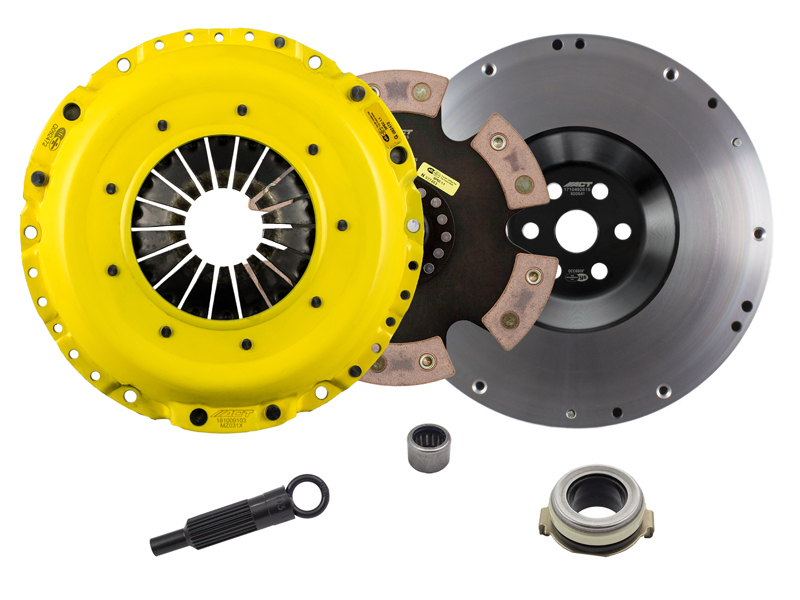

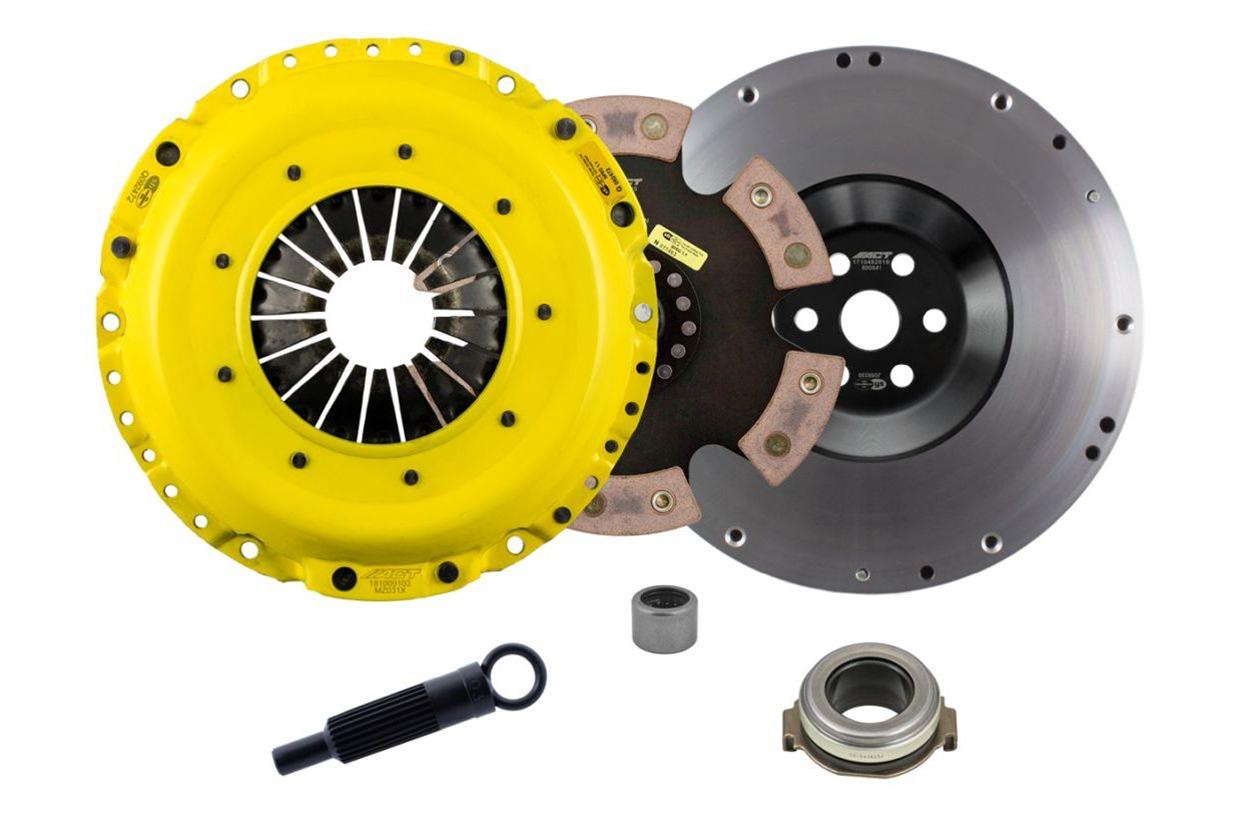

ACT Xtreme Clutch Kits for 2007-2013 3, 2006-2007 6 - ZX5-XTR6 Kit, Xtreme, Performance, Single Disc, 1.000 in. 23-spline, 9.400 in. Ceramic Disc Diameter, Pressure Plate, Mazda, 2.3L, Kit
ACT Xtreme Clutch Kits for 2007-2013 3, 2006-2007 6 - ZX5-XTR6 Kit, Xtreme, Performance, Single Disc, 1.000 in. 23-spline, 9.400 in. Ceramic Disc Diameter, Pressure Plate, Mazda, 2.3L, Kit
A$2,538.61
Last Available from MFR.
LAST ONE AVAILABLE from the manufacturer's distribution centre. Once sold, this item may not be immediately available again. The dispatch timeframe shown is an estimate based on historical orders for this part and is dependent on the manufacturer releasing the final available unit.
We accept
Description
ZX5-XTR6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.
Part Type
Transmission Clutch Kit
Features
- "Excellence in Performance", backed by the best one-year warranty in the industry!
Specifications
- Product Attributes - Brand
- Advanced Clutch Technology
- Product Attributes - Manufacturer's Part Number
- ZX5-XTR6
- Product Attributes - Part Type
- Clutch Kits
- Product Attributes - Product Line
- ACT Xtreme Clutch Kits
- Product Attributes - UPC
- 842385018849
- Product Attributes - Clutch Usage
- Performance
- Product Attributes - Clutch Disc Quantity
- 1
- Product Attributes - Flywheel Included
- Yes
- Product Attributes - Input Spline Quantity
- 23
- Product Attributes - Input Shaft Diameter
- 1.000 in.
- Product Attributes - Disc Diameter (in.)
- 9.400 in.
- Product Attributes - Disc Diameter (mm)
- 240mm
- Product Attributes - Disc Material
- Ceramic
- Product Attributes - Disc Style
- 6-paddle
- Product Attributes - Hub Style
- Solid
- Product Attributes - Pressure Plate Style
- Diaphragm
- Product Attributes - Throwout Bearing Included
- Yes
- Product Attributes - Alignment Tool Included
- Yes
- Product Attributes - Pilot Bushing Included
- Yes
- Product Attributes - Pilot Bushing Material
- Steel roller bearing
- Product Attributes - Flywheel Material
- Billet steel
- Product Attributes - Ring Gear Tooth Quantity
- 112-tooth
- Product Attributes - Flywheel Bolt Quantity
- 6
- Product Attributes - Counterweight Assist
- No
- Product Attributes - Mounting Hardware Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
Reference Information
| Brand Name/s | Act |
|---|---|
| StreetFX SKU | actZX5-XTR6 |
| SFX Item ID | 4920381 |
| Supplier Item Code | 4920381 |
| Manufacturer SKU | ZX5-XTR6 |
| Manufacturer UPC | 842385018849 |
| Alternative References | ACL-ZX5-XTR6, 23-spline, 2.3L |
