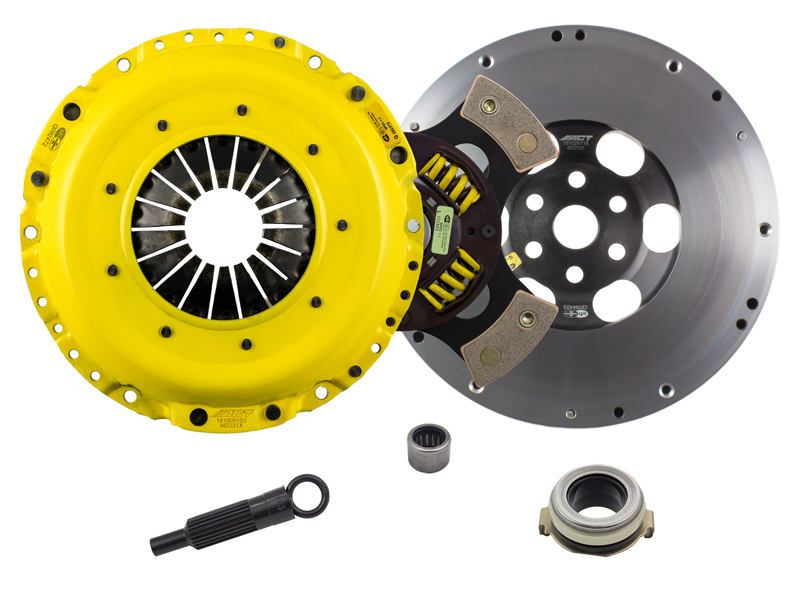

ACT Xtreme Clutch Kits for 2007-2013 3, 2006-2007 6 - ZX4-XTG4 Kit, Xtreme, Performance, Single Disc, 1.000 in. 23-spline, 9.400 in. Ceramic Disc Diameter, Pressure Plate, Mazda, 2.3L, Kit
ACT Xtreme Clutch Kits for 2007-2013 3, 2006-2007 6 - ZX4-XTG4 Kit, Xtreme, Performance, Single Disc, 1.000 in. 23-spline, 9.400 in. Ceramic Disc Diameter, Pressure Plate, Mazda, 2.3L, Kit
A$2,460.02
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
ZX4-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.
Part Type
Transmission Clutch Kit
Features
- "Excellence in Performance", backed by the best one-year warranty in the industry!
Specifications
- Product Attributes - Brand
- Advanced Clutch Technology
- Product Attributes - Manufacturer's Part Number
- ZX4-XTG4
- Product Attributes - Part Type
- Clutch Kits
- Product Attributes - Product Line
- ACT Xtreme Clutch Kits
- Product Attributes - UPC
- 842385018801
- Product Attributes - Clutch Usage
- Performance
- Product Attributes - Clutch Disc Quantity
- 1
- Product Attributes - Flywheel Included
- Yes
- Product Attributes - Input Spline Quantity
- 23
- Product Attributes - Input Shaft Diameter
- 1.000 in.
- Product Attributes - Disc Diameter (in.)
- 9.400 in.
- Product Attributes - Disc Diameter (mm)
- 240mm
- Product Attributes - Disc Material
- Ceramic
- Product Attributes - Disc Style
- 4-paddle
- Product Attributes - Hub Style
- Sprung
- Product Attributes - Pressure Plate Style
- Diaphragm
- Product Attributes - Throwout Bearing Included
- Yes
- Product Attributes - Alignment Tool Included
- Yes
- Product Attributes - Pilot Bushing Included
- Yes
- Product Attributes - Pilot Bushing Material
- Steel roller bearing
- Product Attributes - Flywheel Material
- Billet steel
- Product Attributes - Ring Gear Tooth Quantity
- 112-tooth
- Product Attributes - Flywheel Bolt Quantity
- 6
- Product Attributes - Counterweight Assist
- No
- Product Attributes - Mounting Hardware Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
Reference Information
| Brand Name/s | Act |
|---|---|
| StreetFX SKU | actZX4-XTG4 |
| SFX Item ID | 4920370 |
| Supplier Item Code | 4920370 |
| Manufacturer SKU | ZX4-XTG4 |
| Manufacturer UPC | 842385018801 |
| Alternative References | ACL-ZX4-XTG4, 23-spline, 2.3L |
