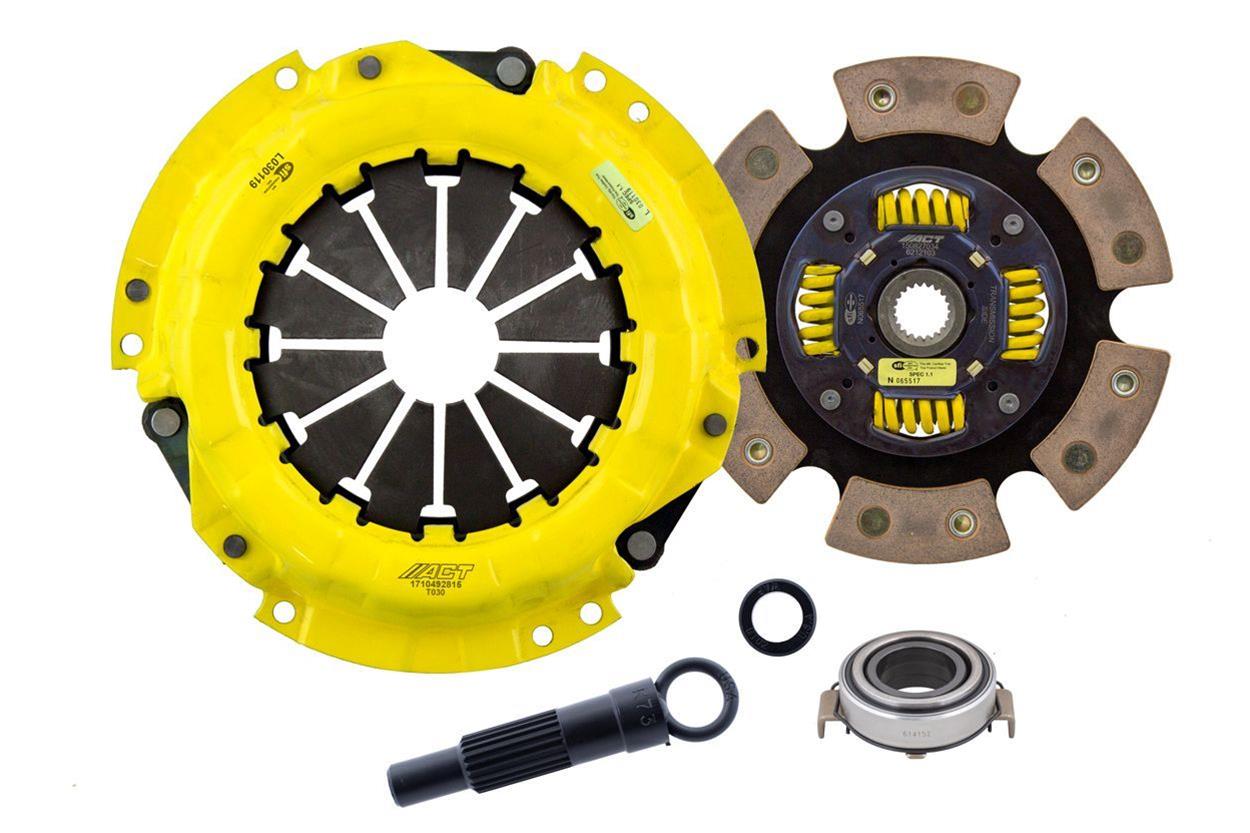

ACT 1991 Geo Prizm HD/Race Sprung 6 Pad Clutch Kit
ACT 1991 Geo Prizm HD/Race Sprung 6 Pad Clutch Kit
A$1,069.49
LAST ONE! Est Ship 3-5 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
TC2-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.
Application Summary
TC2-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.
Part Type
Transmission Clutch Kit
Features
- "Excellence in Performance", backed by the best one-year warranty in the industry!
Specifications
- Product Attributes - Brand
- Advanced Clutch Technology
- Product Attributes - Manufacturer's Part Number
- TC2-HDG6
- Product Attributes - Part Type
- Clutch Kits
- Product Attributes - Product Line
- ACT Heavy-Duty Clutch Kits
- Product Attributes - UPC
- 00842385005887
- Product Attributes - Clutch Usage
- Performance
- Product Attributes - Clutch Disc Quantity
- 1
- Product Attributes - Flywheel Included
- No
- Product Attributes - Input Spline Quantity
- 21
- Product Attributes - Input Shaft Diameter
- 0.937 in.
- Product Attributes - Disc Diameter (in.)
- 8.346 in.
- Product Attributes - Disc Diameter (mm)
- 212mm
- Product Attributes - Disc Material
- Ceramic
- Product Attributes - Disc Style
- 6-paddle
- Product Attributes - Hub Style
- Sprung
- Product Attributes - Pressure Plate Style
- Diaphragm
- Product Attributes - Throwout Bearing Included
- Yes
- Product Attributes - Alignment Tool Included
- Yes
- Product Attributes - Pilot Bushing Included
- No
- Product Attributes - Counterweight Assist
- No
- Product Attributes - Mounting Hardware Included
- No
- Product Attributes - Quantity
- Sold as a kit.
Reference Information
| Brand Name/s | Act |
|---|---|
| StreetFX SKU | actTC2-HDG6 |
| SFX Item ID | 4045678 |
| Supplier Item Code | 4045678 |
| Manufacturer SKU | TC2-HDG6 |
| Manufacturer UPC | 842385005887 |
| Alternative References | ACL-TC2-HDG6 |
