ACT Triple Disc XT/SI Race Clutch Kit
ACT Triple Disc XT/SI Race Clutch Kit
A$4,440.69
Last Available from MFR.
LAST ONE AVAILABLE from the manufacturer's distribution centre. Once sold, this item may not be immediately available again. The dispatch timeframe shown is an estimate based on historical orders for this part and is dependent on the manufacturer releasing the final available unit.
We accept
Description

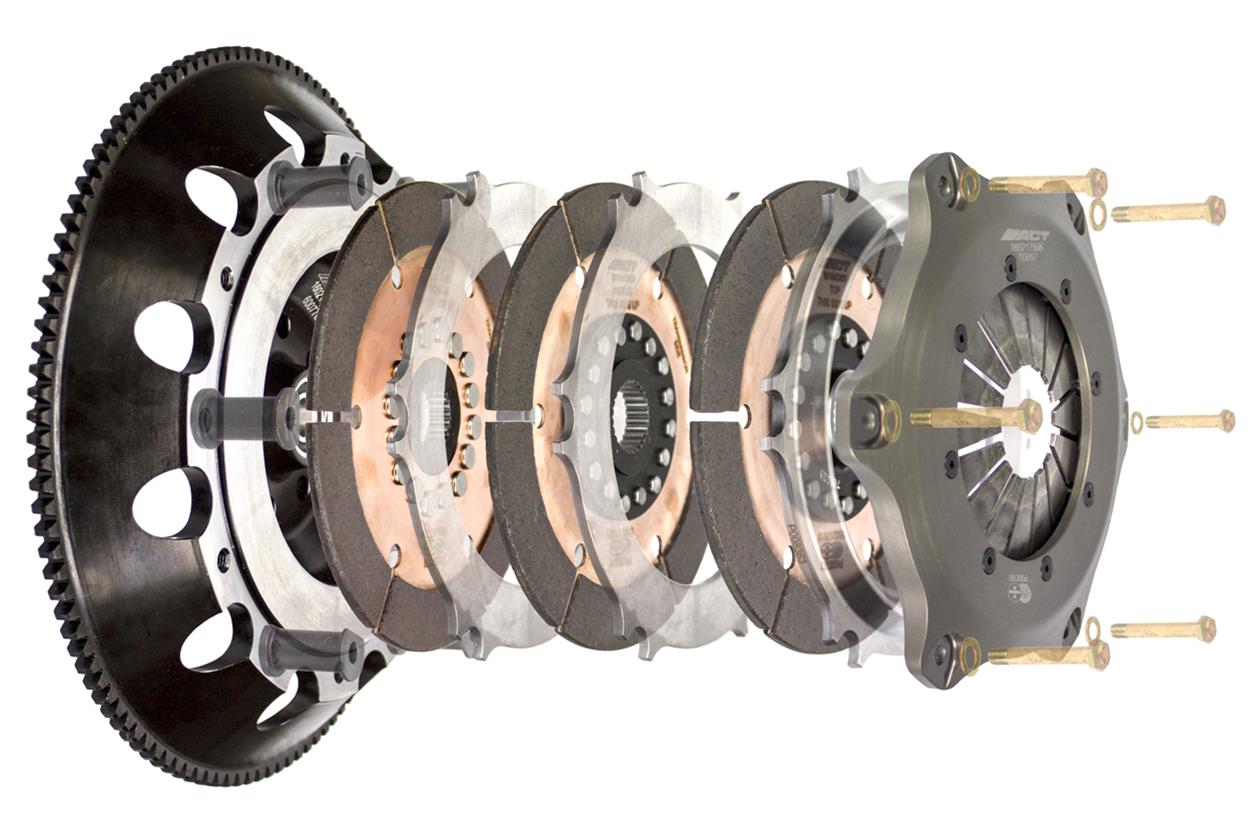

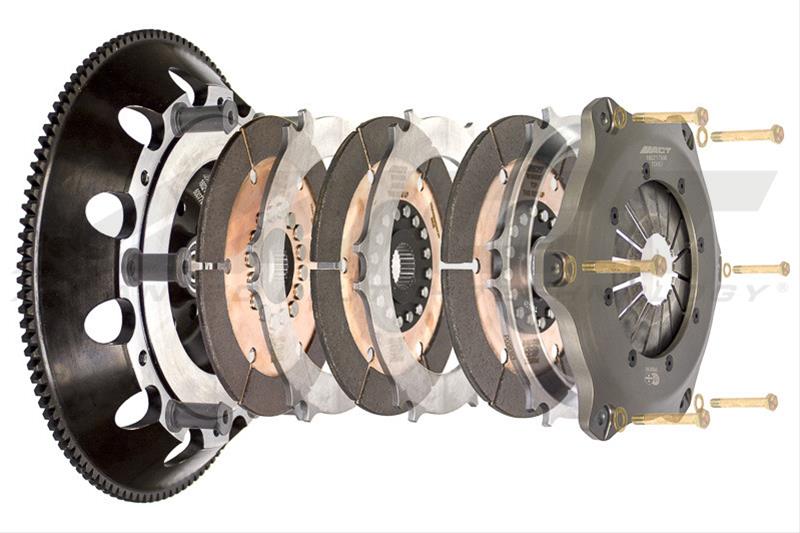

T2R3-T01 race, triple disc kits are race-ready for the serious enthusiast who needs a direct bolt-in kit, requiring no additional modifications. ACT's sintered iron race discs offer the highest torque capacity of all ACT race discs and have ultra-high heat capacity. All ACT triple disc kits include a CNC-machined and dynamically balanced flywheel for trouble free use. All kits undergo an exclusive four-stage, heat-treating process on all diaphragms. ACT triple disc kits include a pressure plate, three discs, two floaters, and flywheel. Some kits may include a pilot bearing and release bearing. ACT Triple disc kits meet SFI Specification 1.2.
Application Summary
T2R3-T01 race, triple disc kits are race-ready for the serious enthusiast who needs a direct bolt-in kit, requiring no additional modifications. ACT's sintered iron race discs offer the highest torque capacity of all ACT race discs and have ultra-high heat capacity. All ACT triple disc kits include a CNC-machined and dynamically balanced flywheel for trouble free use. All kits undergo an exclusive four-stage, heat-treating process on all diaphragms. ACT triple disc kits include a pressure plate, three discs, two floaters, and flywheel. Some kits may include a pilot bearing and release bearing. ACT Triple disc kits meet SFI Specification 1.2.
Part Type
Transmission Clutch Kit
Features
- "Excellence in Performance", backed by the best one-year warranty in the industry!
Specifications
- Product Attributes - Brand
- Advanced Clutch Technology
- Product Attributes - Manufacturer's Part Number
- T2R3-T01
- Product Attributes - Part Type
- Clutch Kits
- Product Attributes - Product Line
- ACT Xtreme Triple-Disc Race Clutch Kits
- Product Attributes - UPC
- 00842385002237
- Product Attributes - Clutch Usage
- Performance
- Product Attributes - Clutch Disc Quantity
- 3
- Product Attributes - Flywheel Included
- Yes
- Product Attributes - Input Spline Quantity
- 26
- Product Attributes - Input Shaft Diameter
- 1.125 in.
- Product Attributes - Disc Diameter (in.)
- 7.250 in.
- Product Attributes - Disc Diameter (mm)
- 184mm
- Product Attributes - Disc Material
- Sintered iron
- Product Attributes - Disc Style
- Full face
- Product Attributes - Hub Style
- Solid
- Product Attributes - Pressure Plate Style
- Diaphragm
- Product Attributes - Throwout Bearing Included
- No
- Product Attributes - Alignment Tool Included
- Yes
- Product Attributes - Pilot Bushing Included
- No
- Product Attributes - Flywheel Material
- Chromoly
- Product Attributes - Ring Gear Tooth Quantity
- 115-tooth
- Product Attributes - Flywheel Bolt Quantity
- 8
- Product Attributes - Engine Balance
- Internal
- Product Attributes - Counterweight Assist
- No
- Product Attributes - Mounting Hardware Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Developed for use with 2JZ-GTE engine using G-Force transmission, quicktime bell housing #RM-4031 without block plate and Tilton hydraulic release bearing #61-400. Flywheel bolts included.
Reference Information
| Brand Name/s | Act |
|---|---|
| StreetFX SKU | actT2R3-T01 |
| SFX Item ID | 4046064 |
| Supplier Item Code | 4046064 |
| Manufacturer SKU | T2R3-T01 |
| Manufacturer UPC | 842385002237 |
| Alternative References | ACL-T2R3-T01 |
Brochures
Compatibility
T2R3-T01 race, triple disc kits are race-ready for the serious enthusiast who needs a direct bolt-in kit, requiring no additional modifications. ACT's sintered iron race discs offer the highest torque capacity of all ACT race discs and have ultra-high heat capacity. All ACT triple disc kits include a CNC-machined and dynamically balanced flywheel for trouble free use. All kits undergo an exclusive four-stage, heat-treating process on all diaphragms. ACT triple disc kits include a pressure plate, three discs, two floaters, and flywheel. Some kits may include a pilot bearing and release bearing. ACT Triple disc kits meet SFI Specification 1.2.
