Description

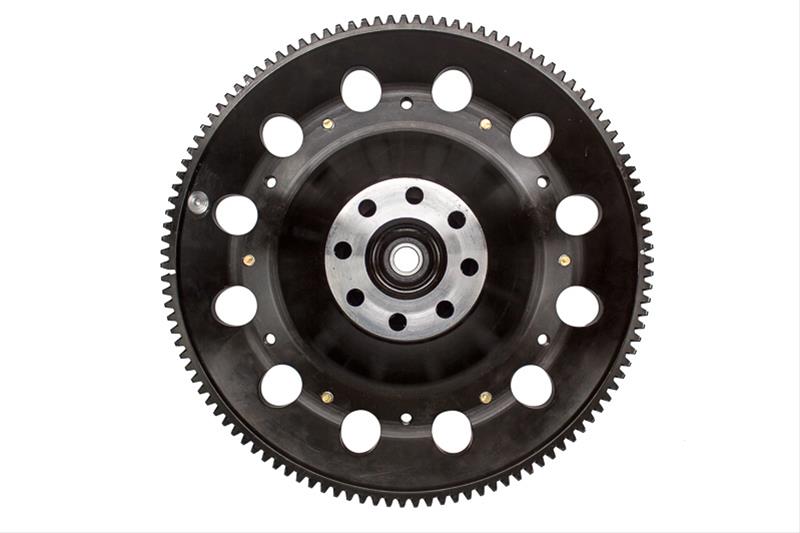

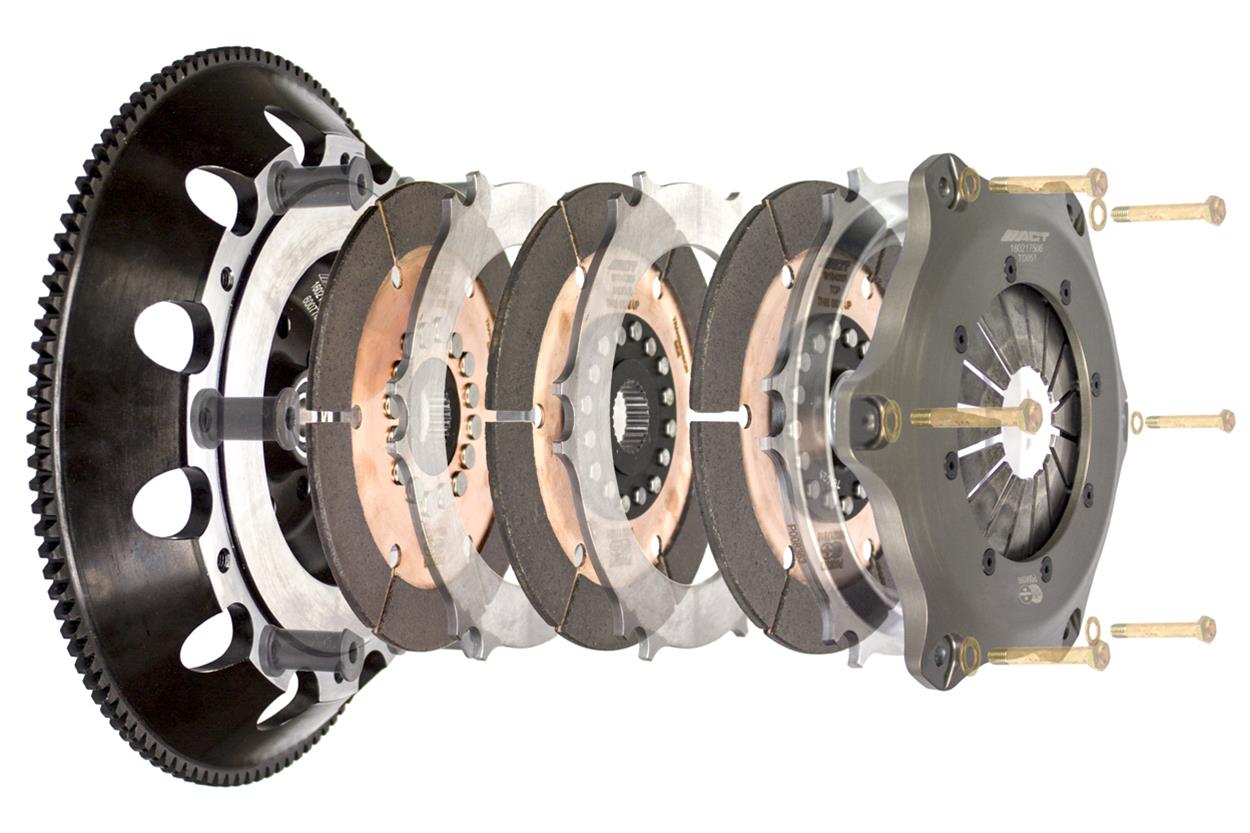

T1R3-T01 race, triple disc kits are race-ready for the serious enthusiast who needs a direct bolt-in kit, requiring no additional modifications. ACT's sintered iron race discs offer the highest torque capacity of all ACT race discs and have ultra-high heat capacity. All ACT triple disc kits include a CNC-machined and dynamically balanced flywheel for trouble free use. All kits undergo an exclusive four-stage, heat-treating process on all diaphragms. ACT triple disc kits include a pressure plate, three discs, two floaters, and flywheel. Some kits may include a pilot bearing and release bearing. ACT Triple disc kits meet SFI Specification 1.2.
Application Summary
T1R3-T01 race, triple disc kits are race-ready for the serious enthusiast who needs a direct bolt-in kit, requiring no additional modifications. ACT's sintered iron race discs offer the highest torque capacity of all ACT race discs and have ultra-high heat capacity. All ACT triple disc kits include a CNC-machined and dynamically balanced flywheel for trouble free use. All kits undergo an exclusive four-stage, heat-treating process on all diaphragms. ACT triple disc kits include a pressure plate, three discs, two floaters, and flywheel. Some kits may include a pilot bearing and release bearing. ACT Triple disc kits meet SFI Specification 1.2.
Part Type
Transmission Clutch Kit
Features
- "Excellence in Performance", backed by the best one-year warranty in the industry!
Specifications
- Product Attributes - Brand
- Advanced Clutch Technology
- Product Attributes - Manufacturer's Part Number
- T1R3-T01
- Product Attributes - Part Type
- Clutch Kits
- Product Attributes - Product Line
- ACT Triple Disc Heavy-Duty/SI Race Clutch Kits
- Product Attributes - UPC
- 00842385001988
- Product Attributes - Clutch Usage
- Performance
- Product Attributes - Clutch Disc Quantity
- 3
- Product Attributes - Flywheel Included
- Yes
- Product Attributes - Input Spline Quantity
- 26
- Product Attributes - Input Shaft Diameter
- 1.125 in.
- Product Attributes - Disc Diameter (in.)
- 7.250 in.
- Product Attributes - Disc Diameter (mm)
- 184mm
- Product Attributes - Disc Material
- Sintered iron
- Product Attributes - Disc Style
- Full face
- Product Attributes - Hub Style
- Solid
- Product Attributes - Pressure Plate Style
- Diaphragm
- Product Attributes - Throwout Bearing Included
- No
- Product Attributes - Alignment Tool Included
- Yes
- Product Attributes - Pilot Bushing Included
- No
- Product Attributes - Flywheel Material
- Chromoly
- Product Attributes - Ring Gear Tooth Quantity
- 115-tooth
- Product Attributes - Flywheel Bolt Quantity
- 8
- Product Attributes - Engine Balance
- Internal
- Product Attributes - Counterweight Assist
- No
- Product Attributes - Mounting Hardware Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Developed for use with 2JZ-GTE engine using G-Force transmission, quicktime bell housing #RM-4031 without block plate and Tilton hydraulic release bearing #61-400. Flywheel bolts included.
Reference Information
| Brand Name/s | Act |
|---|---|
| StreetFX SKU | actT1R3-T01 |
| SFX Item ID | 4046063 |
| Supplier Item Code | 4046063 |
| Manufacturer SKU | T1R3-T01 |
| Manufacturer UPC | 842385001988 |
| Alternative References | ACL-T1R3-T01 |
Brochures
Compatibility
T1R3-T01 race, triple disc kits are race-ready for the serious enthusiast who needs a direct bolt-in kit, requiring no additional modifications. ACT's sintered iron race discs offer the highest torque capacity of all ACT race discs and have ultra-high heat capacity. All ACT triple disc kits include a CNC-machined and dynamically balanced flywheel for trouble free use. All kits undergo an exclusive four-stage, heat-treating process on all diaphragms. ACT triple disc kits include a pressure plate, three discs, two floaters, and flywheel. Some kits may include a pilot bearing and release bearing. ACT Triple disc kits meet SFI Specification 1.2.
