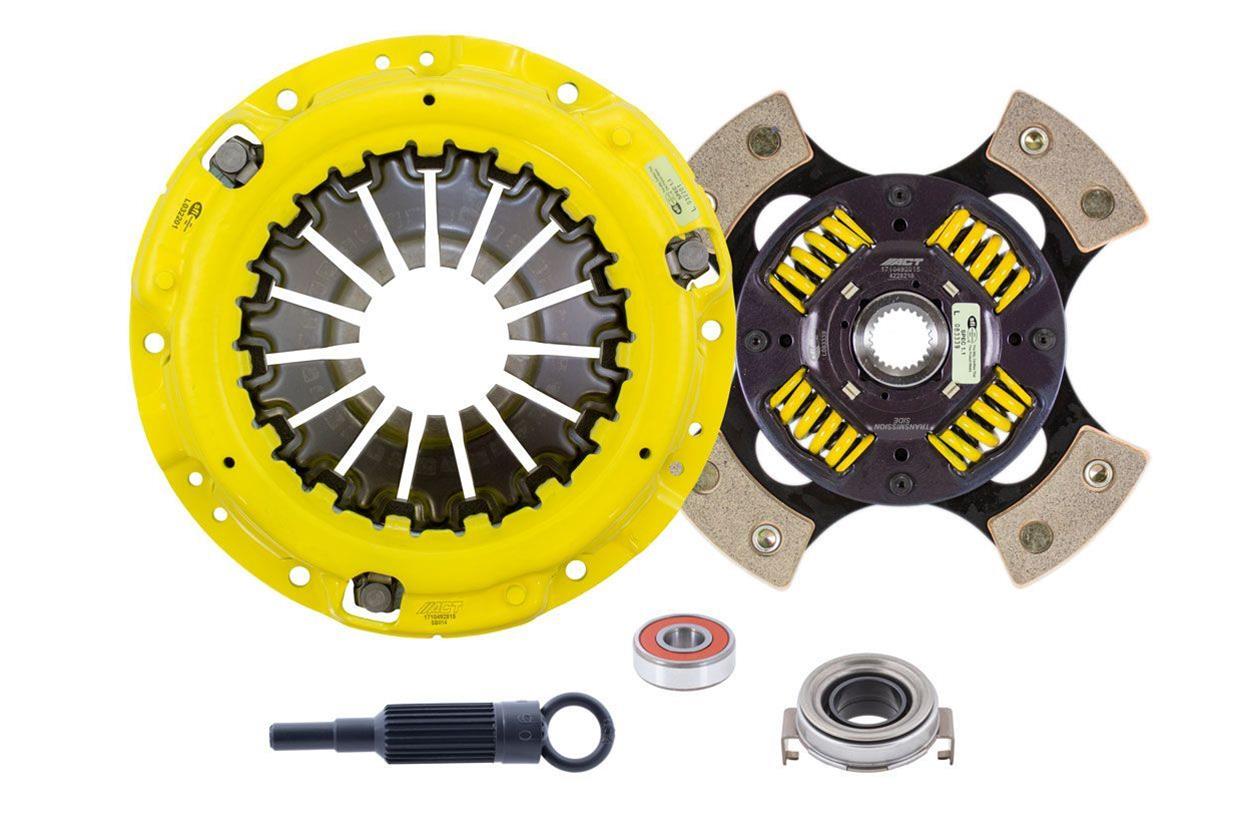

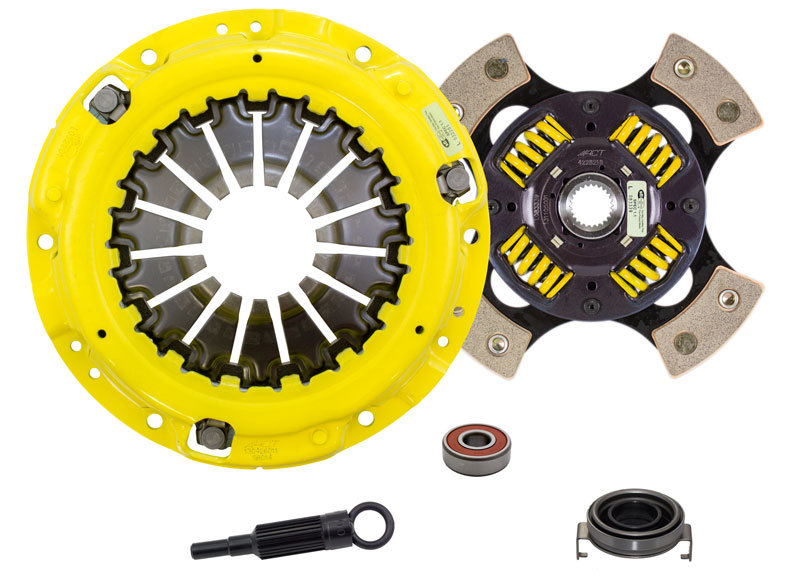

ACT 2016 Subaru WRX HD/Race Sprung 4 Pad Clutch Kit
ACT 2016 Subaru WRX HD/Race Sprung 4 Pad Clutch Kit
A$2,025.60
Last Available from MFR.
LAST ONE AVAILABLE from the manufacturer's distribution centre. Once sold, this item may not be immediately available again. The dispatch timeframe shown is an estimate based on historical orders for this part and is dependent on the manufacturer releasing the final available unit.
We accept
Description
IMPORTANT NOTICE: Must use ACT or factory single-mass flywheel.
SB5-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.
Product Overview
SB5-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.
Features and Benefits
- "Excellence in Performance", backed by the best one-year warranty in the industry!
Product Details
| Alignment Tool Included: | Yes |
|---|---|
| Clutch Disc Diameter: | 228 |
| Clutch Master Cylinder Included: | No |
| Clutch Slave Cylinder Included: | No |
| Description: | ACT 2016 Subaru WRX HD/Race Sprung 4 Pad Clutch Kit |
| Disc Material: | Ceramic |
| Disc Type Sprung Solid: | Sprung |
| Flywheel Bolts Included: | No |
| Grade Type: | Performance |
| Grease Included: | Yes |
| Input Shaft Diameter: | 1 |
| Input Spline Quantity: | 24 |
| Part Number: | actSB5-HDG4 |
| Pilot Bearing Included: | Yes |
| Pilot Bushing Included: | No |
| Pressure Plate Bolts Included: | No |
| Pressure Plate Type: | Heavy Duty |
| Product Weight (lbs.): | 14.4 |
| Prop 65 - Short Label: | WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Prop 65 Long Label: | Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 Yes/No: | Yes |
| Release Bearing Included: | Yes |
| Title: | ACT HD/Race Sprung 4 Pad Kit |
| Torque Capacity (ft/lbs.): | 535 |
| Torque Capacity Over OE: | 69% |
Application Summary
SB5-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.
Part Type
Transmission Clutch Kit
Features
- "Excellence in Performance", backed by the best one-year warranty in the industry!
Specifications
- Product Attributes - Brand
- Advanced Clutch Technology
- Product Attributes - Manufacturer's Part Number
- SB5-HDG4
- Product Attributes - Part Type
- Clutch Kits
- Product Attributes - Product Line
- ACT Heavy-Duty Clutch Kits
- Product Attributes - UPC
- 00842385011147
- Product Attributes - Clutch Usage
- Performance
- Product Attributes - Clutch Disc Quantity
- 1
- Product Attributes - Flywheel Included
- No
- Product Attributes - Input Spline Quantity
- 24
- Product Attributes - Input Shaft Diameter
- 1.000 in.
- Product Attributes - Disc Diameter (in.)
- 8.976 in.
- Product Attributes - Disc Diameter (mm)
- 228mm
- Product Attributes - Disc Material
- Ceramic
- Product Attributes - Disc Style
- 4-paddle
- Product Attributes - Hub Style
- Sprung
- Product Attributes - Pressure Plate Style
- Diaphragm
- Product Attributes - Throwout Bearing Included
- Yes
- Product Attributes - Throwout Bearing Style
- Standard
- Product Attributes - Alignment Tool Included
- Yes
- Product Attributes - Pilot Bushing Included
- Yes
- Product Attributes - Pilot Bushing Material
- Steel roller bearing
- Product Attributes - Counterweight Assist
- No
- Product Attributes - Mounting Hardware Included
- No
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Must use ACT or factory single-mass flywheel.
Reference Information
| Brand Name/s | Act |
|---|---|
| StreetFX SKU | actSB5-HDG4 |
| SFX Item ID | 4045463 |
| Supplier Item Code | 4045463 |
| Manufacturer SKU | SB5-HDG4 |
| Manufacturer UPC | 842385011147 |
| Alternative References | ACL-SB5-HDG4 |
Brochures
Compatibility
SB5-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.
