ACT 1996 Nissan 200SX XT/Race Sprung 6 Pad Clutch Kit
ACT 1996 Nissan 200SX XT/Race Sprung 6 Pad Clutch Kit
A$1,103.39
LOW STOCK! Est Ship 3-5 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description

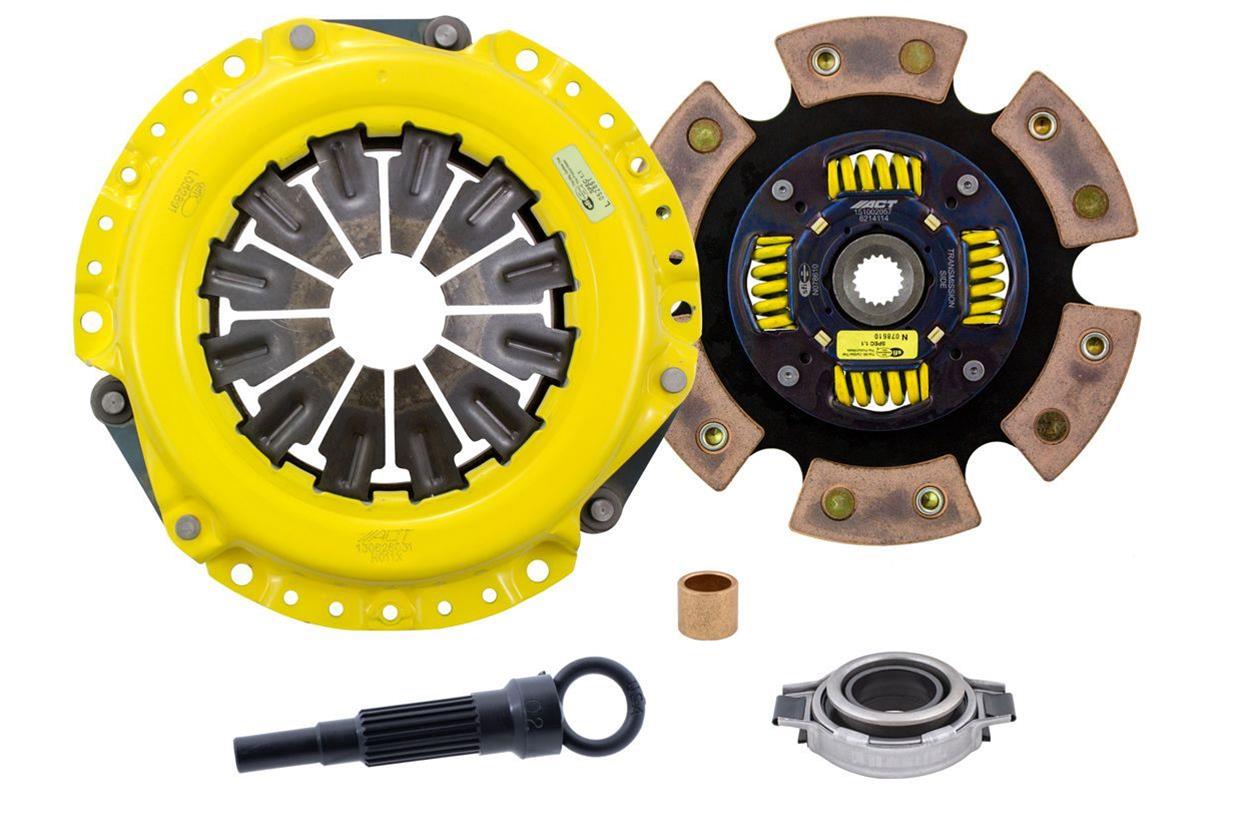

NX9-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.
Application Summary
NX9-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.
Part Type
Transmission Clutch Kit
Features
- "Excellence in Performance", backed by the best one-year warranty in the industry!
Specifications
- Product Attributes - Brand
- Advanced Clutch Technology
- Product Attributes - Manufacturer's Part Number
- NX9-XTG6
- Product Attributes - Part Type
- Clutch Kits
- Product Attributes - Product Line
- ACT Xtreme Clutch Kits
- Product Attributes - UPC
- 00842385005573
- Product Attributes - Clutch Usage
- Performance
- Product Attributes - Clutch Disc Quantity
- 1
- Product Attributes - Flywheel Included
- No
- Product Attributes - Input Spline Quantity
- 18
- Product Attributes - Input Shaft Diameter
- 0.812 in.
- Product Attributes - Disc Diameter (in.)
- 8.425 in.
- Product Attributes - Disc Diameter (mm)
- 214mm
- Product Attributes - Disc Material
- Ceramic
- Product Attributes - Disc Style
- 6-paddle
- Product Attributes - Hub Style
- Sprung
- Product Attributes - Pressure Plate Style
- Diaphragm
- Product Attributes - Throwout Bearing Included
- Yes
- Product Attributes - Alignment Tool Included
- Yes
- Product Attributes - Pilot Bushing Included
- Yes
- Product Attributes - Pilot Bushing Material
- Brass
- Product Attributes - Counterweight Assist
- No
- Product Attributes - Mounting Hardware Included
- No
- Product Attributes - Quantity
- Sold as a kit.
Reference Information
| Brand Name/s | Act |
|---|---|
| StreetFX SKU | actNX9-XTG6 |
| SFX Item ID | 4045322 |
| Supplier Item Code | 4045322 |
| Manufacturer SKU | NX9-XTG6 |
| Manufacturer UPC | 842385005573 |
| Alternative References | ACL-NX9-XTG6, 200SX |
Brochures
Compatibility
NX9-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.
