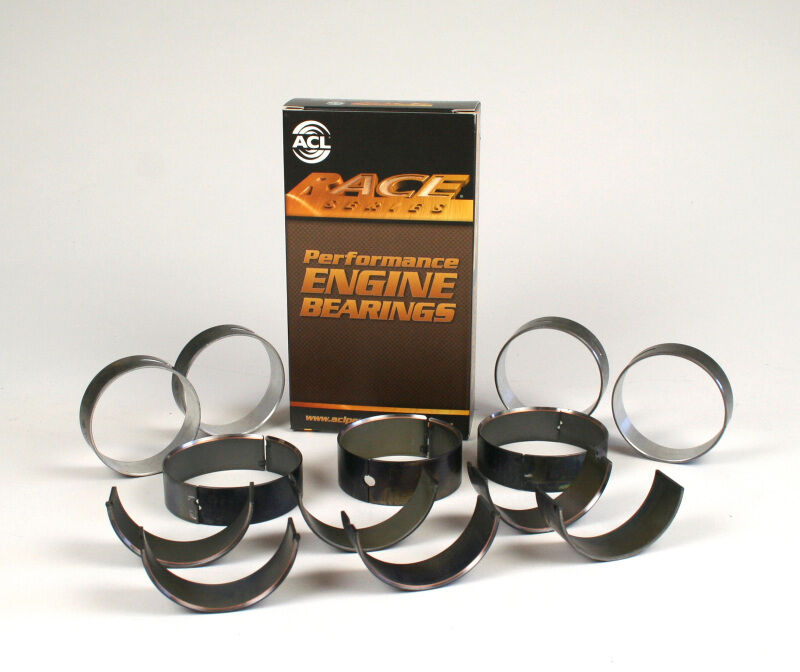

ACL TRIMETAL - Chrysler Prod. V8 360 1974-98 Engine Crankshaft Main Bearing Set

SKU: ACL5M1266P-30

Main Bearings

ACL Main Bearings...

Acl

ACL TRIMETAL - Chrysler Prod. V8 360 1974-98 Engine Crankshaft Main Bearing Set

SKU: ACL5M1266P-30

Main Bearings

ACL Main Bearings...

Special Order. Contact for ETA. This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.

We accept

Description

ACL direct replacement main bearing sets include their Aluglide and Duraglide Series of bearings in numerous sizes, including standard, and covering a vast range of automotive gas engines, as well as diesel applications.

ACL Aluglide bearings are designed with a proprietary composition of aluminum, tin, and silicon combined with a steel backing to provide exceptional wear resistance, outstanding strength, and excellent load-carrying characteristics.

ACL Duraglide bearings feature a tri-metal (copper/lead/alloy) design that provides a combination of high strength and the ability to withstand harsh/demanding operating conditions above casual driving, making them ideal for performance engines and rebuilds.

Affordable, high-quality engine bearings expertly made from premium materials and engineered to match your exact requirements, ACL main bearing sets. Select the set designed for your engine.

Product Overview

The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings. Designed to withstand higher RPM conditions, ACL Race Series Connecting Rod Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature: * *High strength overlay plate* with reduced thickness for improved fatigue properties * *Hardened steel backs* on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing. * *Increased crush* for improved bearing retention * *Elimination of flash plating* on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing. * *Increased eccentricity* to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films. * *3/4 grooved Main Bearings* to optimize bearing load carrying surface area and oil flow to the conrod bearings. * *Tight consistent wall tolerances* to help you maintain consistent clearances. * *Enlarged ID chamfers* on bearing edges where required to accommodate large fillet radius on performance crankshafts.

Product Details

Description:	Chrysler 360ci (5.9L) Small Block V8 OHV 2v
Grade Type:	ACL OEM Replacement
Max Overall Length:	0.877" (22.28mm) w/ 2705 1.152" (29.26mm) w/ 2706 Flange 1.259" (31.98mm) w/ 2709
Max Std Shaft Size:	2.8105" (71.387mm)
Max Std Tunnel Size:	3.0030" (76.276mm)
Max Wall at Crown:	0.0957" (2.431mm)
Max Wall:	0.0957
Min Std Shaft Size:	2.8095" (71.361mm)
Min Std Tunnel Size:	3.0025" (76.264mm)
Oil Clearance:	Standard
Outside Diameter:	3.0030
Part Number:	acl5M1266P-30
Shaft Diameter:	2.7795
Size:	.30
Width:	22.28

Part Type

Main Bearings

Data: v4.2 - Upd: 2026-10-13 16:53:49

Specifications

Product Attributes - Brand: ACL Race Series Performance Engine Bearings
Product Attributes - Manufacturer's Part Number: 5M1266P-30
Product Attributes - Part Type: Main Bearings
Product Attributes - Product Line: ACL Direct Replacement Main Bearing Sets
Product Attributes - UPC: 9315726099087
Product Attributes - Bearing Usage: Direct replacement
Product Attributes - Engine Crankshaft Undersize (in.): 0.030 in.
Product Attributes - Engine Crankshaft Undersize (mm): 0.75mm
Product Attributes - Grooved Bearing: Yes
Product Attributes - Groove Location: Upper
Product Attributes - Thrust Bearing Oversize: Stock
Product Attributes - Bearing Material: Tri-metal copper-lead alloy
Product Attributes - Quantity: Sold as a set of 5.

Reference Information

Brand Name/s	Acl
StreetFX SKU	acl5M1266P-30
SFX Item ID	4074358
Supplier Item Code	4074358
Manufacturer SKU	5M1266P-30
Manufacturer UPC	N/A
Alternative References	PEB-5M1266P-30
