Allstar Performance Ring and Pinion Installation Kits ALL68540 Kit, Ford, 9 in., 3.250 in. Carrier Bearings, Kit
Allstar Performance Ring and Pinion Installation Kits ALL68540 Kit, Ford, 9 in., 3.250 in. Carrier Bearings, Kit
A$387.36
LAST ONE! Est Ship 4-7 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Allstar Performance ring and pinion installation kits contain all of the hard-to-find individual parts for a quick, trouble-free install. To ensure precise fitment, order the kit designed for your specific axle model.

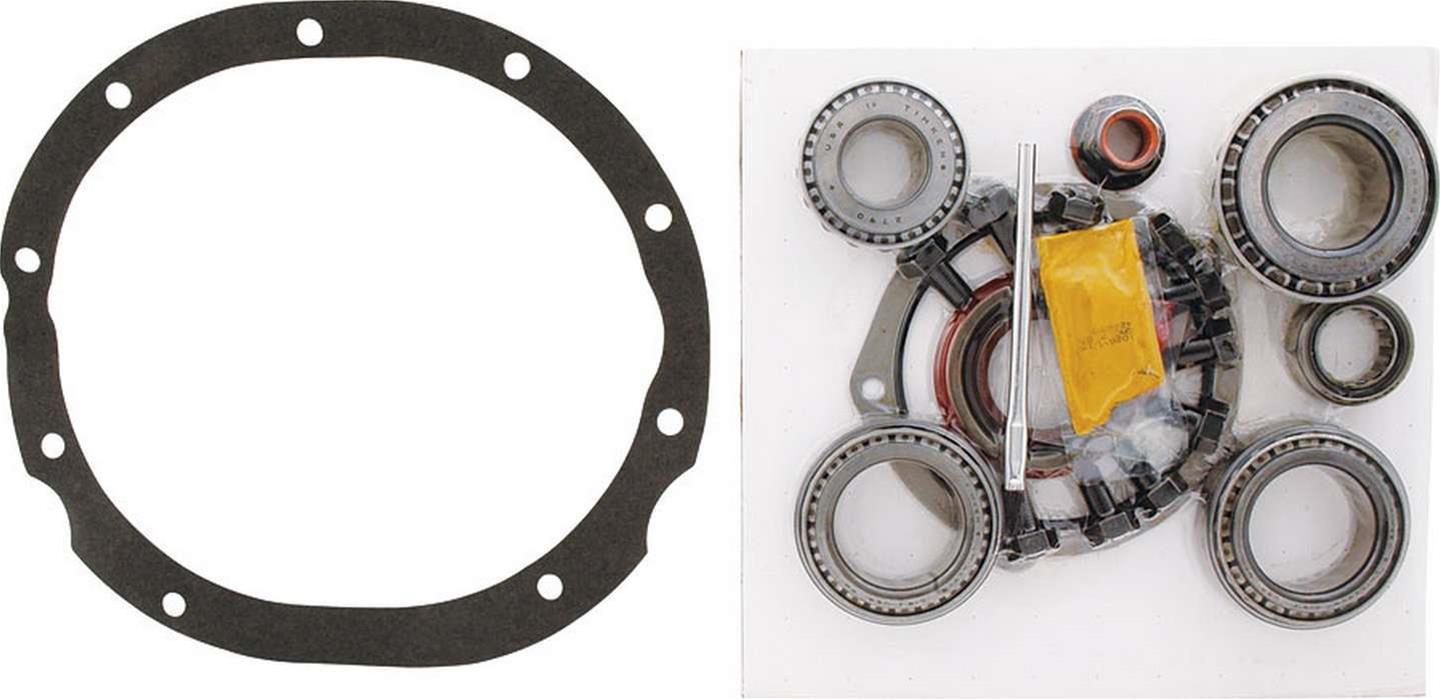

Kits include:
* Pinion and side (carrier) bearings
* Pinion seal
* Pinion depth shims
* Adjustable side (carrier) shims
* Crush sleeve (spacer)
* Pinion nut
* 1 oz. tube of silicone or gasket
* Gear marking compound
* Ring gear bolts
Additional Information
3.250 Carrier Bearing, MW or Strange 28spl Pinion Support, No Spacer or Crush SleeveKit Includes: LM104911T Carrier Bearing Race 3.250 OD LM104949T Carrier Bearing 2.00 ID HM804846T Pinion Bearing Head 1.850 ID 2790T Pinion Bearing Tail 1.290 ID. Kit does not include Pinion bearing races. These are commonly pre-installed in bearing supports.
Part Type
Bearing Kit Ford 9in 3.250 Bearing
Specifications
- Product Attributes - Brand
- Allstar Performance
- Product Attributes - Manufacturer's Part Number
- ALL68540
- Product Attributes - Part Type
- Ring and Pinion Gear Installation Kits
- Product Attributes - Product Line
- Allstar Performance Ring and Pinion Installation Kits
- Product Attributes - UPC
- 848238036886
- Product Attributes - Differential Case Design Type
- Ford 9 in.
- Product Attributes - Cover Bolts
- 10
- Product Attributes - Ring Gear Bolts
- 10
- Product Attributes - Pinion Spline Count
- 28
- Product Attributes - Carrier Bearing Diameter (in.)
- 3.250 in.
- Product Attributes - Ring Gear Rotation
- Standard
- Product Attributes - Cover Gasket Included
- Yes
- Product Attributes - Pinion Shims Included
- Yes
- Product Attributes - Carrier Shims Included
- Yes
- Product Attributes - Crush Sleeve Included
- No
- Product Attributes - Pinion Seal Included
- Yes
- Product Attributes - Pinion Nut Included
- Yes
- Product Attributes - Ring Gear Bolts Included
- Yes
- Product Attributes - Head Bearing Included
- Yes
- Product Attributes - Tail Bearing Included
- Yes
- Product Attributes - Carrier Bearings Included
- Yes
- Product Attributes - Axle Seals Included
- No
- Product Attributes - Axle Bearings Included
- No
- Product Attributes - Quantity
- Sold as a kit.
Reference Information
| Brand Name/s | Allstar Performance |
|---|---|
| StreetFX SKU | aafALL68540 |
| SFX Item ID | 4774829 |
| Supplier Item Code | 4774829 |
| Manufacturer SKU | ALL68540 |
| Manufacturer UPC | 848238036886 |
