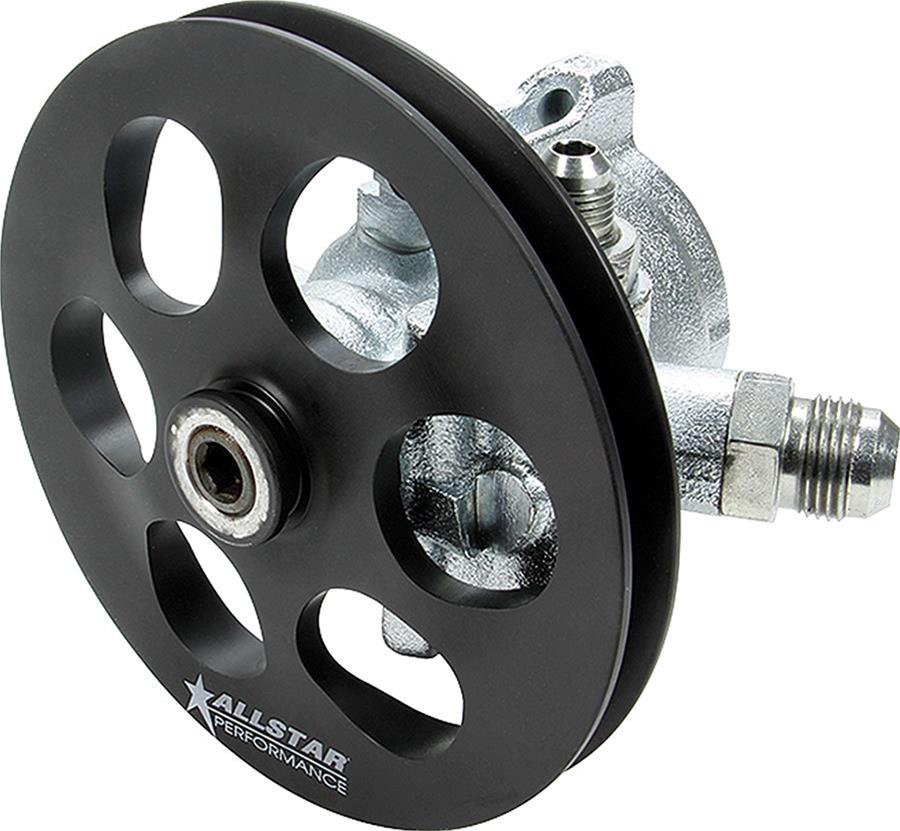

Allstar Performance Power Steering Pumps with Pulley ALL48250 Pump, Includes Press-fit V-Belt Pulley, GM Type 2, -10 AN Inlet, -6 AN Outlet, Each
Allstar Performance Power Steering Pumps with Pulley ALL48250 Pump, Includes Press-fit V-Belt Pulley, GM Type 2, -10 AN Inlet, -6 AN Outlet, Each
A$605.68
IN STOCK! Est Ship 4-7 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Allstar Performance power steering pumps with pulleys are durable and dependable. They provide smooth consistent steering. The pumps are rated at 3 gallons per minute and produce up to 1,300 psi at a recommended pump rpm range of 1,500 to 6,500.These pumps provide smooth and consistent steering.
Additional Information
Pump has a 1300PSI rating and starts working at 1500 RPM pump speed.3 gallons per minute. Max RPM of pump 6500 RPM. Pulley Diameter is 6. Pump has a dimension of 3-1/4 from the mounting surface to the center of the pulley. See mounting brackets for bracket dimensions. Press on pulley shaft size .665 w/ 3/8-16 Int. Threads Inlet fitting size is -10AN Replacement ALL99287 Pressure fitting size is -6AN Replacement ALL99288 Use JRPPS-5106-B-5.000 for 6-rib serpentine belt pulley.
Part Type
Power Steering Pump w/ Pulley
Specifications
- Product Attributes - Brand
- Allstar Performance
- Product Attributes - Manufacturer's Part Number
- ALL48250
- Product Attributes - Part Type
- Power Steering Pumps
- Product Attributes - Product Line
- Allstar Performance Power Steering Pumps with Pulley
- Product Attributes - UPC
- 848238025019
- Product Attributes - Power Steering Pump Model
- GM Type 2 (Saginaw TC series)
- Product Attributes - Pump Color
- Natural
- Product Attributes - Reservoir Included
- No
- Product Attributes - Reservoir Style
- Remote
- Product Attributes - Pulley Included
- Yes
- Product Attributes - Pulley Style
- V-belt
- Product Attributes - Pulley Attachment Style
- Press-fit
- Product Attributes - Fittings Included
- Yes
- Product Attributes - Inlet Quantity
- 1
- Product Attributes - Inlet Attachment
- Male threads
- Product Attributes - Power Steering Inlet Size
- -10 AN
- Product Attributes - Outlet Quantity
- 1
- Product Attributes - Outlet Attachment
- Male threads
- Product Attributes - Power Steering Outlet Size
- -6 AN
- Product Attributes - Pump Flow
- Standard-volume
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Due to core availability product appearance and finish may vary, but fit and function remain the same.
Reference Information
| Brand Name/s | Allstar Performance |
|---|---|
| StreetFX SKU | aafALL48250 |
| SFX Item ID | 4770549 |
| Supplier Item Code | 4770549 |
| Manufacturer SKU | ALL48250 |
| Manufacturer UPC | 848238025019 |
