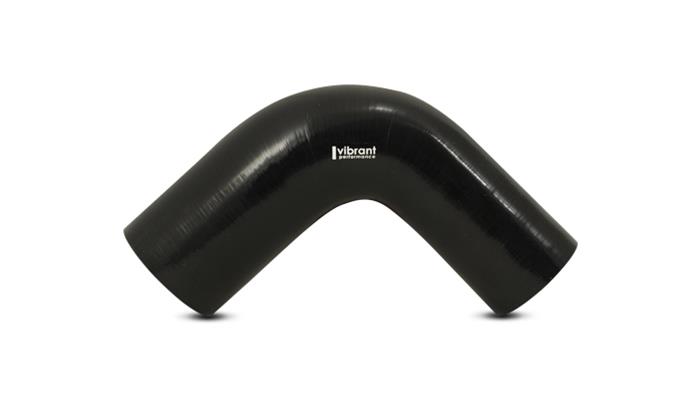

Vibrant 1.5in ID x 2in ID x 4in Long Gloss Black Silicone 90 Degree Transition Elbow

SKU: VIB19787

Tubing Couplers

VIB 4 Ply Hoses...

Vibrant

Vibrant 1.5in ID x 2in ID x 4in Long Gloss Black Silicone 90 Degree Transition Elbow

SKU: VIB19787

Tubing Couplers

VIB 4 Ply Hoses...

LOW STOCK! Est Ship 3-5 days. HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.

We accept

Description

Vibrant Performance Aramid Reinforced Silicone 90 Degrees Transition Elbows feature High Temperature Resistant Aramid Reinforcement Fabric between each layer of silicone which allows for an impressive Operating Temperature Range of -75 Degrees F to 392 Degrees F (-60 Degrees C to 200 Degrees C). These elbows are intended for use in applications where pressurized tubing and connection points require a tight radius bend and size transition to accommodate the installation of piping in limited space. Not suitable for use with Oil/Fuel.

Product Overview

Vibrant Performance Aramid Reinforced Silicone Couplers are hand wrapped and feature 4-ply reinforcement, which allows our couplers to be capable of withstanding extreme temperatures and heavy duty pressure conditions without swelling or bursting. All Vibrant Performance reinforced hoses meet or exceed SAE J20 specifications, are suitable for coolant service and are UV and Ozone resistant. Not suitable for oil or fuel service, although custom hose solutions are available for such applications. Available in straight sections, transition hoses, hump hoses, 45 and 90 deg. elbows as well as transition elbows, and in a wide variety of Hose ID sizing. Rated for temperatures ranging from -65 deg. F to 350 deg. F.

Features and Benefits

1 Year Limited Warranty

Product Details

Add-On:	N/A
Bend Angle:	90 Degree
Center Line Radius:	2.000 in.
Centerline Radius:	2
Color:	Black
Description:	4 Ply 90 Degree Reducer Elbow
Finish:	Black
Inlet Diameter:	1.500 in. (38.1mm)
Inlet I.D.:	1.5
Leg Length From Tangent:	4
Leg/Straight Length:	4.000 in./101.6mm
Maximum Operating Pressure:	67
Outlet Diameter:	2.000 in.
Outlet I.D.:	2
Part Number:	vib19787
Prop 65 Yes/No:	No
Sale Segment:	Silicone Products
WARNING CA Proposition 65:	No
Wall Thickness:	N/A
Web Category:	4 Ply Aramid Reinforced Silicone Couplers

Application Summary

Universal

Part Type

Engine Air Intake Tubing Coupler

Data: v4.2 - Upd: 2026-10-13 18:07:23

Features

1 Year Limited Warranty

Specifications

Product Attributes - Brand: Vibrant Performance
Product Attributes - Manufacturer's Part Number: 19787
Product Attributes - Part Type: Tubing Couplers
Product Attributes - Product Line: Vibrant Performance Multi-Ply Aramid Reinforced Silicone Connectors
Product Attributes - UPC: 690092172763
Product Attributes - Tubing Coupler Inlet Diameter (in.): 1.50
Product Attributes - Tubing Coupler Outlet Diameter (in.): 2.00
Product Attributes - Tubing Coupler Type: 90 degree elbow
Product Attributes - Tubing Coupler Material: Silicone
Product Attributes - Tubing Coupler Finish: Black
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: Each leg is 4 in. to the beginning of the radius.

Reference Information

Brand Name/s	Vibrant
StreetFX SKU	vib19787
SFX Item ID	4088944
Supplier Item Code	4088944
Manufacturer SKU	19787
Manufacturer UPC	690092172763
Alternative References	VPE-19787, 1.5in, 2in, 4in
