Ridetech 2019+ Ram 1500 2WD Performance Lowering System (1x rid85000000, 1x rid13133110, 1x rid13133699, 1x rid13136210)
Ridetech 2019+ Ram 1500 2WD Performance Lowering System (1x rid85000000, 1x rid13133110, 1x rid13133699, 1x rid13136210)
A$7,066.65
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description

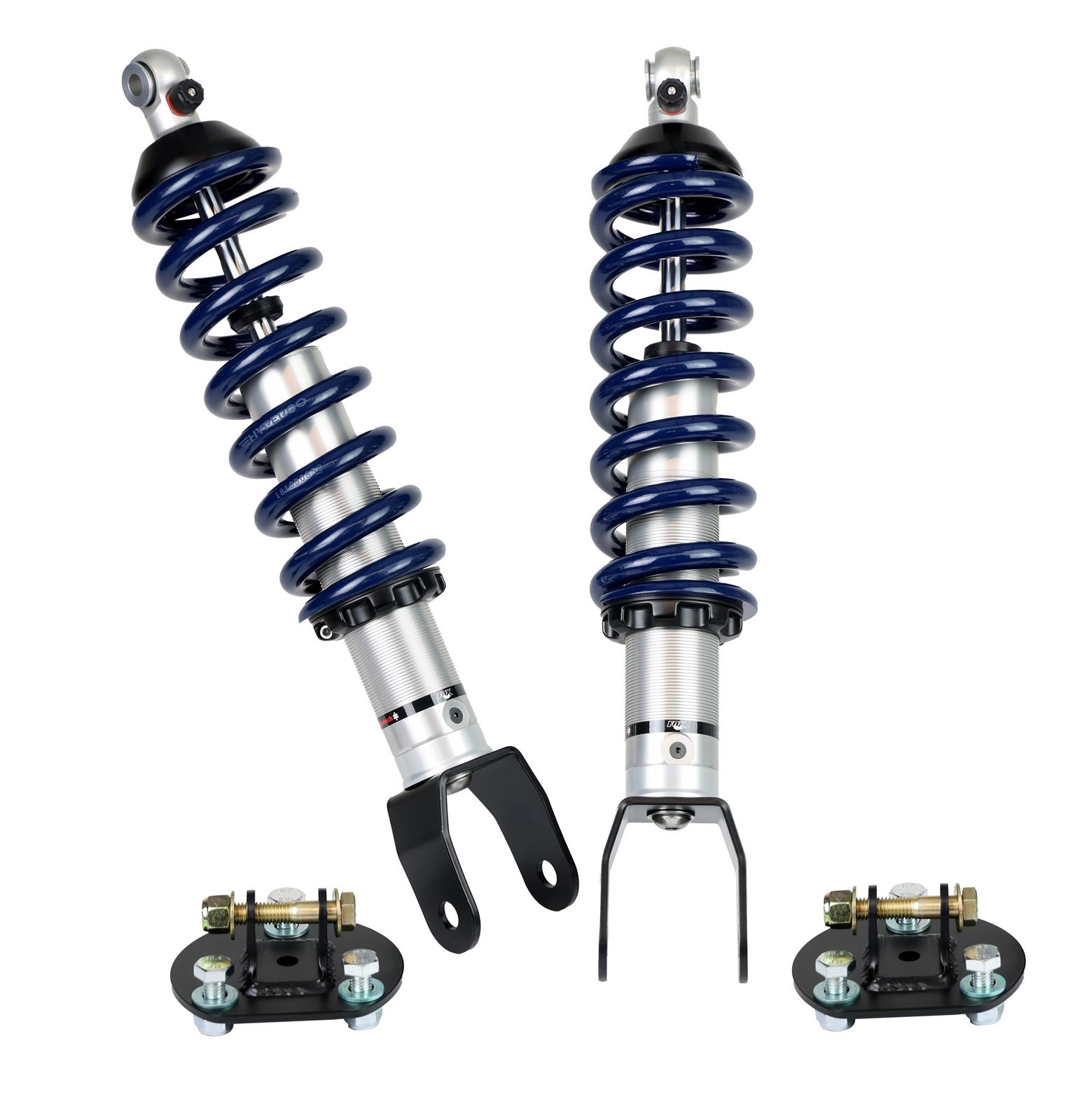

Not just a "lowering kit".... this Performance Suspension System will turn your Ram into a high-performance muscle truck with a better stance, handling and ride quality. The Ridetech 2019-2024 Ram 1500 lowering kit is 100% bolt-on, fully adjustable and made in the USA. It includes front and rear HQ Series Coil-Overs, tubular upper control arms, mounting brackets, panhard bar, sway bar end links and hardware. Front HQ Series Coil-Overs allow for a 1"-3" lowered stance (2" optimal) and are a direct replacement for factory shock and spring. They utilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling. They allow fine tuning of the ride quality and handling via the rebound adjustment knob with 24 positions of adjustment. Premium Hyperco springs are used that are CNC cold wound with high tensile steel. Upper StrongArms correct the camber and ball joint angles to allow proper wheel alignment. They are fully assembled with ball joints and bushings and are power coated satin black. Rear HQ Series Coil-Overs Shocks are also rebound adjustable, includes mounting brackets and offers a 3-4†drop. The rear system also includes a new panhard bar to re-center the axle and new rear control arm mounts to maintain optimal pinion angle and geometry at the new lowered stance. This system is not compatible with trucks equipped with factory air suspension.
Product Overview
Ridetech 19-25 Ram 1500 2WD Performance Lowering System
Product Details
| Description: | Ridetech 19-25 Ram 1500 2WD Performance Lowering System |
|---|
This is a group bundle consisting of:
| Image | Qty | SKU | MFR SKU | UPC | Description |
|---|---|---|---|---|---|
 | 1x | rid85000000 | 85000000 | 840123511379 | Ridetech CoilOver Spanner Wrench |

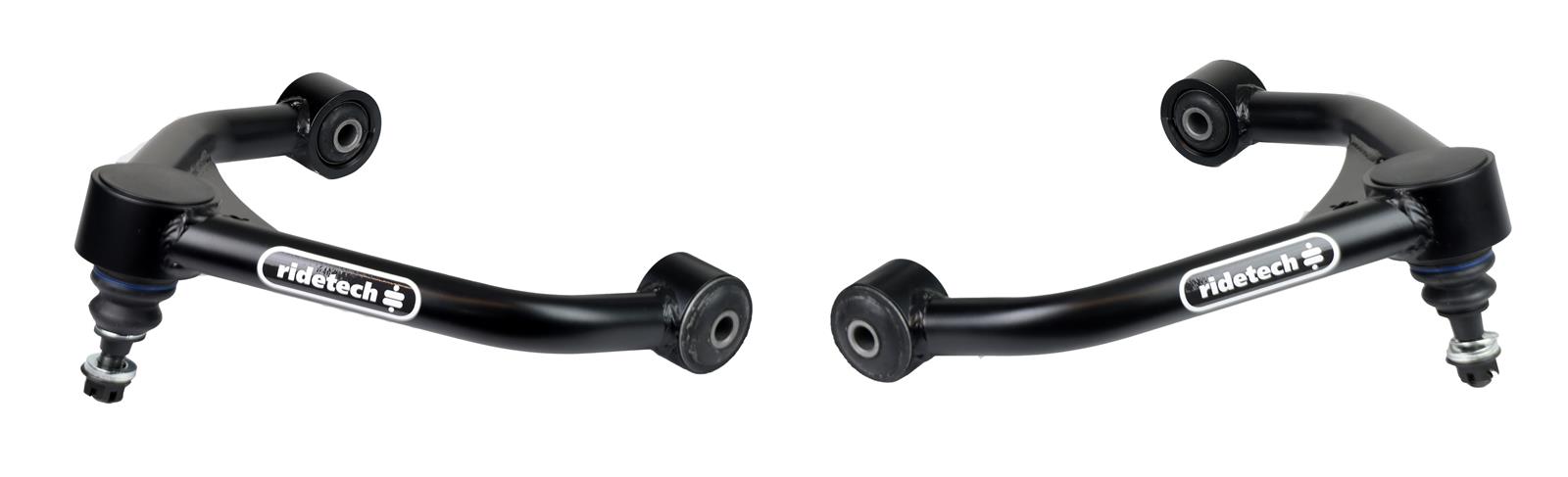

 | 1x | rid13133699 | 13133699 | 840123517913 | Ridetech 19-23 Ram 1500 2WD/4WD Front Upper StrongArms |
 | 1x | rid13133110 | 13133110 | 840123517890 | Ridetech 19-25 Dodge Ram 1500 4WD HQ Coil-Overs - Front |

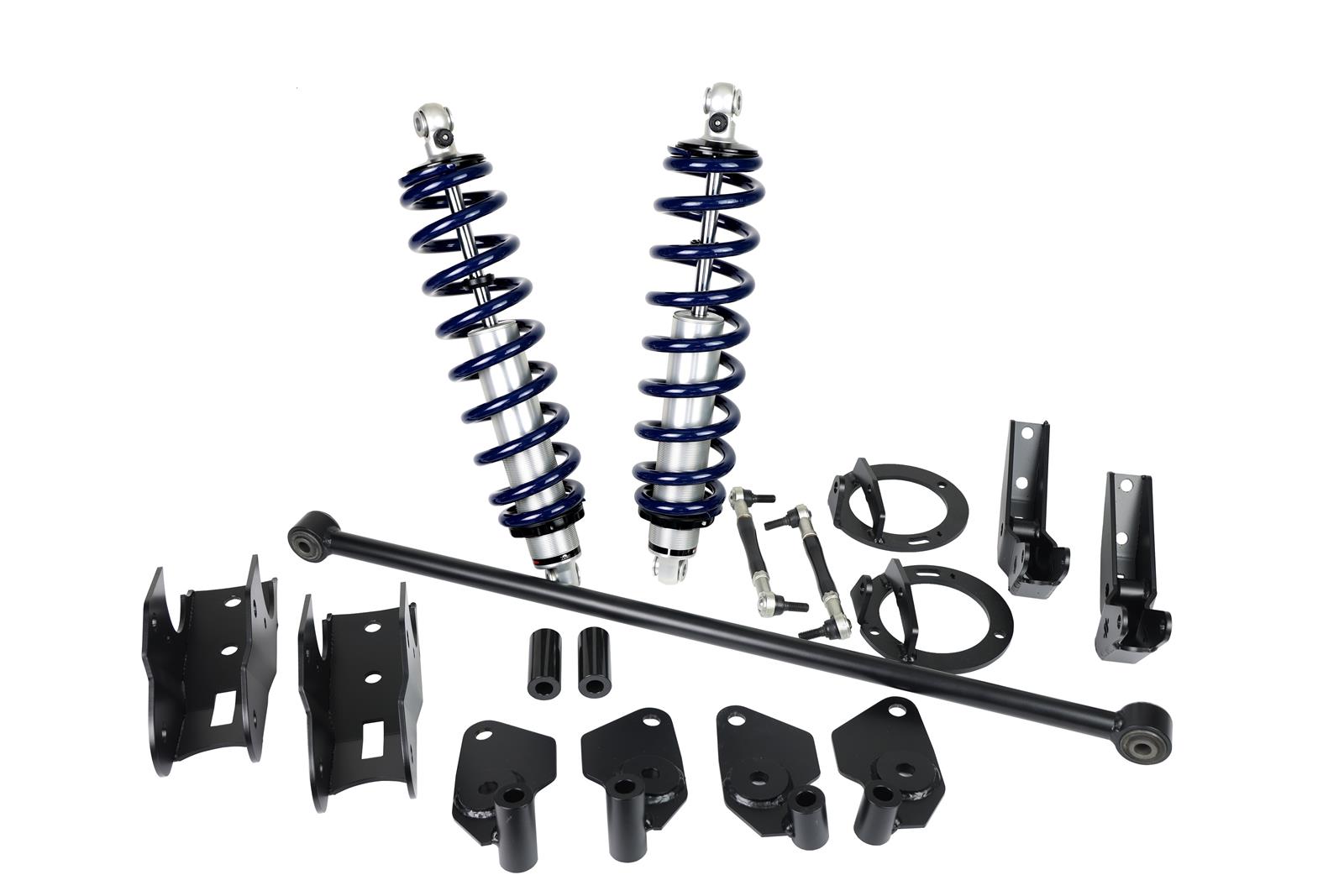

 | 1x | rid13136210 | 13136210 | 840123517920 | Ridetech 19-25 Dodge Ram 1500 2WD/4WD HQ Coil-Overs - Rear |
Bundled group items may ship from multiple locations and could have slightly longer transit times if parts are sourced from different warehouses.
Images in this listing may include individual and/or group shots of the products included in the bundle. Please refer to the table to see a breakdown of what is included. Click on a SKU to see individual item details.
For details on the individual components in this bundle, click here.
Part Type
Suspension Lowering Kit
Specifications
- Product Attributes - Brand
- RideTech
- Product Attributes - Manufacturer's Part Number
- 13130110
- Product Attributes - Part Type
- Suspension Handling Packages
- Product Attributes - Product Line
- RideTech Suspension Lowering Systems
- Product Attributes - UPC
- 840123517876
- Product Attributes - Front Coil Springs Included
- Yes
- Product Attributes - Rear Coil Springs Included
- Yes
- Product Attributes - Rear Leaf Springs Included
- No
- Product Attributes - Front Shocks/Struts Included
- Yes
- Product Attributes - Front Shock Type
- Single adjustable monotube coilover
- Product Attributes - Rear Shocks/Struts Included
- Yes
- Product Attributes - Rear Shock Type
- Single adjustable monotube coilover
- Product Attributes - Front Sway Bar Included
- No
- Product Attributes - Rear Sway Bar Included
- No
- Product Attributes - Tie Rod Sleeves Included
- No
- Product Attributes - End Link Bushings Included
- No
- Product Attributes - Rear Leaf Spring Bushings Included
- No
- Product Attributes - Sway Bar Bushings Included
- No
- Product Attributes - Upper Trailing Arms Included
- No
- Product Attributes - Lower Trailing Arms Included
- No
- Product Attributes - Trailing Arm Mount Braces Included
- No
- Product Attributes - Panhard Bar Included
- Yes
- Product Attributes - Torque Arm Included
- No
- Product Attributes - Upper Control Arms Included
- Yes
- Product Attributes - Lower Control Arms Included
- No
- Product Attributes - Control Arm Style
- Tubular
- Product Attributes - Control Arm Material
- Steel
- Product Attributes - Control Arm Color
- Black
- Product Attributes - Front Strut Tower Bar Included
- No
- Product Attributes - K-Member Included
- No
- Product Attributes - K-Member Support Brace Included
- No
- Product Attributes - Rear Strut Tower Bar Included
- No
- Product Attributes - Subframe Connectors Included
- No
- Product Attributes - Chassis Stiffener Included
- No
- Product Attributes - Calipers Included
- No
- Product Attributes - Rotors Included
- No
- Product Attributes - Brake Pads Included
- No
- Product Attributes - Brake Lines Included
- No
- Product Attributes - Wheel Studs Included
- No
- Product Attributes - Center Link Included
- No
- Product Attributes - Spindles Included
- No
- Product Attributes - Inner Tie Rod Ends Included
- No
- Product Attributes - Outer Tie Rod Ends Included
- No
- Product Attributes - Mounting Hardware Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
Reference Information
| Brand Name/s | Ridetech |
|---|---|
| StreetFX SKU | rid13130110 |
| SFX Item ID | 4135605 |
| Supplier Item Code | 4135605 |
| Manufacturer SKU | 13130110 |
| Manufacturer UPC | N/A |
| Alternative References | rid-85000000, rid-13133110, 4WD, rid-13133699, 2WD, rid13136210 |
