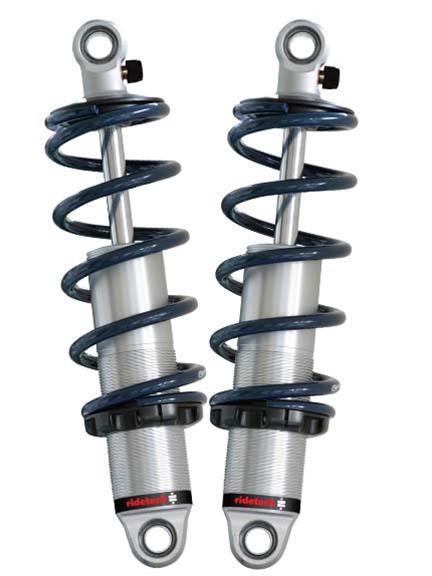

Ridetech 88-98 Chevy C1500 Rear HQ Series CoilOvers for use with Wishbone System
Ridetech 88-98 Chevy C1500 Rear HQ Series CoilOvers for use with Wishbone System
A$1,867.65
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
RideTech HQ Series 4-Link coilovers feature a monotube gas pressure design that offers fade-free performance. Their springs are made of high-tensile premium steel that's CNC cold-wound. They weigh less, are more resistant to bowing, and have increased travel with a durable powdercoated finish. Machined from impact-forged aluminum for superior strength, these shocks feature a large piston that provides outstanding ride quality, a double-sealed rod guide with a dust cover that eliminates oil leakage, and an anodized finish that protects against corrosion. RideTech HQ Series 4-Link coilovers give hot rodders the ultimate in ride quality, handling, and performance. Order the kit designed for fitment on your vehicle application.
Product Overview
Rear HQ Coil-Overs for 1988-1998 C1500, for use with Ridetech 4-Link. Includes a pair of rebound adjustable shocks, springs, spring mounts and delrin spring washers.
Product Details
| Description: | Ridetech 88-98 Chevy C1500 Rear HQ Series CoilOvers for use with Wishbone System |
|---|---|
| Part Number: | rid11376510 |
| Pricing Group: | HQ Coil-Overs |
| Prop 65 Chemicals: | chromium,lead,lead_compounds,nickel,nickel_acetate,nickel_compounds,toluene |
| Proposition 65 Warning: | Y |
Kit Options
This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.
Kit option/s:
| Thumb | SKU | Kit Title |
|---|---|---|
 |
rid11370203 | Ridetech 88-98 Chevy C1500 2WD CoilOver Suspension System 14 Bolt Rear Wishbone w/ HD Drop Spindles (1x rid11372899, 1x rid11373699, 1x rid11379300, 1x rid11373510, 1x rid11376510, 1x rid11377195, 1x rid11379120, 1x rid85000000) |
|
rid11370201 | Ridetech 88-98 Chevy C1500 2WD CoilOver Suspension System w/ HD Drop Spindles (1x rid11372899, 1x rid11373699, 1x rid11379300, 1x rid11373510, 1x rid11376510, 1x rid11377199, 1x rid11379120, 1x rid85000000) |
|
rid11370202 | Ridetech 88-98 Chevy C1500 2WD CoilOver Suspension System w/ LD Drop Spindles (1x rid11372899, 1x rid11373699, 1x rid11373510, 1x rid11376510, 1x rid11377199, 1x rid11379120, 1x rid85000000, 1x rid11379301) |
Application Summary
1988-1998 C1500
Part Type
Coilover Spring and Shock Assembly
Specifications
- Product Attributes - Brand
- RideTech
- Product Attributes - Manufacturer's Part Number
- 11376510
- Product Attributes - Part Type
- Coilover Kits
- Product Attributes - Product Line
- RideTech HQ Series 4-Link Coilovers
- Product Attributes - UPC
- 840123506245
- Product Attributes - Coilover Kit Position
- Rear
- Product Attributes - Adjustable Valving
- Yes
- Product Attributes - Number of Valving Selections
- 24
- Product Attributes - Shocks Included
- Yes
- Product Attributes - Internal Design
- Monotube
- Product Attributes - Coilover Springs Included
- Yes
- Product Attributes - Spring Rate (lbs./in.)
- 200 lbs./in.
- Product Attributes - Gas Charged
- Yes
- Product Attributes - Extended Length (in.)
- 16.43
- Product Attributes - Collapsed Length (in.)
- 11.23
- Product Attributes - Upper Mount
- Eyelet
- Product Attributes - Lower Mount
- Eyelet
- Product Attributes - Shock Body Material
- Aluminum
- Product Attributes - Shock Body Finish
- Silver
- Product Attributes - Bushing Material
- Spherical bearing
- Product Attributes - Bushing Color
- Natural
- Product Attributes - Spring Finish
- Blue
- Product Attributes - Crossmember Included
- No
- Product Attributes - Adjustable Mounting Bracket Included
- No
- Product Attributes - Hardware Included
- No
- Product Attributes - Welding Required
- No
- Product Attributes - Quantity
- Sold as a pair.
Reference Information
| Brand Name/s | Ridetech |
|---|---|
| StreetFX SKU | rid11376510 |
| SFX Item ID | 4135035 |
| Supplier Item Code | 4135035 |
| Manufacturer SKU | 11376510 |
| Manufacturer UPC | 840123506245 |
| Alternative References | art-11376510, RDT11376510, C1500 |
Compatibility
1988-1998 C1500
