Ridetech 67-70 Impala HQ CoilOver System (Bundled Kit)
Ridetech 67-70 Impala HQ CoilOver System (Bundled Kit)
A$11,131.21
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Ridetech 1967-70 GM B-body coilover suspension systems include everything needed to provide a lowered stance with dramatically improved handling and ride quality. These complete kits contain Strongarms, MUSCLEBar sway bars, and HQ Series coilovers, removing the guesswork out of purchasing the right components that will deliver the best performance and ride quality.
Features include:
* Upper Strongarms--powdercoated black and fully assembled with ball joints, bushing, and cross shafts. They feature corrected ball joint angles and the upper ball joint have been moved back to allow for additional caster setting to improve high speed stability and steering feel.
* Lower Strongarms--double sheer lower mount for increased strength. They are powdercoated black and fully assembled with ball joints, bushing, and cross shafts.
* HQ Series coilovers--utilize an impact forged aluminum body and monotube design to deliver excellent ride quality and handling. They allow fine-tuning of the ride quality and handling via rebound knob located at the top of the shock for underhood access.
* Hyperco springs are used to provide a consistent spring rate that will last a lifetime.
* Front MUSCLEBar helps reduce body roll and includes the PosiLink endlinks that provide immediate engagement between the chassis and control arms.
* Rear MUSCLEBar allows for fine tuning by sliding the arm on the bar to increase or decrease rate
* Rear Strongarms provide added strength to get power to the pavement. R-Joint technology provides smooth operation and reduced roll bind. Lower is double sheer mount for coilovers, locating them in place of the stock springs. Upper arm and panhard bar are adjustable, allowing axle to be centered and pinion angle to be set.
Product Overview
Ridetech 67-70 Impala HQ CoilOver System
Product Details
| Description: | Ridetech 67-70 Impala HQ CoilOver System |
|---|
This is a group bundle consisting of:
| Image | Qty | SKU | MFR SKU | UPC | Description |
|---|---|---|---|---|---|
 | 1x | rid85000000 | 85000000 | 840123511379 | Ridetech CoilOver Spanner Wrench |

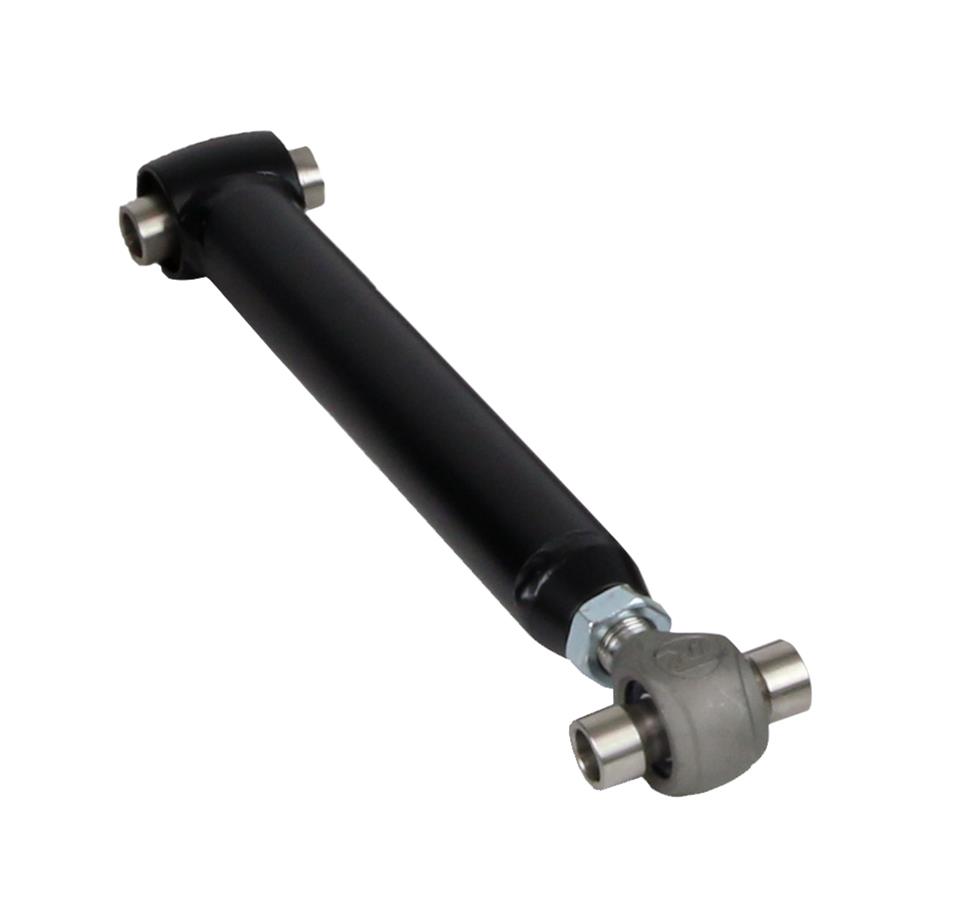

 | 1x | rid11306698 | 11306698 | 840123505125 | Ridetech 67-70 Impala StrongArm Rear Upper |
 | 1x | rid11289000 | 11289000 | 840123505040 | Ridetech 65-70 Impala Panhard Bar |

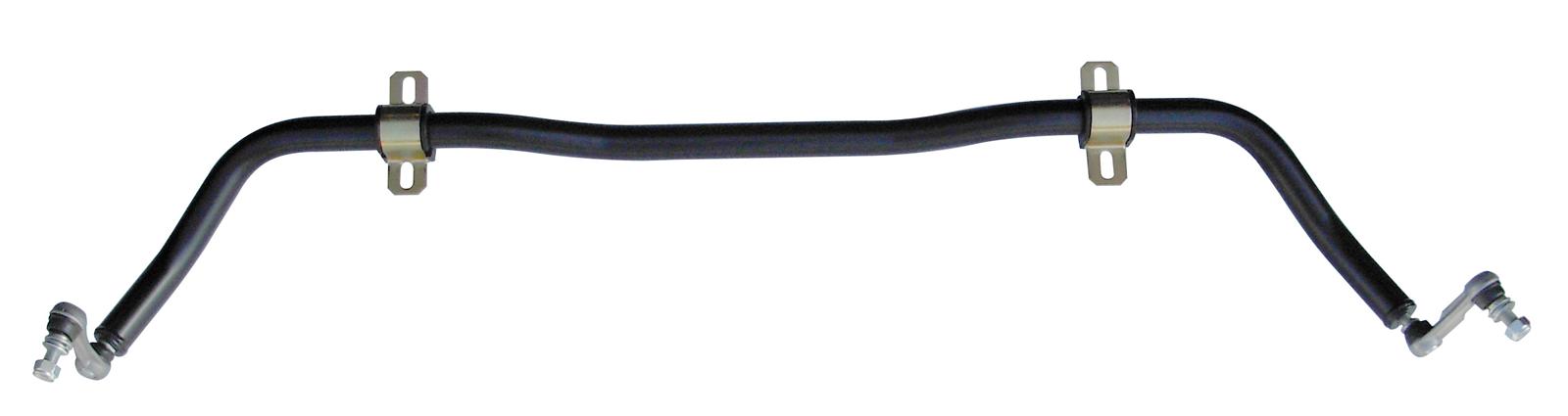

 | 1x | rid11289100 | 11289100 | 840123502339 | Ridetech 65-70 Impala MUSCLEbar with Posi-Links Front |

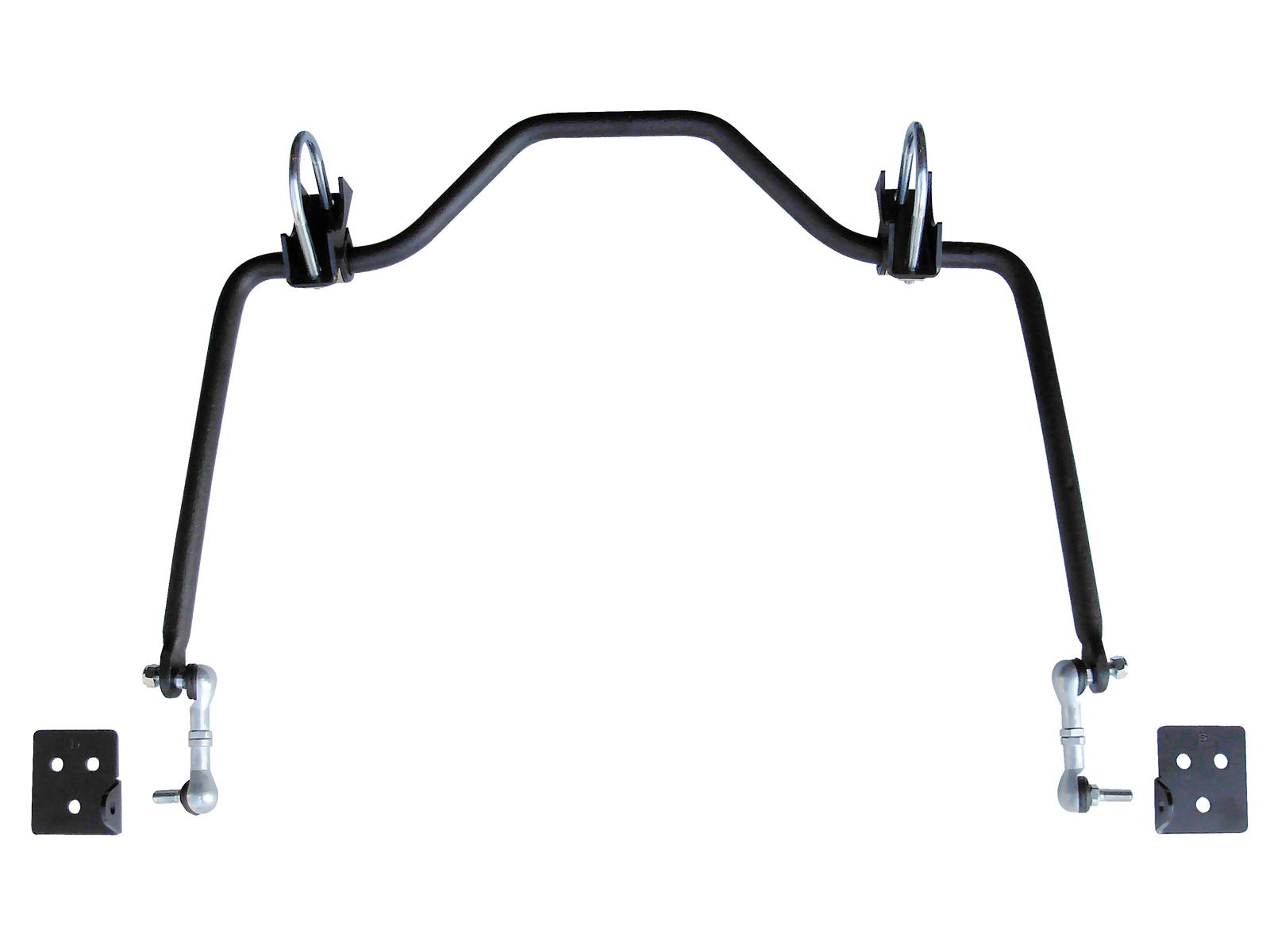

 | 1x | rid11289102 | 11289102 | 840123502346 | Ridetech 65-70 Chevrolet Impala MuscleBar w/ Posi-Links Rear |
 | 1x | rid11283699 | 11283699 | 840123504999 | Ridetech 65-70 Impala StrongArm Upper Front |
 | 1x | rid11283510 | 11283510 | 840123504975 | Ridetech 65-70 Impala HQ Series CoilOvers Front Pair |
 | 1x | rid11282899 | 11282899 | 840123504944 | Ridetech 65-70 Impala StrongArm Front Lower |
 | 1x | rid11286210 | 11286210 | 840123513663 | Ridetech 65-70 Impala Rear HQ CoilOver Upgrade Package |
Bundled group items may ship from multiple locations and could have slightly longer transit times if parts are sourced from different warehouses.
Images in this listing may include individual and/or group shots of the products included in the bundle. Please refer to the table to see a breakdown of what is included. Click on a SKU to see individual item details.
For details on the individual components in this bundle, click here.
Application Summary
1967-1970 Impala, Bel Air, etc.
Part Type
Suspension Lowering Kit
Specifications
- Product Attributes - Brand
- Ridetech
- Product Attributes - Manufacturer's Part Number
- 11300202
- Product Attributes - Part Type
- Suspension Handling Packages
- Product Attributes - Product Line
- Ridetech 1967-70 GM B-Body Coilover Suspension Systems
- Product Attributes - UPC
- 840123513724
- Product Attributes - Front Coil Springs Included
- Yes
- Product Attributes - Rear Coil Springs Included
- Yes
- Product Attributes - Rear Leaf Springs Included
- No
- Product Attributes - Front Shocks/Struts Included
- Yes
- Product Attributes - Front Shock Type
- Single adjustable monotube coilover
- Product Attributes - Rear Shocks/Struts Included
- Yes
- Product Attributes - Rear Shock Type
- Single adjustable monotube coilover
- Product Attributes - Front Sway Bar Included
- Yes
- Product Attributes - Front Sway Bar Color
- Black
- Product Attributes - Front Sway Bar Type
- Hollow
- Product Attributes - Front Sway Bar Diameter (in.)
- 1.250 in.
- Product Attributes - Front Sway Bar Diameter (mm)
- 31.75 mm
- Product Attributes - Rear Sway Bar Included
- Yes
- Product Attributes - Rear Sway Bar Color
- Black
- Product Attributes - Rear Sway Bar Type
- Hollow
- Product Attributes - Rear Sway Bar Diameter (in.)
- 1.000 in.
- Product Attributes - Rear Sway Bar Diameter (mm)
- 25.40 mm
- Product Attributes - Tie Rod Sleeves Included
- No
- Product Attributes - End Link Bushings Included
- No
- Product Attributes - Rear Leaf Spring Bushings Included
- No
- Product Attributes - Sway Bar Bushings Included
- Yes
- Product Attributes - Upper Trailing Arms Included
- Yes
- Product Attributes - Lower Trailing Arms Included
- Yes
- Product Attributes - Trailing Arm Mount Braces Included
- No
- Product Attributes - Panhard Bar Included
- Yes
- Product Attributes - Torque Arm Included
- No
- Product Attributes - Upper Control Arms Included
- Yes
- Product Attributes - Lower Control Arms Included
- Yes
- Product Attributes - Control Arm Style
- Tubular
- Product Attributes - Control Arm Material
- Steel
- Product Attributes - Control Arm Color
- Black
- Product Attributes - Front Strut Tower Bar Included
- No
- Product Attributes - K-Member Included
- No
- Product Attributes - K-Member Support Brace Included
- No
- Product Attributes - Rear Strut Tower Bar Included
- No
- Product Attributes - Subframe Connectors Included
- No
- Product Attributes - Chassis Stiffener Included
- No
- Product Attributes - Calipers Included
- No
- Product Attributes - Rotors Included
- No
- Product Attributes - Brake Pads Included
- No
- Product Attributes - Brake Lines Included
- No
- Product Attributes - Wheel Studs Included
- No
- Product Attributes - Center Link Included
- No
- Product Attributes - Spindles Included
- No
- Product Attributes - Inner Tie Rod Ends Included
- No
- Product Attributes - Outer Tie Rod Ends Included
- No
- Product Attributes - Bushing Material
- Polyurethane
- Product Attributes - Bushing Color
- Black
- Product Attributes - Mounting Hardware Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Includes one upper trailing arm. Vehicles with two upper arms will need to purchase second arm separately.
Reference Information
| Brand Name/s | Ridetech |
|---|---|
| StreetFX SKU | rid11300202 |
| SFX Item ID | 4562626 |
| Supplier Item Code | 4562626 |
| Manufacturer SKU | 11300202 |
| Manufacturer UPC | N/A |
| Alternative References | rid-11282899, rid-11283699, rid-11306698, rid-11286210, rid-11283510, rid11289000 |
Compatibility
1967-1970 Impala, Bel Air, etc.
