Ridetech 59-64 Chevy Impala CoilOver System (Bundled Kit)
Ridetech 59-64 Chevy Impala CoilOver System (Bundled Kit)
A$10,535.85
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
IMPORTANT NOTICE: Must use stock 1959-64 spindles. If using stock-style power steering with the assist cylinder, an additional bracket will be required. Some cars have two rear upper control arms and will need an additional StrongArm kit.
RideTech 1959-64 GM B-body coilover suspension systems are specifically designed for the Impala, Bel Air, Biscayne, Brookwood, El Camino, Kingswood, Nomad, and Parkwood. They include everything needed to provide a lowered stance with dramatically improved handling and ride quality. Get the benefit of a complete suspension system that takes all of the guesswork out of your upgrade with a RideTech 1959-64 GM B-body coilover suspension kit.
Features, items, and specs:
* Tubular upper StrongArms feature corrected ball joint angles and are fully assembled with ball joints, injection-molded Delrin bushings and cross shafts; powdercoated satin black
* Upper ball joint moved back allowing for additional caster settings for improved speed stability and steering feel
* Tubular lower StrongArms feature a double-sheer lower mount for increased strength, and are fully assembled with ball joints, injection-molded Delrin bushings and cross shafts; powdercoated satin black
* HQ Series coilovers utilize impact-forged aluminum body and monotube design to deliver excellent ride quality and handling; standard 1,000,0001 mile warranty included
* Rebound knob located at top of shock for under hood access; allows fine-tuning of ride quality and handling
* Hyperco springs provide consistent spring rate that will last a lifetime
* Rear StrongArms provide added strength; utilize R-joint technology to provide smooth operation and reduce roll bind
* Lower arms feature a double-sheer mount for coilovers, locating them in place of the stock springs and keeping load where it belongs.
* Adjustable panhard bar allows axle to be centered at new ride height
* Front and rear MuscleBars replace tiny factory sway bars, where applicable; they feature significantly higher rates, performance end links, and Delrin-lined bushings
Product Overview
Ridetech 59-64 Chevy Impala CoilOver System
Product Details
| Description: | Ridetech 59-64 Chevy Impala CoilOver System |
|---|
This is a group bundle consisting of:
| Image | Qty | SKU | MFR SKU | UPC | Description |
|---|---|---|---|---|---|
 | 1x | rid85000000 | 85000000 | 840123511379 | Ridetech CoilOver Spanner Wrench |
 | 1x | rid11066698 | 11066698 | 840123500854 | Ridetech 59-64 Chevy Impala StrongArms Rear Upper |
 | 1x | rid11069000 | 11069000 | 840123500878 | Ridetech 59-64 Chevy Impala Panhard Bar |

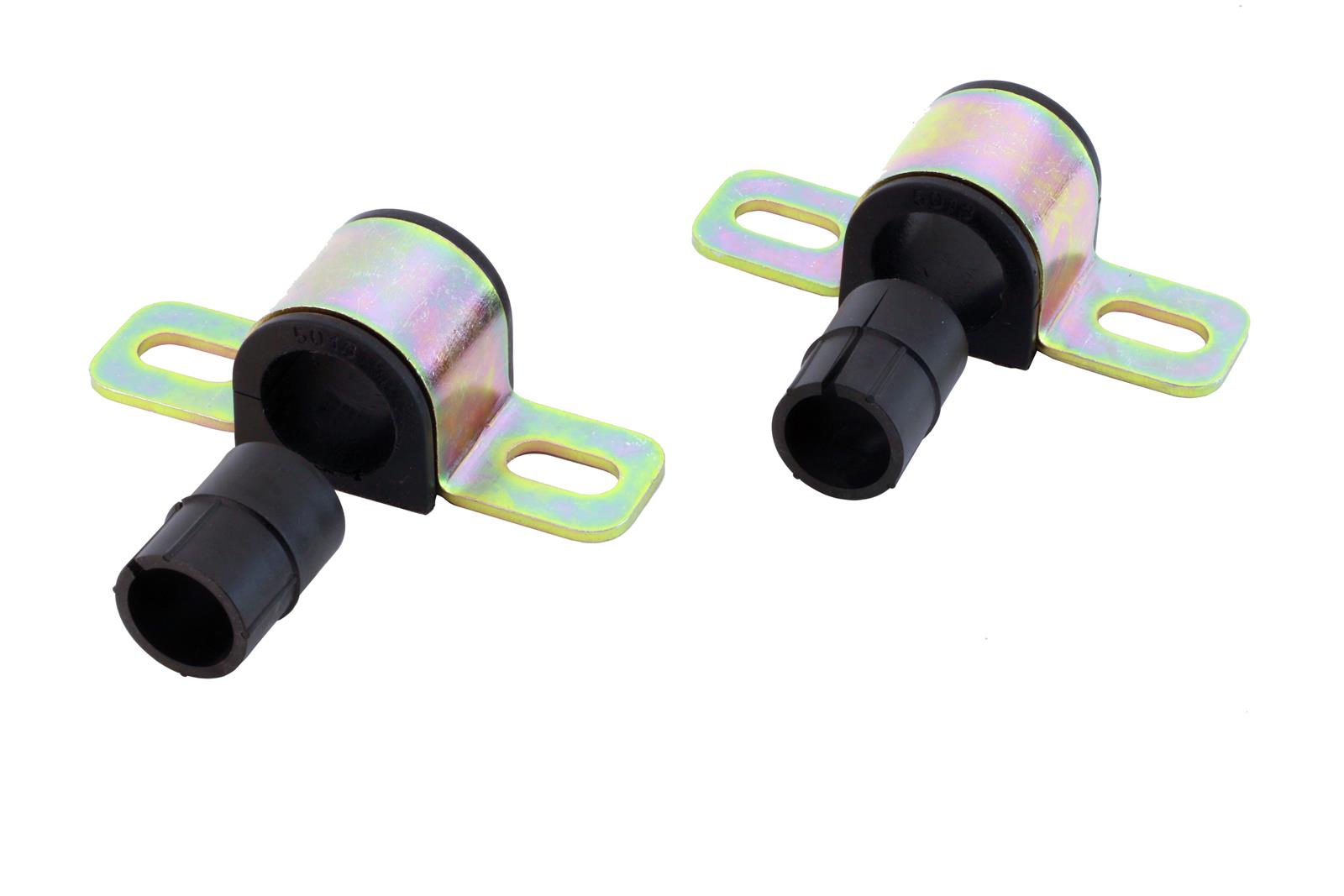

 | 1x | rid11059120 | 11059120 | 840123500755 | Ridetech 58-64 Impala Front MuscleBar |

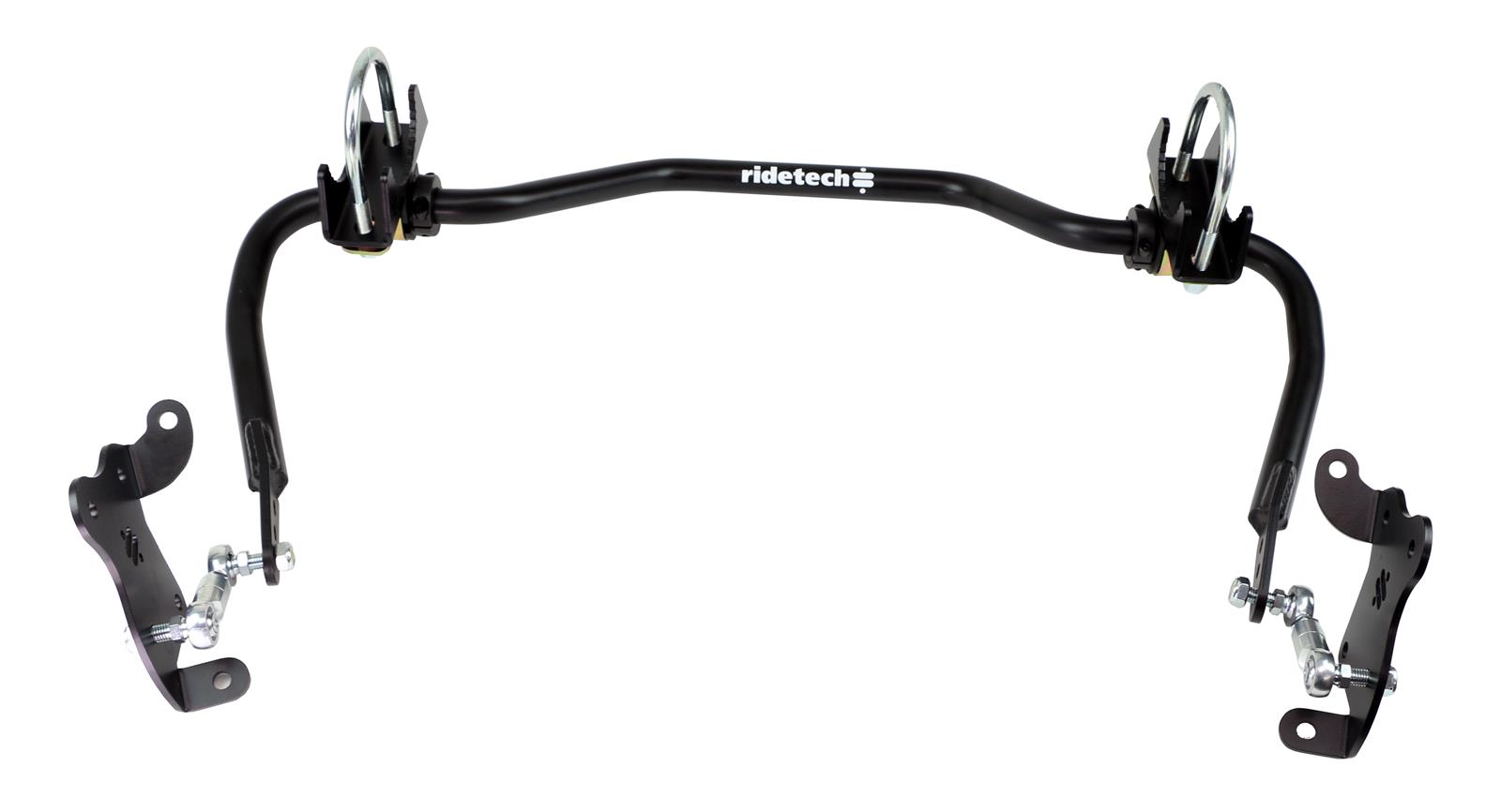

 | 1x | rid11059102 | 11059102 | 840123500748 | Ridetech 58-64 Chevy Impala MUSCLEbar Sway Bar Rear |
 | 1x | rid11053699 | 11053699 | 840123500656 | Ridetech 58-64 Chevy StrongArms Front Upper |
 | 1x | rid11053510 | 11053510 | 840123500632 | Ridetech 58-64 GM B-Body HQ Series CoilOvers Front Pair |

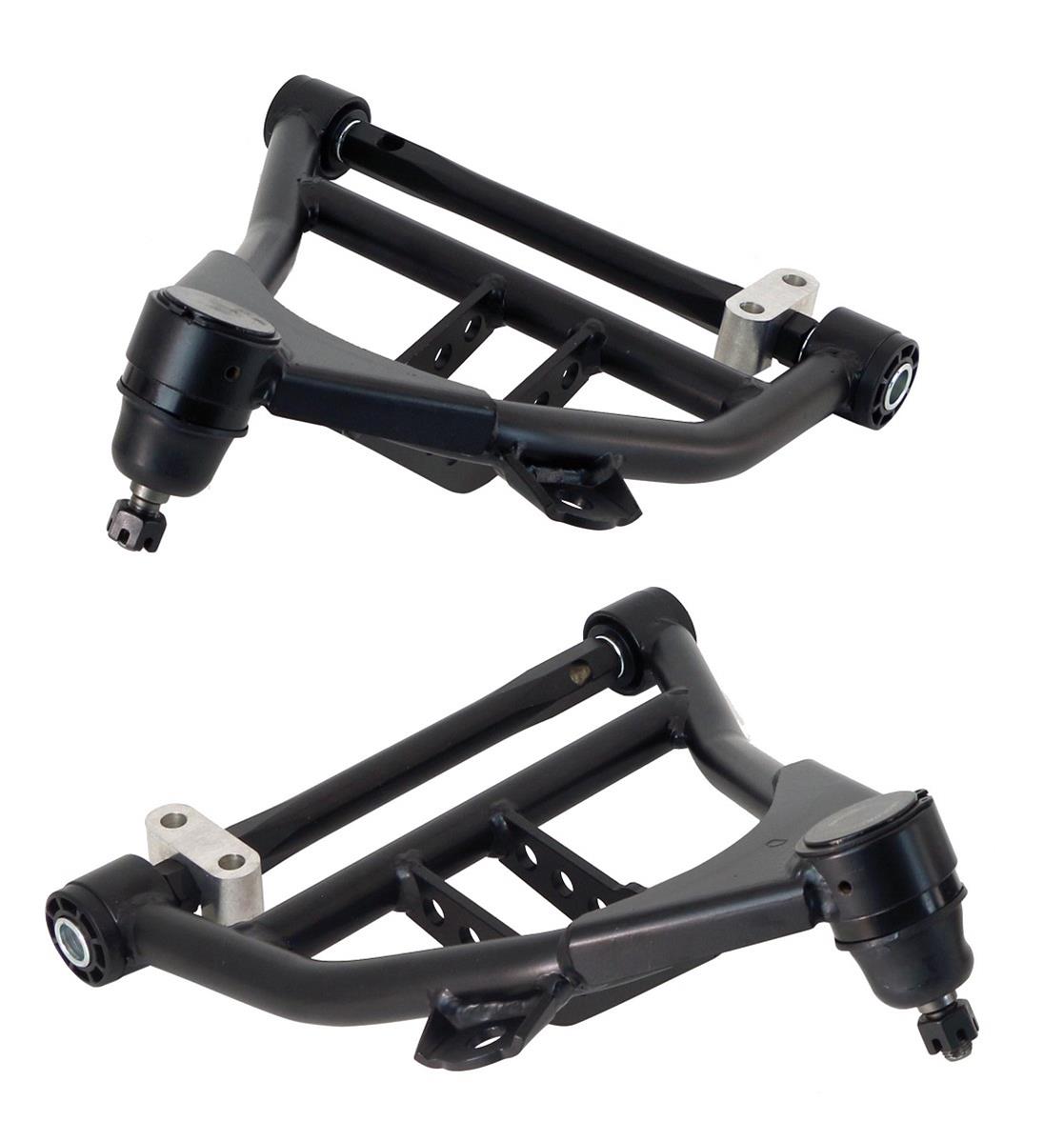

 | 1x | rid11052899 | 11052899 | 840123500601 | Ridetech 58-64 Impala Front Lower StrongArm for use with Shockwaves |
 | 1x | rid11056210 | 11056210 | 840123512987 | Ridetech 58-64 Chevy Impala HQ Series Rear CoilOver Upgrade |
Bundled group items may ship from multiple locations and could have slightly longer transit times if parts are sourced from different warehouses.
Images in this listing may include individual and/or group shots of the products included in the bundle. Please refer to the table to see a breakdown of what is included. Click on a SKU to see individual item details.
For details on the individual components in this bundle, click here.
Application Summary
1959-1964 Impala, Bel Air, etc.
Part Type
Suspension Lowering Kit
Specifications
- Product Attributes - Brand
- RideTech
- Product Attributes - Manufacturer's Part Number
- 11060202
- Product Attributes - Part Type
- Suspension Handling Packages
- Product Attributes - Product Line
- RideTech 1959-64 GM B-Body Coilover Suspension Systems
- Product Attributes - UPC
- 840123504005
- Product Attributes - Front Coil Springs Included
- Yes
- Product Attributes - Rear Coil Springs Included
- Yes
- Product Attributes - Rear Leaf Springs Included
- No
- Product Attributes - Front Shocks/Struts Included
- Yes
- Product Attributes - Front Shock Type
- Adjustable coilover
- Product Attributes - Rear Shocks/Struts Included
- Yes
- Product Attributes - Rear Shock Type
- Adjustable coilover
- Product Attributes - Front Sway Bar Included
- Yes
- Product Attributes - Front Sway Bar Color
- Black
- Product Attributes - Front Sway Bar Type
- Hollow
- Product Attributes - Front Sway Bar Diameter (in.)
- 1.125 in.
- Product Attributes - Front Sway Bar Diameter (mm)
- 28.58 mm
- Product Attributes - Rear Sway Bar Included
- Yes
- Product Attributes - Rear Sway Bar Color
- Black
- Product Attributes - Rear Sway Bar Type
- Modular
- Product Attributes - Tie Rod Sleeves Included
- No
- Product Attributes - End Link Bushings Included
- Yes
- Product Attributes - Rear Leaf Spring Bushings Included
- No
- Product Attributes - Sway Bar Bushings Included
- Yes
- Product Attributes - Upper Trailing Arms Included
- No
- Product Attributes - Lower Trailing Arms Included
- No
- Product Attributes - Trailing Arm Mount Braces Included
- No
- Product Attributes - Panhard Bar Included
- No
- Product Attributes - Torque Arm Included
- No
- Product Attributes - Upper Control Arms Included
- Yes
- Product Attributes - Lower Control Arms Included
- Yes
- Product Attributes - Control Arm Style
- Tubular
- Product Attributes - Control Arm Material
- Steel
- Product Attributes - Control Arm Color
- Black
- Product Attributes - Front Strut Tower Bar Included
- No
- Product Attributes - K-Member Included
- No
- Product Attributes - K-Member Support Brace Included
- No
- Product Attributes - Rear Strut Tower Bar Included
- No
- Product Attributes - Subframe Connectors Included
- No
- Product Attributes - Chassis Stiffener Included
- No
- Product Attributes - Calipers Included
- No
- Product Attributes - Rotors Included
- No
- Product Attributes - Brake Pads Included
- No
- Product Attributes - Brake Lines Included
- No
- Product Attributes - Wheel Studs Included
- No
- Product Attributes - Center Link Included
- No
- Product Attributes - Spindles Included
- No
- Product Attributes - Inner Tie Rod Ends Included
- No
- Product Attributes - Outer Tie Rod Ends Included
- No
- Product Attributes - Bushing Material
- Delrin®
- Product Attributes - Bushing Color
- Black
- Product Attributes - Mounting Hardware Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Must use stock 1959-64 spindles. If using stock-style power steering with the assist cylinder, an additional bracket will be required. Some cars have two rear upper control arms and will need an additional StrongArm kit.
Reference Information
| Brand Name/s | Ridetech |
|---|---|
| StreetFX SKU | rid11060202 |
| SFX Item ID | 4562622 |
| Supplier Item Code | 4562622 |
| Manufacturer SKU | 11060202 |
| Manufacturer UPC | N/A |
| Alternative References | rid-11052899, rid-11053699, rid-11066698, rid-11053510, rid-11069000 |
Compatibility
1959-1964 Impala, Bel Air, etc.
