Description

RideTech 1955-57 Chevy air suspension systems enable you to achieve that ultra-low show stance while providing excellent ride quality and handling. They're available to fit a variety of Tri-Five models. Choose the air suspension system recommended for your year/make/model. Some kits may vary depending on your specific application.

The RideTech 1955-57 Chevy air suspension systems feature:

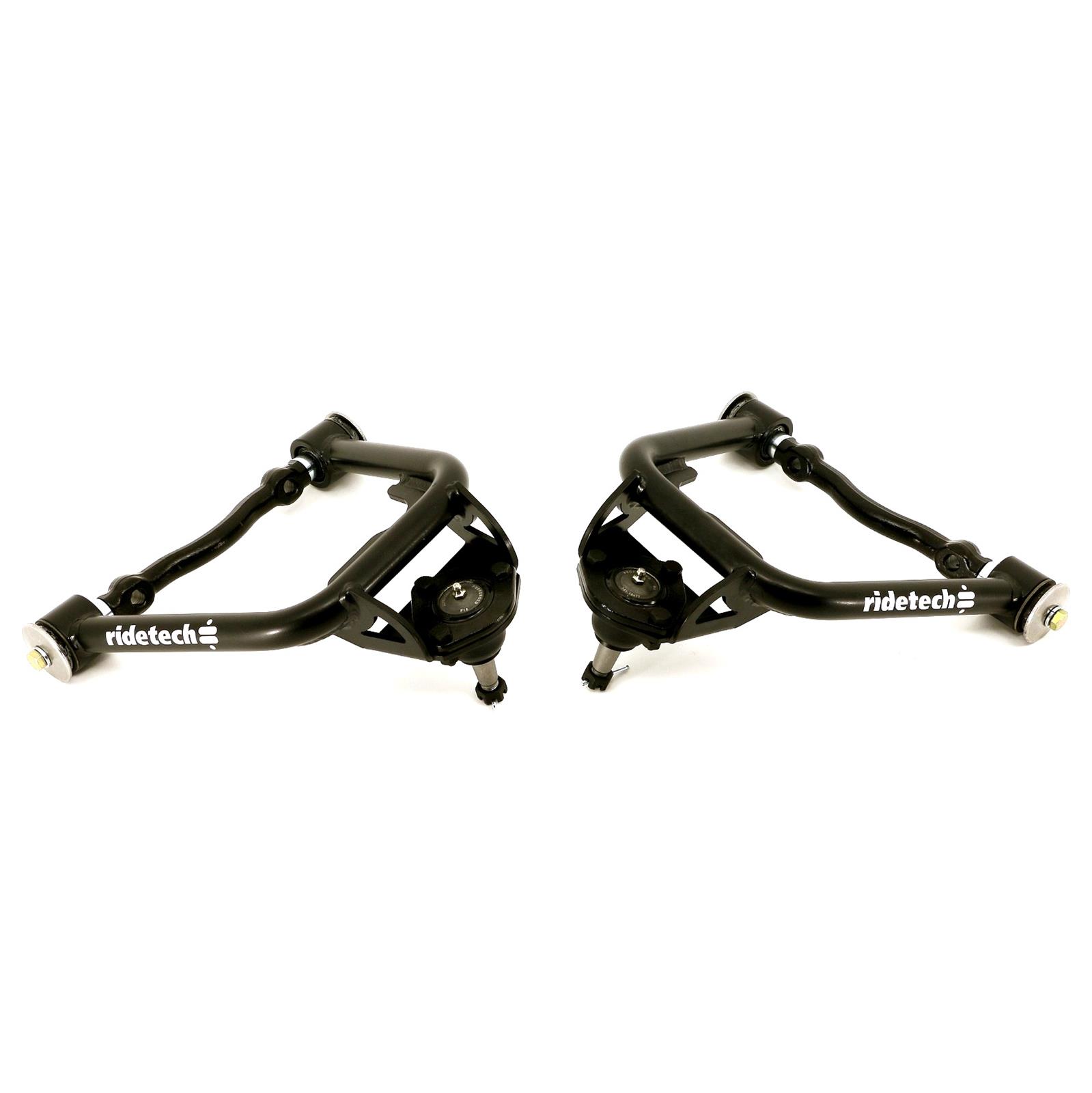

* Upper StrongArms (powdercoated black and fully assembled with ball joints, bushing and cross shafts, ready for installation)

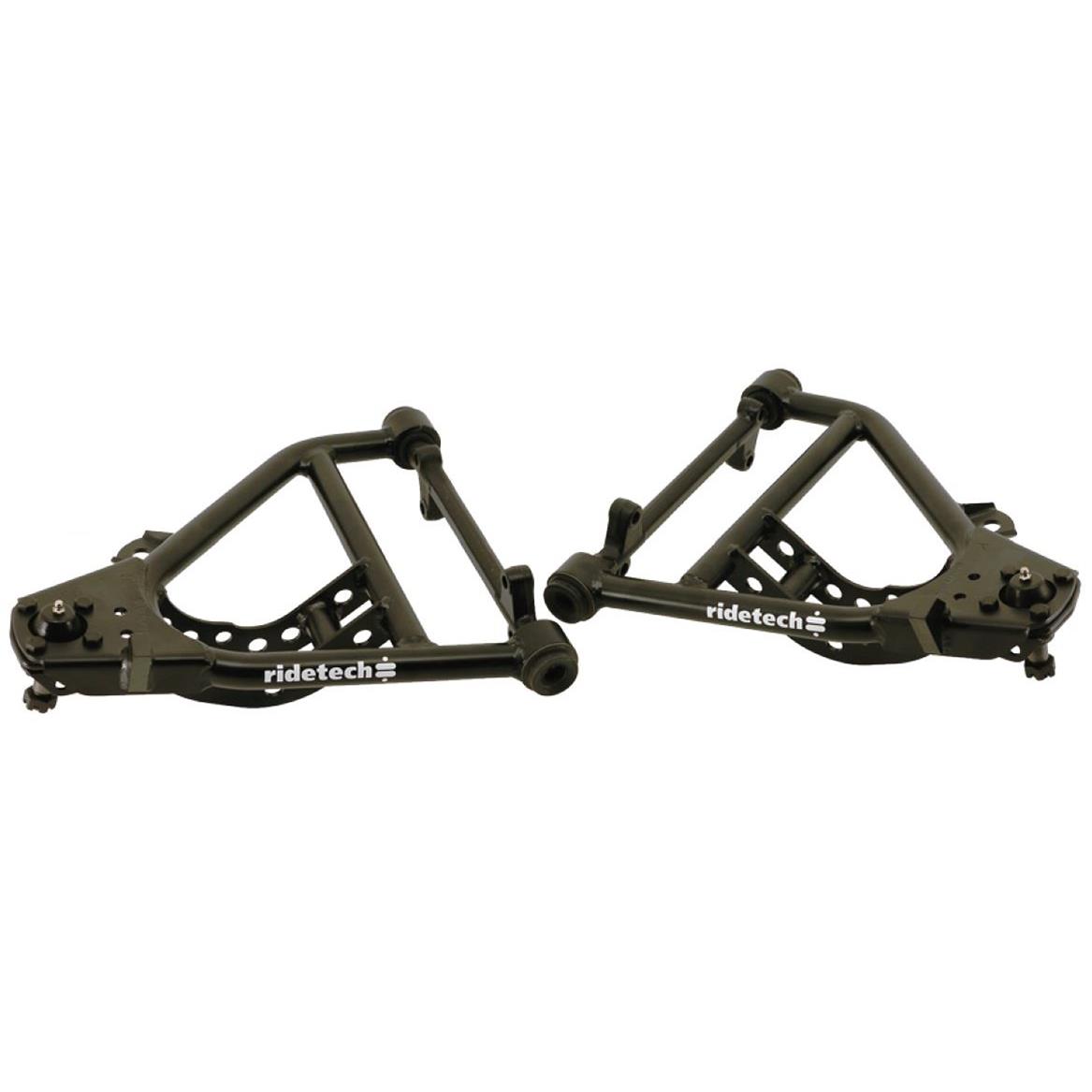

* Lower StrongArms (powdercoated black and fully assembled with ball joints, bushing and cross shafts, ready for installation)
* HQ Series Shockwaves utilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling
* Front MuscleBar: helps reduce body roll and includes PosiLink end links that provide immediate engagement between the chassis and control arms
* Bolt-on 4-link greatly improves traction, handling and ride quality (R-Joint rod ends combine the best qualities of low friction movement, lateral stability, full range articulation, and quiet operation into one special bearing)

Important note: Control system not included. To complete the air suspension system, a RideTech compressor system is required.

Helpful note: To determine the difference between 1-piece and 2-piece frames on the 1955, 1956 and 1957 cars, look at the bottom of the main frame rail under the driver's door area.

* The 1-piece frame cars the bottom of the frame will be flat and smooth, and is often called the "California" frame
* The 2-piece frame design has a rough weld seam right down the bottom center of the frame rail front to rear

Product Overview

Ridetech 55-57 Chevy (Two Piece Frame) Air Suspension System

Product Details

Description:	Ridetech 55-57 Chevy (Two Piece Frame) Air Suspension System

This is a group bundle consisting of:

Image	Qty	SKU	MFR SKU	UPC	Description
	1x	rid11019100	11019100	840123502230	Ridetech 55-57 Chevy Front MuscleBar must use StrongArms
	1x	rid11013699	11013699	840123500243	Ridetech 55-57 Chevy StrongArms Upper
	1x	rid11012899	11012899	840123500199	Ridetech 55-57 Chevy Front Lower StrongArms for use with Shockwaves or CoilOvers
	1x	rid21140701	21140701	840123509307	Ridetech HQ Series Rear ShockWaves 4.1in Travel 4in dia Rolling Sleeve .625 Bearing/.625 Bearing
	1x	rid11013001	11013001	840123500205	Ridetech 55-57 Chevy Front HQ Series ShockWaves Pair
	1x	rid11037199	11037199	840123500472	Ridetech 55-57 Chevy (Two Piece Frame) Bolt-On 4-Link

Bundled group items may ship from multiple locations and could have slightly longer transit times if parts are sourced from different warehouses.

Images in this listing may include individual and/or group shots of the products included in the bundle. Please refer to the table to see a breakdown of what is included. Click on a SKU to see individual item details.

For details on the individual components in this bundle, click here.

Data: v4.2 - Upd: 2026-10-03 04:06:23

Specifications

Product Attributes - Brand

RideTech

Product Attributes - Manufacturer's Part Number

11030298

Product Attributes - Part Type

Suspension Kits, Air Springs

Product Attributes - Product Line

RideTech 1955-57 Chevy Air Suspension Systems

Product Attributes - UPC

840123500458

Product Attributes - Ride Height

Lowered

Product Attributes - Air Spring Suspension Kit Type

ShockWave

Product Attributes - Air Springs Included

Yes

Product Attributes - Air Compressor Included

No

Product Attributes - Air Line Included

No

Product Attributes - Frame Brackets Included

Yes

Product Attributes - Gauges Included

No

Product Attributes - Leveling Switch Included

No

Product Attributes - Links Included

Yes

Product Attributes - Shocks Included

No

Product Attributes - Welding Required

Yes

Product Attributes - Mounting Hardware Included

Yes

Product Attributes - Quantity

Sold as a kit.

Product Attributes - Notes

Fits models with factory 2-piece frame.
