Ridetech 55-57 Chevy (Two Piece Frame) CoilOver System (Bundled Kit)
Ridetech 55-57 Chevy (Two Piece Frame) CoilOver System (Bundled Kit)
A$10,917.45
LOW STOCK! Est Ship 3-5 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
RideTech 1955-57 Chevrolet coilover suspension systems transform the ride, handling, and looks of your Tri-5. The benefits of buying these complete kits is that RideTech has done all the homework for you. They have matched the perfect spring rate and components for your Chevy's best performance and ride quality. All you do is install. Completely upgrade your existing suspension with RideTech coilover suspension systems.
Features include:

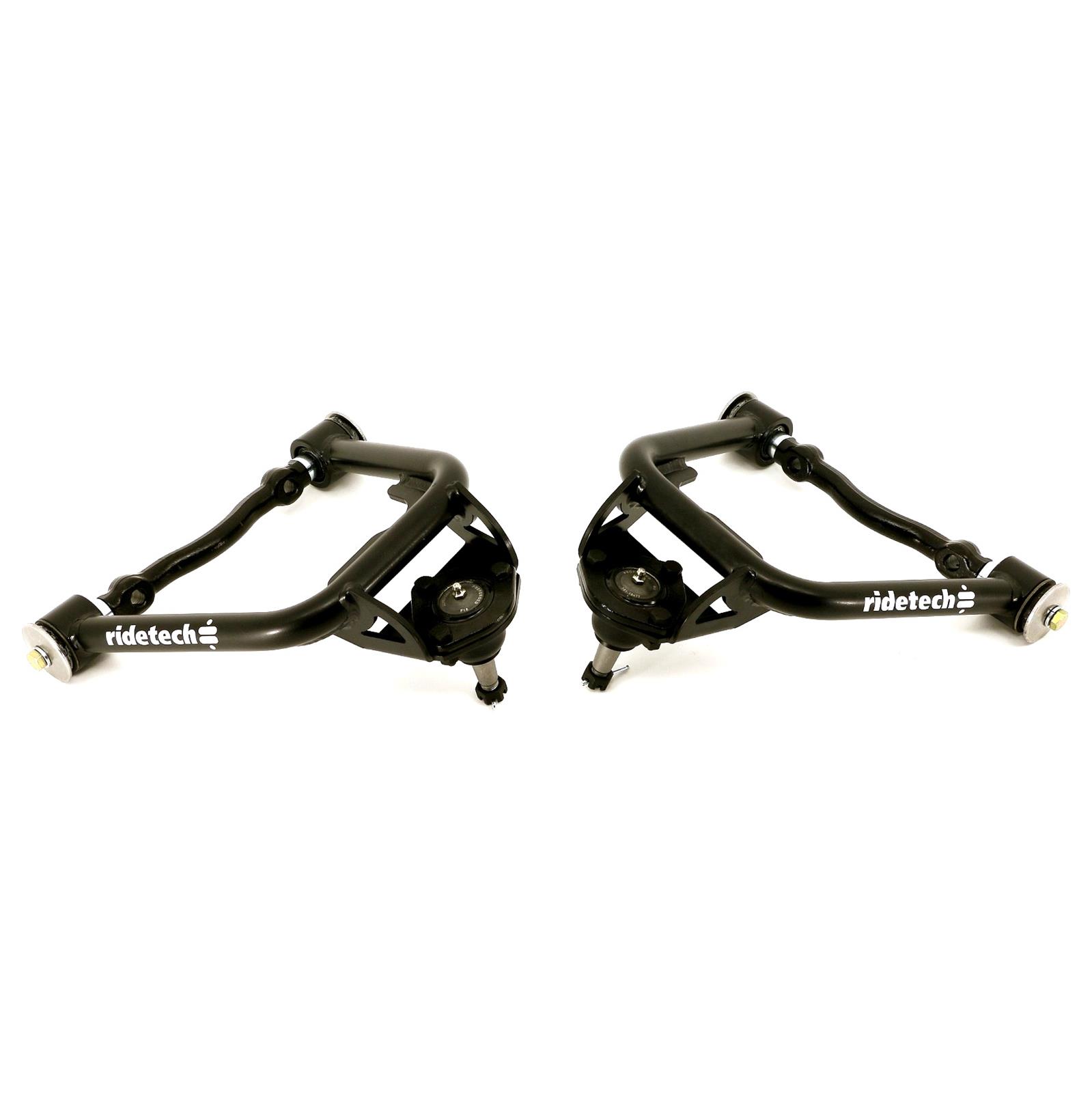

* Upper StrongArms are powdercoated black and fully assembled with ball joints, bushing, and cross shafts. They feature corrected ball joint angles and the upper ball joint have been moved back to allow for additional caster setting to improve high speed stability and steering feel.
* Lower StrongArms feature a double sheer lower mount for increased strength. They also are powdercoated black and fully assembled with ball joints, bushing, and cross shafts.

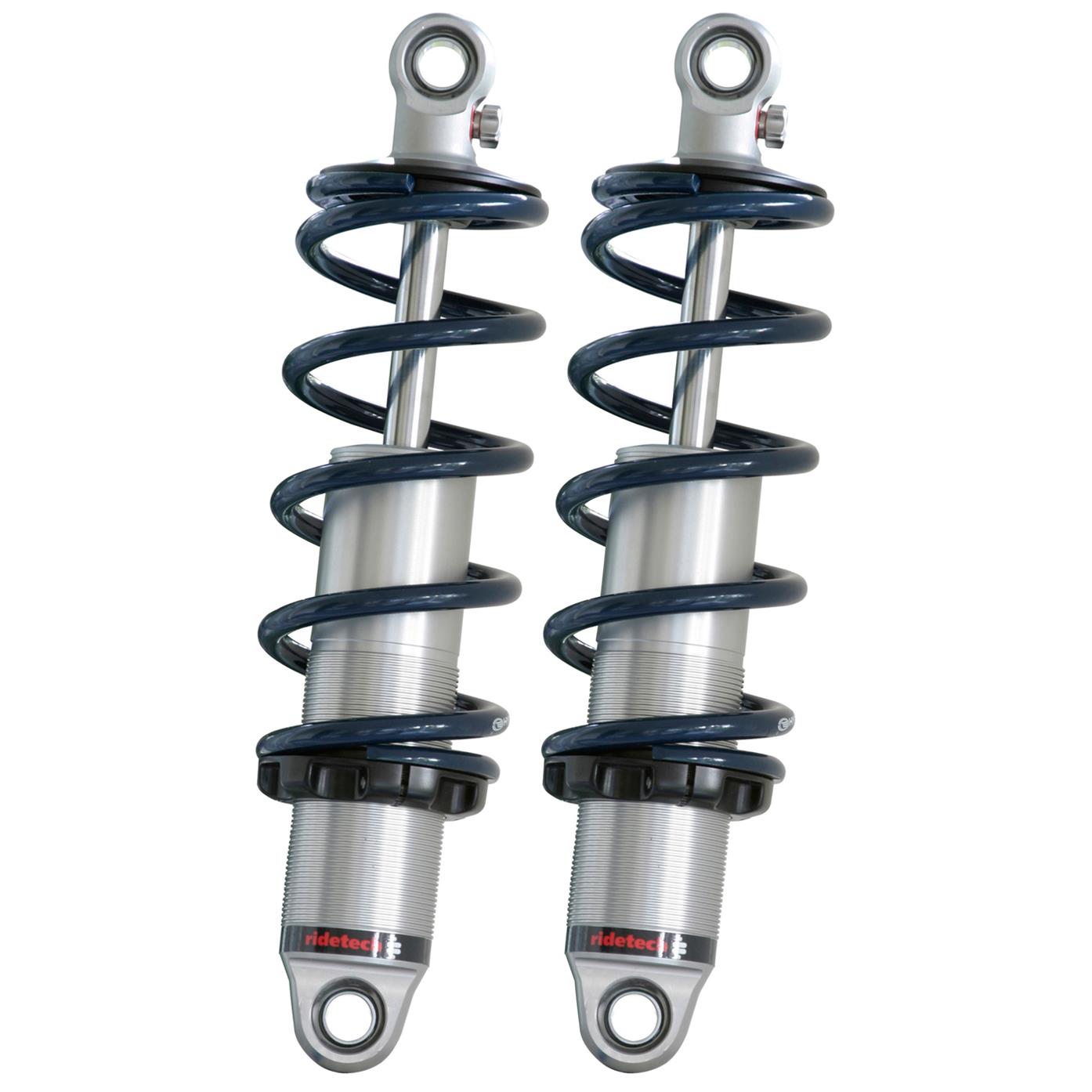

* HQ Series coilovers utilize an impact forged aluminum body and monotube design to deliver excellent ride quality and handling. They allow fine-tuning of the ride quality and handling. The rebound knob is located at the top of the shock for underhood access.
* Front MuscleBar helps reduce body roll and includes the PosiLink endlinks that provide immediate engagement between the chassis and control arms.
* Bolt-on 4-link greatly improves traction, handling, and ride quality.
Product Overview
Ridetech 55-57 Chevy (Two Piece Frame) CoilOver System
Product Details
| Description: | Ridetech 55-57 Chevy (Two Piece Frame) CoilOver System |
|---|
This is a group bundle consisting of:
| Image | Qty | SKU | MFR SKU | UPC | Description |
|---|---|---|---|---|---|
 | 1x | rid85000000 | 85000000 | 840123511379 | Ridetech CoilOver Spanner Wrench |
 | 1x | rid11019100 | 11019100 | 840123502230 | Ridetech 55-57 Chevy Front MuscleBar must use StrongArms |
 | 1x | rid11013699 | 11013699 | 840123500243 | Ridetech 55-57 Chevy StrongArms Upper |
 | 1x | rid11016510 | 11016510 | 840123500298 | Ridetech 55-57 Chevy HQ Series Rear CoilOver Pair For use w/ Ridetech Bolt-On 4 Link |
 | 1x | rid11013510 | 11013510 | 840123500229 | Ridetech 55-57 Chevy HQ Series CoilOvers Front Pair |
 | 1x | rid11012899 | 11012899 | 840123500199 | Ridetech 55-57 Chevy Front Lower StrongArms for use with Shockwaves or CoilOvers |
 | 1x | rid11037199 | 11037199 | 840123500472 | Ridetech 55-57 Chevy (Two Piece Frame) Bolt-On 4-Link |
Bundled group items may ship from multiple locations and could have slightly longer transit times if parts are sourced from different warehouses.
Images in this listing may include individual and/or group shots of the products included in the bundle. Please refer to the table to see a breakdown of what is included. Click on a SKU to see individual item details.
For details on the individual components in this bundle, click here.
Application Summary
1955-1957 Bel Air, 210 etc.
Part Type
Suspension Lowering Kit
Specifications
- Product Attributes - Brand
- RideTech
- Product Attributes - Manufacturer's Part Number
- 11030201
- Product Attributes - Part Type
- Suspension Handling Packages
- Product Attributes - Product Line
- RideTech 1955-57 Chevrolet Coilover Suspension Systems
- Product Attributes - UPC
- 840123500441
- Product Attributes - Front Coil Springs Included
- Yes
- Product Attributes - Rear Coil Springs Included
- Yes
- Product Attributes - Rear Leaf Springs Included
- No
- Product Attributes - Front Shocks/Struts Included
- Yes
- Product Attributes - Front Shock Type
- Single adjustable monotube coilover
- Product Attributes - Rear Shocks/Struts Included
- Yes
- Product Attributes - Rear Shock Type
- Single adjustable monotube coilover
- Product Attributes - Front Sway Bar Included
- Yes
- Product Attributes - Front Sway Bar Color
- Black
- Product Attributes - Front Sway Bar Type
- Hollow
- Product Attributes - Front Sway Bar Diameter (in.)
- 1.250 in.
- Product Attributes - Front Sway Bar Diameter (mm)
- 31.75 mm
- Product Attributes - Rear Sway Bar Included
- No
- Product Attributes - Tie Rod Sleeves Included
- No
- Product Attributes - End Link Bushings Included
- Yes
- Product Attributes - Rear Leaf Spring Bushings Included
- No
- Product Attributes - Sway Bar Bushings Included
- Yes
- Product Attributes - Upper Trailing Arms Included
- Yes
- Product Attributes - Lower Trailing Arms Included
- Yes
- Product Attributes - Trailing Arm Mount Braces Included
- No
- Product Attributes - Panhard Bar Included
- No
- Product Attributes - Torque Arm Included
- No
- Product Attributes - Upper Control Arms Included
- Yes
- Product Attributes - Lower Control Arms Included
- Yes
- Product Attributes - Control Arm Style
- Tubular
- Product Attributes - Control Arm Material
- Steel
- Product Attributes - Control Arm Color
- Black
- Product Attributes - Front Strut Tower Bar Included
- No
- Product Attributes - K-Member Included
- No
- Product Attributes - K-Member Support Brace Included
- No
- Product Attributes - Rear Strut Tower Bar Included
- No
- Product Attributes - Subframe Connectors Included
- No
- Product Attributes - Chassis Stiffener Included
- No
- Product Attributes - Calipers Included
- No
- Product Attributes - Rotors Included
- No
- Product Attributes - Brake Pads Included
- No
- Product Attributes - Brake Lines Included
- No
- Product Attributes - Wheel Studs Included
- No
- Product Attributes - Center Link Included
- No
- Product Attributes - Spindles Included
- No
- Product Attributes - Inner Tie Rod Ends Included
- No
- Product Attributes - Outer Tie Rod Ends Included
- No
- Product Attributes - Bushing Material
- Delrin®
- Product Attributes - Bushing Color
- Black
- Product Attributes - Mounting Hardware Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Designed for models with two piece frame rails. Springs rates are 600 Ibs. front and 200 Ibs. rear.
Reference Information
| Brand Name/s | Ridetech |
|---|---|
| StreetFX SKU | rid11030201 |
| SFX Item ID | 4562653 |
| Supplier Item Code | 4562653 |
| Manufacturer SKU | 11030201 |
| Manufacturer UPC | N/A |
| Alternative References | rid-11012899, rid-11013699, rid-11013510, rid-11016510, rid-11037199 |
Compatibility
1955-1957 Bel Air, 210 etc.
Loading compatibility information...
