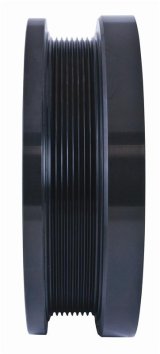

Fluidampr Ford PowerStroke 6.0L Steel Externally Balanced Damper
Fluidampr Ford PowerStroke 6.0L Steel Externally Balanced Damper
A$1,078.57
IN STOCK! Est Ship 3-5 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Serious power requires a serious damper. Protect your truck?s engine with the technology preferred by heavy duty diesel OEMs. Superior viscous damper design controls harmful torsional vibration across the entire rpm range. Reduce wear on engine components. Reduce risk of crankshaft failure. Improve timing. Unleash lost torque and horsepower. Competition built precision CNC machined and balanced high-grade steel components. Corrosion resistant black zinc finish with engraved timing marks. No maintenance required. Trusted by leading performance diesel engine builders worldwide. SFI 18.1 certified. Made in USA.
Product Overview
Fluidampr Engine Dampers are designed to control destructive vibrations which are transfered thru the crankshaft.
Each time the air/fuel mixture inside a cylinder is ignited, the combustion that occurs creates a torque spike that is applied to the crankshaft through the piston and rod. This torque spike is so severe that it not only turns the crankshaft, it actually twists the crankshaft ahead of its normal rotation and then the crankshaft rebounds. This twisting action is known as torsional vibration. When these torque spikes and forces get into phase with the natural frequency, critical torsional harmonic vibrations occur and can be seriously destructive to the bearings and the crankshaft. Dampers are designed to control those destructive vibrations.
Critical harmonic vibrations occur numerous times in a engine’s operating range. Stock rubber and elastomer-type dampers are frequency sensitive “tuned absorbersâ€, and work at only one critical frequency. In the case of a stock rubber damper, it is tuned for a factory engine’s critical harmonic vibrations. If you change the mass of pistons, rods, or the crankshaft, you change the natural frequency of the crankshaft assembly; therefore, the stock damper is no longer tuned to the new frequency of vibration, and you may be headed for early failure of expensive engine components. Dampers also create heat while they work, and rubber is a poor dissipator of heat. This heat and the exposure to the elements deteriorates rubber, causing it to crack and change durometer, which then leads to inertia ring slippage, damper failure, uncontrolled torsional vibration, and costly engine parts breakage.
Features and Benefits
- Broad RPM range protection.
- Reduce risk of crankshaft failure.
- Reduce wear on critical engine parts.
- Unleash lost torque & horsepower.
- No maintenance required.
- Superior durability.
- SFI 18.1 spec. Race proven for over 35 years.
- Made in USA.
Product Details
| Bolt and Washer Included: | No |
|---|---|
| Bore Dia. Min/Max: | NA |
| Degree Marking Range: | TDC |
| Degree Markings: | No |
| Depth: | 2.88 |
| Description: | Fluidampr Harmonic Balancer |
| Drive Belt Type: | Serpentine |
| Engine Balance: | External |
| Finish: | Black Zinc |
| Inside Diameter: | NA |
| Keyway Type: | Not Applicable |
| Keyway: | Not Applicable |
| Length: | 2.88 |
| Material: | Steel |
| Mounting Hardware Incl.: | No |
| Mounting Hole Quantity: | 4 |
| O.D.: | 8-7/8" (8.875) |
| Outside Diameter: | 8-7/8" |
| Part Number: | fdr870201 |
| Prop 65 (C, R, or CR): | CR |
| Prop 65 - Short Label: | CA-Prop65-label.jpg |
| Prop 65 Yes/No: | Yes |
| Pulley Groove Quantity: | 8 |
| Pulley Size: | For use with single alternator. Pulley #717675 available if dual alternator is added in future. |
| Safety Rating: | SFI 18.1 |
| Title: | Fluidampr - 870201 - Harmonic Balancer - Fluidampr - Ford - 2003-2007 - 6.0L Power Stroke - Each |
| WT. in lbs.()=Rotating weight: | 21.9 (14.6 Rwt) |
| Weight / Rotating Weight: | 21.7 lbs / 14.5 lbs |
Application Summary
2003-2007 Ford. 6.0L Powerstroke w/ single alternator.
Part Type
Engine Harmonic Balancer
Features
- Broad RPM range protection.
- Made in USA.
- No maintenance required.
- Reduce risk of crankshaft failure.
- Reduce wear on critical engine parts.
- SFI 18.1 spec. Race proven for over 35 years.
- Superior durability.
- Unleash lost torque & horsepower.
Specifications
- Product Attributes - UPC
- 815293001524
- Product Attributes - Brand
- Fluidampr
- Product Attributes - Notes
- Weight is 20.00 lbs.
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Part Type
- Harmonic Balancers
- Product Attributes - SFI Rating
- SFI 18.1
- Product Attributes - Product Line
- Fluidampr Harmonic Dampers
- Product Attributes - Engine Balance
- External
- Product Attributes - Degree Markings
- Yes
- Product Attributes - Keyway Quantity
- None
- Product Attributes - Outside Diameter (in.)
- 8.875 in.
- Product Attributes - Harmonic Balancer Color
- Black zinc chromate
- Product Attributes - Harmonic Balancer Material
- Steel
- Product Attributes - Manufacturer's Part Number
- 870201
- Product Attributes - Mounting Hardware Included
- No
- Product Attributes - Harmonic Balancer Construction
- Fluid
Reference Information
| Brand Name/s | Fluidampr |
|---|---|
| StreetFX SKU | fdr870201 |
| SFX Item ID | 4403639 |
| Supplier Item Code | 4403639 |
| Manufacturer SKU | 870201 |
| Manufacturer UPC | 815293001524 |
| Alternative References | FLU870201, 6.0L |
Compatibility
2003-2007 Ford. 6.0L Powerstroke w/ single alternator.
