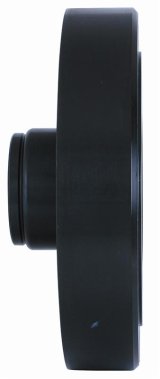

Fluidampr Chevy LS1 / LS6 Corvette (No Pulleys) Steel Internally Balanced Damper

SKU: FDR620131

Harmonic Balancers

FDR Dampers - Domestic

Fluidampr

Fluidampr Chevy LS1 / LS6 Corvette (No Pulleys) Steel Internally Balanced Damper

SKU: FDR620131

Harmonic Balancers

FDR Dampers - Domestic

IN STOCK! Est Ship 4-7 days. This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.

We accept

Description

Protect your Corvette or CTS-V LS engine from harmful torsional vibration with a Fluidampr viscous damper designed for high-performance street and racing applications. Increased cylinder pressure, RPM and rotating assembly changes can reduce the effectiveness of stock elastomer-style dampers. Fluidampr viscous damping technology helps control crankshaft harmonics across the entire RPM range to support long-term engine durability, accessory drive stability and reduced wear on critical components. Application summary: 1997-2004 Chevy Corvette / 2004-2007 Cadillac CTS-V. LS engine. Fitment note: Pinning recommended for high-horsepower and supercharged applications. Fluidampr Pin Kit p/n 300004 available separately. Fitment note: Damper only. Accessory drive pulley available separately. Fitment note: Compatible with LS accessory drives using 1.50" crank pulley offset spacing.

Product Overview

Fluidampr Engine Dampers are designed to control destructive vibrations which are transfered thru the crankshaft. Each time the air/fuel mixture inside a cylinder is ignited, the combustion that occurs creates a torque spike that is applied to the crankshaft through the piston and rod. This torque spike is so severe that it not only turns the crankshaft, it actually twists the crankshaft ahead of its normal rotation and then the crankshaft rebounds. This twisting action is known as torsional vibration. When these torque spikes and forces get into phase with the natural frequency, critical torsional harmonic vibrations occur and can be seriously destructive to the bearings and the crankshaft. Dampers are designed to control those destructive vibrations. Critical harmonic vibrations occur numerous times in a engineâ€™s operating range. Stock rubber and elastomer-type dampers are frequency sensitive â€œtuned absorbersâ€, and work at only one critical frequency. In the case of a stock rubber damper, it is tuned for a factory engineâ€™s critical harmonic vibrations. If you change the mass of pistons, rods, or the crankshaft, you change the natural frequency of the crankshaft assembly; therefore, the stock damper is no longer tuned to the new frequency of vibration, and you may be headed for early failure of expensive engine components. Dampers also create heat while they work, and rubber is a poor dissipator of heat. This heat and the exposure to the elements deteriorates rubber, causing it to crack and change durometer, which then leads to inertia ring slippage, damper failure, uncontrolled torsional vibration, and costly engine parts breakage.

Features and Benefits

Broad RPM range protection.
Reduce risk of crankshaft failure.
Reduce wear on critical engine parts.
Unleash lost torque & horsepower.
No maintenance required.
Superior durability.
SFI 18.1 spec. Race proven for over 35 years.
Made in USA.

Product Details

Bolt And Washer Included:	No
Bore Dia. Min/Max:	1.4818 / 1.4828
Degree Marking Range:	None
Degree Markings:	No
Depth:	2.252
Description:	Fluidampr Harmonic Balancer
Engine Balance:	Internal
Finish:	Black Zinc
Grade Type:	Performance
Inside Diameter:	1.4795
Keyway Type:	No
Keyway:	None
Length:	2.252
Material:	Steel
Mounting Hardware Incl.:	No
Mounting Hole Diameter:	1.4795
Mounting Hole Quantity:	1
O.D.:	6-1/4" (6.25)
Outside Diameter:	6.25
Part Number:	fdr620131
Prop 65 (C, R, or CR):	CR
Prop 65 - Short Label:	CA-Prop65-label.jpg
Prop 65 Yes/No:	Yes
Safety Rating:	SFI 18.1
TITLE:	Fluidampr - 620131 - Harmonic Balancer - Fluidampr - LS SBC-97-04 Corvette/04-07 Cadillac CTSV - Each
WT. in lbs.()=Rotating weight:	8.1 (5.4 Rwt)
Weight / Rotating Weight:	8.2 lbs / 5.5 lbs

Application Summary

1997-2004 Chevy Corvette / 2004-2007 Cadillace CTS-V. LS engine. No pulley included.

Part Type

Engine Harmonic Balancer

Data: v4.2 - Upd: 2026-09-29 00:44:06

Features

Broad RPM range viscous damping protection.
Controls harmful torsional vibration in LS engine applications.
Made in the USA.
Maintenance free design with no tuning or rebuilds required.
Precision CNC machined steel construction.
SFI 18.1 spec. Race proven for over 40 years.
Supports crankshaft durability in high-performance street and racing applications.

Specifications

Product Attributes - Brand: Fluidampr
Product Attributes - Manufacturer's Part Number: 620131
Product Attributes - Part Type: Harmonic Balancers
Product Attributes - Product Line: Fluidampr Harmonic Dampers
Product Attributes - UPC: 815293002231
Product Attributes - Engine Balance: Internal
Product Attributes - SFI Rating: SFI 18.1
Product Attributes - Degree Markings: No
Product Attributes - Outside Diameter (in.): 6.250
Product Attributes - Crankshaft Pulley Bolt Hole Quantity: Three
Product Attributes - Keyway Quantity: None
Product Attributes - Harmonic Balancer Material: Steel
Product Attributes - Harmonic Balancer Construction: Fluid
Product Attributes - Harmonic Balancer Color: Black zinc chromate
Product Attributes - Mounting Hardware Included: No
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: Damper comes with no pulley. Weight is 8.1 lbs.

Reference Information

Brand Name/s	Fluidampr
StreetFX SKU	fdr620131
SFX Item ID	4403608
Supplier Item Code	4403608
Manufacturer SKU	620131
Manufacturer UPC	815293002231
Alternative References	FLU000037, FLU620131, LS1, LS6
