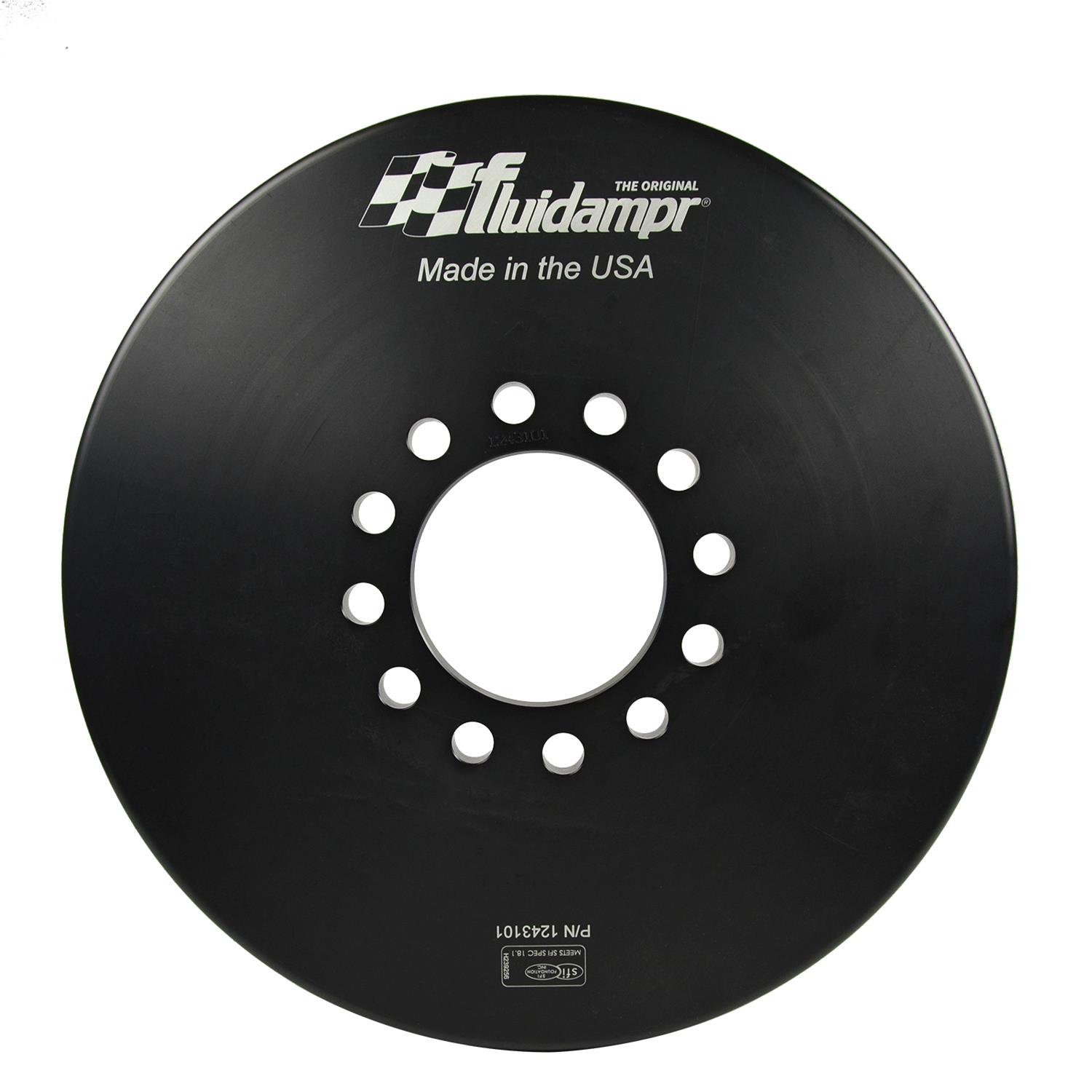

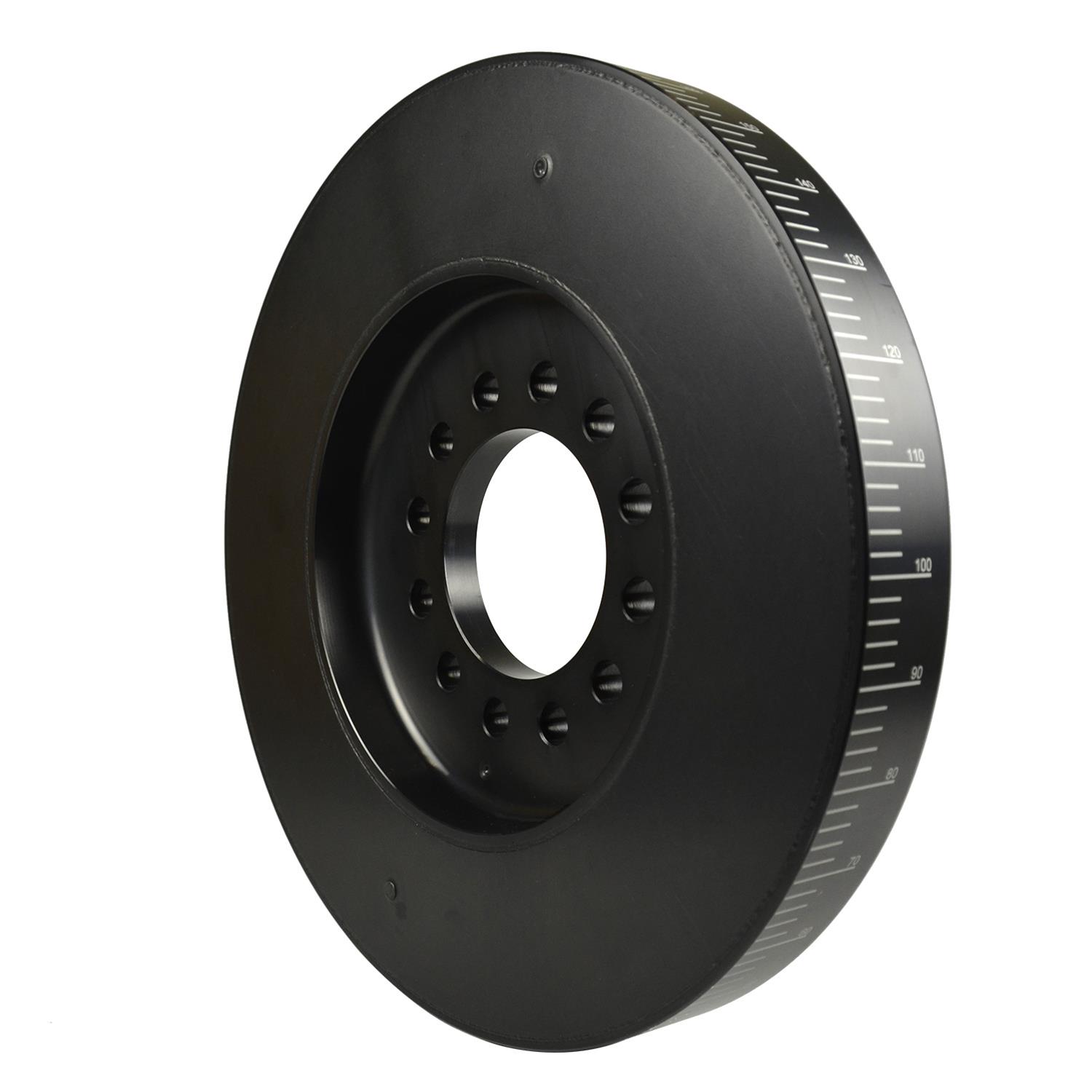

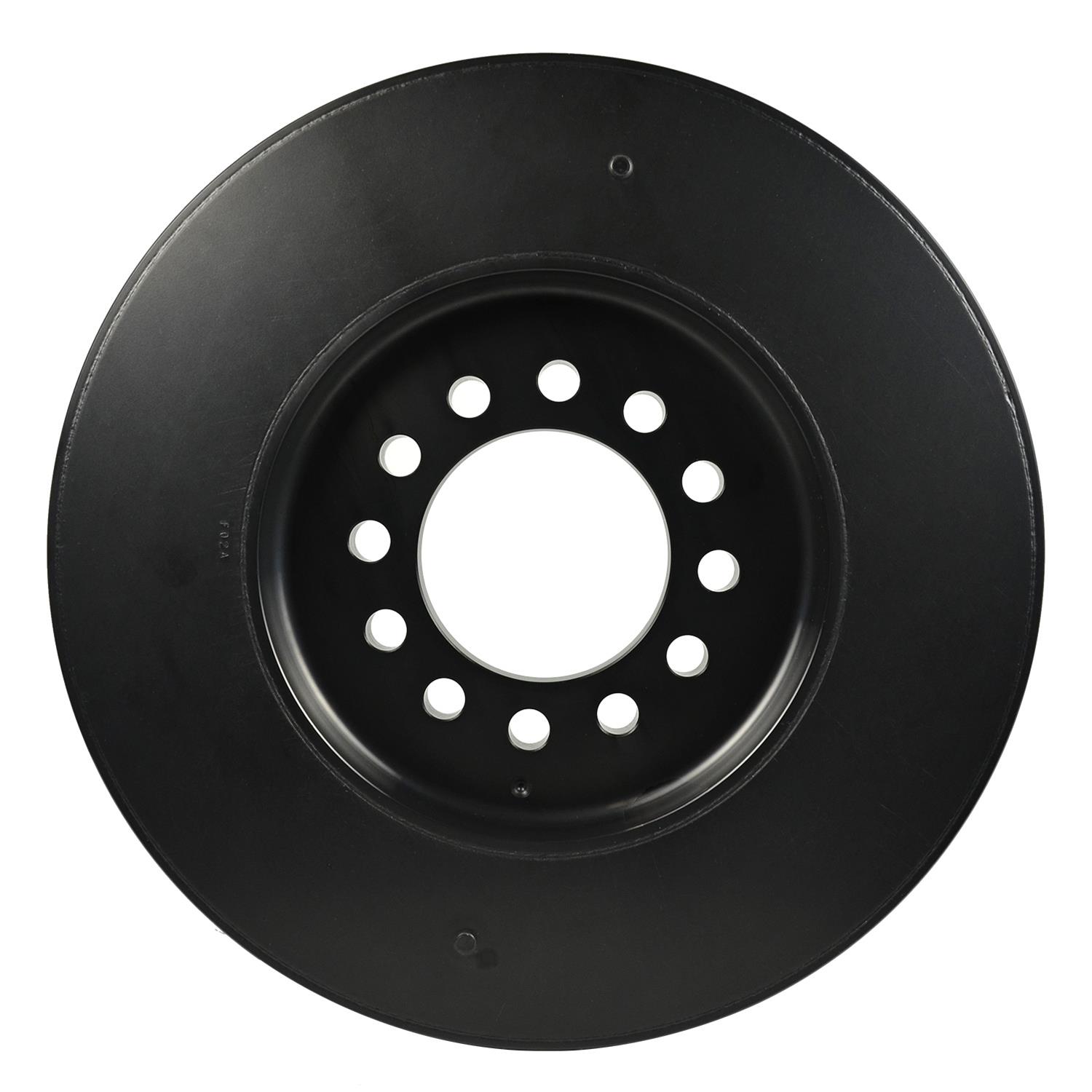

Fluidampr Universal Tractor Pulling 12 Bolt Taper Lock Hub Internally Balanced Damper (w/Bolt Holes)
Fluidampr Universal Tractor Pulling 12 Bolt Taper Lock Hub Internally Balanced Damper (w/Bolt Holes)
A$1,981.91
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Designed specifically for professional tractor pulling competition. Superior viscous damper design controls harmful torsional vibration across the entire rpm range. Reduce wear on engine components. Reduce risk of crankshaft failure. Improve timing. Unleash lost torque and horsepower. Competition built precision CNC machined and balanced high-grade steel components. Corrosion resistant black zinc finish with laser engraved clockwise and counter-clockwise timing marks. No maintenance required. Trusted by leading performance diesel engine builders worldwide. SFI 18.1 certified. Made in USA. NOTE: Damper flange
Product Overview
Designed specifically for professional tractor pulling competition. Superior viscous damper design controls harmful torsional vibration across the entire rpm range. Reduce wear on engine components. Reduce risk of crankshaft failure. Improve timing. Unleash lost torque and horsepower. Competition built precision CNC machined and balanced high-grade steel components. Corrosion resistant black zinc finish with laser engraved clockwise and counter-clockwise timing marks. No maintenance required. Trusted by leading performance diesel engine builders worldwide. SFI 18.1 certified. Made in USA. NOTE: Damper flange
Features and Benefits
- 12 bolt mounting flange. Evenly spaced on 4.5" circle.
- Requires taper lock hub with 3.25" pilot.
- Clockwise and counter-clockwise laser engraved timing marks
- Robust competition design specifically for tractor pulling.
- SFI 18.1 spec.
- Made in USA.
Product Details
| Bolt And Washer Included: | No |
|---|---|

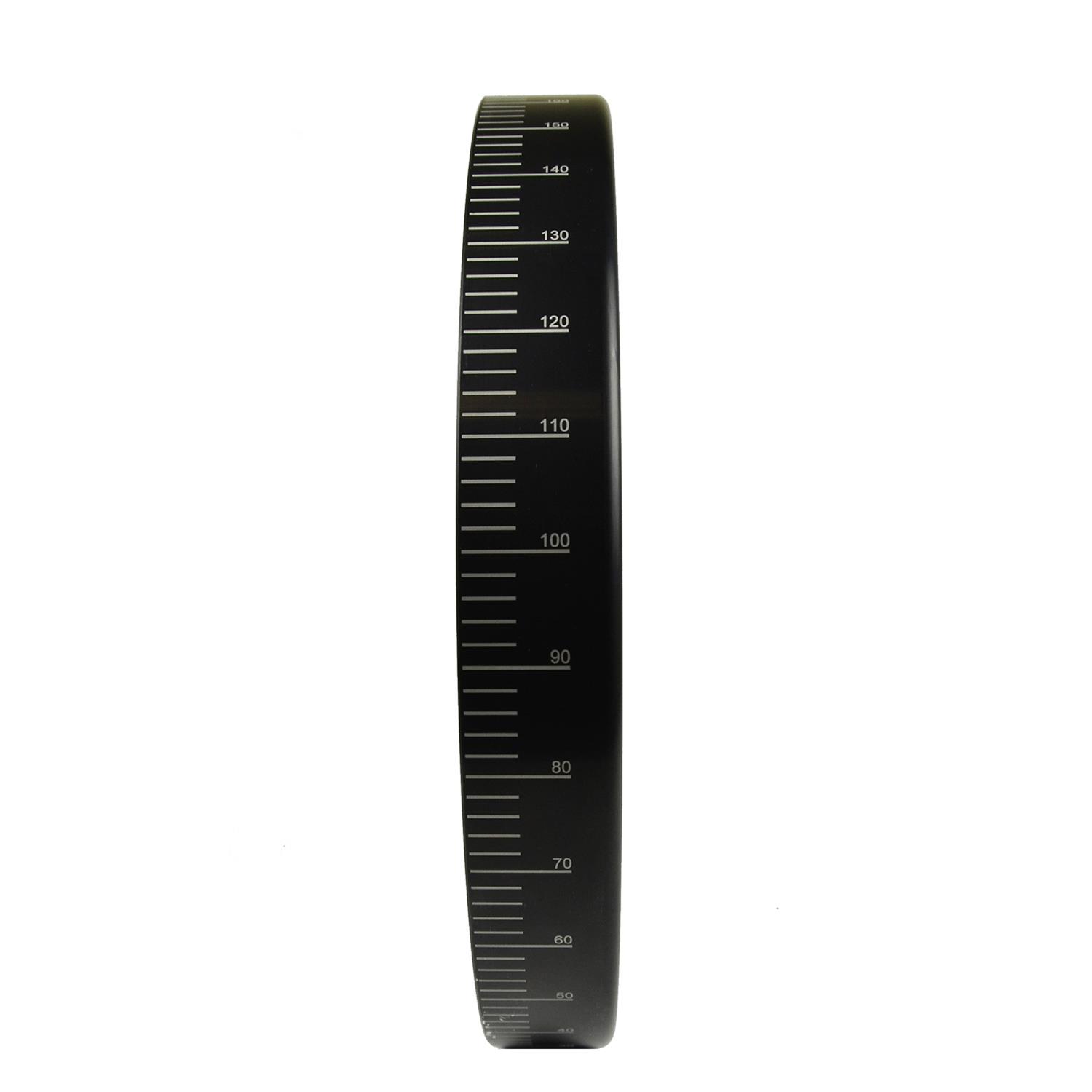

| Degree Marking Range: | TDC to 180 at 2 degree increments. Clockwise and counter-clockwise. |
| Degree Markings: | Engraved |
| Depth: | 1.61 |
| Description: | Fluidampr Universal Tractor Pulling 12 Bolt Taper Lock Hub Internally Balanced Damper (w/Bolt Holes) |
| Engine Balance: | Internal |
| Finish: | Black Zinc |
| Grade Type: | Performance |
| Inside Diameter: | 3.2515 |
| Keyway Type: | No |
| Material: | Steel |
| Mounting Hole Diameter: | 3.2515 |
| Mounting Hole Quantity: | 1 |
| Outside Diameter: | 12.40 |
| Part Number: | fdr1243101 |
| Prop 65 (C, R, or CR): | CR |
| Prop 65 - Short Label: | WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Prop 65 Yes/No: | Yes |
| Pulley Size: | NO PULLEY - FOR COMPETITION USE |
| Safety Rating: | SFI 18.1 |
| Title: | Fluidampr - 1243101 - Harmonic Balancer - Fluidampr - Tractor Pulling - Universal Fit For Taper Lock Hub - No Pulley - Each |
| Weight / Rotating Weight: | 37 lbs / 24.4 lbs |
Part Type
Engine Harmonic Balancer
Features
- 12 bolt mounting flange. Evenly spaced on 4.5" circle.
- Clockwise and counter-clockwise laser engraved timing marks
- Made in USA.
- Requires taper lock hub with 3.25" pilot.
- Robust competition design specifically for tractor pulling.
- SFI 18.1 spec.
Specifications
- Product Attributes - Brand
- Fluidampr
- Product Attributes - Manufacturer's Part Number
- 1243101
- Product Attributes - Part Type
- Harmonic Balancers
- Product Attributes - Product Line
- Fluidampr Competition Series Tractor Pulling Performance Dampers
- Product Attributes - UPC
- 00815293003566
- Product Attributes - Engine Balance
- Internal
- Product Attributes - SFI Rating
- SFI 18.1
- Product Attributes - Degree Markings
- Yes
- Product Attributes - Outside Diameter (in.)
- 12.406
- Product Attributes - Harmonic Balancer Material
- Steel
- Product Attributes - Harmonic Balancer Color
- Black zinc chromate
- Product Attributes - Mounting Hardware Included
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Universal Fit For Taper Lock Hubs. Pre-drilled bolt holes.
Reference Information
| Brand Name/s | Fluidampr |
|---|---|
| StreetFX SKU | fdr1243101 |
| SFX Item ID | 4403713 |
| Supplier Item Code | 4403713 |
| Manufacturer SKU | 1243101 |
| Manufacturer UPC | 815293002651 |
| Alternative References | FLU1243101 |
