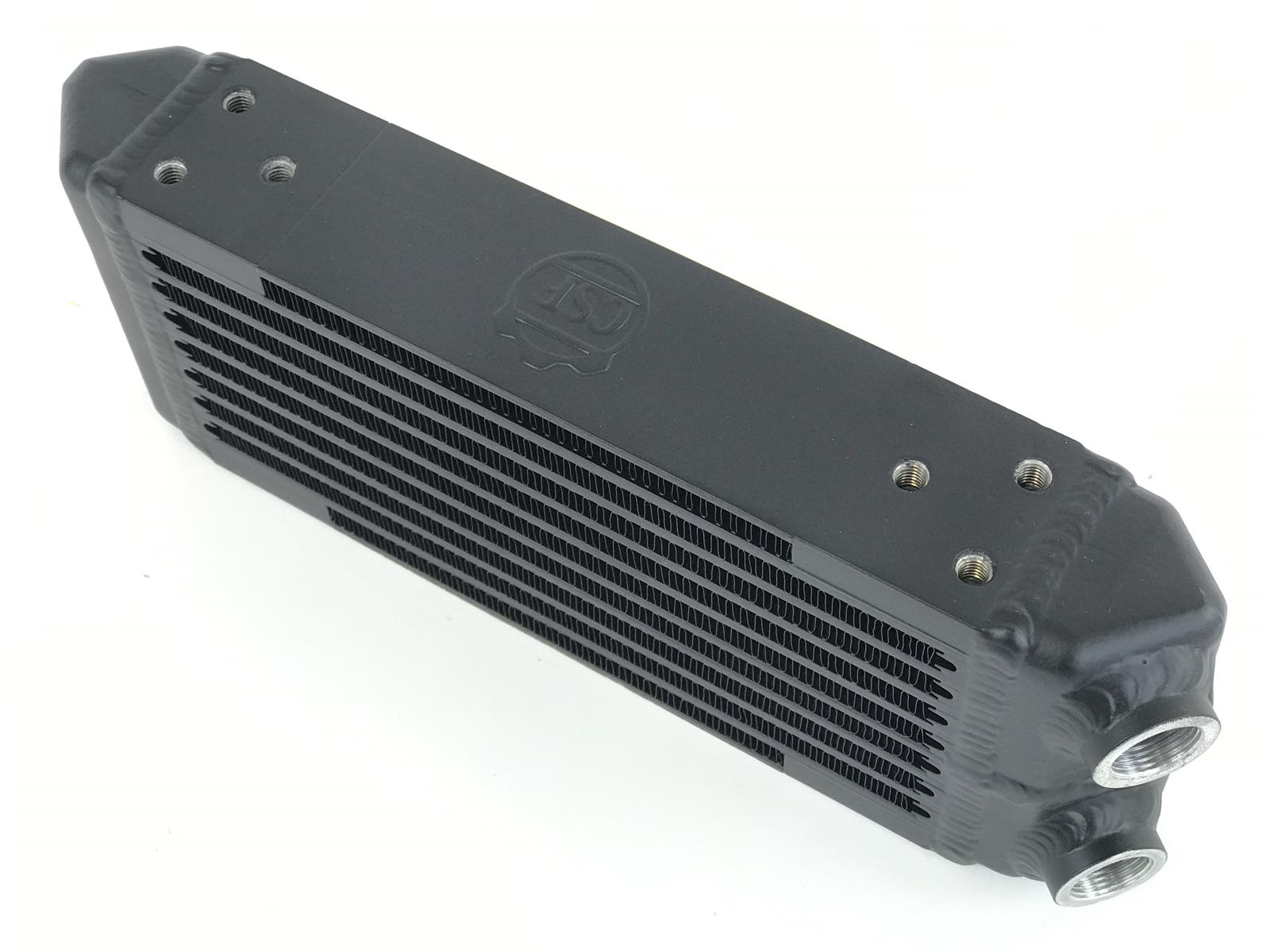

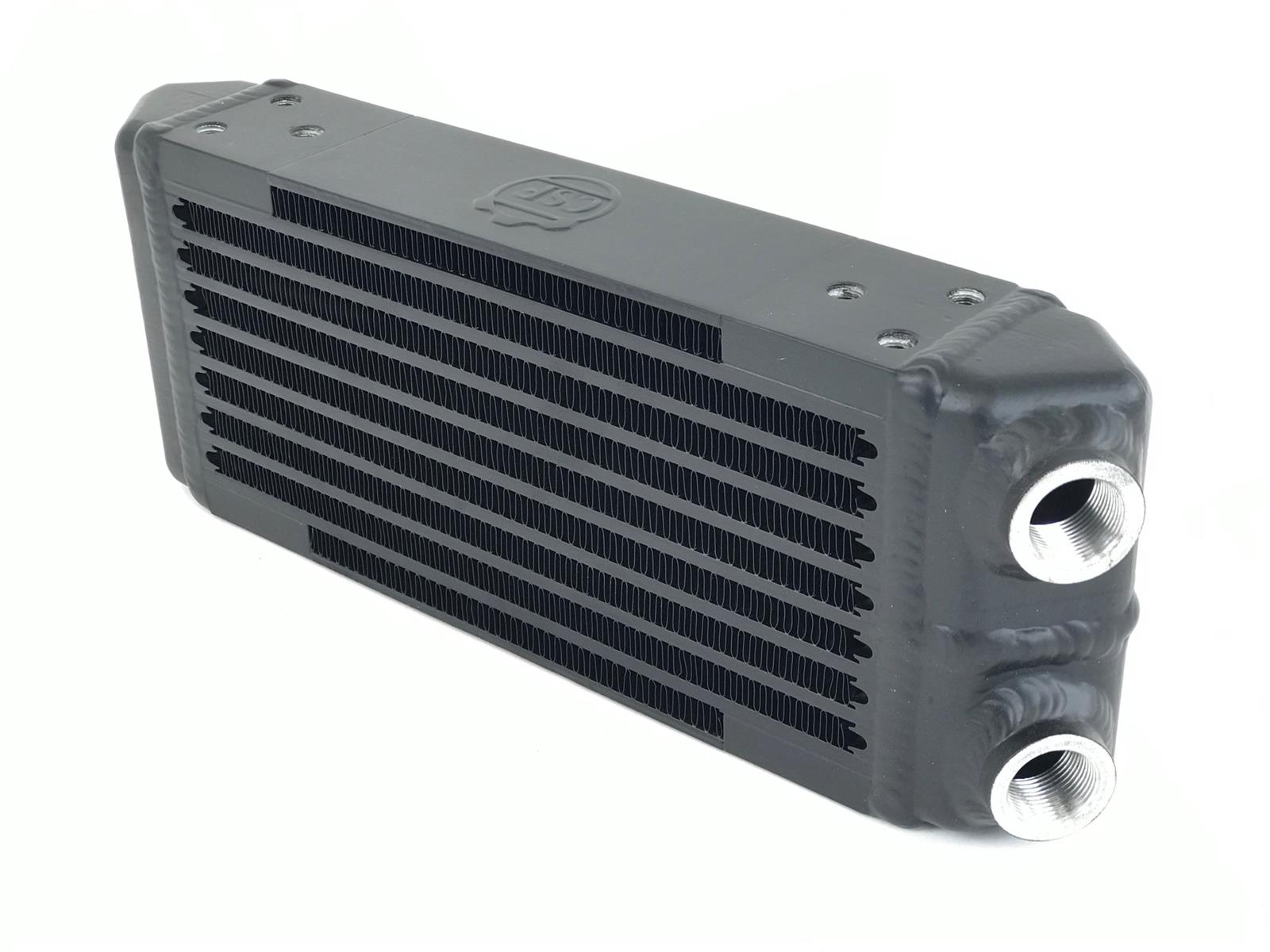

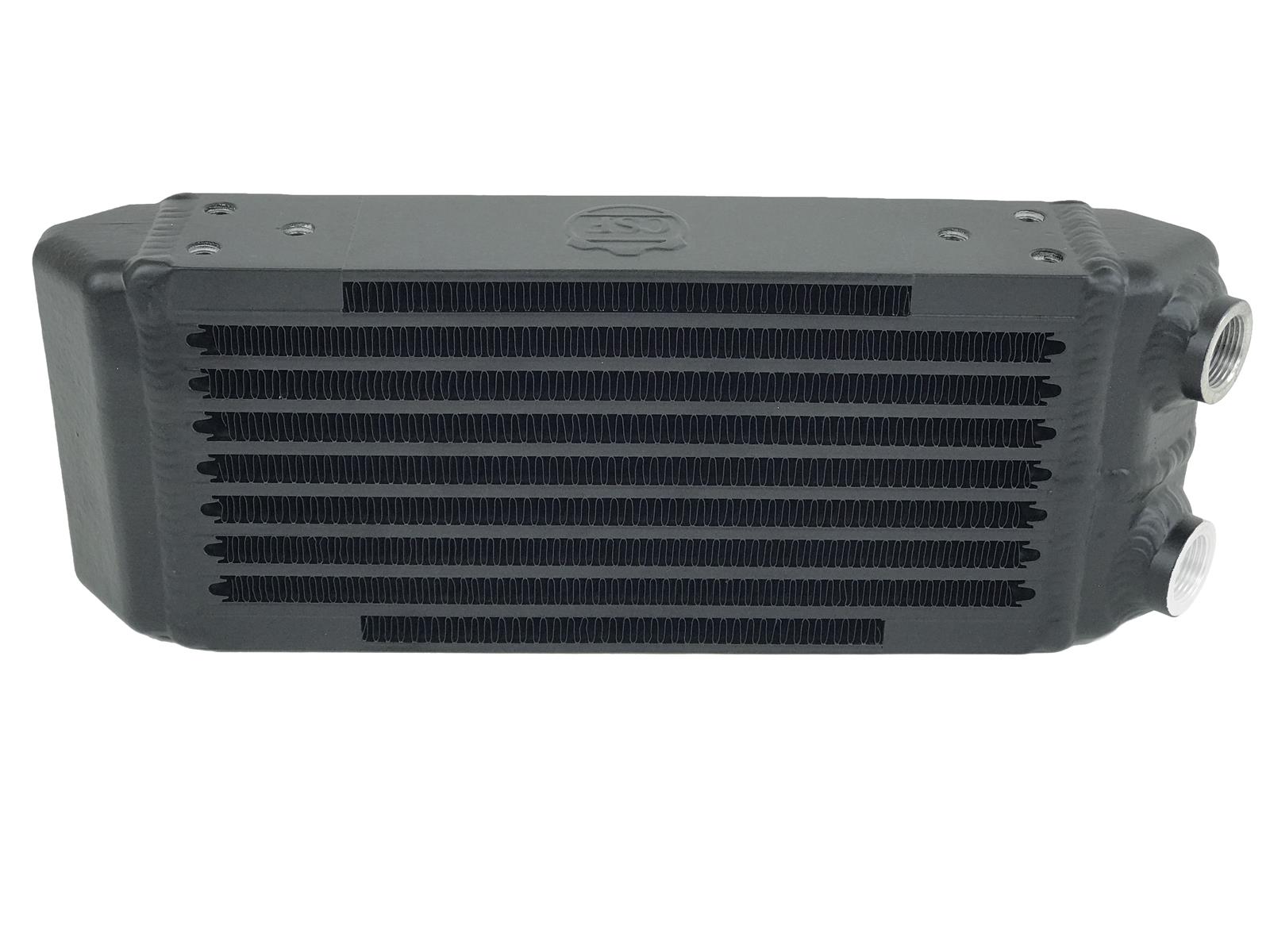

CSF Fluid Coolers 8119 Cooler, Universal Type, Plate, Aluminum, Black Powdercoated, M22 x 1.5 Female Threads Inlet/Outlet, Each
CSF Fluid Coolers 8119 Cooler, Universal Type, Plate, Aluminum, Black Powdercoated, M22 x 1.5 Female Threads Inlet/Outlet, Each
A$526.09
IN STOCK! Est Ship 4-7 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
The unique design of CSF's oil cooler line has distinct advantages over conventional style oil coolers (plate-type/stacked oil coolers). The oil coolers can be placed in tighter spaces or different areas of the vehicle that don't have much vertical surface area. Longer rectangular sizes can also help with avoiding the stacking of too many coolers which may cause airflow issues to other components in the cooling system. Inlet/outlet port placement is much easier to route oil lines. Typical oil cooler lines have to be routed from different/opposite ends of the cooler often facing up or down. Usually one line has to run across from one side of the cooler to the other to then be routed together to the feed/return connection of the oil system. The CSF oil coolers are much more robust, durable, and can withstand a higher peak burst rate. This allows the cooler to be mounted in areas that might get high debris (front fascia, diff cooler, side vents, etc...). The CSF oil cooler is designed to withstand a tremendous amount of vibration and debris.
Product Overview
The unique design of CSF's oil cooler line has distinct advantages over conventional style oil coolers (plate-type/stacked oil coolers). The oil coolers can be placed in tighter spaces or different areas of the vehicle that don't have much vertical surface area. Longer rectangular sizes can also help with avoiding the stacking of too many coolers which may cause airflow issues to other components in the cooling system. Inlet/outlet port placement is much easier to route oil lines. Typical oil cooler lines have to be routed from different/opposite ends of the cooler often facing up or down. Usually one line has to run across from one side of the cooler to the other to then be routed together to the feed/return connection of the oil system. The CSF oil coolers are much more robust, durable, and can withstand a higher peak burst rate. This allows the cooler to be mounted in areas that might get high debris (front fascia, diff cooler, side vents, etc...). The CSF oil cooler is designed to withstand a tremendous amount of vibration and debris.
Features and Benefits
- 8 rows of high-pressure bar/plate oil cooling
- Dual-pass design
- Universal style M22 x 1.50 female fittings on same side (feed and return w/ 40-degree angle)
- For use with M30 / -16AN / -12AN union adapters
- Dimensions: 13'L x 4.75'H x 2.25'W
Product Details
| Cable Included: | No |
|---|---|
| Color: | Black |
| Core Charge Applicable: | No |
| Core Material: | Aluminum |
| Core Row Quantity: | 1 |
| Core Tube: | No |
| Description: | CSF Universal Dual-Pass Oil Cooler - M22 x 1.5 - 13in L x 4.75in H x 2.16in W |
| Finish: | Powder Coat |
| Grade Type: | Performance |
| Inlet Fitting Type: | Female |
| Installation Type: | Universal Cooling Product |
| Mounting Hardware Included: | No |
| Outlet Fitting Type: | Female |
| Part Number: | csf8119 |
| Prop 65 Yes/No: | No |
| Strap Included: | No |
| Title: | Universal Dual-Pass Oil Cooler - M22 x 1.5 connections - 13L x 4.75H x 2.16W |
| Tube Included: | No |
Part Type
Engine Oil Cooler
Features
- 8 rows of high-pressure bar/plate oil cooling
- Dimensions: 13'L x 4.75'H x 2.25'W
- Dual-pass design
- Fluid Capacity 0.53L (0.56 qt)
- For use with M30 / -16AN / -12AN union adapters
- Universal style M22 x 1.50 female fittings on same side (feed and return w/ 40-degree angle)
Specifications
- Product Attributes - Brand
- CSF Radiator
- Product Attributes - Manufacturer's Part Number
- 8119
- Product Attributes - Part Type
- Fluid Coolers
- Product Attributes - Product Line
- CSF Fluid Coolers
- Product Attributes - UPC
- 710353081198
- Product Attributes - Fluid Cooler Type
- Universal
- Product Attributes - Overall Height (in.)
- 4.75 in.
- Product Attributes - Overall Width (in.)
- 13.00 in.
- Product Attributes - Overall Thickness (in.)
- 2.16
- Product Attributes - Cooler Construction
- Plate
- Product Attributes - Fluid Cooler Inlet Size
- M22 x 1.5
- Product Attributes - Fluid Cooler Outlet Size
- M22 x 1.5
- Product Attributes - Inlet Attachment
- Female threads
- Product Attributes - Outlet Attachment
- Female threads
- Product Attributes - Cooler Material
- Aluminum
- Product Attributes - Fan Included
- No
- Product Attributes - Cooler Color
- Black powdercoated
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Csf |
|---|---|
| StreetFX SKU | csf8119 |
| SFX Item ID | 4962971 |
| Supplier Item Code | 4962971 |
| Manufacturer SKU | 8119 |
| Manufacturer UPC | 710353081198 |
| Alternative References | M22 |
