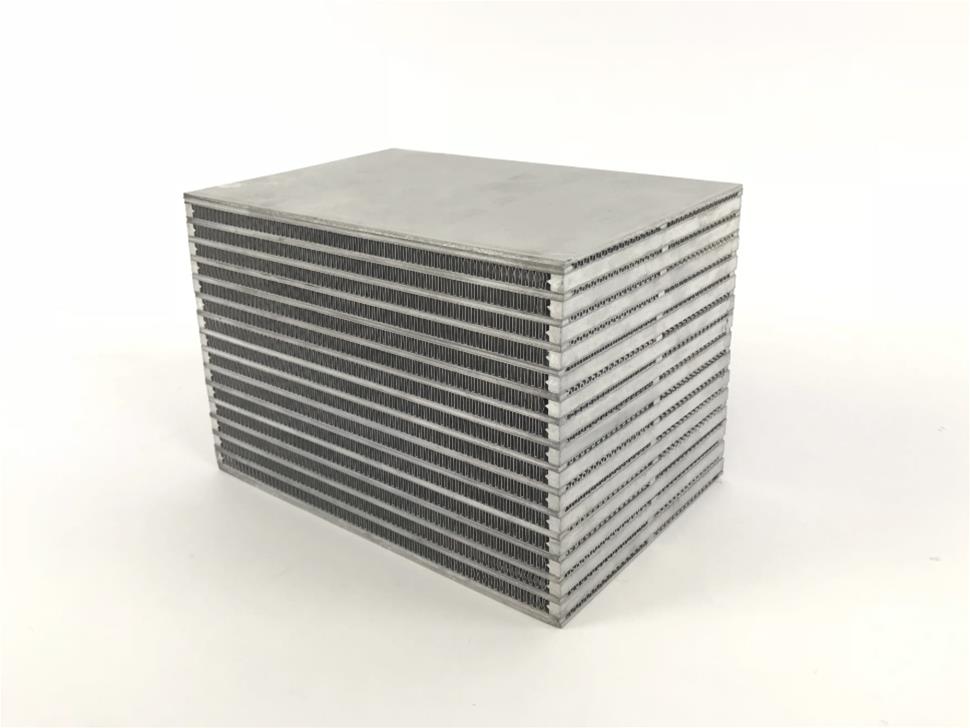

CSF Intercooler Cores 8113 Core, Air-to-Liquid, Aluminum, 8.464 in. Width, 5.906 in. Height, 5.906 in. Depth, Each
CSF Intercooler Cores 8113 Core, Air-to-Liquid, Aluminum, 8.464 in. Width, 5.906 in. Height, 5.906 in. Depth, Each
A$820.93
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
CSF Bar & Plate Intercooler Cores are used by some of the most renowned tuning and performance companies in the industry. This 8.5" x 6" x 6" Air-to-Water Core is rated for 1000 WHP and the perfect fit for your custom high-performance intercooler. Each CSF Intercooler core is pressure tested at 120psi for maximum reliability in extreme boost applications. Hand-Built using jigs & fixtures for a perfectly straight core in a clean room using gloves inside the CSF factory to ensure proper brazing and a clean surface for future welding. Featuring a multi-louvered high precision staggered fin design (for both ambient and pressure sides of the core) for the best heat transfer possible.
Product Overview
CSF Bar & Plate Intercooler Cores are used by some of the most renowned tuning and performance companies in the industry. This 8.5" x 6" x 6" Air-to-Water Core is rated for 1000 WHP and the perfect fit for your custom high-performance intercooler. Each CSF Intercooler core is pressure tested at 120psi for maximum reliability in extreme boost applications. Hand-Built using jigs & fixtures for a perfectly straight core in a clean room using gloves inside the CSF factory to ensure proper brazing and a clean surface for future welding. Featuring a multi-louvered high precision staggered fin design (for both ambient and pressure sides of the core) for the best heat transfer possible.
Features and Benefits
- Heavy-Duty Bar & Plate Intercooler Cores
- HP Rating: 1000
- Air-to-Water
- Pressure Tested at 120psi for Maximum Reliability in Extreme Boost Applications
- Hand-Built Using Jigs & Fixtures for a Perfectly Straight Core for Easy Welding
- Manufactured by Hand in a Clean Room Using Gloves Inside the CSF Cooling Factory to Ensure Proper Brazing and a Clean Surface for Future Welding
- Multi-Louvered High Precision Staggered Fin Design (for Both Ambient and Pressure Sides of the Core)
- Batch Brazed in CSF's State-of-the-Art Digital Vacuum Brazing Oven (12 Ovens in Total)
- Strict Quality Control and Quality Testing, Including Individual Pressure Testing
- Individually Boxed and Protected for Secure Transport Through Single Piece Mail Services
- Dimensions: 8.5"x6"x6" (215mm x 150mm x 150mm)
Product Details
| Core Material: | Aluminum |
|---|---|
| Core Row Quantity: | 16 |
| Description: | CSF Water/Air Bar & Plate Intercooler Core - 8.5in L x 6in H x 6in W |
| Grade Type: | Performance |
| HP Rating: | 1000 WHP |
| Inlet Quantity: | 1 |
| Installation Type: | Universal Cooling Product |
| Intercooler Type: | Air-to-Water |
| Length: | 215mm |
| Mounting Hardware Included: | No |
| Outlet Quantity: | 1 |
| Part Number: | csf8113 |
| Prop 65 Yes/No: | No |
| Tank Material: | No Tanks Included |
| Thickness: | 150mm |
| Title: | Air-to-Water Bar & Plate Intercooler Core 8.5L x 6H x 6W |
| Type: | Air-to-Water |
| Width: | 150mm |
Part Type
Intercooler Core
Features
- Air-to-Water
- Batch Brazed in CSF's State-of-the-Art Digital Vacuum Brazing Oven (12 Ovens in Total)
- Dimensions: 8.5"x6"x6" (215mm x 150mm x 150mm)
- Hand-Built Using Jigs & Fixtures for a Perfectly Straight Core for Easy Welding
- Heavy-Duty Bar & Plate Intercooler Cores
- HP Rating: 1000
- Individually Boxed and Protected for Secure Transport Through Single Piece Mail Services
- Manufactured by Hand in a Clean Room Using Gloves Inside the CSF Cooling Factory to Ensure Proper Brazing and a Clean Surface for Future Welding
- Multi-Louvered High Precision Staggered Fin Design (for Both Ambient and Pressure Sides of the Core)
- Pressure Tested at 120psi for Maximum Reliability in Extreme Boost Applications
- Strict Quality Control and Quality Testing, Including Individual Pressure Testing
Specifications
- Product Attributes - Brand
- CSF Radiator
- Product Attributes - Manufacturer's Part Number
- 8113
- Product Attributes - Part Type
- Intercooler Cores
- Product Attributes - Product Line
- CSF Intercooler Cores
- Product Attributes - UPC
- 710353081136
- Product Attributes - Intercooler Core Type
- Air-to-liquid
- Product Attributes - Intercooler Core Width (in.)
- 8.46
- Product Attributes - Intercooler Core Height (in.)
- 5.91
- Product Attributes - Intercooler Core Depth (in.)
- 5.91
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Core is rated up to 1,000 horsepower.
Reference Information
| Brand Name/s | Csf |
|---|---|
| StreetFX SKU | csf8113 |
| SFX Item ID | 4962884 |
| Supplier Item Code | 4962884 |
| Manufacturer SKU | 8113 |
| Manufacturer UPC | 710353081136 |
