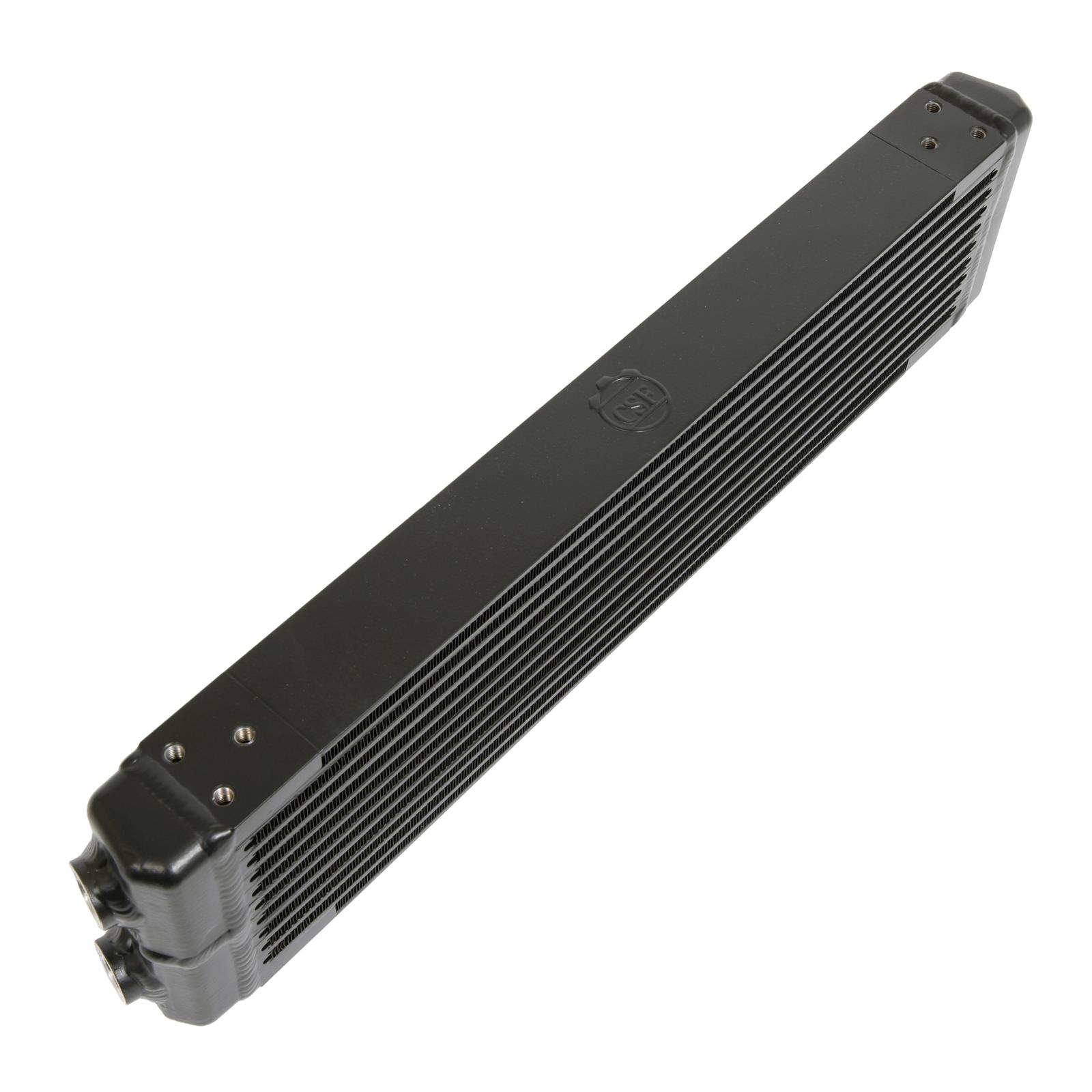

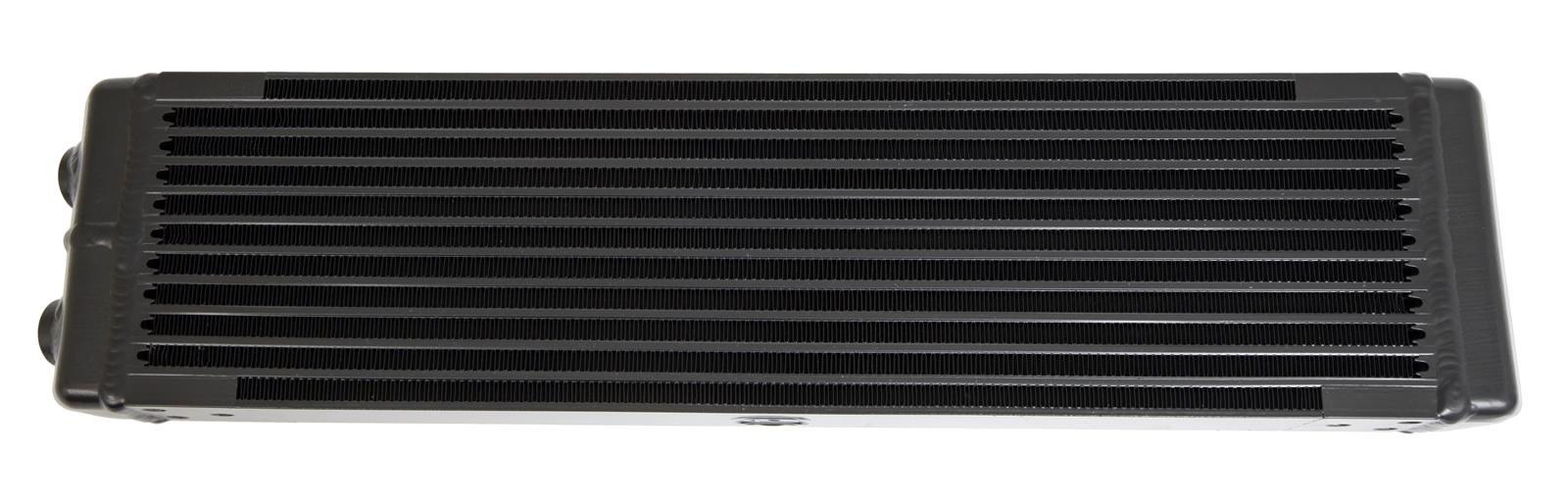

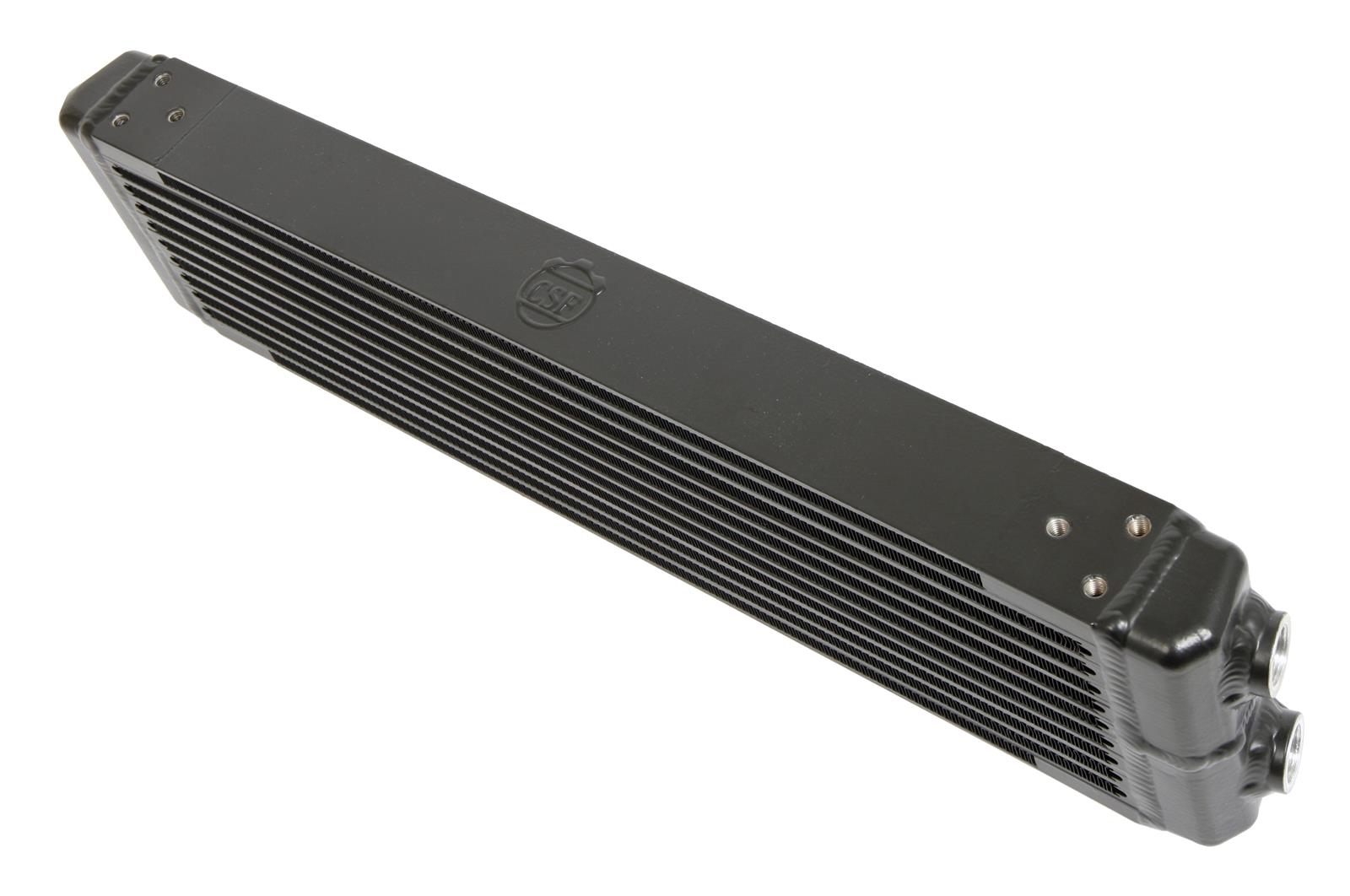

CSF Fluid Coolers for 1976-1989 911, 1978-1979 930 - 8110 Coolers, Dual-Pass Oil Cooler, Universal, w/Direct Fitment Porsche Center Front Oil Cooler, Direct IROC Fitment, Each
CSF Fluid Coolers for 1976-1989 911, 1978-1979 930 - 8110 Coolers, Dual-Pass Oil Cooler, Universal, w/Direct Fitment Porsche Center Front Oil Cooler, Direct IROC Fitment, Each
A$1,104.16
IN STOCK! Est Ship 4-7 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
The unique design of CSF's oil cooler line has distinct advantages over conventional style oil coolers (plate-type/stacked oil coolers). The oil coolers can be placed in tighter spaces or different areas of the vehicle that don't have much vertical surface area. Longer rectangular sizes can also help with avoiding the stacking of too many coolers which may cause airflow issues to other components in the cooling system. Inlet/outlet port placement is much easier to route oil lines. Typical oil cooler lines have to be routed from different/opposite ends of the cooler often facing up or down. Usually one line has to run across from one side of the cooler to the other to then be routed together to the feed/return connection of the oil system. The CSF oil coolers are much more robust, durable, and can withstand a higher peak burst rate. This allows the cooler to be mounted in areas that might get high debris (front fascia, diff cooler, side vents, etc...). The CSF oil cooler is designed to withstand a tremendous amount of vibration and debris.
Product Overview
The unique design of CSF's oil cooler line has distinct advantages over conventional style oil coolers (plate-type/stacked oil coolers). The oil coolers can be placed in tighter spaces or different areas of the vehicle that don't have much vertical surface area. Longer rectangular sizes can also help with avoiding the stacking of too many coolers which may cause airflow issues to other components in the cooling system. Inlet/outlet port placement is much easier to route oil lines. Typical oil cooler lines have to be routed from different/opposite ends of the cooler often facing up or down. Usually one line has to run across from one side of the cooler to the other to then be routed together to the feed/return connection of the oil system. The CSF oil coolers are much more robust, durable, and can withstand a higher peak burst rate. This allows the cooler to be mounted in areas that might get high debris (front fascia, diff cooler, side vents, etc...). The CSF oil cooler is designed to withstand a tremendous amount of vibration and debris.
Features and Benefits
- Designed for direct-fitment as a front mount center oil cooler for Porsche 911/930 models (up to 1989) (For IROC-style or similar front bumper)
- 10 rows of high pressure bar/plate oil cooling
- Dual-pass design (Porsche "RS" front center mount oil cooler)
- Core dimensions: 21.50'L x 5.75'H x 2.25W
- Universal style M22 x 1.50 female fittings on same side (feed and return w/ slight 15-degree angle for bumper clearance)
- For use with M30 / -16AN / -12AN union adapters
- Dimensions: 22'L x 5.75'H x 2.25'W
Product Details
| ADD-ON: | 8242 |
|---|---|
| Cable Included: | No |
| Color: | Black |
| Core Charge Applicable: | No |
| Core Material: | Aluminum |
| Core Row Quantity: | 1 |
| Core Tube: | No |
| Description: | CSF Universal Dual-Pass Oil Cooler (RS Style) - M22 x 1.5 - 24in L x 5.75in H x 2.16in W |
| Finish: | Powder Coat |
| Grade Type: | Performance |
| Inlet Fitting Type: | Female |
| Installation Type: | Universal Cooling Product |
| Mounting Hardware Included: | No |
| Outlet Fitting Type: | Female |
| Part Number: | csf8110 |
| Prop 65 Yes/No: | No |
| Strap Included: | No |
| Title: | Universal Dual-Pass Oil Cooler / RS Porsche / M22 x 1.5 / 24L x 5.75H x 2.16W |
| Tube Included: | No |
Part Type
Engine Oil Cooler
Features
- 10 rows of high pressure bar/plate oil cooling
- Core dimensions: 21.50"L x 5.75"H x 2.25"W (541mm x 146mm x 55mm)
- Designed for direct-fitment as a front mount center oil cooler for Porsche 911/930 models (up to 1989) (For IROC-style or similar front bumper)
- Dimensions: 24"L x 5.75"H x 2.25"W
- Dual-pass design (Porsche "RS" front center mount oil cooler)
- Fluid Capacity 0.89L (0.94 qt)
- For use with M30 / -16AN / -12AN union adapters
- Universal style M22 x 1.50 female fittings on same side (feed and return w/ slight 15-degree angle for bumper clearance)
Specifications
- Product Attributes - Brand
- CSF Radiator
- Product Attributes - Manufacturer's Part Number
- 8110
- Product Attributes - Part Type
- Fluid Coolers
- Product Attributes - Product Line
- CSF Fluid Coolers
- Product Attributes - UPC
- 710353081105
- Product Attributes - Fluid Cooler Type
- Engine oil
- Product Attributes - Overall Height (in.)
- 5.75 in.
- Product Attributes - Overall Width (in.)
- 24.00 in.
- Product Attributes - Overall Thickness (in.)
- 2.25
- Product Attributes - Cooler Construction
- Plate
- Product Attributes - Fluid Cooler Inlet Size
- M22 x 1.5
- Product Attributes - Fluid Cooler Outlet Size
- M22 x 1.5
- Product Attributes - Inlet Attachment
- Female threads
- Product Attributes - Outlet Attachment
- Female threads
- Product Attributes - Cooler Material
- Aluminum
- Product Attributes - Fan Included
- No
- Product Attributes - Number of Cooling Rows
- 10
- Product Attributes - Core Height (in.)
- 5.75 in.
- Product Attributes - Core Width (in.)
- 21.50 in.
- Product Attributes - Core Thickness (in.)
- 2.25 in.
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- This is a dual-pass cooler. Direct fit for Porsche IROC style front bumpers.
Reference Information
| Brand Name/s | Csf |
|---|---|
| StreetFX SKU | csf8110 |
| SFX Item ID | 4963522 |
| Supplier Item Code | 4963522 |
| Manufacturer SKU | 8110 |
| Manufacturer UPC | 710353081105 |
Compatibility
| Application Data |
|
|---|
Loading compatibility information...
