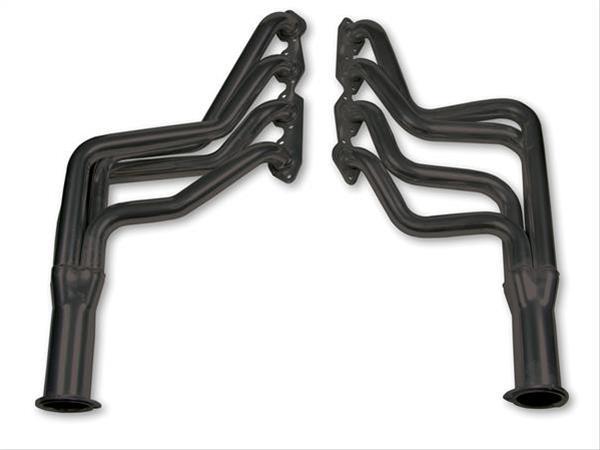

Flowtech Headers 11130FLT Headers, Long Tube, Steel, Painted, Chevy, Big Block, Pair

SKU: BIG11130FLT

Headers

Flowtech Headers 11130FLT Headers, Long Tube, Steel, Painted, Chevy, Big Block, Pair

SKU: BIG11130FLT

Headers

Sale ends in Calculating...

A$1,147.69 A$1,178.03
IN STOCK! Est Ship 4-7 days. This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
View cart
We accept
American Express
Mastercard
Visa
PayPal Checkout
Direct Deposit
Afterpay
Apple Pay
Google Pay
Zip Pay

Description

IMPORTANT NOTICE: Note for Australian and European MarketsUnless otherwise stated, this product may be engineered for use in Left-Hand Drive vehicles. Steering components, pedals, shifters, linkages, instrument clusters, panhard rods/traction bars, drag links, brake boosters, brake or clutch lines, accelerator cables, heater cores, some master cylinders and adjacent parts can vary between LHD and RHD configurations. In some models compenents such as windscreen wiper arms, motors and linkages could differ in their size and orientation. Items such as floor mats & dash mats may have differences in their structure around the front row (or padding in different locations). In many cases items are identical depending on the design of the vehicle and part, but may have differing mounts, lengths or bolt patterns. Carefully review the product images and details to ensure suitability for your vehicle, or contact StreetFX support if you are unsure. Returns are not accepted for special order products.(keyword: headers)Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.Reference Information Reference Data (Provide these details to our support team) Brand Name/s Flowtech StreetFX SKU big11130FLT SFX Item ID 5092200 Accounting SKU big-11130FLT Manufacturer SKU 11130FLT Manufacturer UPC 787480111302 Alternative References 11130FLT, BIG-11130FLT, FLT11130

Headers - Full Length - 1.75 in Primary - 3 in Collector - Gaskets / Hardware Included - Steel - Black Paint - Big Block Chevy - GM A-Body / B-Body / F-Body 1964-74 - Pair


Data: v2 - Desc: v4.2 - Upd: 2026-10-14 03:26:45

Part Type

64-74 BBC F/G-Body Headers

Data: v4.2 - Upd: 2026-10-14 04:22:23

Specifications

Headers, Long Tube, Steel, Painted, Chevy, Big Block, Pair

Flowtech headers are designed to provide optimum exhaust flow for increased horsepower, torque, fuel economy, and improved throttle response. Leak-tested for maximum performance, they feature the industry's best welds for durability and are carefully engineered for precise fit. Available for a wide range of applications, they're offered in block hugger, competition, fenderwell, lakester, long tube, mid-length, shorty, upright, and turbo styles. Varying with the application, Flowtech headers are constructed from sturdy and lightweight cold-rolled mild steel or stainless steel for increased strength and durability. All tubing is mandrel-bent to provide consistent tubing diameter for smooth flow and increased exhaust velocity. Extra-thick, machined header flanges provide a leak-free seal and maximum strength. For long-term rust and corrosion-resistance, available finishes include natural and polished stainless steel, high heat-resistant black paint, or a satin silver metallic ceramic thermal barrier coating. All mounting hardware and premium gaskets are included.

Important notes: Breaking in an engine with ceramic coated headers WILL result in damage to the coating and will VOID all warranties. Ceramic coated headers require several heat cycles to fully cure before they will withstand extreme heat. Hooker recommends using cast iron exhaust manifolds or old headers to break in new engines to avoid coating damage. Flowtech does not recommend the use of header wraps as this will void the warranty.

Product Attributes
BrandFlowtech
Manufacturer's Part Number11130FLT
Part TypeHeaders
Product LineFlowtech Headers
UPC787480111302
Header StyleLong tube one-piece
Header MaterialSteel
Primary Tube Outside Diameter (in.)1 3/4 in.
Header ColorTemporary non-high temperature paint
Flange StyleStandard
Weld-UpNo
Cylinder Head Port ShapeRound
Collector Attachment3-bolt flange
Collector Diameter (in.)3.00
Collector Reducers IncludedYes
Collector Reducer Exit Diameter2.500 in.
TunedNo
Primary Tube Gauge18-gauge
Flange Thickness (in.)0.31 in.
Bolts/Studs IncludedYes
Gaskets IncludedYes
Crossover Pipe IncludedNo
Catalytic Converter(s) IncludedNo
Motor Mounts IncludedNo
Transmission Mount IncludedNo
QuantitySold as a pair.
NotesWill fit only if the original GM big block engine frame mounts from the following applications are used: 1970-72 Camaro, 1965-74 Corvette, or 1968-72 Chevelle. Will not fit Chevelle with Powerglide. The paint applied to these headers is a temporary coating only and is designed to burn off during use. High temperature paint or other high temperature coatings are recommended.

Reference Information

Brand Name/s Flowtech
StreetFX SKU big11130FLT
SFX Item ID 5092200
Supplier Item Code 5092200
Manufacturer SKU 11130FLT
Manufacturer UPC 787480111302
Alternative References FLT11130

Compatibility

No specific fitment data available for this part. For clarification, please contact us.

Detailed Compatibility


Application Data
MakePONTIAC
ModelFIREBIRD
Beginning Year1970
Ending Year1972
Engine TypeV8
Engine FamilyChevy big block Mark IV
Engine Size7.4L/454
DrivetrainRWD
Power SteeringYes
Power Brakes (application)Yes
Air ConditioningYes
Standard Transmission Column ShiftNo
Standard Transmission Floor ShiftYes
Automatic Transmission Column ShiftNo
Automatic Transmission Floor ShiftYes
SubmodelMALIBU
MakeCHEVROLET
ModelCHEVELLE
Beginning Year1970
Ending Year1972
Engine TypeV8
Engine FamilyChevy big block Mark IV
Engine Size7.4L/454
DrivetrainRWD
Power SteeringYes
Power Brakes (application)Yes
Air ConditioningYes
Standard Transmission Column ShiftNo
Standard Transmission Floor ShiftYes
Automatic Transmission Column ShiftNo
Automatic Transmission Floor ShiftYes
SubmodelMALIBU
MakeCHEVROLET
ModelCHEVELLE
Beginning Year1968
Ending Year1969
Engine TypeV8
Engine FamilyChevy big block Mark IV
Engine Size6.5L/396
DrivetrainRWD
Power SteeringYes
Power Brakes (application)Yes
Air ConditioningYes
Standard Transmission Column ShiftNo
Standard Transmission Floor ShiftYes
Automatic Transmission Column ShiftNo
Automatic Transmission Floor ShiftYes
SubmodelNOMAD

This may not be an exhaustive list of compatible vehicles. Please reach out to one of our representatives if you are unsure or do not see your vehicle here.
