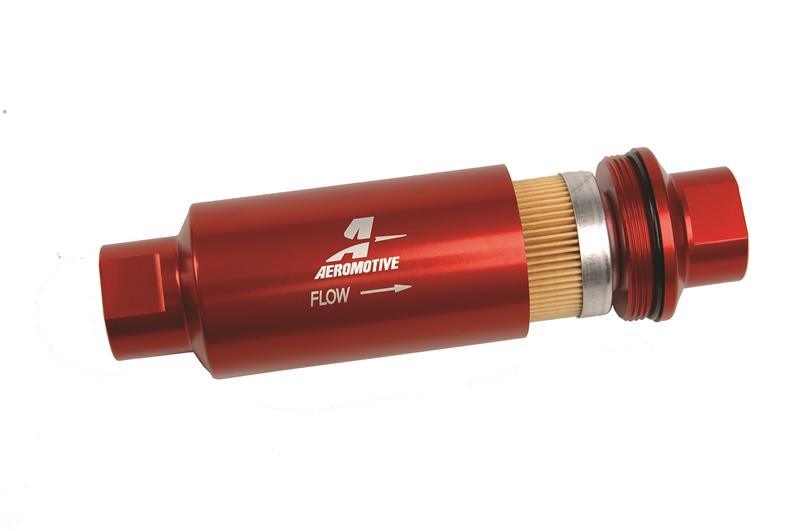

Aeromotive In-Line Filter - (AN-10) 10 Micron fabric Element
Aeromotive In-Line Filter - (AN-10) 10 Micron fabric Element
A$277.05
IN STOCK! Est Ship 3-5 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 ? 3,000 plus HP applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you?ve come to expect from all Aeromotive components. High-flow, 10-micron fabric (fine) replaceable element. Flows 2,000 lb/hr with a pressure drop of less than 1 PSI. Compact size: 5.5" long x 2" diameter. ORB-10 ports. Fittings available to adapt these filters to AN-10, -08 and -06 line sizes.? All filter assemblies feature an O-ring for positive sealing in high pressure applications. CNC-machined from 6061-T6 aircraft aluminum. Bright dip red anodized finish for a corrosion resistant, show car quality appearance.
Product Overview
An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 ? 3,000 plus HP applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you?ve come to expect from all Aeromotive components. High-flow, 10-micron fabric (fine) replaceable element. Flows 2,000 lb/hr with a pressure drop of less than 1 PSI. Compact size: 5.5" long x 2" diameter. ORB-10 ports. Fittings available to adapt these filters to AN-10, -08 and -06 line sizes.? All filter assemblies feature an O-ring for positive sealing in high pressure applications. CNC-machined from 6061-T6 aircraft aluminum. Bright dip red anodized finish for a corrosion resistant, show car quality appearance.
Product Details
| California Proposition 65: | WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov |
|---|---|
| Clamps Included: | No |
| Color: | Red |
| Description: | Filter, In-Line (AN-10) 10 Micron Fabric Element |
| End 1 Gender: | Female |
| End 2 Gender: | Female |
| Filter Element Included: | Yes |
| Filter Element Material: | Cellulose |
| Filter Housing Color: | Red |
| Filter Housing Diameter: | 2.0 |
| Filter Housing Finish: | Anodized |
| Filter Housing Length: | 5.5 |
| Filter Housing Material: | Billet Aluminum |
| Fitting Type: | AN-10 |
| Fittings Included: | No |
| Flow Rate: | 2000 |
| Fuel Filter Style: | Inline |
| Fuel Type: | Gas / Diesel |
| Gasket Or Seal Included: | Yes |
| Housing Material: | Aluminum |
| Inlet Attachment: | Female Thread |
| Inlet Outside Diameter: | AN-10 |
| Inlet Quantity: | 1 |
| Inlet Size: | AN-10 |
| Length: | 5.5 |
| Maximum Fuel Pressure (psi): | 70 |
| Micron Rating: | 10 |
| Mounting Bracket Included: | No |
| Mounting Type: | External |
| Outlet Attachment: | Female Thread |
| Outlet Outside Diameter: | AN-10 |
| Outlet Quantity: | 1 |
| Outlet Size: | AN-10 |
| Outside Diameter (In): | 2.0 |
| Outside Diameter: | 2.0 |
| Overall Length (In): | 5.5 |
| Overall Length: | 5.5 |
| Part Number: | aer12301 |
| Prop 65 (C, R or CR): | CR |
| Prop 65 - Long Label: | WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov |
| Prop 65 - Short Label: | P65_Warning_Chromium.jpg |
| Prop 65 Flag: | Yes |
| Prop 65 Yes/No: | Yes |
| Quantity: | Sold individually. |
| Shape: | Straight |
| Smallest Particle Filtered: | 10 microns |
| Title: | Aeromotive Filter, In-Line (AN-10) 10 Micron Fabric Element |
| Universal Or Specific Fit: | Universal |
Additional Information
#10 Inlet Port #10 Outlet Port 12601 Replacement Element
Part Type
Fuel Filter
Specifications
- Product Attributes - UPC
- 00684980000030
- Product Attributes - Brand
- Aeromotive
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Part Type
- Fuel Filters
- Product Attributes - Product Line
- Aeromotive Fuel Filters
- Product Attributes - Inlet Quantity
- 1
- Product Attributes - Clamps Included
- No
- Product Attributes - Outlet Quantity
- 1
- Product Attributes - Inlet Attachment
- Female straight cut O-ring
- Product Attributes - Fittings Included
- No
- Product Attributes - Fuel Filter Style
- Inline
- Product Attributes - Outlet Attachment
- Female straight cut O-ring
- Product Attributes - Filter Housing Color
- Red anodized
- Product Attributes - Overall Length (in.)
- 5.50 in.
- Product Attributes - Fuel Filter Inlet Size
- -10 AN
- Product Attributes - Outside Diameter (in.)
- 2.000 in.
- Product Attributes - Filter Element Included
- Yes
- Product Attributes - Filter Element Material
- Fabric
- Product Attributes - Filter Housing Material
- Billet aluminum
- Product Attributes - Fuel Filter Outlet Size
- -10 AN
- Product Attributes - Mounting Bracket Included
- No
- Product Attributes - Manufacturer's Part Number
- 12301
- Product Attributes - Smallest Particle Filtered
- 10 microns
- Product Attributes - Maximum Fuel Pressure (psi)
- 250
Reference Information
| Brand Name/s | Aeromotive |
|---|---|
| StreetFX SKU | aer12301 |
| SFX Item ID | 4495402 |
| Supplier Item Code | 4495402 |
| Manufacturer SKU | 12301 |
| Manufacturer UPC | 684980000030 |
| Alternative References | aei-12301, AFS12301, (AN-10) |
