Aeromotive Billet Hex Drive Fuel Pump
Aeromotive Billet Hex Drive Fuel Pump
A$2,096.71
IN STOCK! Est Ship 3-5 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description

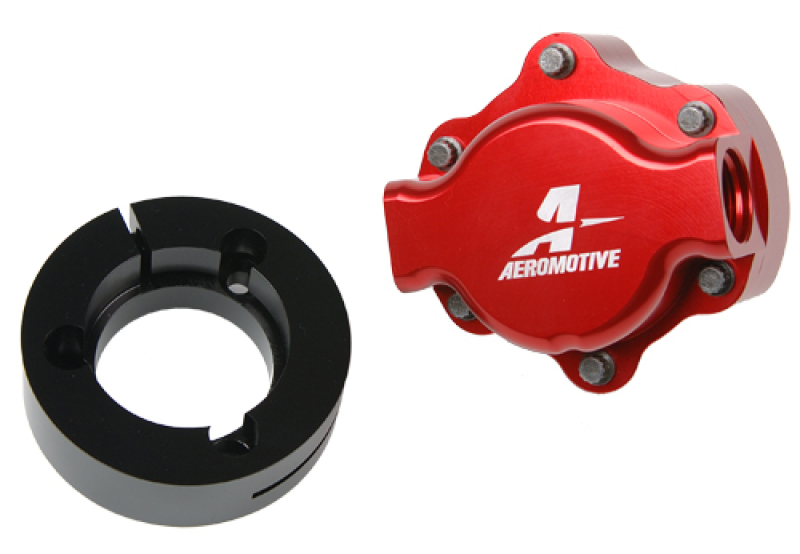

Get the same unparalleled performance you get from our Billet Belt Drive Fuel Pump (P/N 11105), with the convenience of direct drive. The Hex Drive Fuel Pump can be mounted and driven directly from the back of a properly prepared external oil pump or driven directly by the cam through a timing cover adapter. Designed to solve fuel delivery problems in high horsepower, forced-induction EFI applications, as well as the now popular, carbureted applications on gas or methanol. Utilizes standard, 3/8' hex drive shaft and adjustable, billet mounting collar with standard 3-bolt mounting pattern and hardware. Proven performance, powering some of the world's fastest EFI vehicles. Supports up to 3600 HP gas, 1800 HP methanol. Compact size facilitates easy mounting. Billet aluminum CNC-machined body, not 'cast'. ORB-10 inlet and outlet ports.
Part Type
Billet Hex Drive Fuel Pump
Features
- Alcohol applications require Double Adjustable Regulator P/N 13209 or 13214.
- Billet aluminum CNC-machined body, not ‘cast’.
- Carbureted gasoline applications require regulator P/N 13202 or P/N 13212.
- Carbureted, Naturally Aspirated Supports up to 3,900 HP gas, 2,700 E85, 1,350 HP methanol.
- Compact size facilitates easy mounting.
- For EFI applications use regulator P/N 13113.
- Fuel Injected, Forced Induction Supports up to 3,000 HP on gas, 2,100 E85, 1,050 HP methanol.
- Note: Electric Priming Kit available – P/N 17301 (see Accessories)
- ORB-10 inlet and outlet ports.
- Proven performance, powering some of the world’s fastest EFI vehicles.
- Utilizes standard, 3/8′ hex drive shaft and adjustable, billet mounting collar with standard 3-bolt mounting pattern and hardware.
Specifications
- Product Attributes - UPC
- 00684980002188
- Product Attributes - Brand
- Aeromotive
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Flow Rate
- 6.0 gpm
- Product Attributes - Part Type
- Fuel Pumps
- Product Attributes - Product Line
- Aeromotive Billet Hex Drive Fuel Pumps
- Product Attributes - Fuel Pump Type
- Mechanical
- Product Attributes - Inlet Quantity
- 1
- Product Attributes - Gasket Included
- No
- Product Attributes - Outlet Quantity
- 1
- Product Attributes - Pulley Included
- No
- Product Attributes - Inlet Attachment
- Female straight cut O-ring
- Product Attributes - Outlet Attachment
- Female straight cut O-ring
- Product Attributes - Fuel Pressure (psi)
- 2-200 psi
- Product Attributes - Fuel Pump Inlet Size
- -10 AN
- Product Attributes - Fuel Pump Outlet Size
- -10 AN
- Product Attributes - Sending Unit Included
- No
- Product Attributes - Wiring Harness Included
- No
- Product Attributes - Mounting Bracket Included
- No
- Product Attributes - Manufacturer's Part Number
- 11107
- Product Attributes - Mounting Hardware Included
- No
- Product Attributes - Fuel Pressure Regulator Included
- No
Reference Information
| Brand Name/s | Aeromotive |
|---|---|
| StreetFX SKU | aer11107 |
| SFX Item ID | 4495367 |
| Supplier Item Code | 4495367 |
| Manufacturer SKU | 11107 |
| Manufacturer UPC | 684980002188 |
| Alternative References | aei-11107, AFS11107 |
