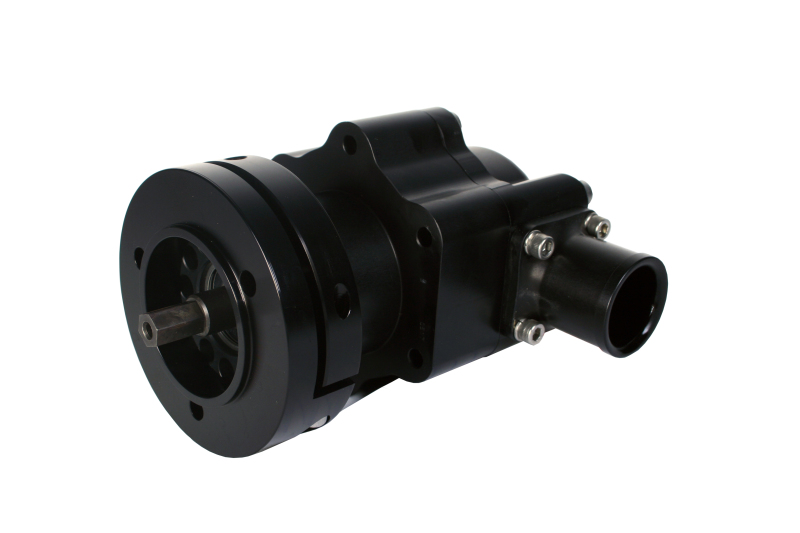

Aeromotive Atomic Hex Drive Fuel Pump
Aeromotive Atomic Hex Drive Fuel Pump
A$2,902.70
IN STOCK! Est Ship 3-5 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
12 GPM Hex Drive Mechanical Fuel Pump. Designed to feed serious EFI and Carbureted engines, gasoline, ethanol or methanol. The 12 GPM Hex Drive Pump must be driven by a 3/8" female hex, allowing the pump to be driven from your camshaft or off the back of a properly prepared dry-sump oil pump. It may also be mounted off the engine, or in the back of the vehicle, driven by a Heavy Duty Cable Drive like that from Waterman Racing. It can be used in high or low pressure applications. Flows up to 12 GPM. 5,000 HP on gas, up to 2500 HP methanol. High efficiency, Gerotor pumping mechanism. Tough, Type III hard coat anodized body. CNC Machined from 6061 T6 aircraft aluminum. Hex Drive Collar with 3-bolt Enderle bolt pattern. Standard male 3/8" hex driveshaft. Includes both 1.25' barb and AN-16 Male inlet. ORB-12 female outlet port. EFI applications require high-flow bypass regulators.
Part Type
Mechanical Fuel Pump 12 GPM Billet Hex Drive
Features
- 5,000+ HP on gas, up to 2500 HP methanol.
- CNC Machined from 6061 T6 aircraft aluminum.
- EFI applications require high-flow return style regulators: P/N 13132, 13133, 13137 or 13113.

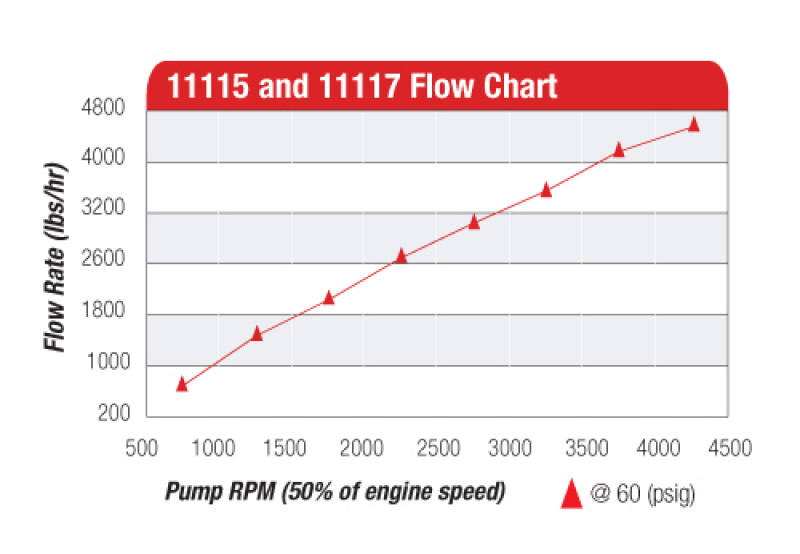

- Flows up to 12 GPM
- Hex Drive Collar with 3-bolt Enderle bolt pattern.
- High efficiency, Gerotor pumping mechanism.
- Includes both 1.25′ barb and AN-16 Male inlet.
- ORB-12 female outlet port.
- Sold Separately: Electric Priming/Starting Kit: P/N 17301
- Standard male 3/8″ hex driveshaft.
- Tough, Type III hard coat anodized body.
Specifications
- Product Attributes - Brand
- Aeromotive
- Product Attributes - Manufacturer's Part Number
- 11117
- Product Attributes - Part Type
- Fuel Pumps
- Product Attributes - Product Line
- Aeromotive Atomic Hex Drive Fuel Pumps
- Product Attributes - UPC
- 00684980002362
- Product Attributes - Fuel Pump Type
- Mechanical
- Product Attributes - Flow Rate
- 12.00 gpm
- Product Attributes - Fuel Pressure (psi)
- 2-200 psi
- Product Attributes - Fuel Pressure Regulator Included
- No
- Product Attributes - Sending Unit Included
- No
- Product Attributes - Fuel Pump Inlet Size
- 1 1/4 in.
- Product Attributes - Inlet Quantity
- 1
- Product Attributes - Inlet Attachment
- Hose barb
- Product Attributes - Fuel Pump Outlet Size
- -12 AN
- Product Attributes - Outlet Quantity
- 1
- Product Attributes - Outlet Attachment
- Female straight cut O-ring
- Product Attributes - Gasket Included
- No
- Product Attributes - Wiring Harness Included
- No
- Product Attributes - Mounting Bracket Included
- No
- Product Attributes - Mounting Hardware Included
- No
- Product Attributes - Pulley Included
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Includes both 1.25 in. hose barb and -16 AN male inlet.
Reference Information
| Brand Name/s | Aeromotive |
|---|---|
| StreetFX SKU | aer11117 |
| SFX Item ID | 4495371 |
| Supplier Item Code | 4495371 |
| Manufacturer SKU | 11117 |
| Manufacturer UPC | 684980002362 |
| Alternative References | aei-11117, AFS11117 |
