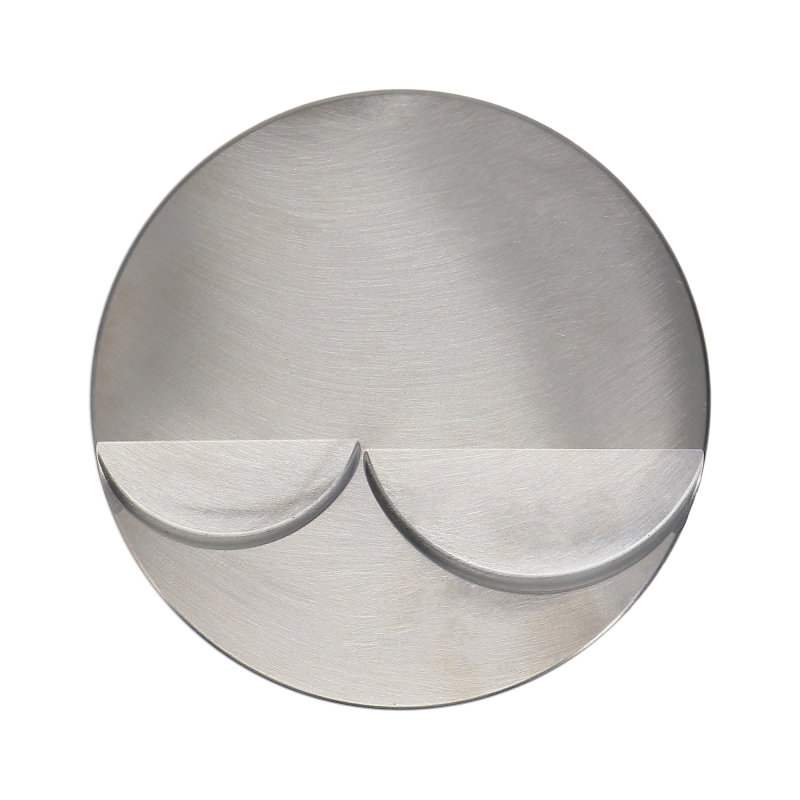

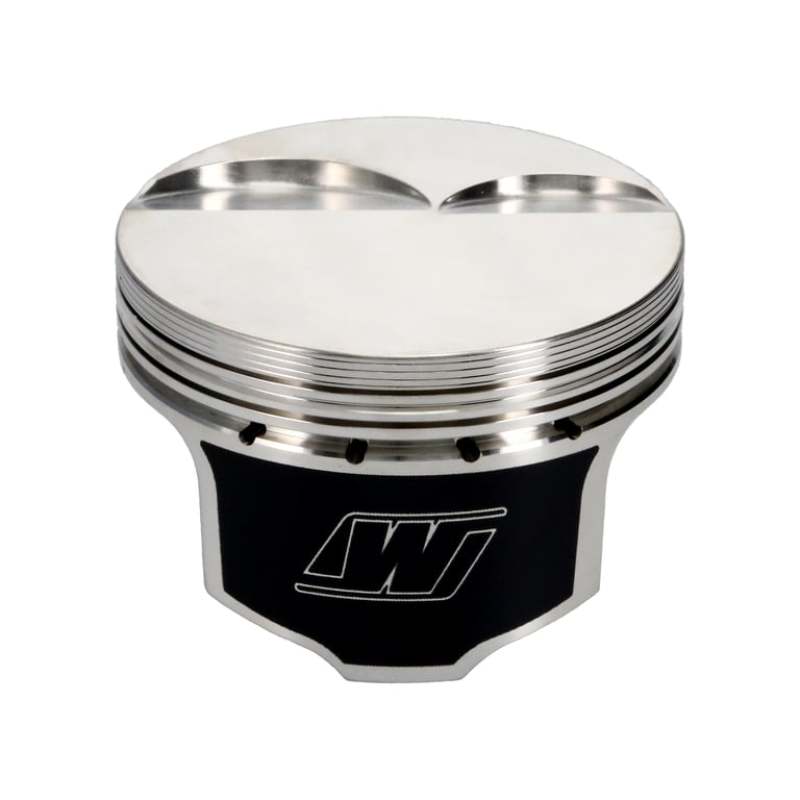

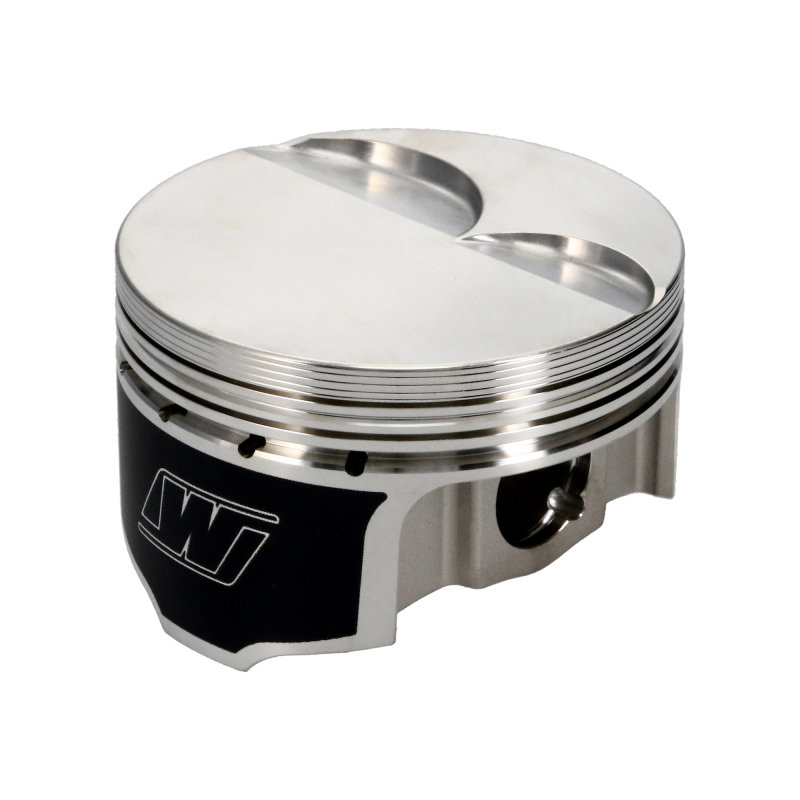

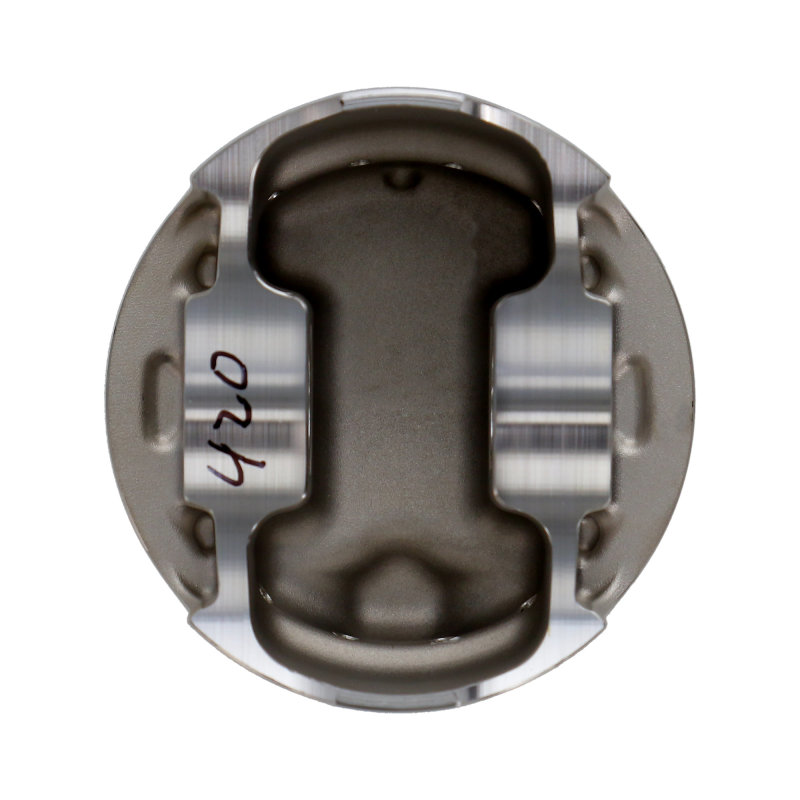

Wiseco Chevy LS1/LS2 RED Series Piston Set 3800in Bore 1330in Compression Height - Set of 8
Wiseco Chevy LS1/LS2 RED Series Piston Set 3800in Bore 1330in Compression Height - Set of 8
A$1,819.98
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Appropriately dubbed the RED series, these forged pistons utilize Race Engineered Design to offer the strength and durability performance engines need with precision-machined features to provide a competitive edge. RED series piston kits are available for range of popular, domestic V8 platforms, the cornerstone of racing and performance from drag racing to circle track.
Product Overview
Appropriately dubbed the RED? series, these forged pistons utilize Race Engineered Design? to offer the strength and durability performance engines need with precision-machined features to provide a competitive edge. RED? series piston kits are available for range of popular, domestic V8 platforms, the cornerstone of racing and performance from drag racing to circle track.
Features and Benefits
- Engineered, forged, and machined in the USA from 2618 aluminum for tensile strength needed in performance racing and power adder applicationsDedicated forgings allow for optimized, engine-specific strutted design to maximize strength-to-weight characteristicsArmorGlide? skirt coating reduces operating friction and noise while also reducing skirt and cylinder wearHorizontal slot oiling in pin bores maintain optimal wrist pin and small-end lubrication, critical for long service lifeAccumulator groove helps maintain consistent ring seal and powerEach part number includes premium rings ? no need for additional sourcing
Product Details
| Bore Diameter: | 3.800 |
|---|---|
| Category Hierarchy: | Auto>Pistons>Piston Kits>Domestic>RED Series |
| Compression Height: | 1.330 |
| Description: | Wiseco Chevy LS1/LS2 RED Series Piston Set 3800in Bore 1330in Compression Height - Set of 8 |
| Engine - Web: | LS6 |
| Engine Type: | ICE |
| Engine: | LS6 |
| Forging Type: | Strutted |
| Industry: | Automotive |
| Make - Web: | Chevrolet |
| Make: | Chevrolet |
| Oil Ring Thickness: | 2.80 |
| Out of Stock Message: | Estimated Shipped Date 3-4 Weeks |
| Part Number: | wisRED0051X380 |
| Piston Material: | 2618 |
| Piston Quantity: | 1 |
| Piston Volume: | -4.20 |
| Product Market: | Domestic |
| Product Series: | RED Series |
| Product Type: | Engine Piston Set |
| Prop 65 (C, R or CR): | CR |
| Prop 65 - Short Label: | Prop 65 Warning Label.JPG |
| Prop 65 Yes/No: | Yes |
| Ring Set Included: | Yes |
| Rod Length: | 6.098 |
| Second Compression Ring Thickness: | 1.20 |
| Skirt Coating: | Yes |
| Stroke: | 3.622 |
| Title - Web: | RED Series Chevy LS1 Piston Set - 3.800 in. Bore - 1.330 .in CH, -4.20 CC |
| Title: | RED Series - Chevrolet, LS1, 3.800 in. Bore, Piston Set |
| Top Compression Ring Thickness: | 1.00 |
| Wrist Pin Included: | Yes |
| Wrist Pin Material: | 5115 |
| Wrist Pin Outer Diameter: | 0.943 |
| Wrist Pin Style: | Floating |
Application Summary
Chevrolet LS 5.3L
Part Type
Engine Piston Set
Features
- Accumulator groove helps maintain consistent ring seal and power
- ArmorGlide skirt coating reduces operating friction and noise while also reducing skirt and cylinder wear
- Dedicated forgings allow for optimized, engine-specific strutted design to maximize strength-to-weight characteristics
- Each part number includes premium rings no need for additional sourcing
- Engineered, forged, and machined in the USA from 2618 aluminum for tensile strength needed in performance racing and power adder applications
- Horizontal slot oiling in pin bores maintain optimal wrist pin and small-end lubrication, critical for long service life
Specifications
- Product Attributes - Brand
- Wiseco
- Product Attributes - Manufacturer's Part Number
- RED0051X380
- Product Attributes - Part Type
- Pistons
- Product Attributes - Product Line
- Wiseco RED Series Pistons
- Product Attributes - UPC
- 193564511317
- Product Attributes - Piston Rings Included
- Yes
- Product Attributes - Bore (in.)
- 3.800 in.
- Product Attributes - Bore (mm)
- 96.520mm
- Product Attributes - Stroke
- 3.622 in.
- Product Attributes - Engine Stroke Type
- Stock
- Product Attributes - Actual Engine Displacement
- 5.4L/328
- Product Attributes - Rod Length
- 6.098 in.
- Product Attributes - Piston Style
- Flat top, with two valve reliefs
- Product Attributes - Piston Material
- Forged aluminum
- Product Attributes - Compression Height (in.)
- 1.330 in.
- Product Attributes - Piston Head Volume (cc)
- +4.20cc
- Product Attributes - Wrist Pin Style
- Floating
- Product Attributes - Wrist Pin Retainers Included
- Yes
- Product Attributes - Wrist Pin Included
- Yes
- Product Attributes - Pin Diameter (in.)
- 0.943 in.
- Product Attributes - Piston Ring Thickness
- 1.00mm x 1.20mm x 2.80mm
- Product Attributes - File Fit
- Yes
- Product Attributes - Gapless
- No
- Product Attributes - Top Ring Thickness
- 1.0mm
- Product Attributes - Top Ring Material
- Steel
- Product Attributes - Top Ring Facing Material
- Gas nitrided
- Product Attributes - Second Ring Thickness
- 1.2mm
- Product Attributes - Second Ring Material
- Cast iron
- Product Attributes - Second Ring Facing Material
- Phosphate coated
- Product Attributes - Oil Ring Thickness
- 2.8mm
- Product Attributes - Oil Ring Material
- Stainless steel
- Product Attributes - Oil Ring Tension
- Standard
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a set of 8.
- Product Attributes - Notes
- Features a coated skirt.
Reference Information
| Brand Name/s | Wiseco |
|---|---|
| StreetFX SKU | wisRED0051X380 |
| SFX Item ID | 4064231 |
| Supplier Item Code | 4064231 |
| Manufacturer SKU | RED0051X380 |
| Manufacturer UPC | 193564511317 |
| Alternative References | LS1/LS2, 3800in, 1330in |
Compatibility
Chevrolet LS 5.3L
