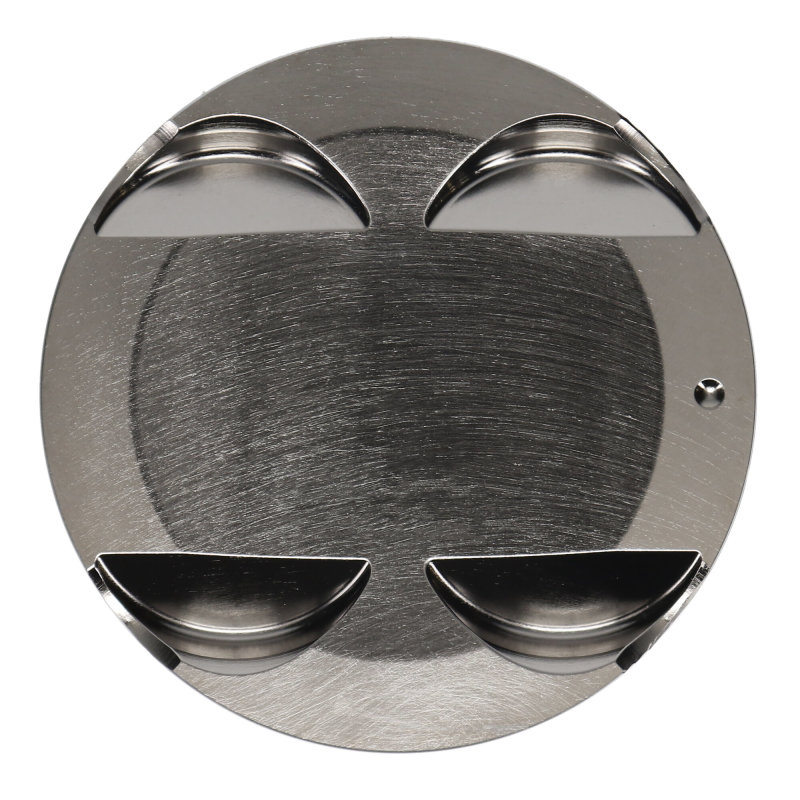

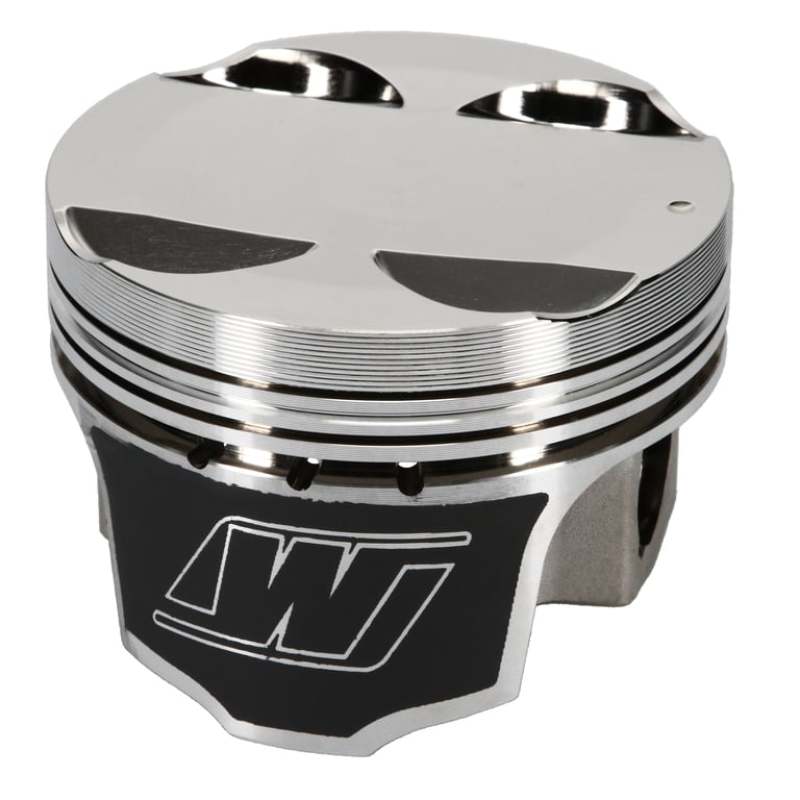

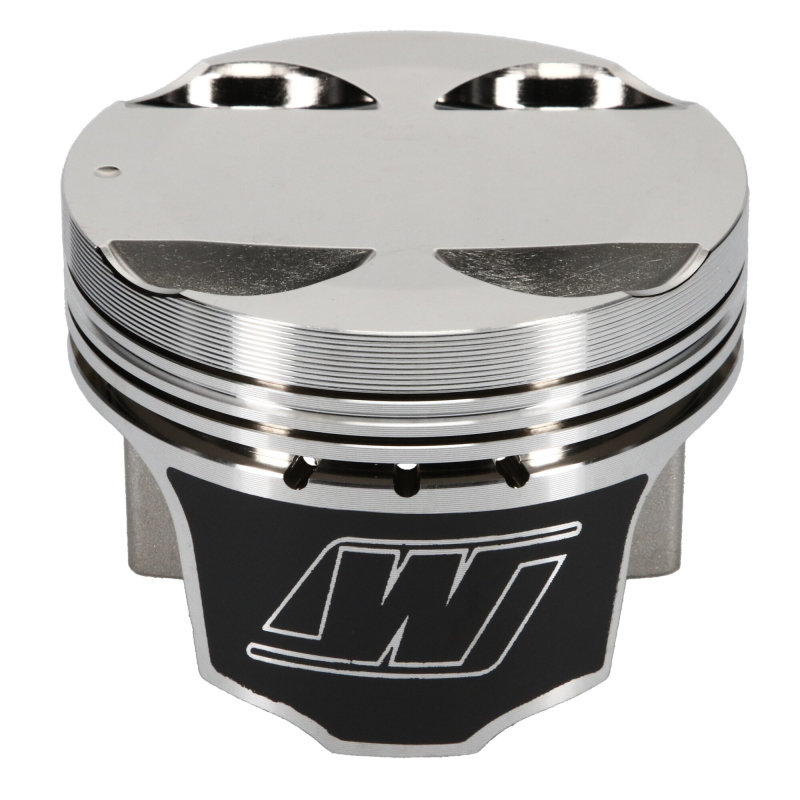

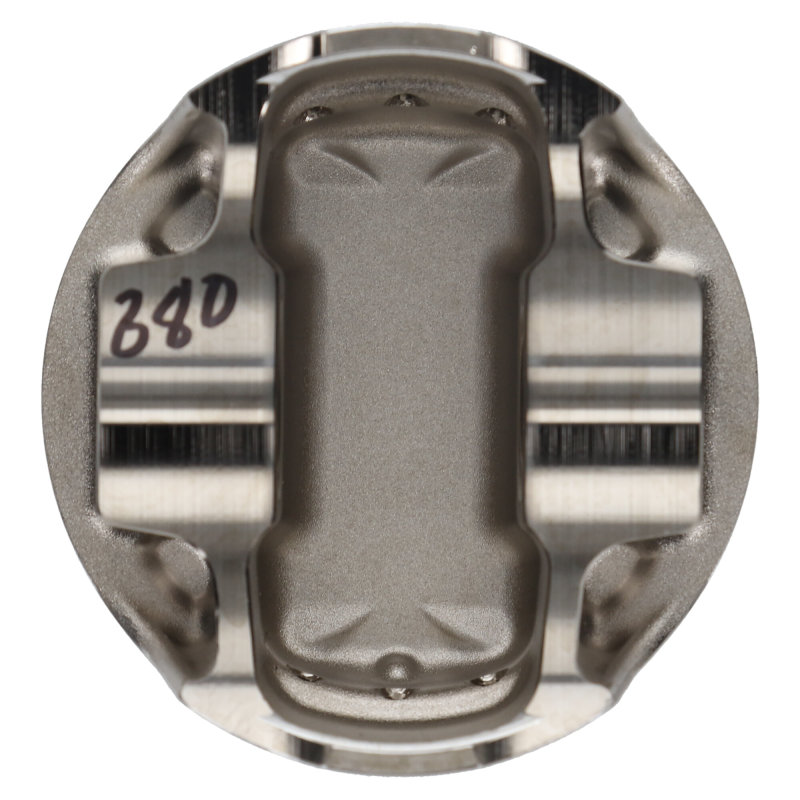

Wiseco Mitsu 4G64 w/4G63 Heads 10.5:1 E85 Piston Shelf Stock Kit
Wiseco Mitsu 4G64 w/4G63 Heads 10.5:1 E85 Piston Shelf Stock Kit
A$1,730.79
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Professional Series forged racing pistons from Wiseco are no-expense-spared pistons designed for the serious racers and builders. Packed full of custom-level performance and durability features and provided with premium rings, Professional Series pistons are designed and built for use in heavy to severe duty race builds. Remove your limits with Wiseco's Professional Series.
Product Overview
World renowned for our work building race winning pistons, Wiseco utilizes experience from a diverse background of the most sophisticated sport compact engines.
Wiseco’s Sport Compact Pro Tru line creates the best value in forged pistons today. These American made pistons are forged and machined by skilled Ohio craftsmen with state-of-the-art forging presses and CNC machines. By using dedicated forgings specific to the final piston shape, Pro Tru pistons are stronger and lighter than industry standards.
Pro Tru sets include plasma moly 1/16, 1/16, 3/16 pre-gapped ring packages which provide excellent seal, friction reduction, and long life. Pro Tru pistons also come in a variety of volumes that allow the engine builder to choose the exact compression ratio required for their engine.
Features and Benefits
- Engineered, forged, and machined in the USA from 2618 aluminum for improved tensile strengthArmorGlide? Skirt Coating: seizure resistant, friction reduction, and quieter operationFully machined crown featuresPrecision ring grooves, anti-detonation groove, and additional ring seal improving featuresForced pin oilingDesigned and built to withstand heavy to severe duty performance applications
Product Details
| Bore Diameter: | 86.50 |
|---|---|
| Bore: | 86.5mm |
| Category Hierarchy: | Auto>Pistons>Piston Kits>Sport Compact |
| Comp Height: | 35 |
| Comp Ratio: | 10.0:1 |
| Compression Height: | 35.00 |
| Description: | Pro Tru Pistons; Sport Compact Series; E85 Series; 1400H.D. w/ .225" Wall Tool Steel Pins; Set of 4 Pistons; Recommended RingSet: 8650XX; Rings & Pins Included |
| Dome Volume: | -8.5 |
| Engine - Web: | 4G64 |
| Engine Type: | ICE |
| Engine: | 4G64 |
| Forging Type: | FLAT |
| Gram Weight: | TBA |
| Industry: | Automotive |
| Make - Web: | Mitsubishi |
| Make: | Mitsubishi |
| Oil Ring Thickness: | 3 |
| Out of Stock Message: | Estimated Shipped Date 3-4 Weeks |
| Part Number: | wisK656M865 |
| Piston Material: | 2618 |
| Piston Quantity: | 4 |
| Piston Volume: | -4.50 |
| Product Market: | Sport Compact |
| Product Series: | Professional |
| Product Type: | Engine Piston Set |
| Prop 65 (C, R or CR): | CR |
| Prop 65 - Short Label: | Prop 65 Warning Label.JPG |
| Prop 65 Yes/No: | Yes |
| Ring Set Included: | Yes |
| Rod: | 150 |
| Second Compression Ring Thickness: | 1.2 |
| Skirt Coating: | Yes |
| Stroke: | 88 |
| Title - Web: | Professional Mitsubishi 4G64 Piston Set - 86.50 mm Bore - 35.00 mm CH, -4.50 CC |
| Title: | Wiseco - Mitsubishi, 4G64, 86.50 mm Bore, Piston Set |
| Top Compression Ring Thickness: | 1 |
| Wrist Pin Included: | Yes |
| Wrist Pin Material: | 9310 |
| Wrist Pin Outer Diameter: | 0.8661 |
| Wrist Pin Style: | Floating |
Application Summary
Mistsubishi 4G63
Part Type
Engine Piston Set
Features
- ArmorGlide Skirt Coating: seizure resistant, friction reduction, and quieter operation
- Designed and built to withstand heavy to severe duty performance applications
- Engineered, forged, and machined in the USA from 2618 aluminum for improved tensile strength
- Forced pin oiling
- Fully machined crown features
- Precision ring grooves, anti-detonation groove, and additional ring seal improving features
Specifications
- Product Attributes - Brand
- Wiseco
- Product Attributes - Manufacturer's Part Number
- K656M865
- Product Attributes - Part Type
- Pistons
- Product Attributes - UPC
- 00193564448231
Reference Information
| Brand Name/s | Wiseco |
|---|---|
| StreetFX SKU | wisK656M865 |
| SFX Item ID | 4063960 |
| Supplier Item Code | 4063960 |
| Manufacturer SKU | K656M865 |
| Manufacturer UPC | 193564448231 |
| Alternative References | 4G64, w/4G63, E85 |
Compatibility
Mistsubishi 4G63
