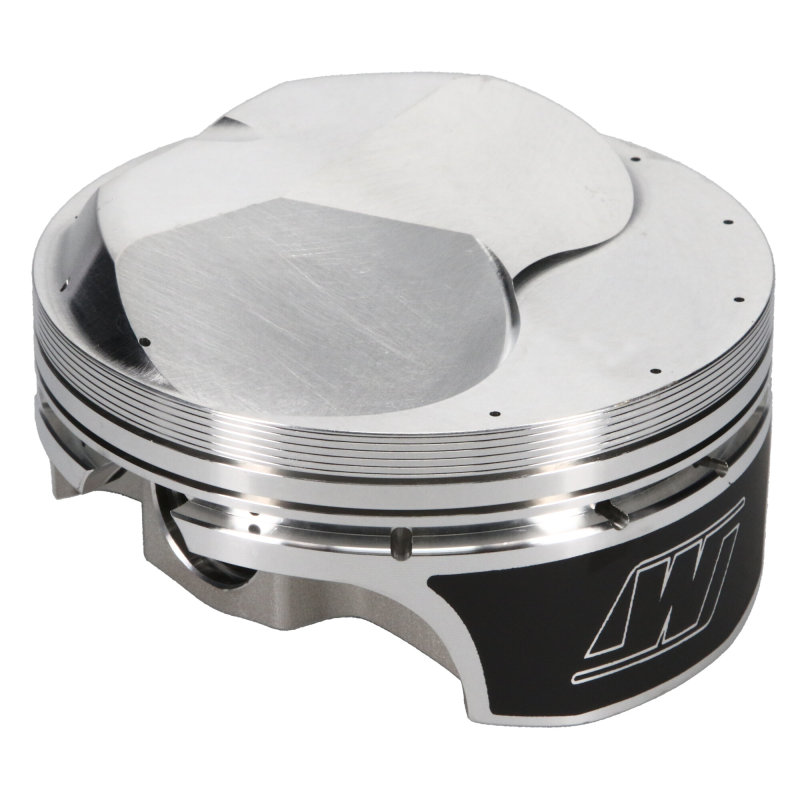

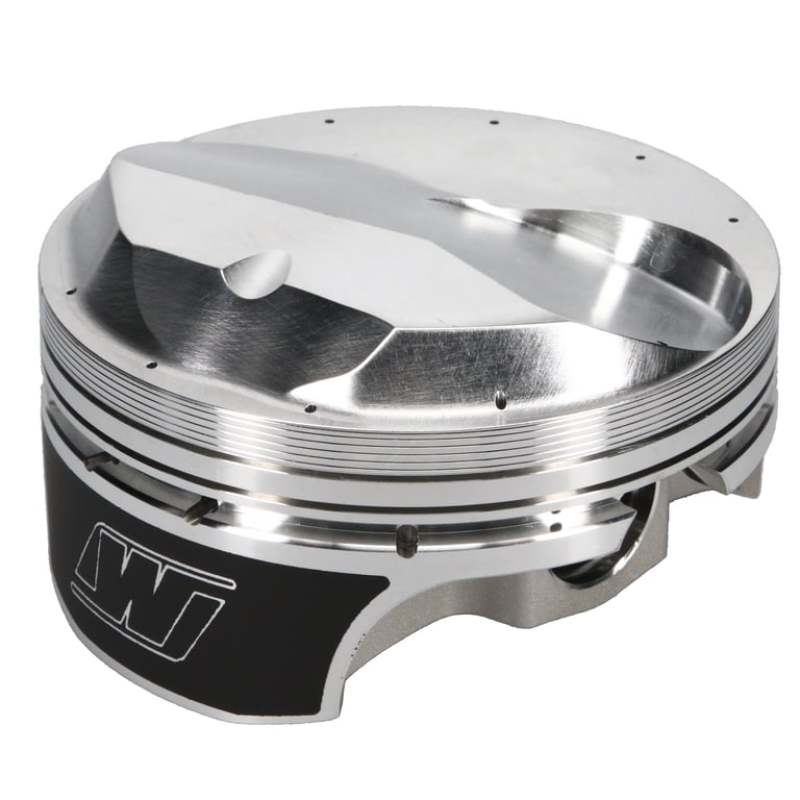

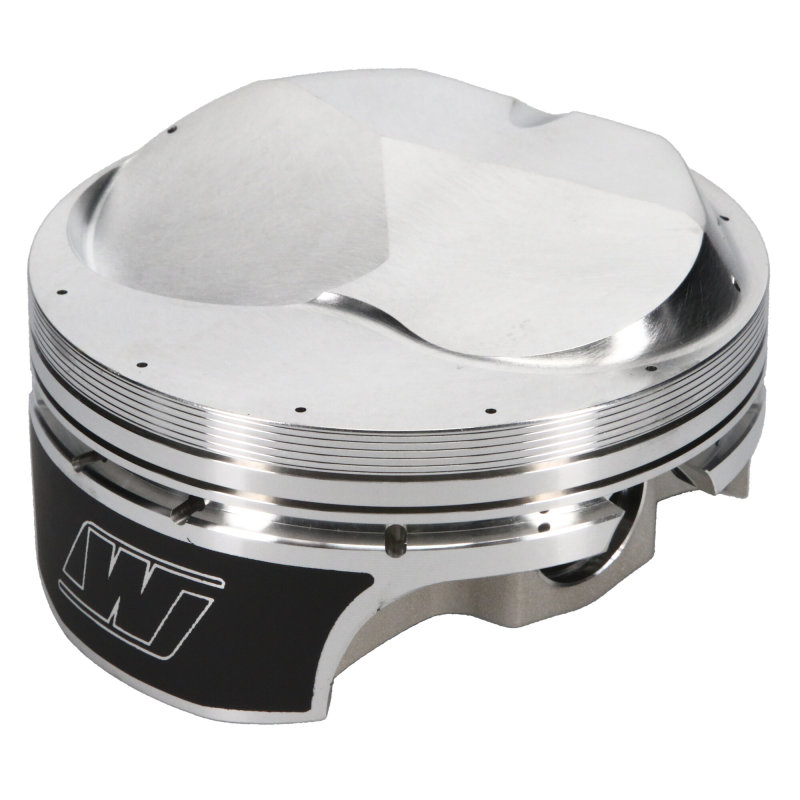

Wiseco BBC inchQ16inch Heavy NOS +42cc 1.120inch CH Piston Shelf Stock Kit
Wiseco BBC inchQ16inch Heavy NOS +42cc 1.120inch CH Piston Shelf Stock Kit
A$2,183.22
LOW STOCK! Est Ship 4-7 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Professional Series forged racing pistons from Wiseco are no-expense-spared pistons designed for the serious racers and builders. Packed full of custom-level performance and durability features and provided with premium rings, Professional Series pistons are designed and built for use in heavy to severe duty race builds. Remove your limits with Wiseco's Professional Series.
Product Overview
World renowned for their work building race winning pistons, Wiseco utilizes experience from a diverse background of the most sophisticated engines in such venues as Formula 1, Indy Racing League (IRL), NHRA Pro Stock, Moto GP, AMA Superbike, AMA Motocross and Supercross to design and manufacture the highest technology pistons available.
*Features*
* Valve Pocket designs that allow maximum flow around valve, also allowing oversized valves and high lift cams to be utilized.
* Piston Crown shapes designed to promote maximum Intake Charge efficiency through scavenging mixture “Cross Flow†during intake and
exhaust valve overlap. More fuel and air equals more horsepower!
* Piston Domes designed for optimal quench during the compression/ combustion cycle, resulting in resistance to detonation and preignition.
The end result is longer engine life and increased horsepower potential.
* Precision machined ring grooves with proper orifice/accumulator volume feature calculated groove root diameters and axial widths, providing
excellent surface finish and flatness, maximum ring seal and minimized blow-by and oil consumption.
* World class, ISO Certified, forging facility that utilizes the latest technologies - Featuring complex forged shapes, advanced materials, and feature-aligned grain flow technology.
* Complex Piston skirt profiles that reduce power robbing friction, yet promote stability in the bore for optimum ring seal.
*ArmorGlide Skirt Coating*
Wiseco’s new ArmorGlide skirt coating is the result of testing, development, and benchmarking through our in-house dyno program. The outcome - minimized friction, maximum horsepower, and improved wear resistance.
Not only is ArmorGlide a high-tech lubricant that reduces friction, but it also allows the piston to be fitted tighter within the bore than a non-coated piston. Better ring seal reduces noise from piston rock. ArmorGlide is being applied to selected pistons.
Features and Benefits
- Engineered, forged, and machined in the USA from 2618 aluminum for improved tensile strengthArmorGlide? Skirt Coating: seizure resistant, friction reduction, and quieter operationFully machined crown featuresPrecision ring grooves, anti-detonation groove, and additional ring seal improving featuresForced pin oilingDesigned and built to withstand heavy to severe duty performance applications
Product Details
| Bore Diameter: | 4.600 |
|---|---|
| Bore: | 4.6 |
| Category Hierarchy: | Auto>Pistons>Piston Kits>Domestic>Professional |
| Comp Height: | 1.12 |
| Comp Ratio @ 107CC: | 15.8 / 16.3 / 16.7 / 17.6:1 |
| Comp Ratio @ 114CC: | 14.6 / 15 / 15.4 / 16.2:1 |
| Comp Ratio @ 119CC: | 13.9 / 14.2 / 14.6 / 15.4:1 |
| Comp Ratio @ 123CC: | 13.3 / 13.7 / 14 / 14.6:1 |
| Compression Height: | 1.120 |
| Description: | Wiseco BBC inchQ16inch Heavy NOS +42cc 1.120inch CH Piston Shelf Stock Kit |
| Dome Volume: | 42 Hollow |
| Engine - Web: | Big Block |
| Engine Type: | ICE |
| Engine: | Big Block |
| Forging Type: | Strutted |
| Gram Weight: | 655 |
| Industry: | Automotive |
| Make - Web: | Chevrolet |
| Make: | Chevrolet |
| Out of Stock Message: | Estimated Shipped Date 3-4 Weeks |
| Part Number: | wisK0006B100 |
| Piston Material: | 2618 |
| Piston Quantity: | 8 |
| Piston Volume: | 42.00 |
| Product Market: | Domestic |
| Product Series: | Professional |
| Product Type: | Engine Piston Set |
| Prop 65 (C, R or CR): | CR |
| Prop 65 - Short Label: | Prop 65 Warning Label.JPG |
| Prop 65 Yes/No: | Yes |
| Ring Set Included: | No |
| Rod Length: | 6.535 / 6.480 |
| Rod: | 6.535 / 6.480 / 6.800 / 6.700 |
| Skirt Coating: | Yes |
| Stroke: | 4.250 / 4.375 |
| Title - Web: | Professional Chevy Big Block Piston Set - 4.600 in. Bore - 1.120 .in CH, 42.00 CC |
| Title: | Wiseco - Chevrolet, Big Block, 4.600 in. Bore, Piston Set |
| Wrist Pin Included: | Yes |
| Wrist Pin Material: | 52100 |
| Wrist Pin Outer Diameter: | 0.990 |
| Wrist Pin Style: | Floating |
Application Summary
Chevrolet Big Block
Part Type
Engine Piston Set
Features
- ArmorGlide Skirt Coating: seizure resistant, friction reduction, and quieter operation
- Designed and built to withstand heavy to severe duty performance applications
- Engineered, forged, and machined in the USA from 2618 aluminum for improved tensile strength
- Forced pin oiling
- Fully machined crown features
- Precision ring grooves, anti-detonation groove, and additional ring seal improving features
Specifications
- Product Attributes - Brand
- Wiseco
- Product Attributes - Manufacturer's Part Number
- K0006B100
- Product Attributes - Part Type
- Pistons
- Product Attributes - Product Line
- Wiseco Professional Series Pistons
- Product Attributes - UPC
- 00193564066008
- Product Attributes - Piston Rings Included
- No
- Product Attributes - Bore (in.)
- 4.600 in.
- Product Attributes - Bore (mm)
- 116.840mm
- Product Attributes - Stroke
- 4.250 in.
- Product Attributes - Engine Stroke Type
- Stroked
- Product Attributes - Rod Length
- 6.535 in.
- Product Attributes - Piston Style
- Dome, with two valve reliefs
- Product Attributes - Piston Material
- Forged aluminum
- Product Attributes - Compression Height (in.)
- 1.120 in.
- Product Attributes - Piston Head Volume (cc)
- -42.00cc
- Product Attributes - Wrist Pin Style
- Press-fit or floating
- Product Attributes - Wrist Pin Retainers Included
- Yes
- Product Attributes - Wrist Pin Included
- Yes
- Product Attributes - Pin Diameter (in.)
- 0.990 in.
- Product Attributes - Piston Ring Thickness
- 0.043 in. x 0.043 in. x 3.00mm
- Product Attributes - File Fit
- No
- Product Attributes - Gapless
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a set of 8.
- Product Attributes - Notes
- Piston features a semi-hollow dome. 9.800 in. block height.
Reference Information
| Brand Name/s | Wiseco |
|---|---|
| StreetFX SKU | wisK0006B100 |
| SFX Item ID | 4062515 |
| Supplier Item Code | 4062515 |
| Manufacturer SKU | K0006B100 |
| Manufacturer UPC | 193564066008 |
| Alternative References | inchQ16inch, +42cc, 1.120inch |
