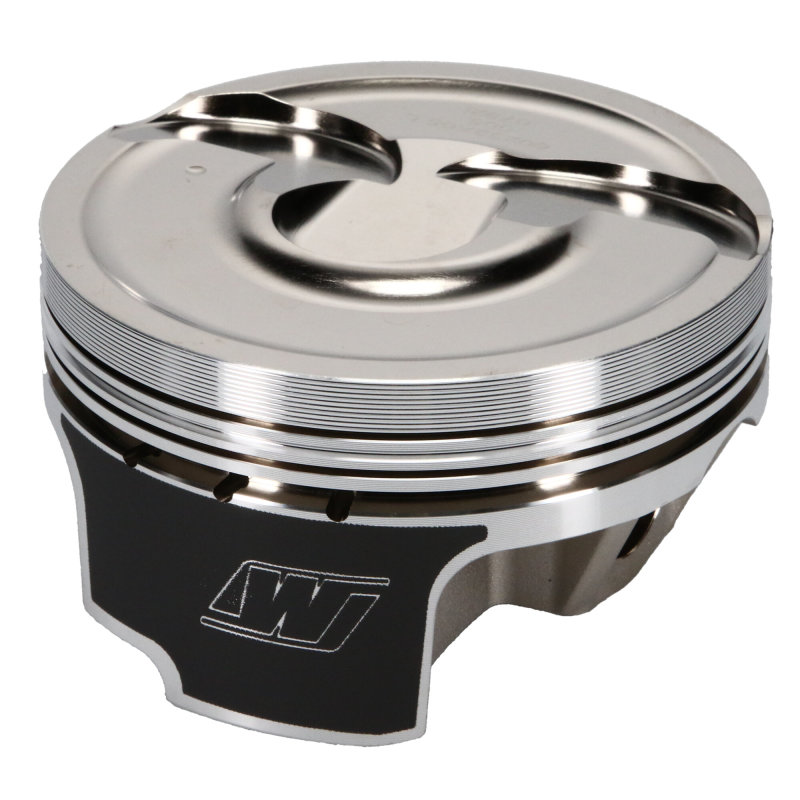

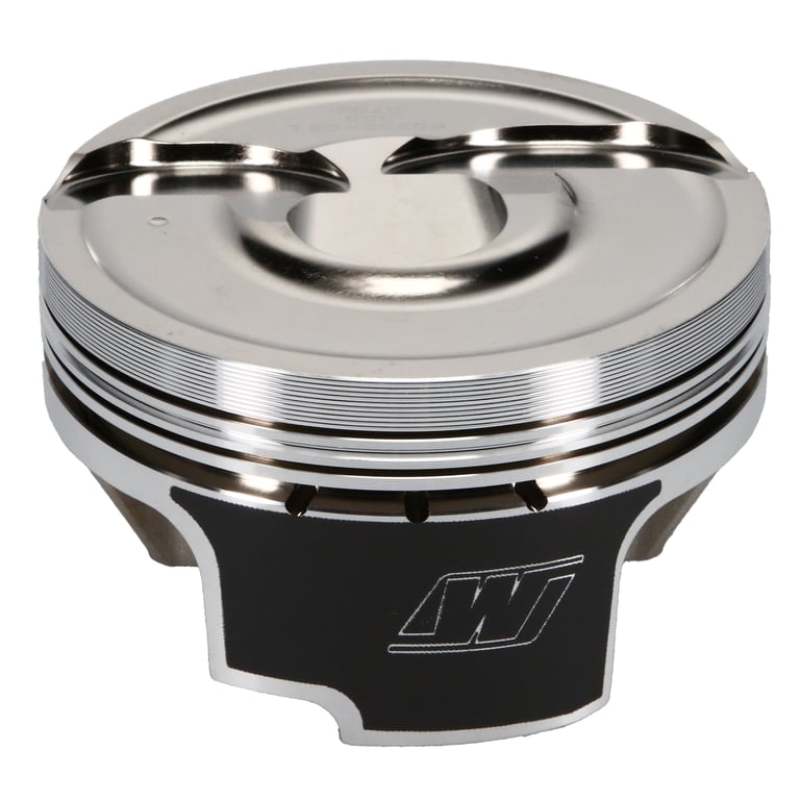

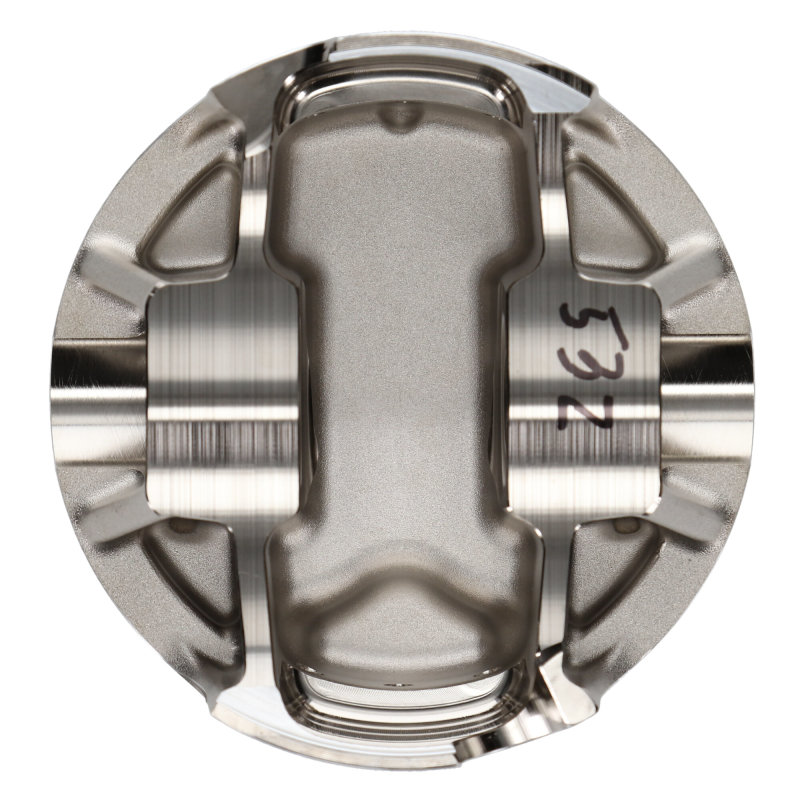

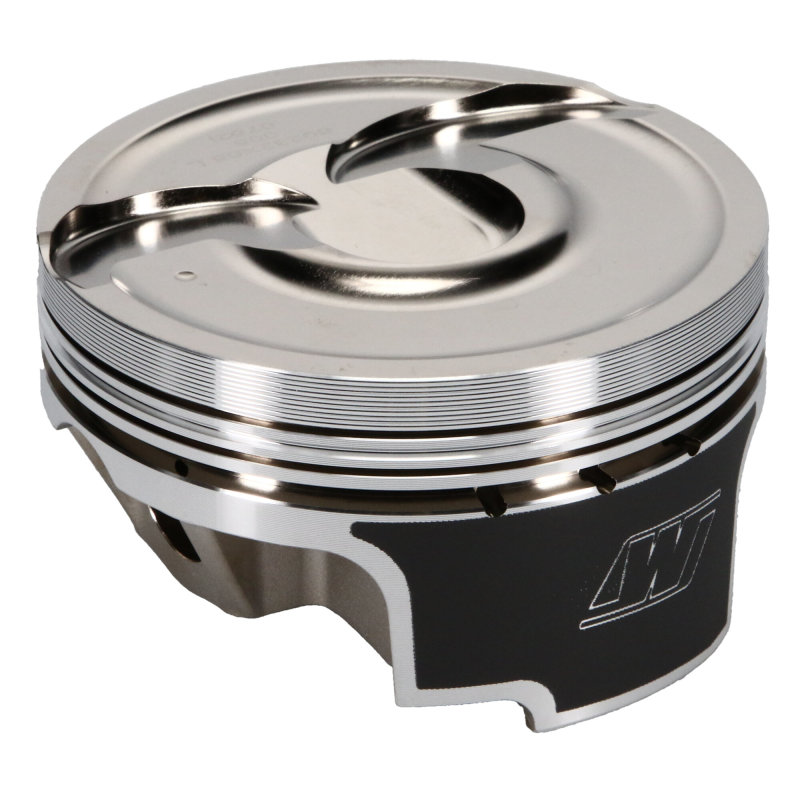

Wiseco Chevrolet LT1 6.2L 4.070 Bore 1.304 Comp Ht. -12cc Volume Left Side Piston
Wiseco Chevrolet LT1 6.2L 4.070 Bore 1.304 Comp Ht. -12cc Volume Left Side Piston
A$311.85
LAST ONE! Est Ship 3-5 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Professional Series forged racing pistons from Wiseco are no-expense-spared pistons designed for the serious racers and builders. Packed full of custom-level performance and durability features and provided with premium rings, Professional Series pistons are designed and built for use in heavy to severe duty race builds. Remove your limits with Wiseco's Professional Series.
Product Overview
Professional Series forged racing pistons from Wiseco are no-expense-spared pistons designed for the serious racers and builders. Packed full of custom-level performance and durability features and provided with premium rings, Professional Series pistons are designed and built for use in heavy to severe duty race builds. Remove your limits with Wiseco?s Professional Series.
Features and Benefits
- Engineered, forged, and machined in the USA from 2618 aluminum for improved tensile strengthArmorGlide? Skirt Coating: seizure resistant, friction reduction, and quieter operationFully machined crown featuresPrecision ring grooves, anti-detonation groove, and additional ring seal improving featuresForced pin oilingDesigned and built to withstand heavy to severe duty performance applications
Product Details
| Bore Diameter: | 4.070 |
|---|---|
| Category Hierarchy: | Auto>Pistons>Individual Pistons>Domestic>Professional |
| Compression Height: | 1.3045 |
| Description: | Wiseco Chevrolet LT1 6.2L 4.070 Bore 1.304 Comp Ht. -12cc Volume Left Side Piston |
| Engine - Web: | LT |
| Engine Type: | ICE |
| Engine: | LT1 Gen 5 |
| Forging Type: | Strutted |
| Industry: | Automotive |
| Make - Web: | Chevrolet |
| Make: | Chevrolet |
| Oil Ring Thickness: | 3.0 |
| Out of Stock Message: | Estimated Shipped Date 3-4 Weeks |
| Part Number: | wis60232LX05 |
| Piston Material: | 2618 |
| Piston Quantity: | 1 |
| Piston Volume: | -12.00 |
| Product Market: | Domestic |
| Product Series: | Professional |
| Product Type: | Engine Piston |
| Prop 65 (C, R or CR): | CR |
| Prop 65 - Short Label: | Prop 65 Warning Label.JPG |
| Prop 65 Yes/No: | Yes |
| Ring Set Included: | Yes |
| Second Compression Ring Thickness: | 0.047 |
| Skirt Coating: | Yes |
| Title - Web: | Professional Chevy LT1 Piston - 4.070 in. Bore - 1.3045 .in CH, -12.00 CC |
| Title: | Wiseco - Chevrolet, LT1, 4.070 in. Bore, Piston |
| Top Compression Ring Thickness: | 0.047 |
| Wrist Pin Included: | Yes |
| Wrist Pin Material: | 9310 |
| Wrist Pin Outer Diameter: | 0.927 |
| Wrist Pin Style: | Floating |
Application Summary
Chevrolet LT1 Gen V
Part Type
Engine Piston
Features
- ArmorGlide Skirt Coating: seizure resistant, friction reduction, and quieter operation
- Designed and built to withstand heavy to severe duty performance applications
- Engineered, forged, and machined in the USA from 2618 aluminum for improved tensile strength
- Forced pin oiling
- Fully machined crown features
- Precision ring grooves, anti-detonation groove, and additional ring seal improving features
Specifications
- Product Attributes - Brand
- Wiseco
- Product Attributes - Manufacturer's Part Number
- 60232LX05
- Product Attributes - Part Type
- Pistons
- Product Attributes - Product Line
- Wiseco Professional Series Pistons
- Product Attributes - UPC
- 00193564079596
- Product Attributes - Piston Rings Included
- Yes
- Product Attributes - Bore (in.)
- 4.070 in.
- Product Attributes - Bore (mm)
- 103.378mm
- Product Attributes - Stroke
- 3.622 in.
- Product Attributes - Engine Stroke Type
- Stock
- Product Attributes - Actual Engine Displacement
- 6.2L/376
- Product Attributes - Rod Length
- 6.125 in.
- Product Attributes - Piston Style

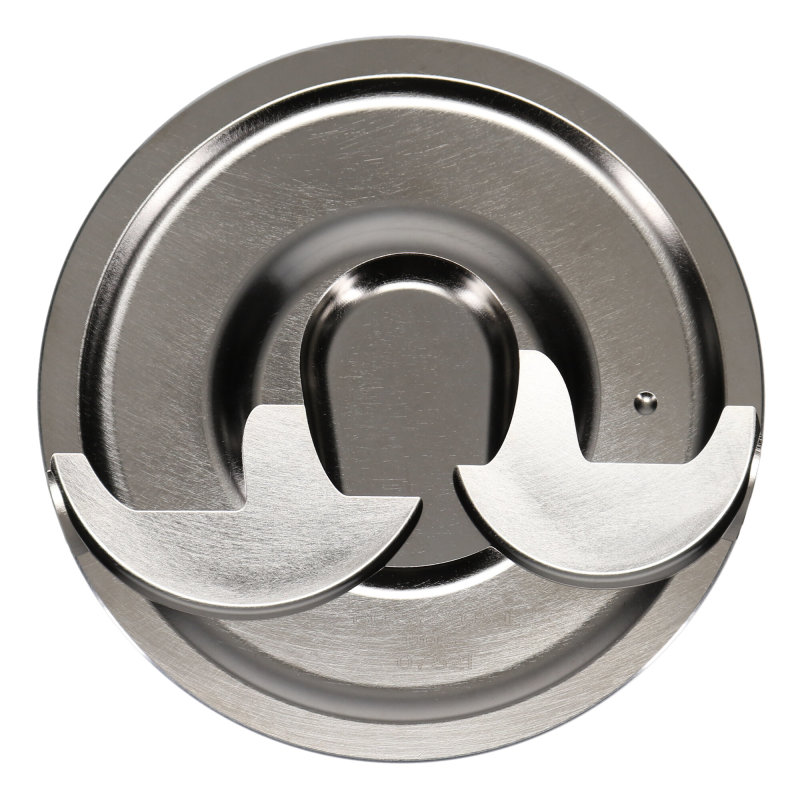

- Dish, with two valve reliefs
- Product Attributes - Piston Material
- Forged aluminum
- Product Attributes - Compression Height (in.)
- 1.304 in.
- Product Attributes - Piston Head Volume (cc)
- +20.00cc
- Product Attributes - Wrist Pin Style
- Floating
- Product Attributes - Wrist Pin Retainers Included
- Yes
- Product Attributes - Wrist Pin Included
- Yes
- Product Attributes - Pin Diameter (in.)
- 0.927 in.
- Product Attributes - Piston Ring Thickness
- 0.047 in. x 0.047 in. x 3.00mm
- Product Attributes - File Fit
- Yes
- Product Attributes - Gapless
- No
- Product Attributes - Top Ring Thickness
- 0.047 in.
- Product Attributes - Top Ring Material
- Steel
- Product Attributes - Top Ring Facing Material
- Gas nitrided
- Product Attributes - Second Ring Thickness
- 0.047 in.
- Product Attributes - Second Ring Material
- Cast iron
- Product Attributes - Second Ring Facing Material
- Phosphate coated
- Product Attributes - Oil Ring Thickness
- 3.0mm
- Product Attributes - Oil Ring Material
- Stainless steel
- Product Attributes - Oil Ring Tension
- Standard
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Replacement left side piston only.
Reference Information
| Brand Name/s | Wiseco |
|---|---|
| StreetFX SKU | wis60232LX05 |
| SFX Item ID | 4061940 |
| Supplier Item Code | 4061940 |
| Manufacturer SKU | 60232LX05 |
| Manufacturer UPC | 193564079596 |
| Alternative References | LT1, 6.2L, -12cc |
Compatibility
Chevrolet LT1 Gen V
